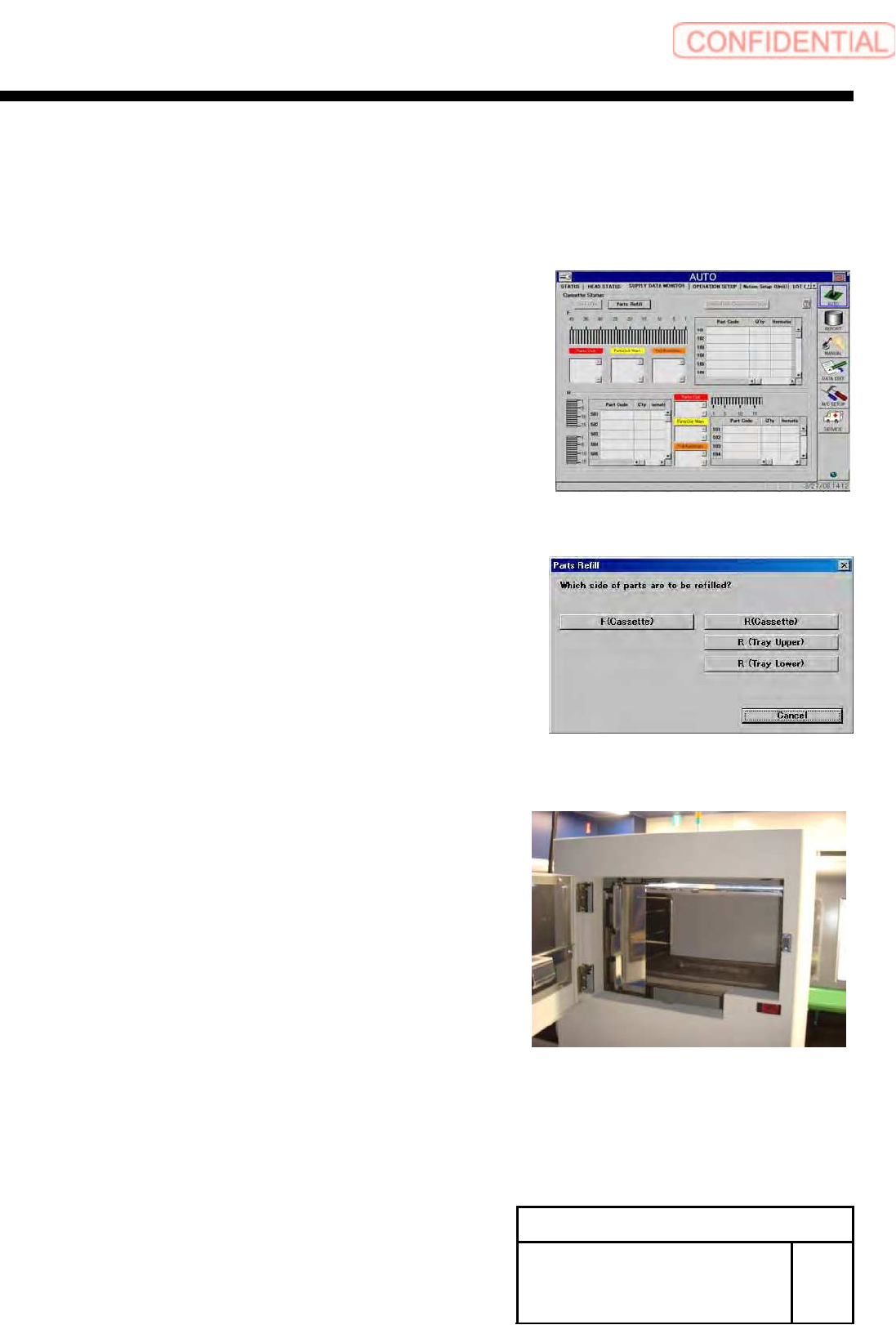

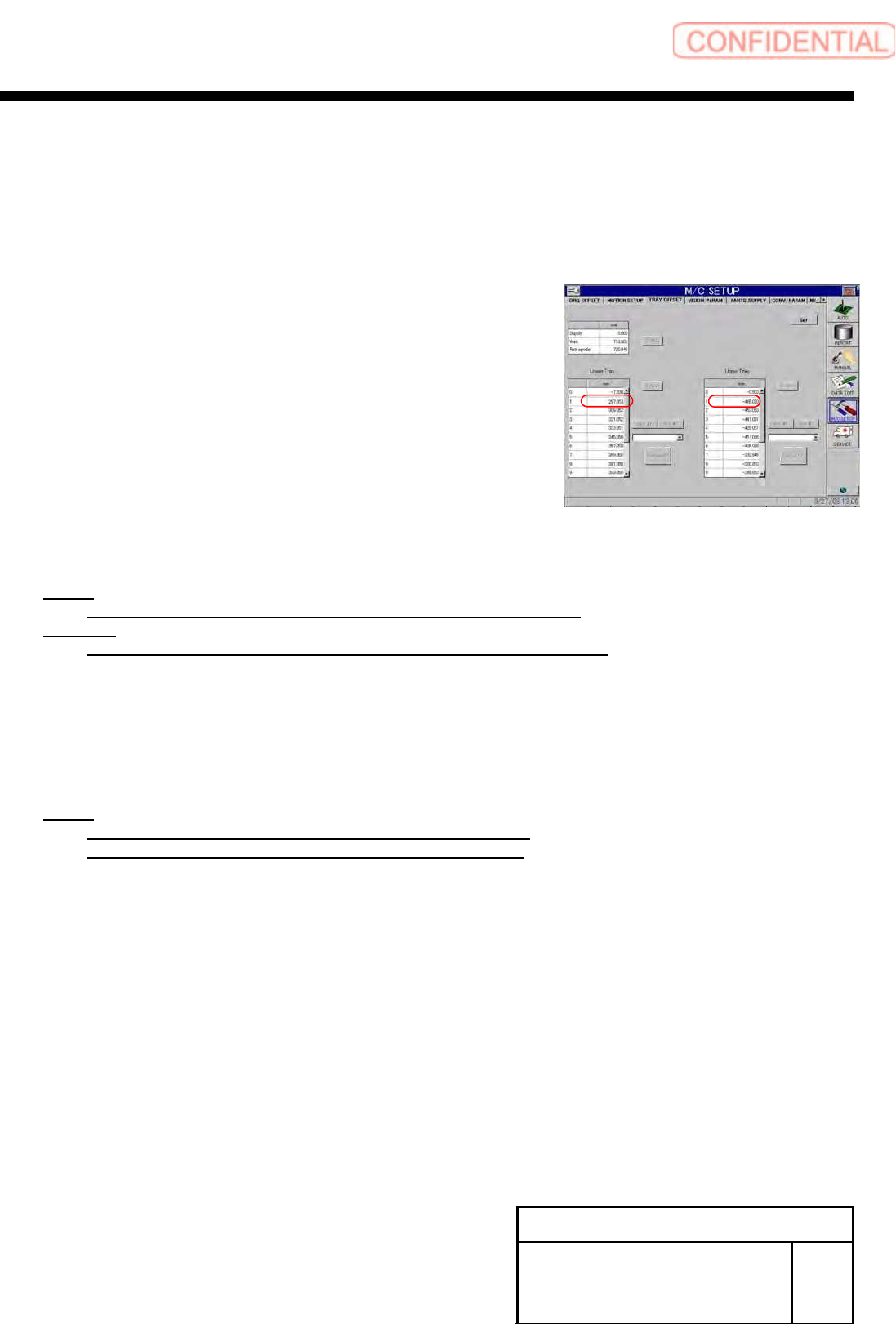

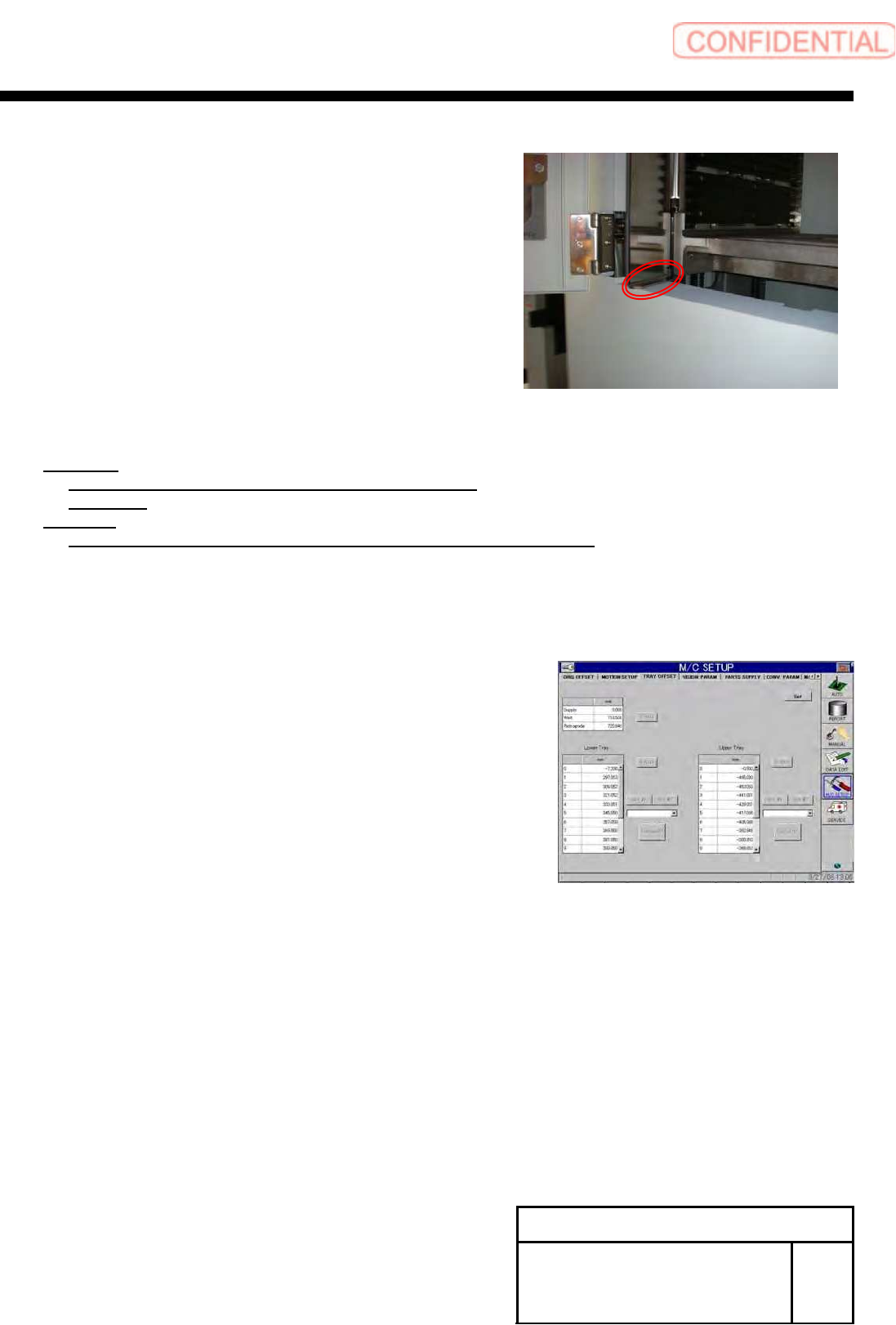

Install Tray Unit (Including machine modification)
SHEET
64/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)
[Setup of VU, VL axis parts replacement standby height]
1 Return the unit to the origin.
2 Press the Parts replace button on the
AUTO/PARTS SUPPLY STATUS screen.
3 Select the R (Tray upper) button.
4 Open the tray upper door.
Install Tray Unit (Including machine modification)
SHEET
65/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)
5 Check clearance between the tray inside
door and the tray cover.
6 Calculate the standby height.
Equation:
Parts replace standby height
= 1.0[mm] –
Clearance
Example:
Parts replace standby height
= 1.0[mm] – 3.0[mm] =-2.0[mm]
7 Close the door of the tray.
8 Display the M/C SETUP/tray Offset screen.
9 Input the calculated standby height into the O on
the upper tray.
10 Press the Set button to reflect the Setup.
11 Again, perform parts replacement on the R
(Tray upper) to check that the door is
completely opened.
12 Set the standby height of the lower tray by
the same procedure.
Install Tray Unit (Including machine modification)
SHEET
66/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)
[SY-MC interference avoid setup]
Please confirm "Setup of tray supply height" has been completed before This setup is executed.
1 Record the values of “Upper tray 1”, “Lower
tray 1” on the Tray offset screen of the M/C
Setup.
2 Calculate distance between origins.
NOTE:
Distance between origins = (Upper tray 1) – (Lower tray 1)
Example:
Distance between origins
= -472.999 – (289.916) = -762.915
3 Open “c:¥asm¥mcdata2¥ac_control_param.ini” and
change values of “AC_ORIGIN_DISTANCE” for
[AC_VU_INTERFERE] and [AC_VL_INTERFERE].
NOTE:
Input distance between origins for VU with negative sign.
Input distance between origins for VL with positive sign.
