Install Tray Unit (Including machine modification) SHEET 69/73 WKGB-10104-03 Installing Tray Unit (Including machine modification) [T ray pickup position setup] [Necessary jig] ・ T ray pickup position teaching jig ・ Leng…
Install Tray Unit (Including machine modification)
SHEET
68/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)
5 Move to a position where clearance between the S
axis pin and the tray pallet is 0.1[mm] through the
S axis operation menu.
6 Check that the Pallet of Z601 can smoothly
move by manual operation.
7 Check movement conditions of the tray
palette of Z615, Z515, and Z501 according to
a similar procedure on manual operation
mode.
601
0.1[mm]
Tray Pallet
Pin of S-axis
Install Tray Unit (Including machine modification)
SHEET
69/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)

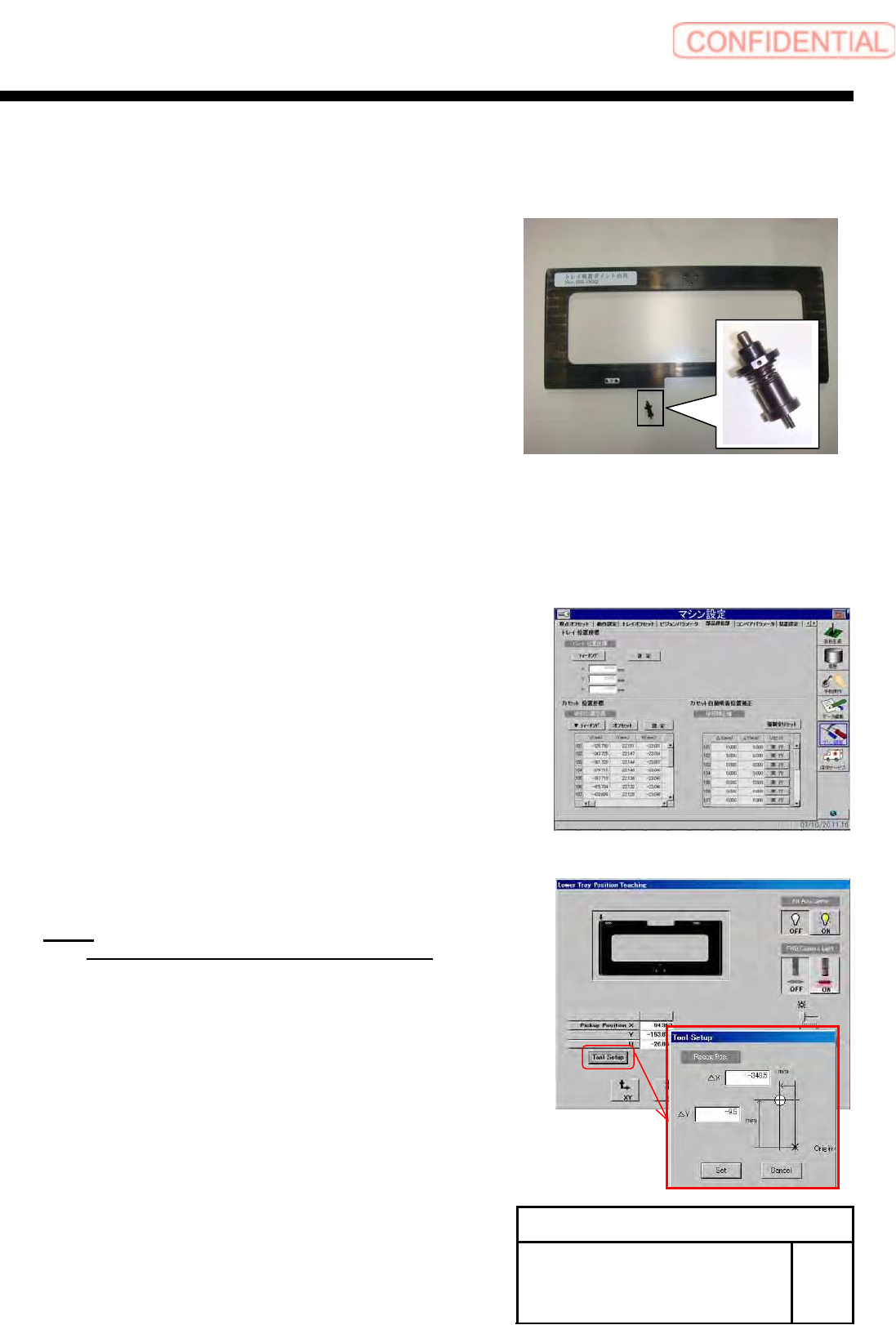

[Tray pickup position setup]
[Necessary jig]
・Tray pickup position teaching jig
・Length reference nozzle jig
・Thickness gauge(0.03[mm])
1 Install the length reference nozzle jig to the
Index 1 of rear side Head.
2 Return the unit to the origin.
3 Press the tray teaching button on the Parts
Supply screen.
4 Press the jig setup button to check the
values of
ΔX, ΔY.
NOTE:
Jig set value
ΔX= -348.5 ,ΔY= -9.5[mm]
Install Tray Unit (Including machine modification)
SHEET
70/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)

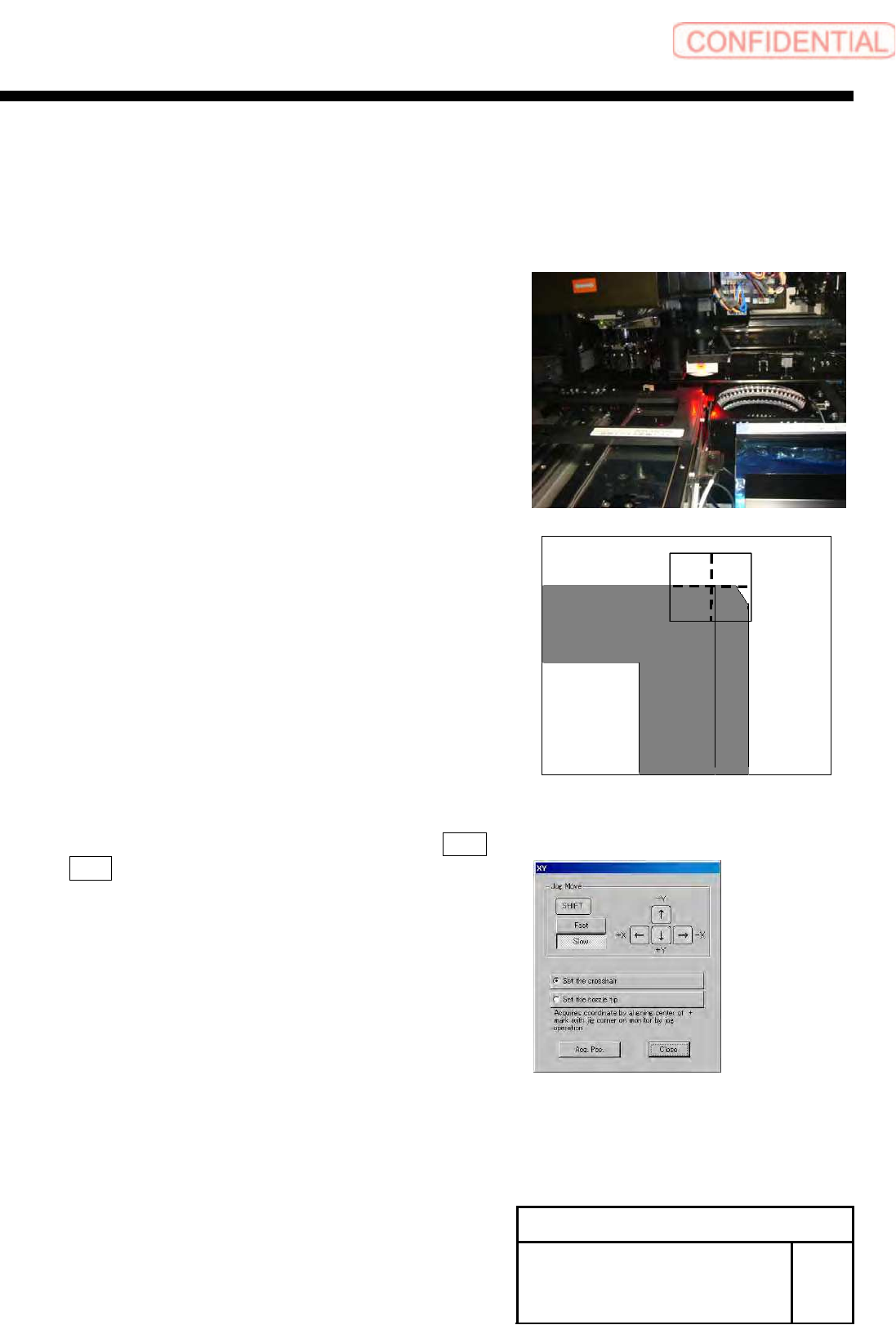

5 Set the tray pickup position teaching jig to
the S axis chuck.
6 Press the XY button to move the PWB
camera to the jig corner.
7 Check that set the crosshair to white ball
center button is selected, and press the Acq.
Pos. button.
8 Move the nozzle onto the tray pickup
position teaching jig.
