Install Tray Unit (Re-setup after tray unit moved) SEET 17/19 WKGB-10105-02 Installing Tray Unit (Re-setup after tray unit moved) 20. Select “01 ～ 05” from the dropdown list. 21. Press the SET #1 button to open the VU Ax…
Install Tray Unit (Re-setup after tray unit moved)
SEET
16/19
WKGB-10105-02
Installing Tray Unit
(Re-setup after tray unit moved)
7. Close the shutter to return to the Tray Offset
screen.
8. Again, press the SET #1 button to open the VU
Axis screen.
9. Press the Set button on the VU Axis screen to
close.
10. Press the Set button on the Tray Offset screen.
11. Press the SET #2 button on the Tray Offset screen
to open the VU Axis screen.
12. Relative-move by 48[mm] from the supply No. 501.
13. Open the shutter on the cassette screen for
MANUAL.
14. Check that the tray pallet can smoothly move
between the tray rack and the S axis.
NOTE:
If transit of the tray pallet is not smooth,
adjust height of the tray pallet To a height
which allows smooth transit by JOG
operation.
15. Close the shutter to return to the Tray Offset
screen.
16. Again, press the SET #2 button on the Tray Offset
screen to open the VU Axis screen.
17. Press the Set button on the VU Axis screen to
close.
NOTE:
The
calculate button will be enable.
18. Press the Calculate button.
19. Press the Set button on the Tray Offset button.
Install Tray Unit (Re-setup after tray unit moved)
SEET
17/19
WKGB-10105-02
Installing Tray Unit
(Re-setup after tray unit moved)
20. Select “01～05” from the dropdown list.
21. Press the SET #1 button to open the VU Axis
screen.
22. Relative-move by 12[mm] from the supply No. 505.
20. Perform setup from Z506 to Z515 by the same
procedure.
Reference (Moving amount on each stage):
Z501(1 ST SET)
～ Z505(2 ND SET) 48[mm]
Z505(1 ST SET)
～ Z506(2 ND SET) 12[mm]
Z506(1 ST SET)
～ Z510(2 ND SET) 48[mm]
Z510(1 ST SET)
～ Z511(2 ND SET) 12[mm]
Z511(1 ST SET)
～ Z515(2 ND SET) 48[mm]
4 After M/C org. Perform setup for supply
height of VL axis similarly to the VU axis.
Install Tray Unit (Re-setup after tray unit moved)
SEET
18/19
WKGB-10105-02
Installing Tray Unit
(Re-setup after tray unit moved)

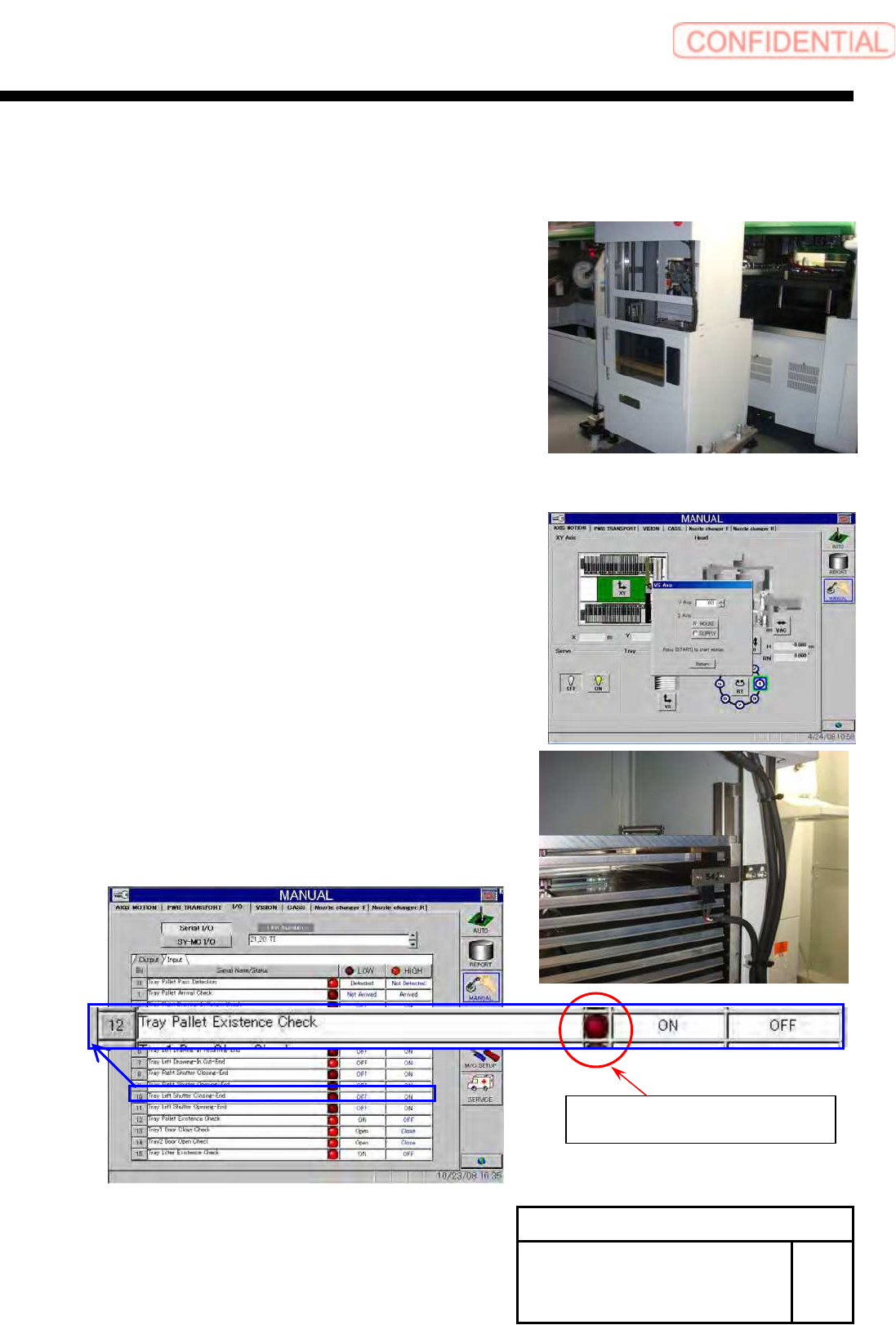

[Adjustment of path line sensor]
1 Remove front cover of tray unit.
2 Store the tray pallet into the Z501.
3 Move the VU axis to the Z501 by manual
operation.
4 Adjust sensor position, and check that it is
turned ON in the presence of tray pallet and
turned OFF in the absence of tray pallet.
5 Install the removed cover to the previous
state.
There is a palette :Light
There is not palette :Dark
I/O screen of Manual mode (Input 21,20 TI)
