Preparation for Calibration
HLGB-10101-01
Install the Calibration Plate Jig
SHEET
3/3

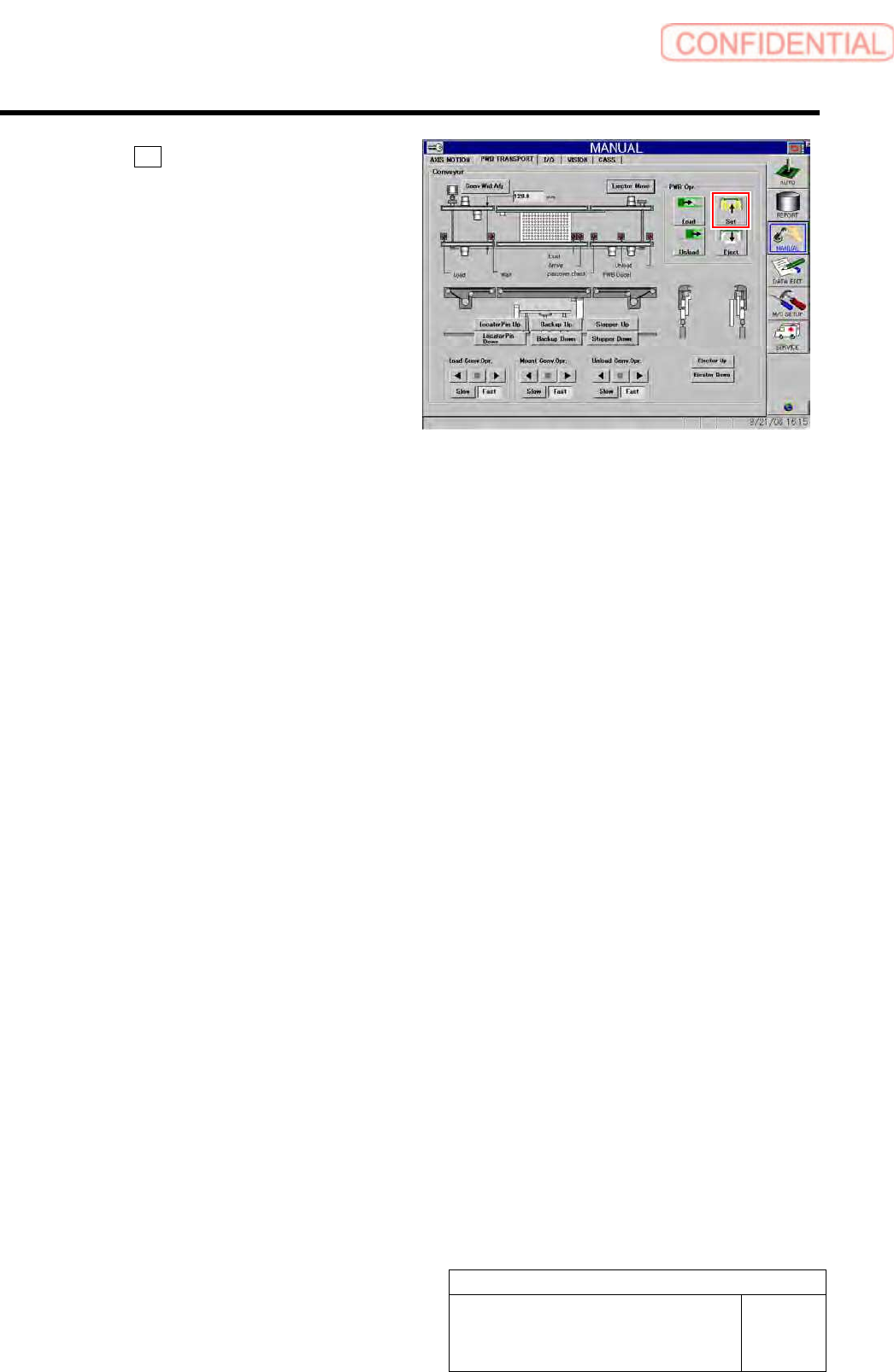

5 Click the Set button to fix the calibration
plate.
6 Release the emergency stop switch to return
the unit to the origin.
Preparation for Calibration
HLGB-10102-01
Remove Production Nozzle
SHEET
1/1
Remove Production Nozzle
Remove the nozzle used for production according to the procedure in this section because it is not
used for calibration operation.
[Procedure]

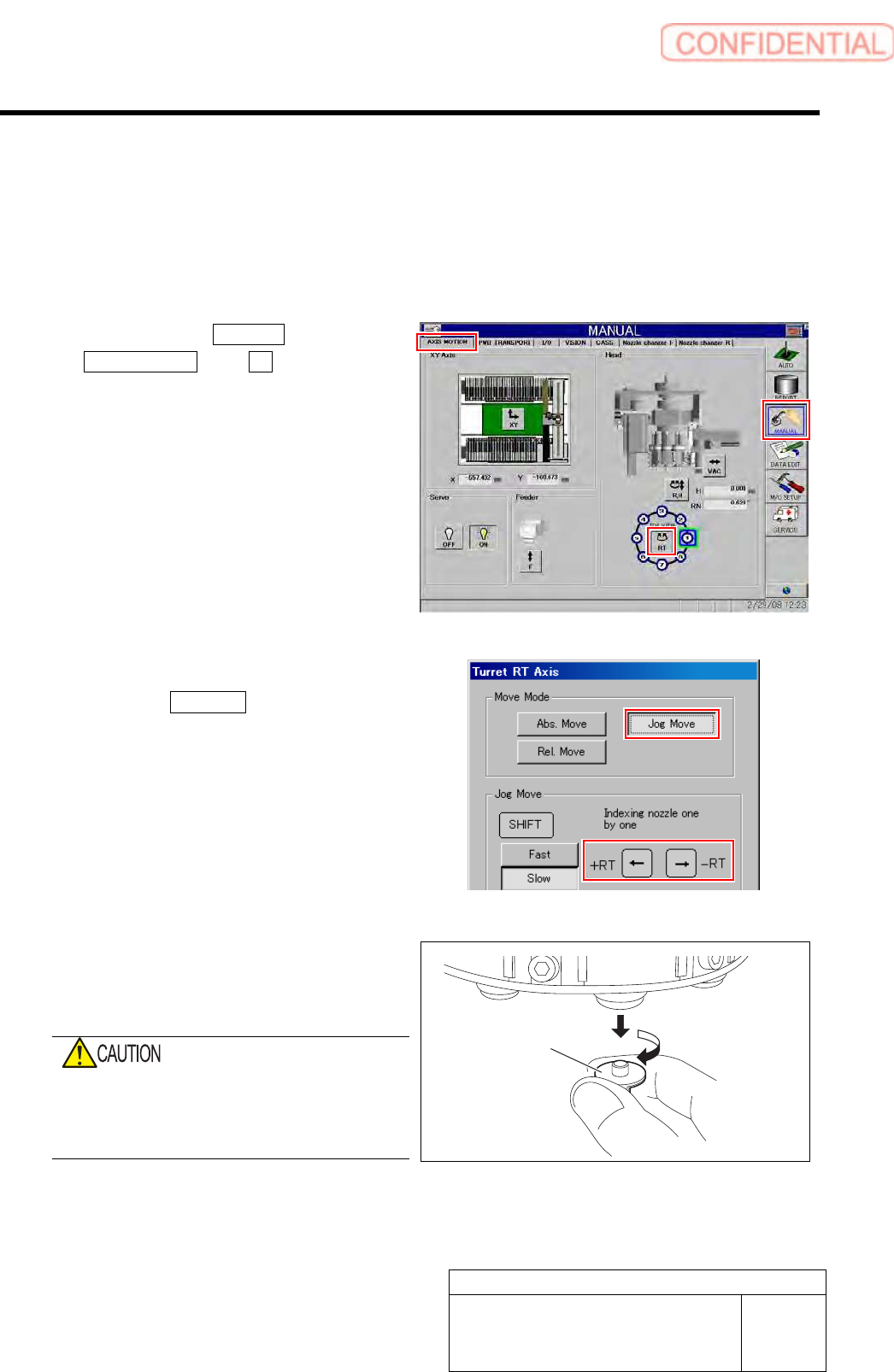

1 Click in an order of MANUAL menu
AXIS MOTION tab RT button.
Turret RT Axis screen is displayed.
2 Move the nozzle to be removed toward you.
1. Click the Jog Move button in the move
mode.
2. Press the cursor key on the left and
right to jog move the nozzle to be
removed toward you.
3 Grab circumference of the nozzle by fingers
and pull out downward with light force while
turning the nozzle slowly.
When removing the nozzle, do not grab the
end of the nozzle.
Otherwise, the nozzle may be deformed,
causing failure of adsorption or placement.
4 Repeat the procedure 2 and 3 to remove all
of the 8 nozzles.
Nozzle
Preparation for Calibration
HLGB-10103-01
Front, Rear LED Control PWB Setup
SHEET
1/3
Front, Rear LED Control PWB Setup
Setup of LED control board used for SI-G200BB will be explained. Check this setup for the front and
rear head respectively.
[Procedure]

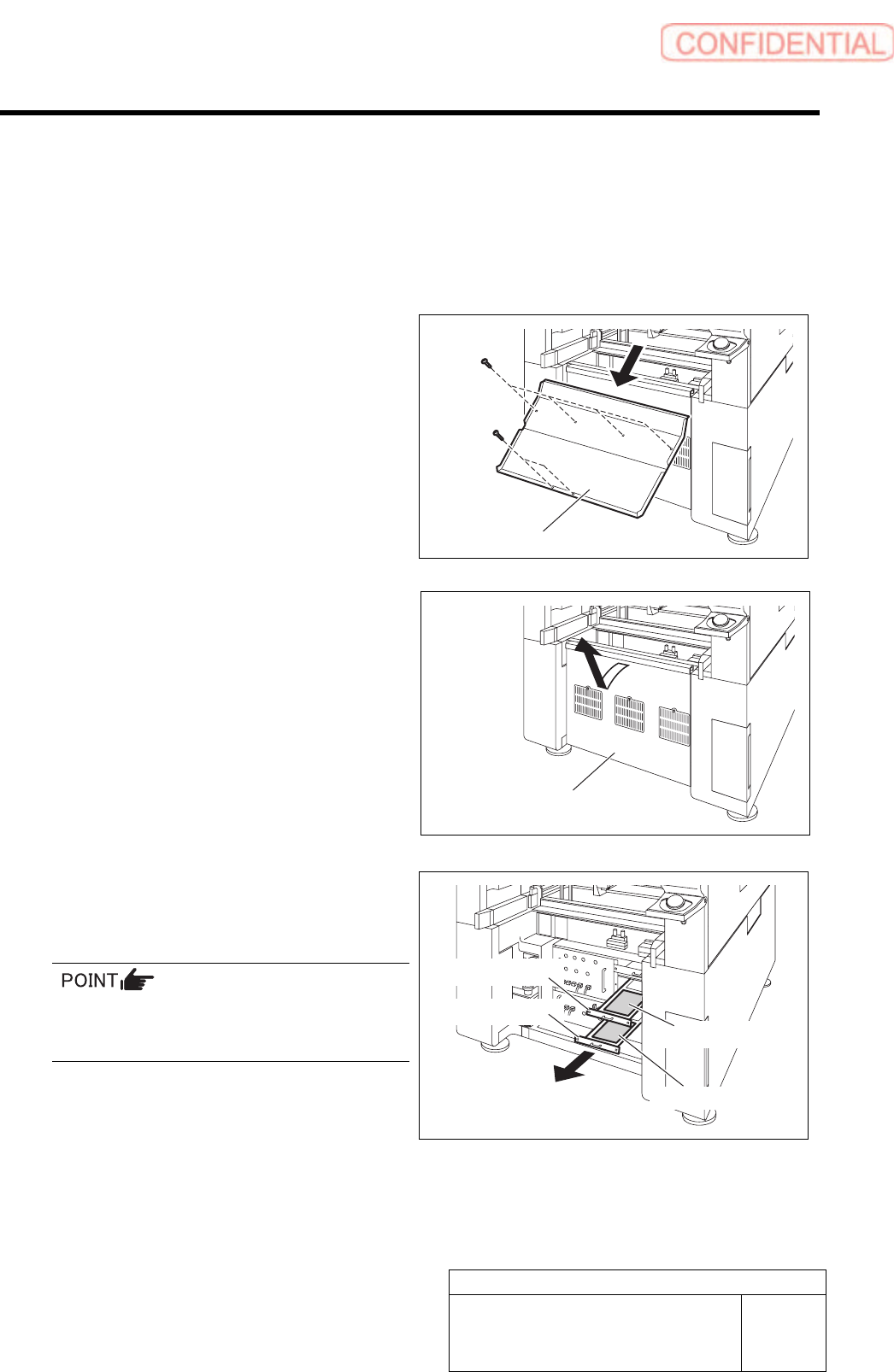

1 Draw out the I/O unit to a position where
working is easily performed.
1. Remove the shooter on the rear of the
unit.
2. Remove the lower cover on the rear of
the unit.
Pull up the lower cover to remove while tilting
the upper of the lower cover toward you.
3. Loosen two screws to draw out the I/O
unit 2 and I/O unit 3.
The front LED control board is stored in the I/O
unit 2, and the rear LED control board is stored
in the I/O unit 3.
Shoote
r
Lower cove
r
Front LED control board
Rear LED control board
I/O unit 2
I/O unit 3
