Set-up
HLGB-10203-01
Acquiring Mounting Stroke Setup
SHEET
1/5
Acquiring Mounting Stroke Setup
Perform this working on both heads on the front side and rear side.
[Necessary jigs]
A Calibration plate jig
B Jig positioning pin
C Length reference nozzle jig
D Thickness gauge (t=0.03 mm)
[Procedure]
1 Install the calibration plate jig.
For mounting method of the calibration plate jig, refer to “Install the Calibration Plate Jig [HLGB-10101-01]”.
2 Click in an order of MANUAL menu
PWB TRANSPORT tab Set button.
The backup plate rises.
3 Press the [ORG] button on the operation
panel to perform origin position return.
A
BD
C
Set-up
HLGB-10203-01
Acquiring Mounting Stroke Setup
SHEET
2/5

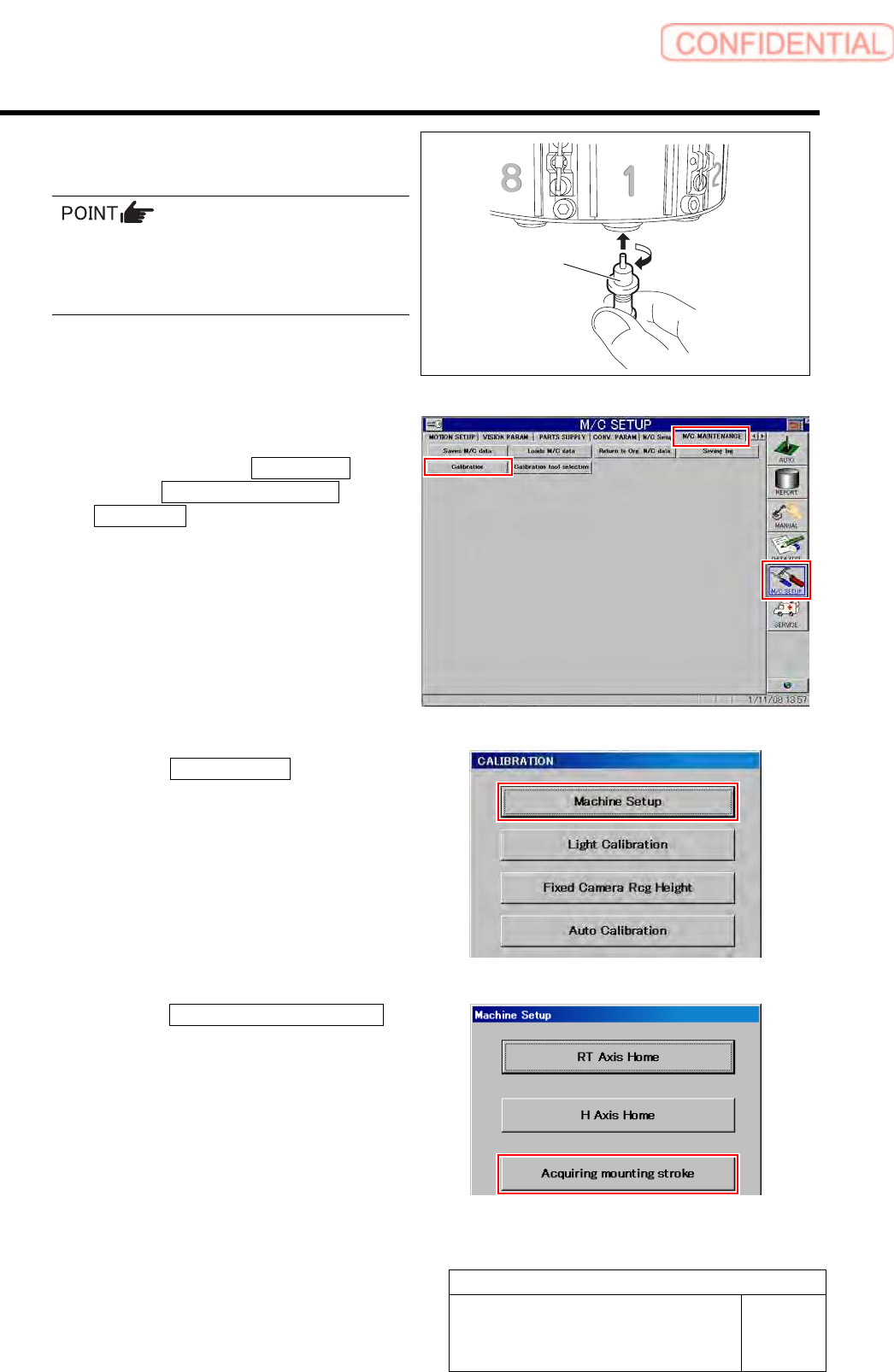

4 Install the length reference nozzle jig to the
turret No.1.
When installing the nozzle, insert it while
slowly turning.
After inserting the nozzle, check that it is not
drawn out by pulling downward.
5 Display Acquiring mounting stroke screen.
1. Click in an order of M/C SETUP
menu M/C MAINTENANCE tab
Calibration button.
CALIBRATION screen is displayed.
2. Click the Machine Setup button on the
CALIBRATION screen.
Machine Setup screen is displayed.
3. Click the Acquiring mounting stroke
button on the Machine Setup screen.
Acquiring mounting stroke screen is displayed.
Length reference
nozzle jig
Set-up
HLGB-10203-01
Acquiring Mounting Stroke Setup
SHEET
3/5

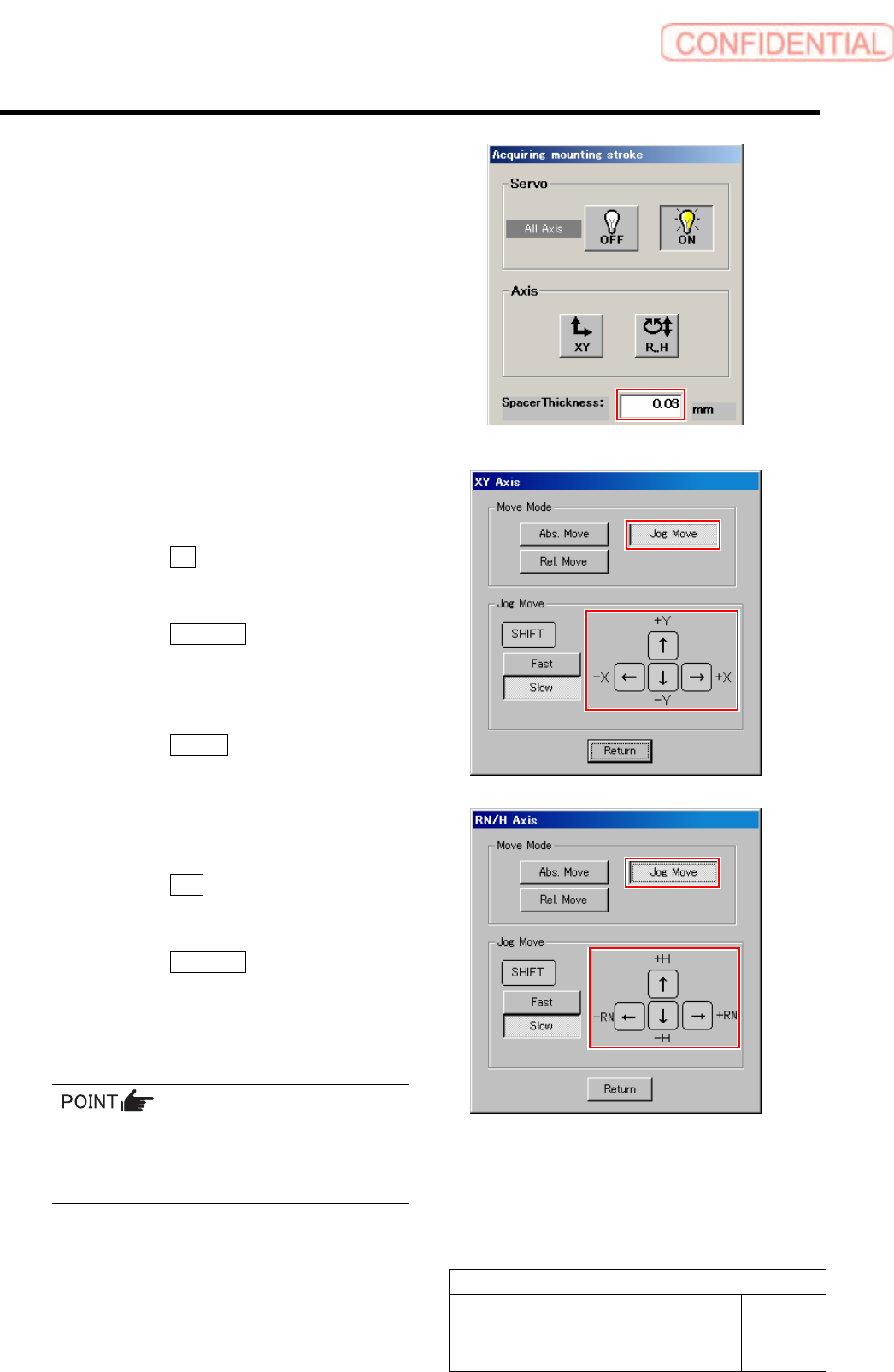

6 Enter thickness (0.03 mm) of thickness
gauge used for placement height adjustment
in a space box on the Acquiring mounting
stroke screen.
7 Move the head unit onto the calibration plate
jig.
1. Click the XY button on the Acquiring
mounting stroke screen.
XY Axis screen is displayed.
2. Click the Jog Move button.
3. Press the cursor key to jog move the
head unit onto the calibration plate
jig.
4. Click the Return button to return to
the Acquiring mounting stroke screen.
8 Adjust gap between the length reference
nozzle jig and calibration plate jig.
1. Click the R.H button on the Acquiring
mounting stroke screen.
RN/H Axis screen is displayed.
2. Click the Jog Move button.
3. Press the downward cursor key and
lower until the gap between the length
reference nozzle jig and calibration
plate jig becomes 0.03mm.
Slowly lower by Jog slow move while checking
the nozzle position so that the length reference
nozzle jig does not collide he calibration plate
jig.
