Set-up
HLGB-10204-01
PWB Camera Setup
SHEET
3/4

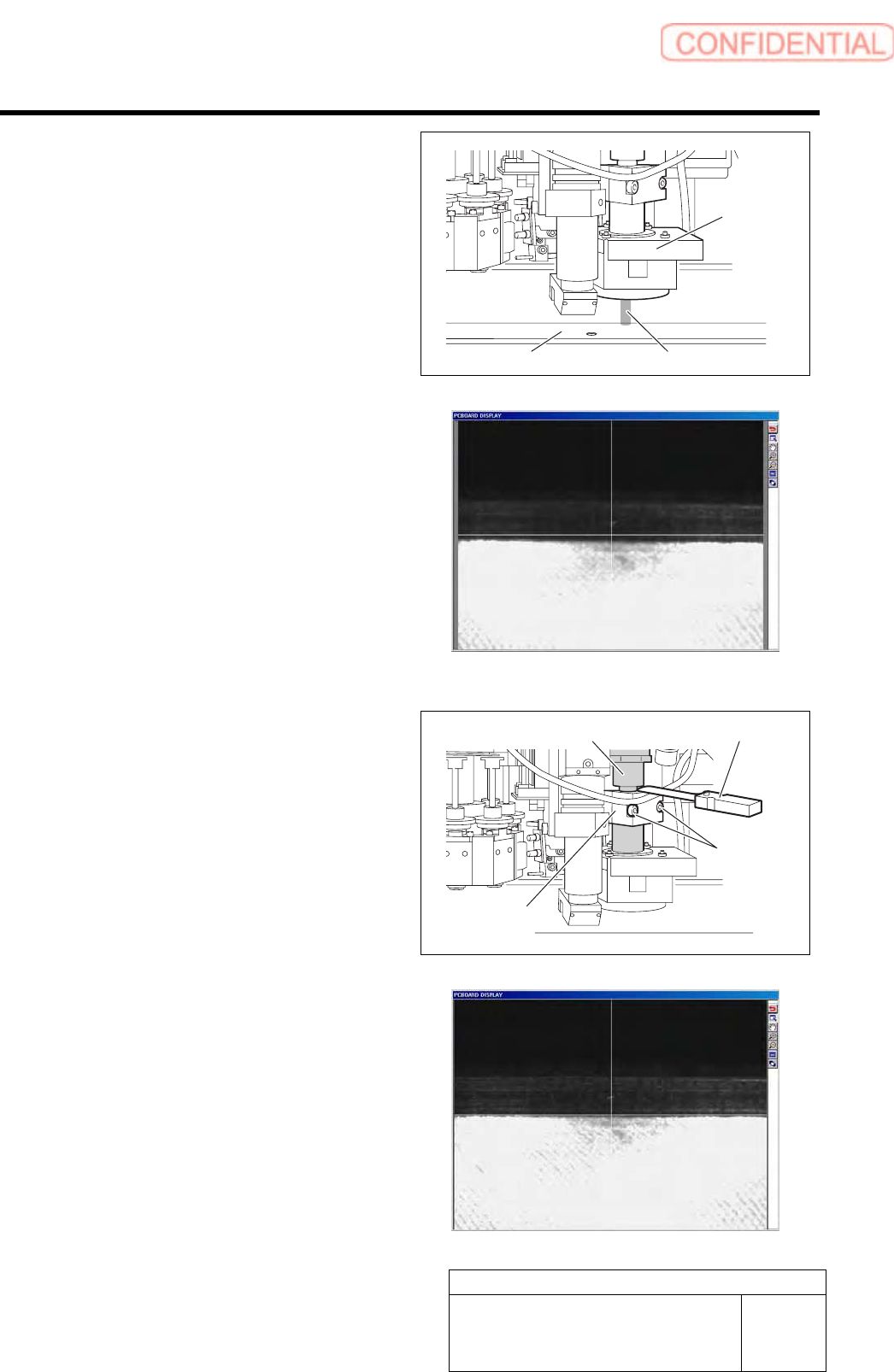

Jog-move the head part until the level difference
part is displayed on the PCBOARD DISPLAY
screen.
* A section displayed in white on the PCBOARD
DISPLAY screen is transfer rail.
5 Adjust position of the PWB camera.
1. Loosen cap screws (2-CP4x8） fixing
the PWB camera.
2. Put thickness gauge of 1.0mm between
the PWB camera and the camera
support bracket and temporarily fix
them.
3. Adjust inclination of the transfer rail
displayed on the PCBOARD DISPLAY
screen so as to align it with the
cross-hair line.
4. After adjusting inclination, tighten the
cap screws (2-CP4x8) to fix the PWB
camera.
5. Remove the thickness gauge.
Transfer rail
Illumination light
PWB camera
Camera Support
bracket
Eyepiece tube
Thickness gauge
CP4x8
Set-up
HLGB-10204-01
PWB Camera Setup
SHEET
4/4
6 Continuously perform auto calibration.
For auto calibration procedure, refer to the “Auto Calibration (Recognition of relationship between PWB coordinate and
mechanism coordinate)” [HLGB-10304-01] and later.
Set-up
HLGB-10205-01
Fiducial Mark Setup
SHEET
1/3
Fiducial Mark Setup
[Necessary jigs]
1 Click in an order of MANUAL menu
PWB TRANSPORT tab Set button.
The backup plate rises.
2 Click the LocatorPin Up button on the PWB
TRANSPORT screen.
The locator pin rises.
3 Press the [ORG] button on the operation
panel to perform origin position return.
4 Display Fiducial Mark Setup screen.
1. Click in an order of M/C SETUP menuM/C MAINTENANCE tabCalibration button.
“Head at opposite position will be moved to noninterference area. Press the [START] button if you are really OK.”
is displayed on the message screen.
2. Press the [START] button on the operation panel.
CALIBRATION screen is displayed.
For procedures when selecting head for which calibration is performed, and when changing calibration jig,
refer to the “How to display calibration screen (HLGB-10105-01)”.
3. Click the Machine Setup button on the
CALIBRATION screen.
Machine Setup screen is displayed.
