Calibration HLGB-10305-01 Auto Calibration (Recognition of Relationship be t ween the Fi xed Camera and Nozzle) SHEET 2/4 4 Move the head clear of the work area. 1. Click in an order of MAN UAL menu AXIS MOTION tab X…
Calibration
HLGB-10305-01
Auto Calibration (Recognition of
Relationship between the Fixed Camera
and Nozzle)
SHEET
1/4
Auto Calibration (Recognition of Relationship between the Fixed
Camera and Nozzle)
[Necessary jigs]
A Calibration data FD
B Calibration plate jig
C Positioning pins for calibration plate
D BF00900 nozzle (1 pc.)
E BF60400 nozzle (7 pcs.)
F Calibration jig chip (t=3.4, 1 pc.)
G Calibration jig chip (t=1.4, 8 pcs.)
H Calibration jig chip (glass)
[Procedure]
1 Load the calibration data.
For calibration data loading procedure, refer to “Calibration Data Load [HLGB-10105-01]”.
2 Install the calibration plate jig.
For mounting method of the calibration plate jig, refer to “Install the Calibration Plate Jig [HLGB-10101-01]”.
3 Put the jig tip on the calibration plate.
1. Put 8 thinner jig chips (t=1.4mm) to
front side.
2. Put thicker jig chip (t=3.4mm) to the
right end of the deep row.
3. Put jig chip (glass) on the right
countersunk section.
Set the jig chips so that surface on which glass
black point (pattern) is printed is directed
upward.
E
D
A
B
C
F
G H
Jig chip (t=3.4mm)
Jig chip (t=1.4mm) Jig chip (glass)
Calibration
HLGB-10305-01
Auto Calibration (Recognition of
Relationship between the Fixed Camera
and Nozzle)
SHEET
2/4

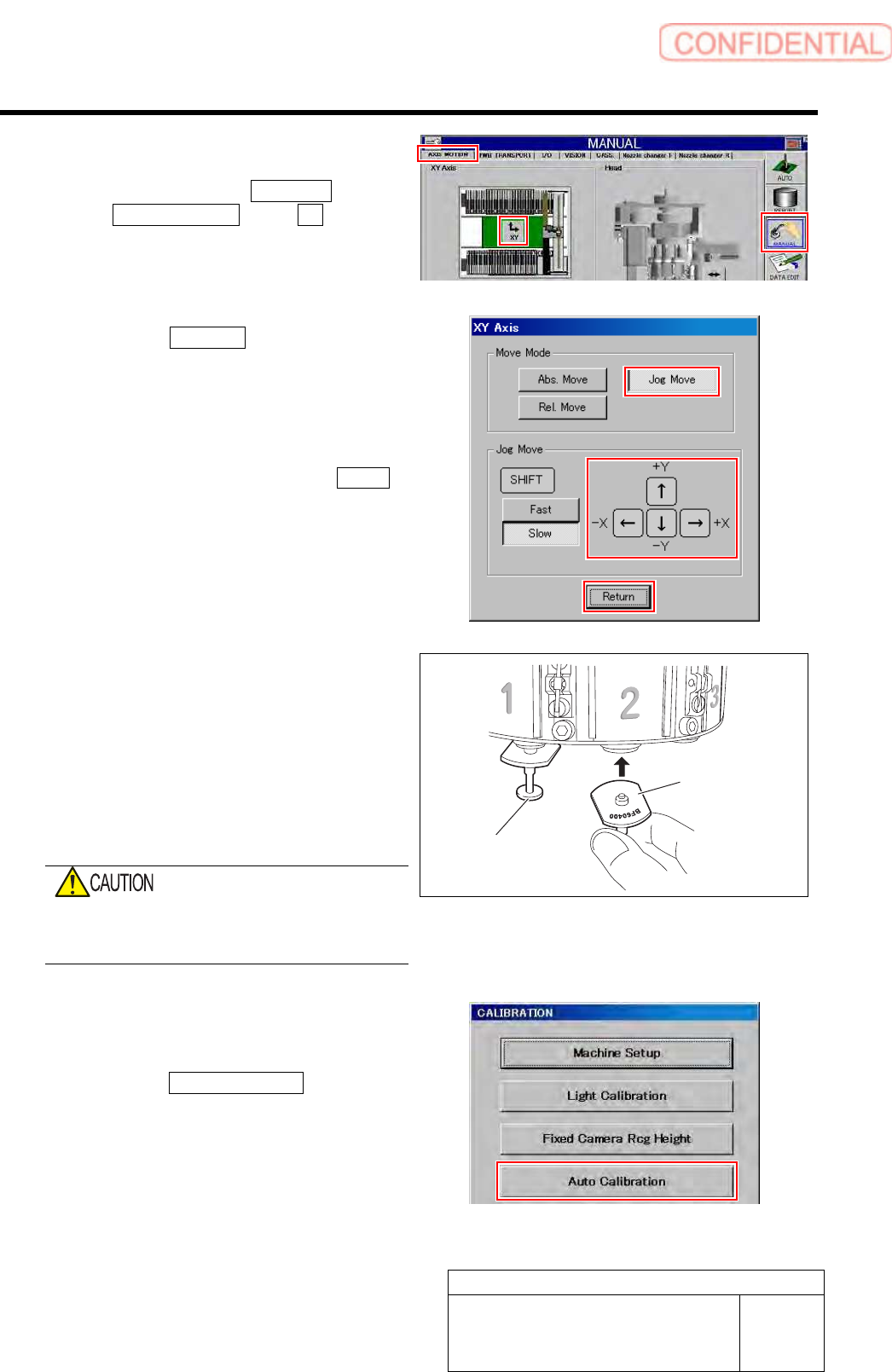

4 Move the head clear of the work area.
1. Click in an order of MANUAL menu
AXIS MOTION tab XY button.
XY Axis screen is displayed.
2. Click the Jog Move button in the move
mode.
3. Press the cursor key to move the head
to a position where working is easily
performed.
4. After moving the head, click the Return
button to close the XY axis screen.
5 Install the jig nozzles to head.
1. Install the BF00900 nozzles (1 piece)
to the turrets No.1.
2. Install the BF60400 nozzles (7 pieces)
to the turrets No.2～8.
Attach the nozzle so that the mark of the nozzle
type comes outer side of the turret.
Do not execute the automatic replacement of
the nozzle using the nozzle changer when the
calibration has not been completed.
6 Display a Recognition of relationship
between AUX camera and nozzle screen.
1. Click the Auto Calibration button on
the CALIBRATION screen.
Multi-functional machine calibration screen is
displayed.
BF60400 nozzle
BF00900 nozzle
Calibration
HLGB-10305-01
Auto Calibration (Recognition of
Relationship between the Fixed Camera
and Nozzle)
SHEET
3/4
2. Click the Recognition of relationship
between AUX camera and nozzle
button on the Multi-functional
machine calibration screen.
Recognition of relationship between AUX
camera and nozzle screen is displayed.
7 Start calibration for relationship between the
fixed camera and nozzle.
1. Click the Start button of Sequence 1.
2. Press the [START] button to start the
auto calibration.
Sequence after the Start button is clicked is
subsequently executed.
In a process of recognizing a large glass PWB,
some portion of PWB may not be recognized.
Even so, keep on the operation.
