Calibration
HLGB-10313-01
Mount Accuracy Calibration
SHEET
7/11

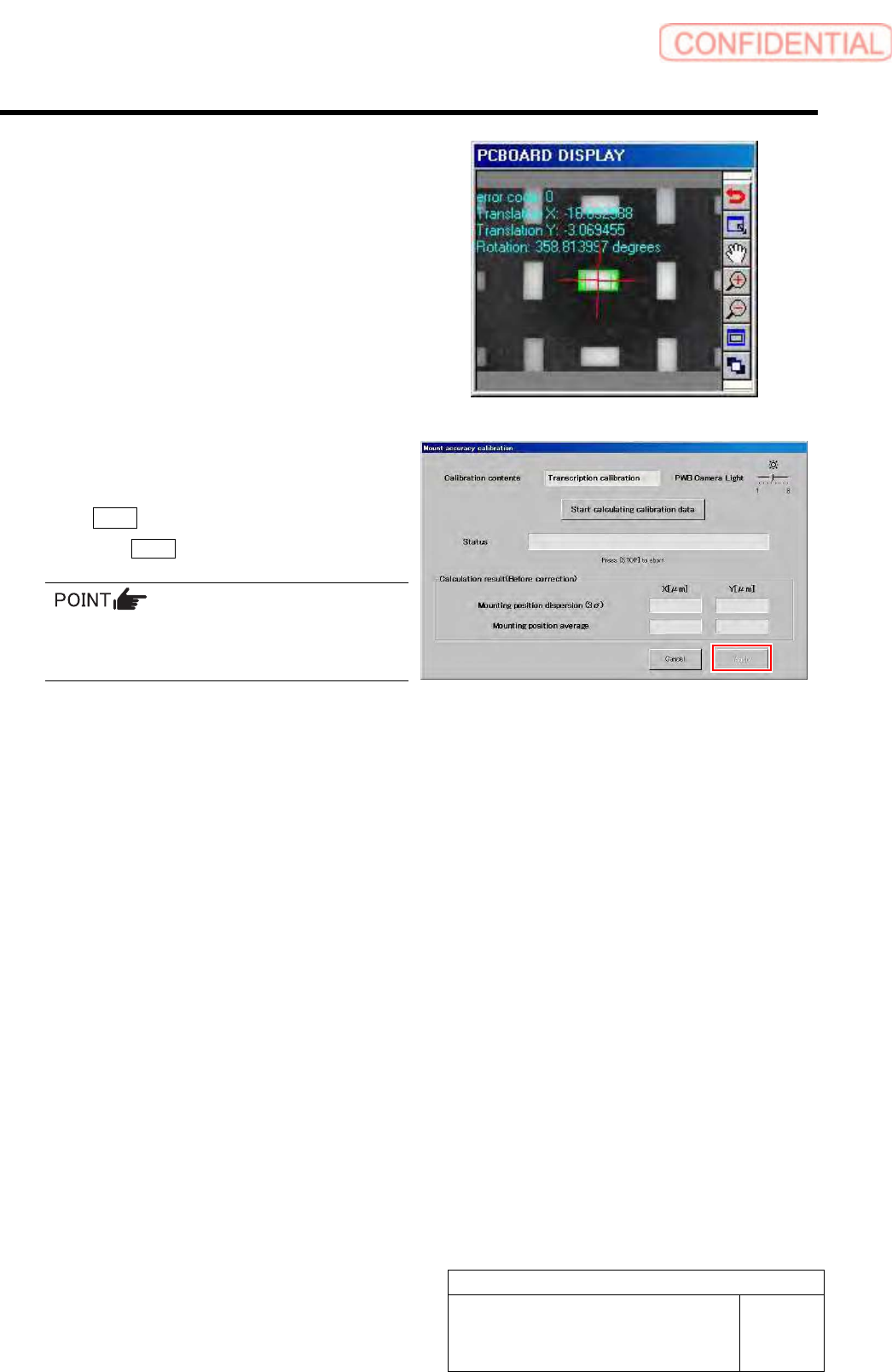

Wait until the parts recognition by the PWB camera
ends.
7 Check the displayed result and, if the
correction value needs to be applied, click
the Apply button.
When the Cancel button is clicked, the process ends
without executing the calibration.
When the calculation result is 3Sigma <
±35[µm] and Avg < 10[µm], the catalog SPEC
(±50[µm] CPK > 1.0 or above) is satisfied.
Calibration
HLGB-10313-01
Mount Accuracy Calibration
SHEET
8/11

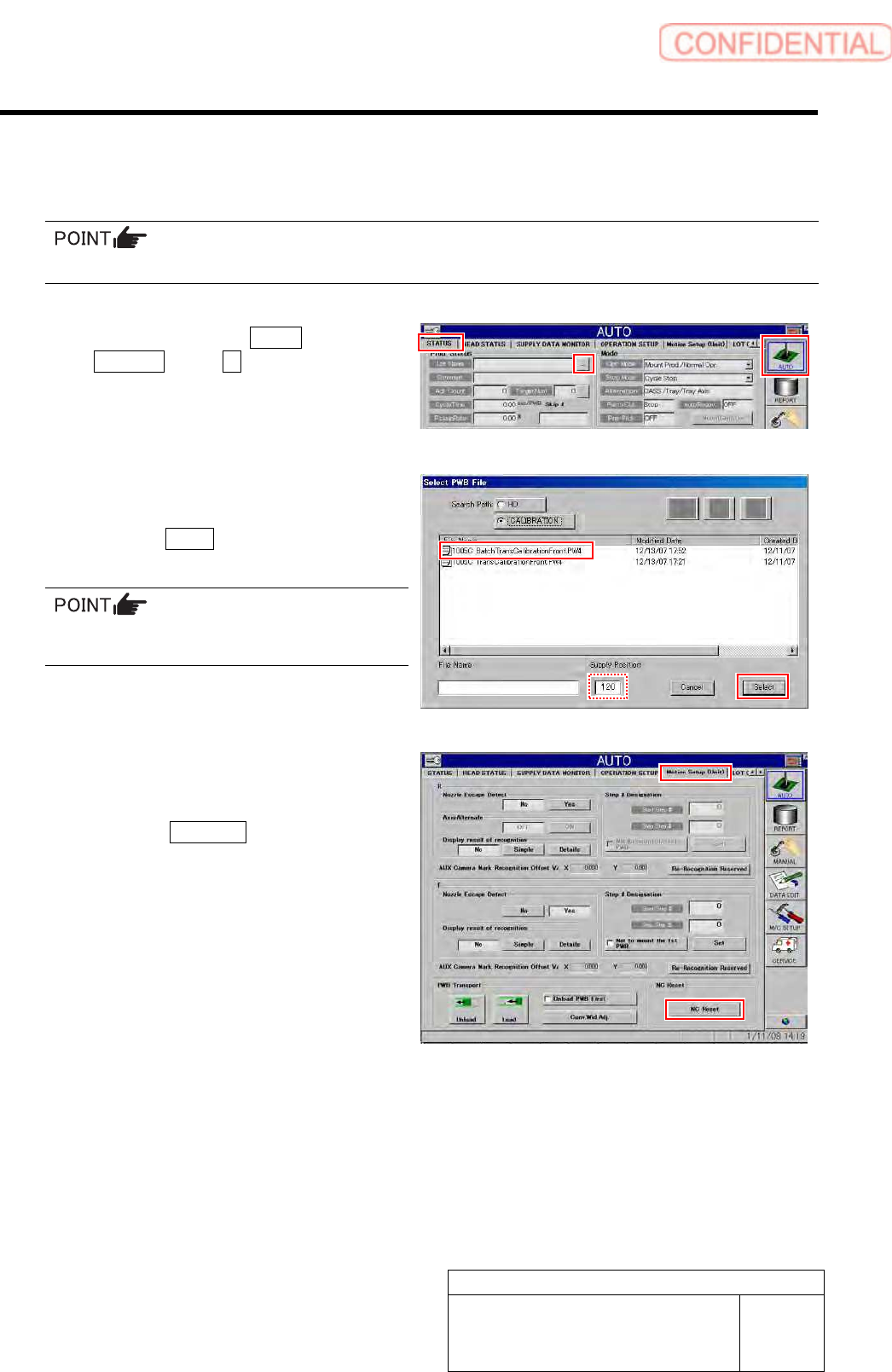

[Batch recognition calibration]
1 Read machine data of “1005C BatchTransCalibrationFront.PW4.”
To execute the calibration for the rear head, select “1005C BatchTransCalibrationRear.PW4”.
1. Click in an order of AUTO menu
STATUS tab … button.
Select PWB File screen is displayed.
2. Select “
1005C
BatchTransCalibrationFront.PW4
”, and
click the Select button.
In the Supply Position field, enter the supply
unit number on which you placed the cassette.
2 Perform NC reset and then check MOTION
Setup.
1. Click the NC Reset button on the
MOTION Setup (Unit) screen.
Calibration
HLGB-10313-01
Mount Accuracy Calibration
SHEET
9/11

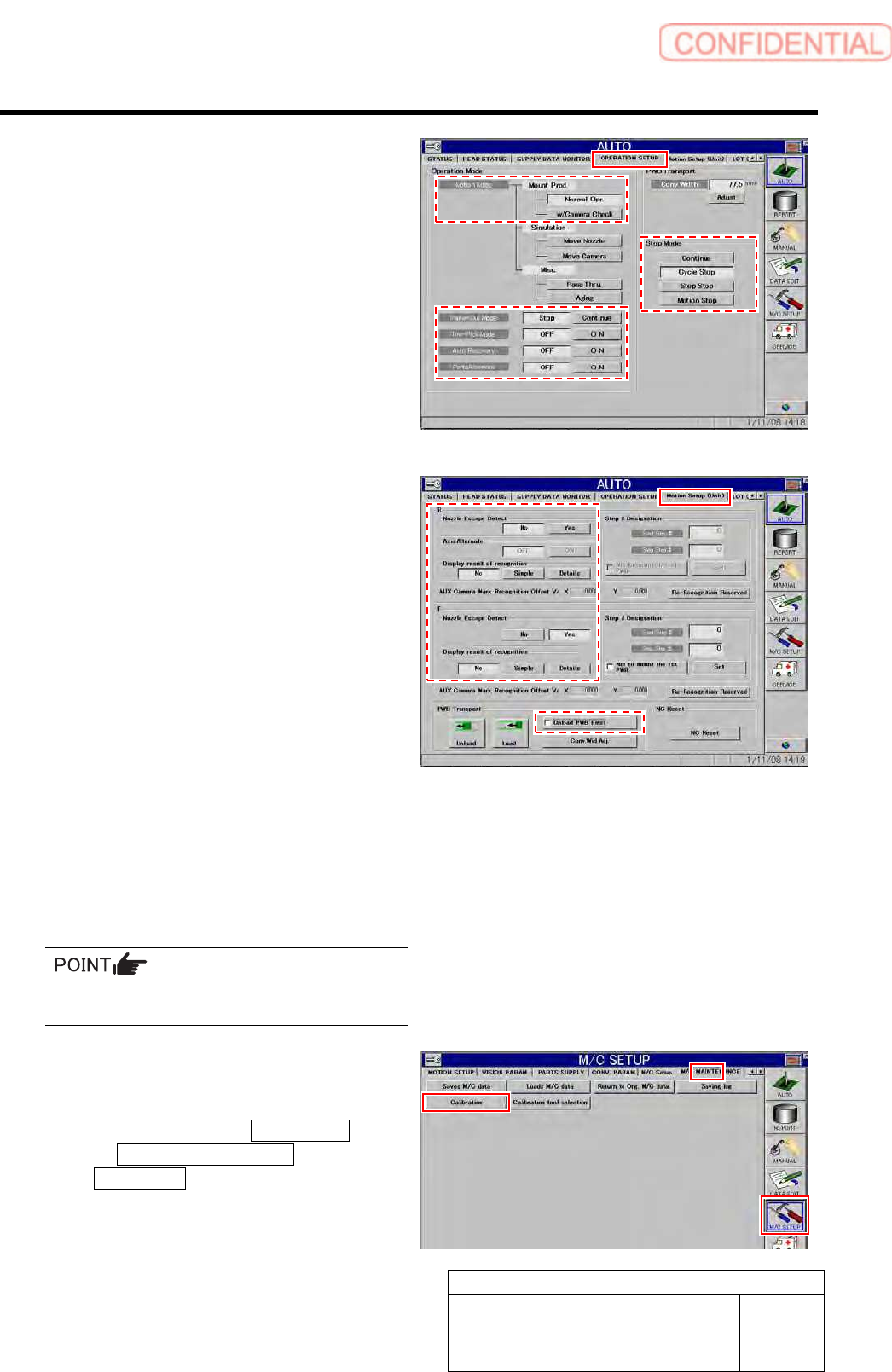

2. Display OPERATION SETUP to check
that settings are as follows.
Motion Mode: Normal Opr.
Parts-Out Mode: Stop
Pre-Pick Mode: OFF
Auto Recovery: OFF
Parts Alternate: OFF
Stop Mode: Cycle Stop
3. Display Motion Setup (Unit) screen to
check that settings are as follows.
Nozzle Escape Detect: Yes
Display result of recognition: No
Unload PWB First: Turned off
3 Press [START] button on the operation
panel and fit parts onto the simple
measuring glass PWB.
Fitting operation is performed for one cycle, and then
the unit stops.
Make sure the wrong pickup or pickup error
does not occur.
4 When fitting is completed without error,
display the accuracy correction screen.
1. Click in an order of M/C SETUP menu
M/C MAINTENANCE tab
Calibration button.
A confirmation window to clear machine data is
displayed.
