Calibration
HLGB-10315-01
Conveyor Width Adjustment
SHEET
2/2
4 Set offset value of conveyor on the conveyor
parameter screen.
1. Click in an order of M/C SETUP menu
CONV. PARAM tab.
Conveyor parameter screen is displayed.
2. Enter a difference value between the
value of narrowest conveyor width
measured in the procedure 3 and the
standard value “410.5 mm” into the
CV offset box.
Example: Measured value: 410.1 mm
•••••••••Input value “-0.4”
Measured value: 410.7 mm
•••••••••Input value “0.2”
3. Click the Set button.
Offset value for conveyor width is set.
5 Manually move the conveyor width to 410 mm again, and check that the conveyor width is within
the standard value (410.5 mm) with digital slide calipers in the same procedure as in the
procedures 1 to 3.
If the conveyor width is not within the standard value, repeat the procedures 1 to 4 until the conveyor width falls within
the standard value.
Calibration
HLGB-10316-01
Measuring Parallelism of Reference
Pin and Dependent Pin
SHEET
1/4
Measuring Parallelism of Reference Pin and Dependent Pin
[Procedure]

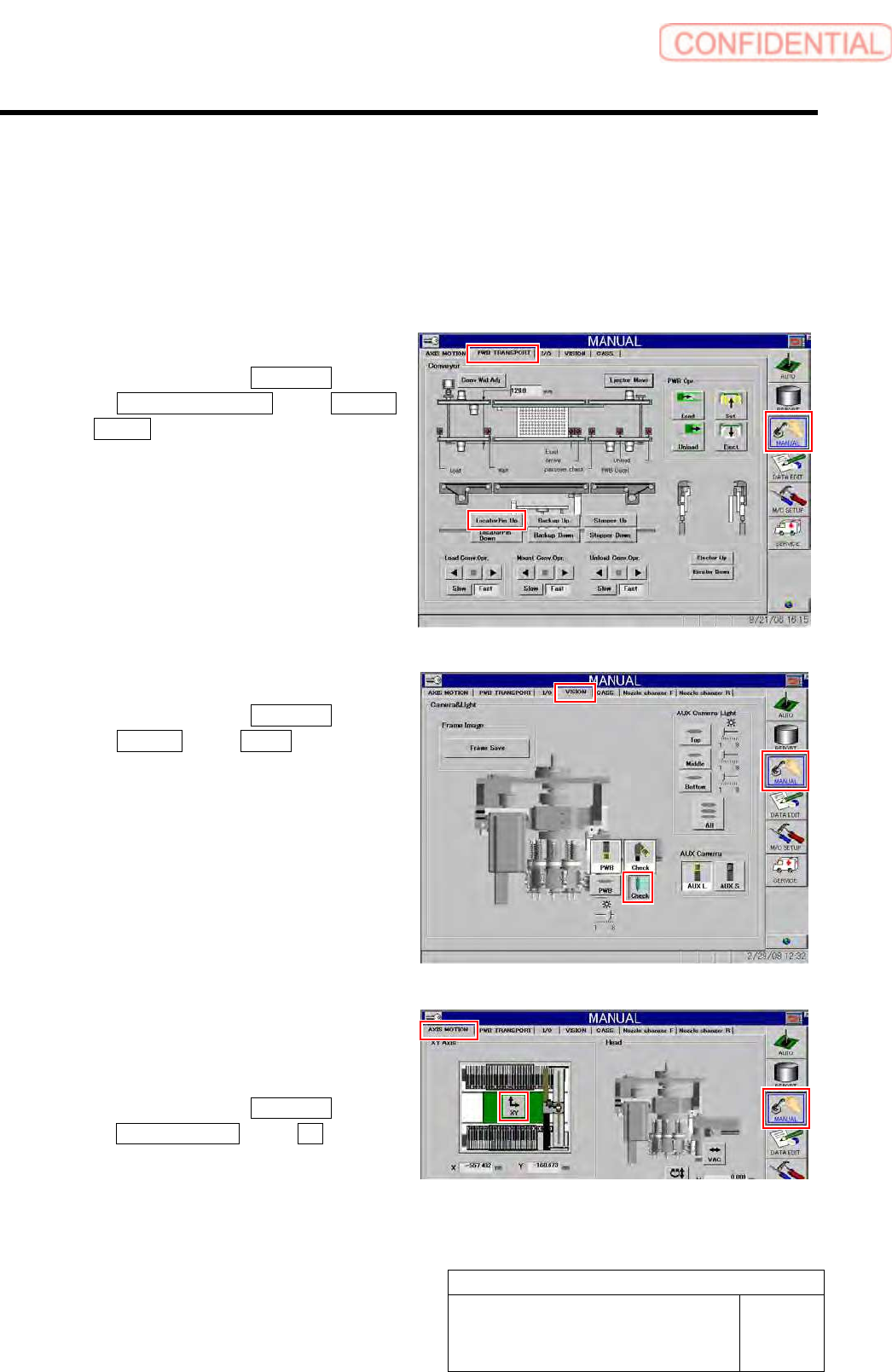

1 Perform origin position return of the unit.
1. Press the [ORG] button on the operation panel with the HI screen being displayed.
2 Raise the reference pin.
1. Click in an order of MANUAL menu
PWB TRANSPORT tab Locator
Pin Up button.
3 Light up the PWB camera light.
1. Click in an order of MANUAL menu
VISION tab Check button.
The pickup camera light lights up.
4 Check Y axis coordinate at a position where
the reference pin is displayed at the center
of the “PCBOARD DISPLAY” screen.
1. Click in an order of MANUAL menu
AXIS MOTION tab XY button.
XY Axis screen is displayed.
Calibration
HLGB-10316-01
Measuring Parallelism of Reference
Pin and Dependent Pin
SHEET
2/4

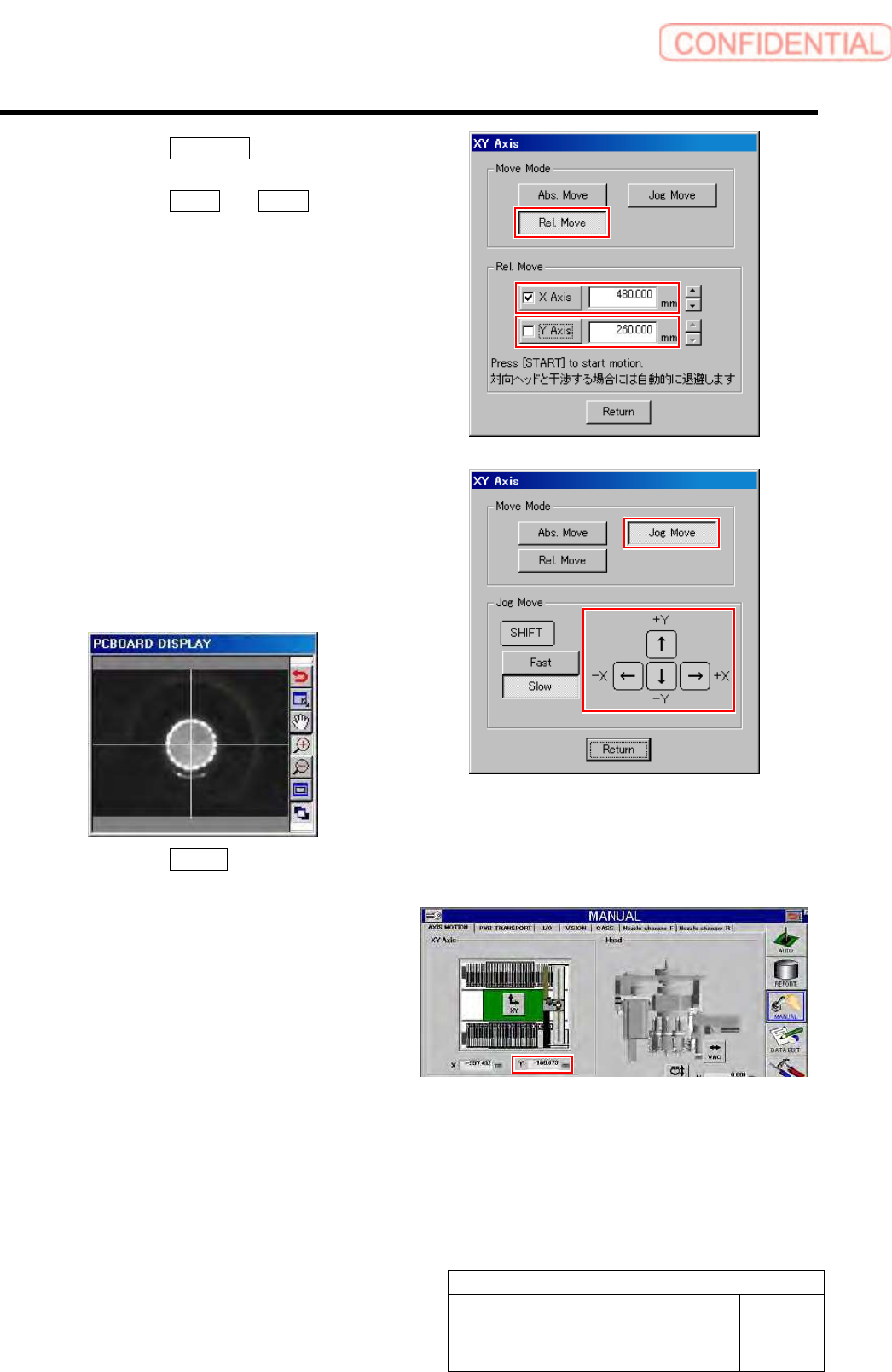

2. Click the Rel. Move button in the
move mode.
3. Click the X axis and Y axis and put
check mark.
4. Enter “480” into the box of X axis, and
“260” into the box of Y axis.
5. Press the [START] button on the
operation panel.
XY axes relatively move.
6. Click the Jog Move button in the move
mode.
7. Press the cursor key to move XY axes
so that the reference pin is displayed
on the center of the “PCBOARD
DISPLAY” screen.
8. Click the Return button to close XY
axes screen.
9. In a state that the reference pin is on
the center of the “PCBOARD
DISPLAY” screen, check the
coordinate value of Y axis on the axis
operation screen, and record the value.
