Adjustment HLGB-10402-01 Matching of Y Axis Z-Phase SHEET 1/3 Matching of Y Axis Z-Phase This section describes a procedu re to adjust a position of the Z-Phase so that the motor stops at a position (Z-Phase setting posi…

100%1 / 712
Adjustment
HLGB-10401-01
Matching of X Axis Z-Phase
SHEET
3/3
4. Move the X axis by dimension of the difference (D) with setup movement found in the
procedure 6.
Example : Adjust the X axis so that the distance between the LM guide rail end and the LM guide face is 238 mm.
When the X axis is moved, the coupling should not be moved.
If the difference between the present amount of movements and the amount of Z-phase setup movement is
positive, move the X axis to the CCW sensor side (left direction), and if the difference is negative, move it
to the CW sensor (right direction).
5. Fasten the screw M4 on the ball screw side of the coupling with a torque driver.
Tightening torque :3.4 N･m
8 Turn the emergency stop switch in the arrow direction to release the emergency stop state.
9 Press the [ORG] button on the operation panel to perform origin position return.
10 Check the Z-phase setup position.
1. Measure the distance from the LM guide rail end to the LM guide face with a scale.
Suppose that this measured value is A.
2. Measure the dog detection position of the ORG sensor with a scale. Suppose that the
measured value is B.
Check that a relation is obtained as A (Z-phase set-up position) =B - 5 mm (Z-phase set-up movement amount)
Tolerance level : ±2 mm (Target value:±1 mm)
Adjustment
HLGB-10402-01
Matching of Y Axis Z-Phase
SHEET
1/3
Matching of Y Axis Z-Phase
This section describes a procedure to adjust a position
of the Z-Phase so that the motor stops at a position
(Z-Phase setting position) where the ORG sensor
detects the dog, then moves to the Y-CCW sensor side
(front side) by 5 ±2 mm when origin return is
performed, by taking Y axis on the front head side as
an example.
Also match the Z-Phase for the Y axis of the rear head
side by the same procedure.
[Procedure]
1 Perform origin position return of the unit.
1. Close the front and rear doors in order
to prevent danger.
2. Prepare to press the emergency stop
switch so as to immediately stop the
unit.
3. Press the [ORG] button on the
operation panel.
Origin position return is performed.

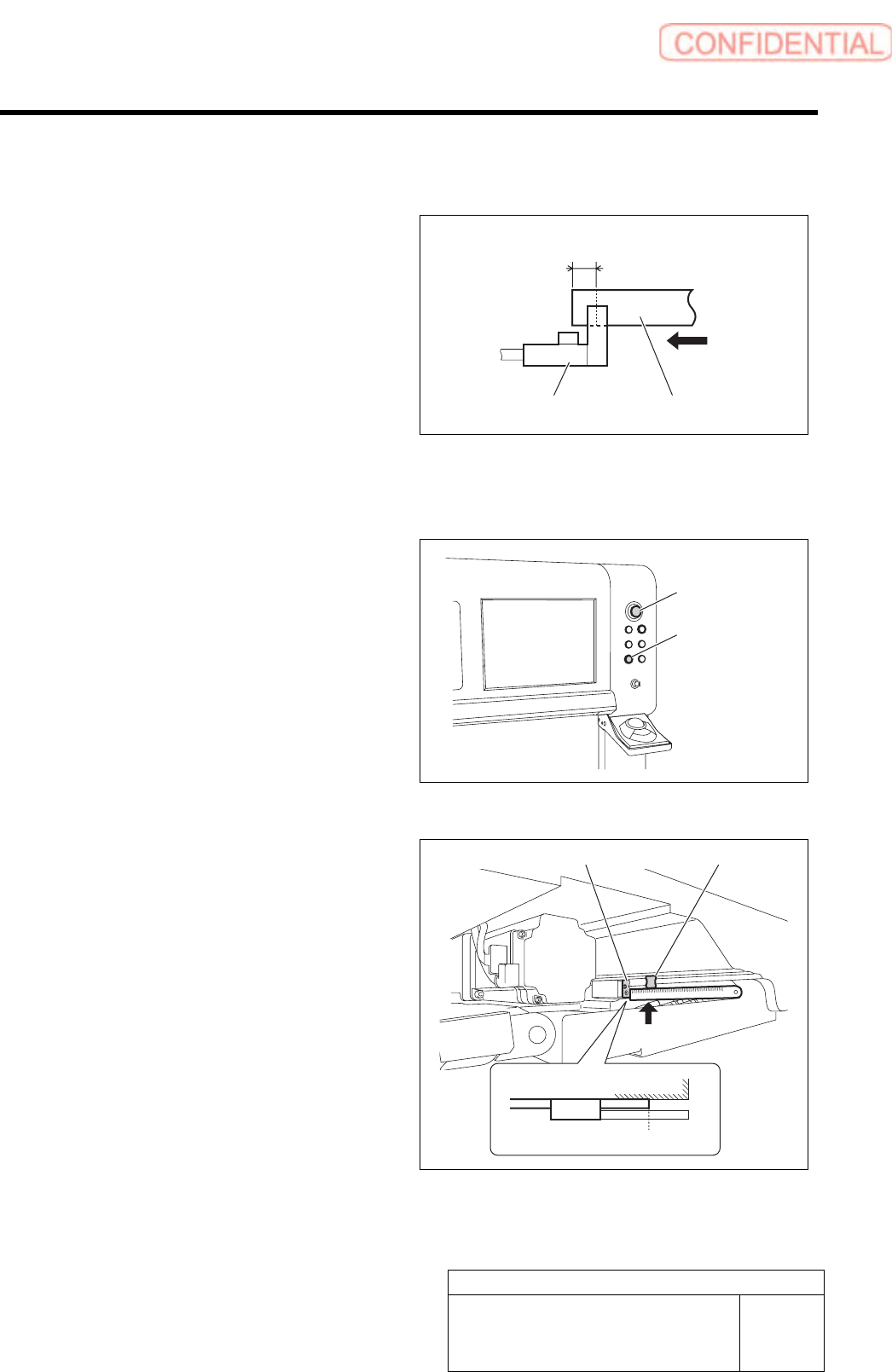

2 Measure the present Z-phase position.
1. Measure the distance from the LM
guide rail end to the LM guide face
with a scale.
Suppose that the measured value is A.
(Example : 27 mm)
3 Press the emergency stop switch.
Servo is turned off.
ORG sensor
Dog
5 mm
LM guide rail end
A (27 mm)
LM
LM guide face
Emergency stop
switch
ORG button
Adjustment
HLGB-10402-01
Matching of Y Axis Z-Phase
SHEET
2/3

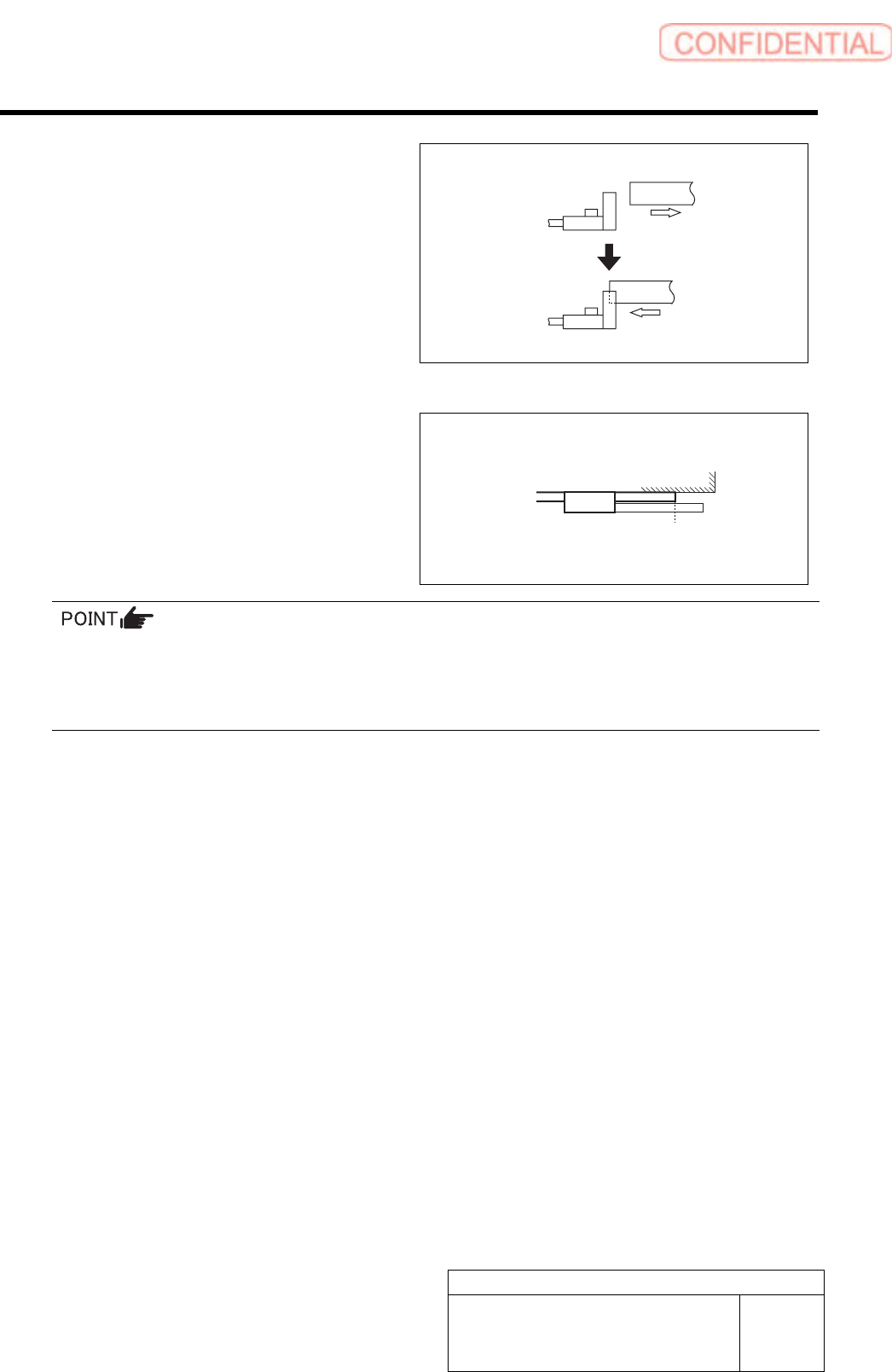

4 Stop the Y axis at the boundary position
where the ORG sensor LED in extinguished
condition lights up.
1. Manually move the Y axis backward to
the position where the dog leaves the
ORG sensor.
2. Manually move the Y axis forward
little by little and stop at the boundary
position where the ORG sensor LED in
extinguished condition lights up.
5 Measure the dog detection position of the
ORG sensor.
1. Measure the distance from the LM
guide rail end to the LM guide face
with a scale.
Suppose that the measured value is B.
(Example : 46.5 mm)
By 2 times of measurements, the amount of movements from the dog detection position of an ORG sensor
to the present Z-phase position can be found.
Suppose that the present amount of movement is C.
Example : A (27 mm) - B (46.5 mm) = C (-19.5 mm)
6 The difference between the present mount of movement and the amount of Z-phase setup
movement “5 mm” is searched for. Suppose that this difference is D.
Example : Present amount of movement (-19.5 mm) + Amount of Z-phase movement (5 mm) = D (-14.5 mm)
Since the present amount of movements is too as large as -19.5 mm against the set amount of movement “5 mm”, the
adjustment made small 14.5 mm is required of this example.
7 Subtract dimension D from a distance between the LM guide rail end at the Y axis origin return
position and the LM guide face, and derive the target dimension.
Example : B (46.5 mm) - D (-14.5 mm) = target dimension (61.0 mm)
Extinguished
Lights-up
B (46.5 mm)
LM
