Adjustment HLGB-10403-01 H A xis Gear Z-phase Matching SHEET 5/5 2. Input “0” in the H Offs et box, and click the Set button. H offset va lue is set, and the Offset scr een closes. 3. Press the [ORG] butt on on the opera…
Adjustment
HLGB-10403-01
H Axis Gear Z-phase Matching
SHEET
4/5
10 Adjust the clearance between the H axis
pusher and inner shaft end to 1.0 mm, and
secure the H axis motor gear by split
fastening screw.
1. Click in an order of ORG OFFSET tab
R.H button.
RN/H Axis screen is displayed.
2. Click the Abs. Move button in the
move mode.
3. Click the check box for H axis and put
check in it to input “-1.1”.
4. Press the [START] button on the
operation panel.
5. Tighten the split fastening screw for
the H axis motor gear.
11 Set the H Axis offset to “0”.
1. Click in an order of the ORG OFFSET
tab Change Offset button.
Change Offset screen is displayed.
Adjustment
HLGB-10403-01
H Axis Gear Z-phase Matching
SHEET
5/5
2. Input “0” in the H Offset box, and click
the Set button.
H offset value is set, and the Offset screen closes.
3. Press the [ORG] button on the
operation panel with the RN/H axis
screen displayed.
Origin position return is performed for the H axis
only.
12 Check that the clearance between the H axis pusher and inner shaft is 1.0 to 1.1 mm by thickness
gauge.
Unless the clearance is 1.0 to 1.1 mm, it is necessary to re-perform “H axis origin position setup”.
13 Install the H axis lower end sensor (H-CW).
Perform position adjustment of the lower end sensor (H-CW) in the post-process of “Adjustment H axis
lower end OT sensor (H-CW)”.
14 Return the servo parameter of the H axis to the previous value.
Return the H axis parameter changed in the procedure 3-6 to the previous value.
That’s the end of H axis gear Z phase matching.
15 After H axis gear Z phase adjustment, perform the following work.
1. Adjust OT sensor at the upper end of H axis.
For work procedure, refer to “Adjustment of H Axis Upper End OT Sensor (H-CCW) [HLGB-10404-01]”.
2. Adjust OT sensor at the lower end of H axis.
For work procedure, refer to “Adjustment of H Axis Lower End OT Sensor (H-CW) [HLGB-10405-01]”.
3. Set H axis origin position.
For work procedure, refer to “H Axis Origin Position Setup [HLGB-10202-01”.
Adjustment
HLGB-10404-01
Adjustment of H Axis Upper End OT
Sensor (H-CCW)
SHEET
1/3
Adjustment of H Axis Upper End OT Sensor (H-CCW)
Perform this working on both heads on the front side and rear side.

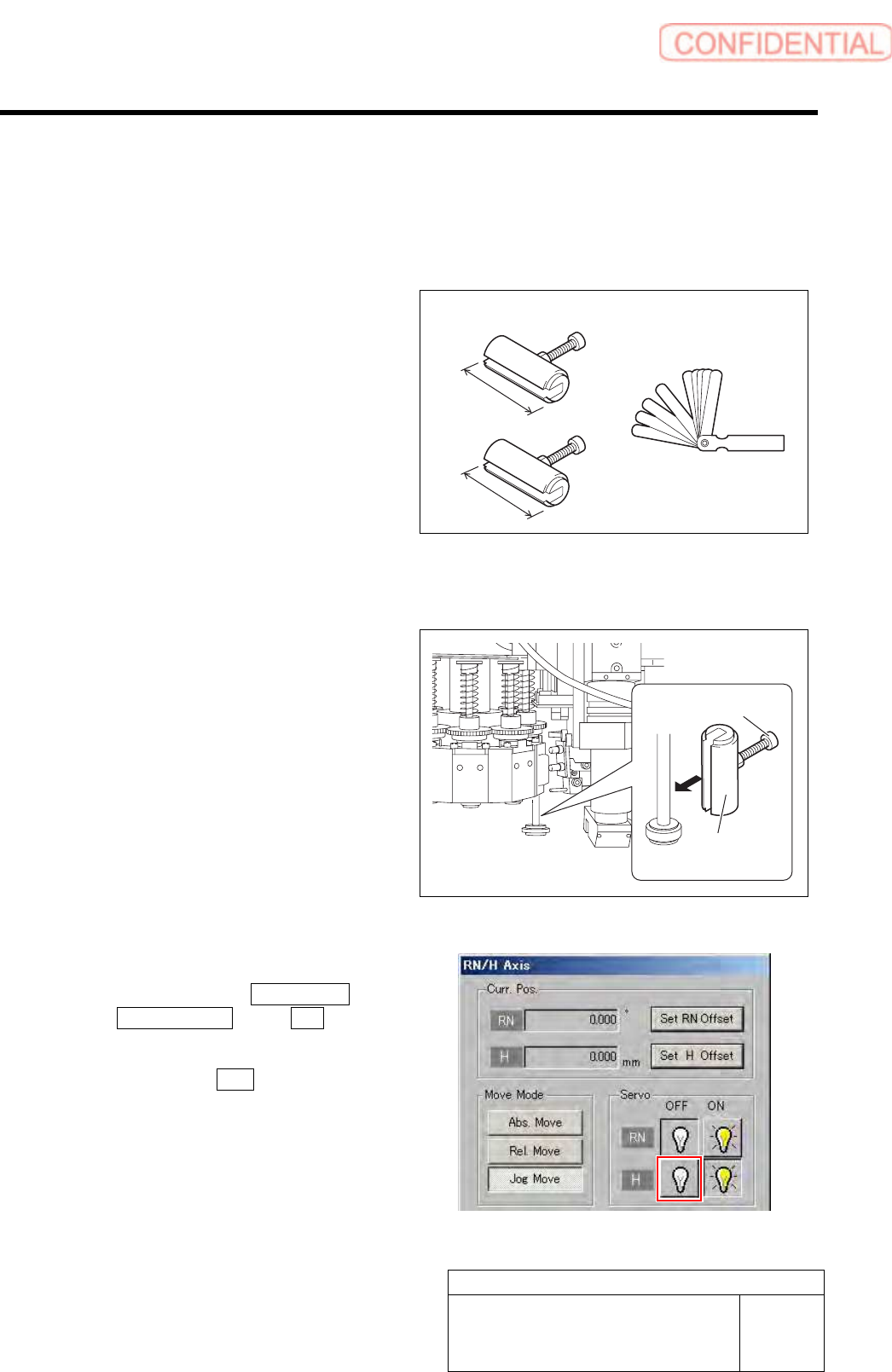

[Necessary jigs]
• H Axis sensor adjusting Jig
(L=26.6 mm, 26.5 mm)
• Thickness gauge (t=1.6 mm)
[Procedure]
1 Install the H axis sensor adjusting jig to the
inner shafts of turrets No.2 and No.8.
1. Push down the inner shaft of the
turret No.2 and pinch the H axis
sensor adjusting jig (L=26.6 mm)
between the turret and inner shaft.
2. Push down the inner shaft of the
turret No.8 and pinch the H axis
sensor adjusting jig (L=26.5 mm)
between the turret and inner shaft.
3. Remove the cap screw for H axis
sensor adjusting jig.
2 Turn off the H axis servo.
1. Click in an order of M/C SETUP menu
ORG OFFSET tab R.H button.
RN/H Axis screen is displayed.
2. Click the servo OFF button for H axis.
Servo for H axis is turned off.
H axis sensor adjusting jig
26.6 mm
26.5 mm
H axis sensor
adjusting jig
Cap screw
Thickness gauge
