Adjustment
HLGB-10410-01
Gap Adjustment for Head Unit
Mechanical Valve and Plunger
SHEET
3/3

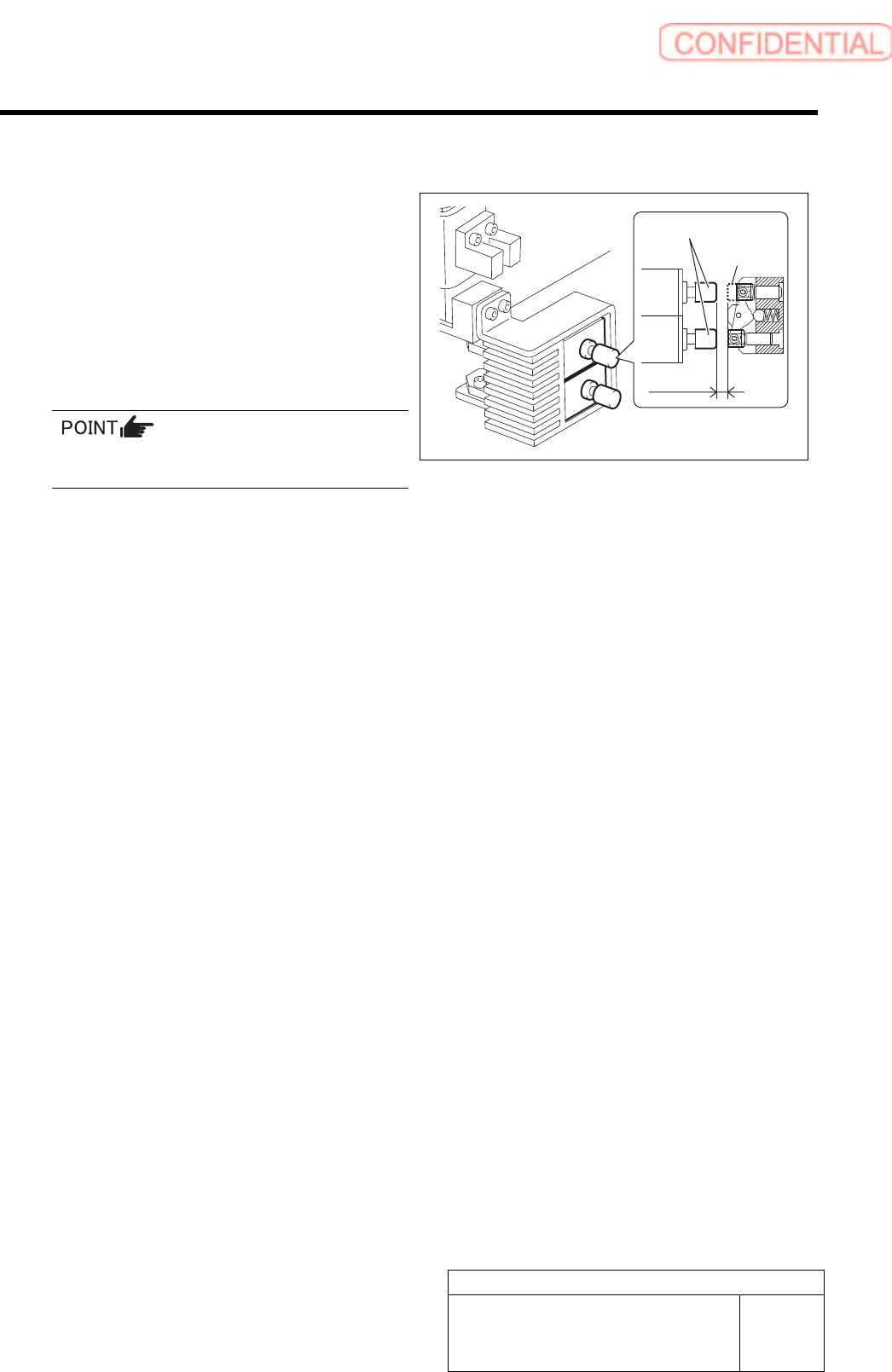

[Gap adjusting procedure]
1 Adjust the gap between the end of the
retracted plunger and the end of the
projected mechanical valve to 1.5 mm.
1. Loosen the cap screws (4 pcs, C3 x 5).
2. Adjust the gap between the end of the
retracted plunger and the end of the
projected mechanical valve to 1.5 mm
using a thickness gauge.
The mechanical valve and the plunger head
should be parallel to each other.
3. While matching the axis center in
height direction, fasten the cap screws
(4 pcs, C3 x 5) to fix the plunger.
Plunger
Mechanical
valve
1.5 mm
Adjustment
HLGB-10411-01
Adjustment of Plunger Upper/Lower
Backward Detect Sensor
SHEET
1/2
Adjustment of Plunger Upper/Lower Backward Detect Sensor
Perform this working on both heads on the front side and rear side.

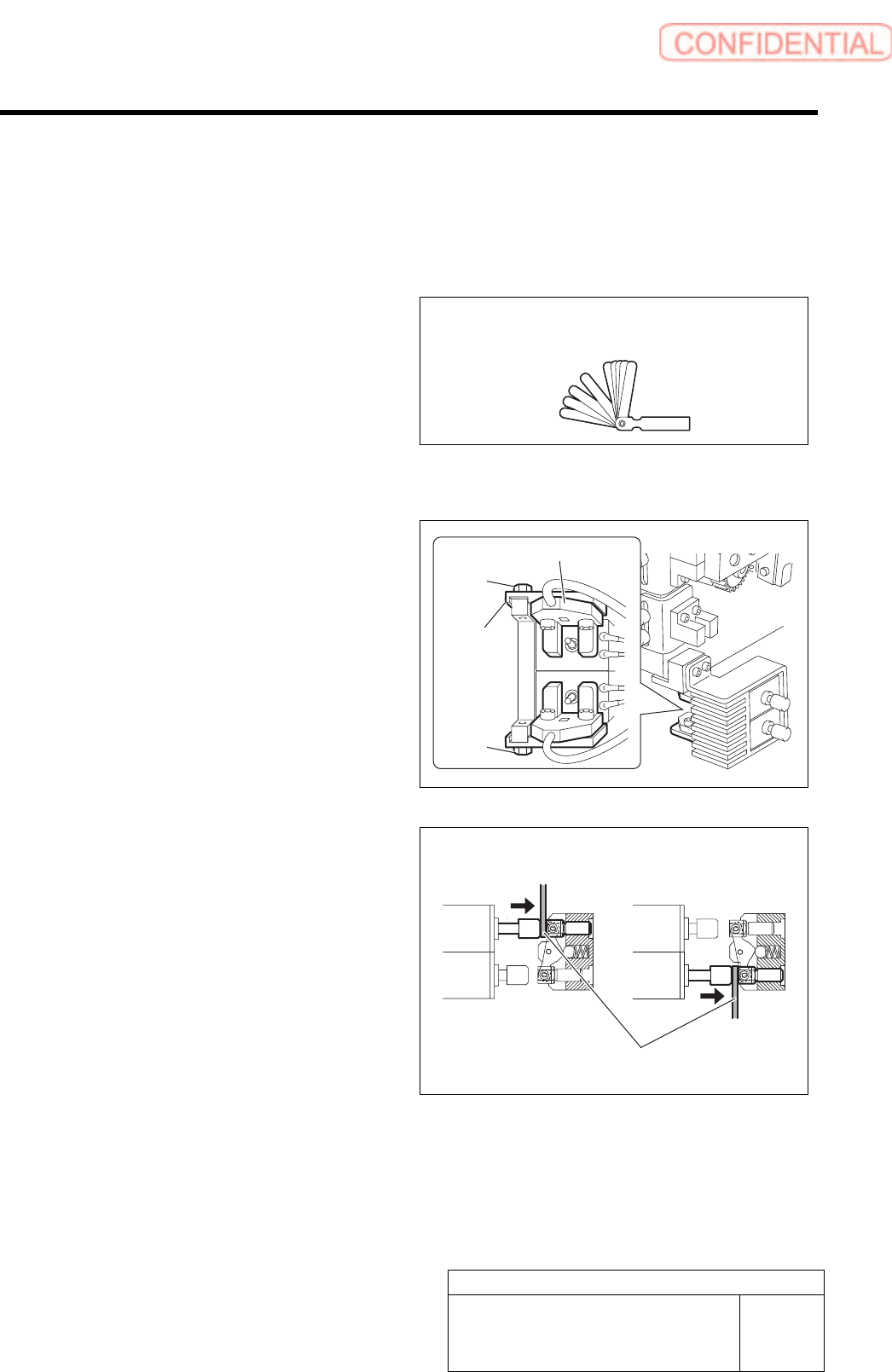

[Necessary jigs]
Thickness gauge
[Procedure]
1 Loosen the bolts fastening the mounting
bracket for the plunger return sensor.
2 Adjust the LED extinguishing position of the
plunger return sensor (Upper/Lower).
1. Press in the mechanical valve.
2. Pull out the plunger by hand, and
pinch a thickness gauge of t=1.0 mm
between the plunger and mechanical
valve.
3. Move the bracket to adjust the sensor
position so that the LED for the
plunger return sensor extinguishes in
this state.
3 Fasten the bolts for the mounting bracket to fix the plunger return sensor.
Thickness gauge
Bolt
Bracket
Upper Lower
Thickness gauge
Plunger return sensor
Bolt
Adjustment
HLGB-10411-01
Adjustment of Plunger Upper/Lower
Backward Detect Sensor
SHEET
2/2
4 Check the LED lighting-on state of the plunger return sensor (Upper/Lower).
1. Press in the mechanical valve.
2. Pull out the plunger by hand, and pinch a thickness gauge of t=1.2 mm between the
plunger and the mechanical valve.
3. Check that the LED for the plunger return sensor lights up in this state.
<Thickness of thickness gauge and state of sensor LED>
Thickness of thickness gauge State of LED for plunger return
sensor
1.0 mm Extinguish
1.2 mm Lights-up
Non (Origin position) Lights-up
