Setting UPS w h e n exchanging h a r d disk WKGB-10103-02 Setting UPS when exchanging hard disk 8/14 2. Make a double click on the System folder of the Control panel. System Proper ties wind ow appears. 3. Click Hardware…
Setting UPS when exchanging hard disk
WKGB-10103-02
Setting UPS when exchanging
hard disk
7/14
14. Click OK button.
Completing the Upgrade Device
Driver Wizard screen appears.
15. Click Finish button.
16. Close all windows.
[COM PORT setting]
Thi
s work should
be done on the machine
front and rear separately.
1. Open Control Panel. Windows の
Open Control Panel from Windows
Start Menu.
Setting UPS when exchanging hard disk
WKGB-10103-02
Setting UPS when exchanging
hard disk
8/14

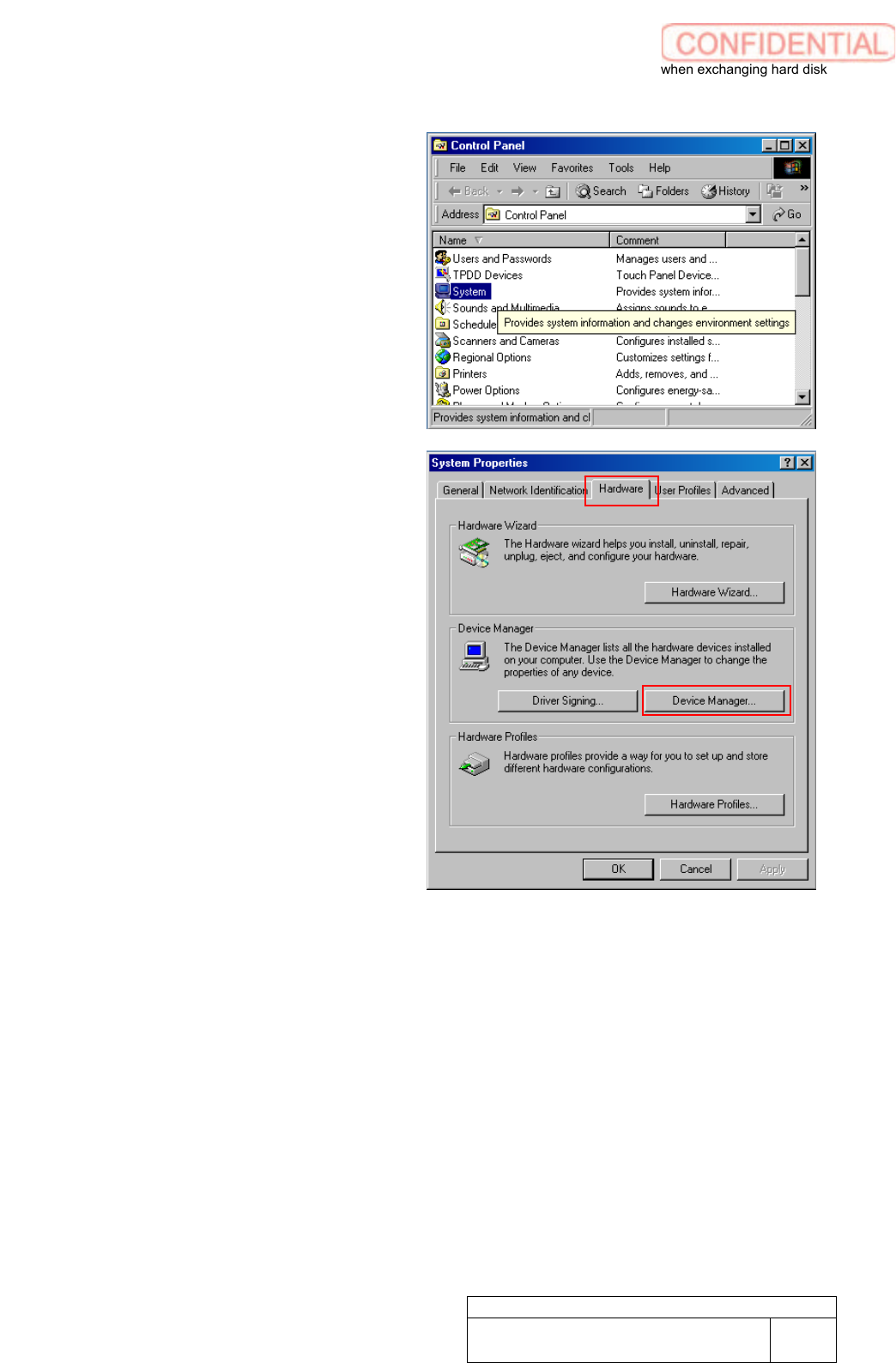

2. Make a double click on the System
folder of the Control panel. System
Properties window appears.
3. Click Hardware tab of System
Properties screen. Click Device
Manager button.
Setting UPS when exchanging hard disk
WKGB-10103-02
Setting UPS when exchanging
hard disk
9/14
4. Click “
Ports [COM & LPT]
” to open
the link. Make a double click on
“
USB Serial Port [COM 8]
”. USB
Serial Port Properties
window
appears.
5. Click “
Port Setting
” tab to show Port
Setting window.
