Setting UPS when exchanging hard disk
WKGB-10103-02
Setting UPS when exchanging
hard disk
9/14

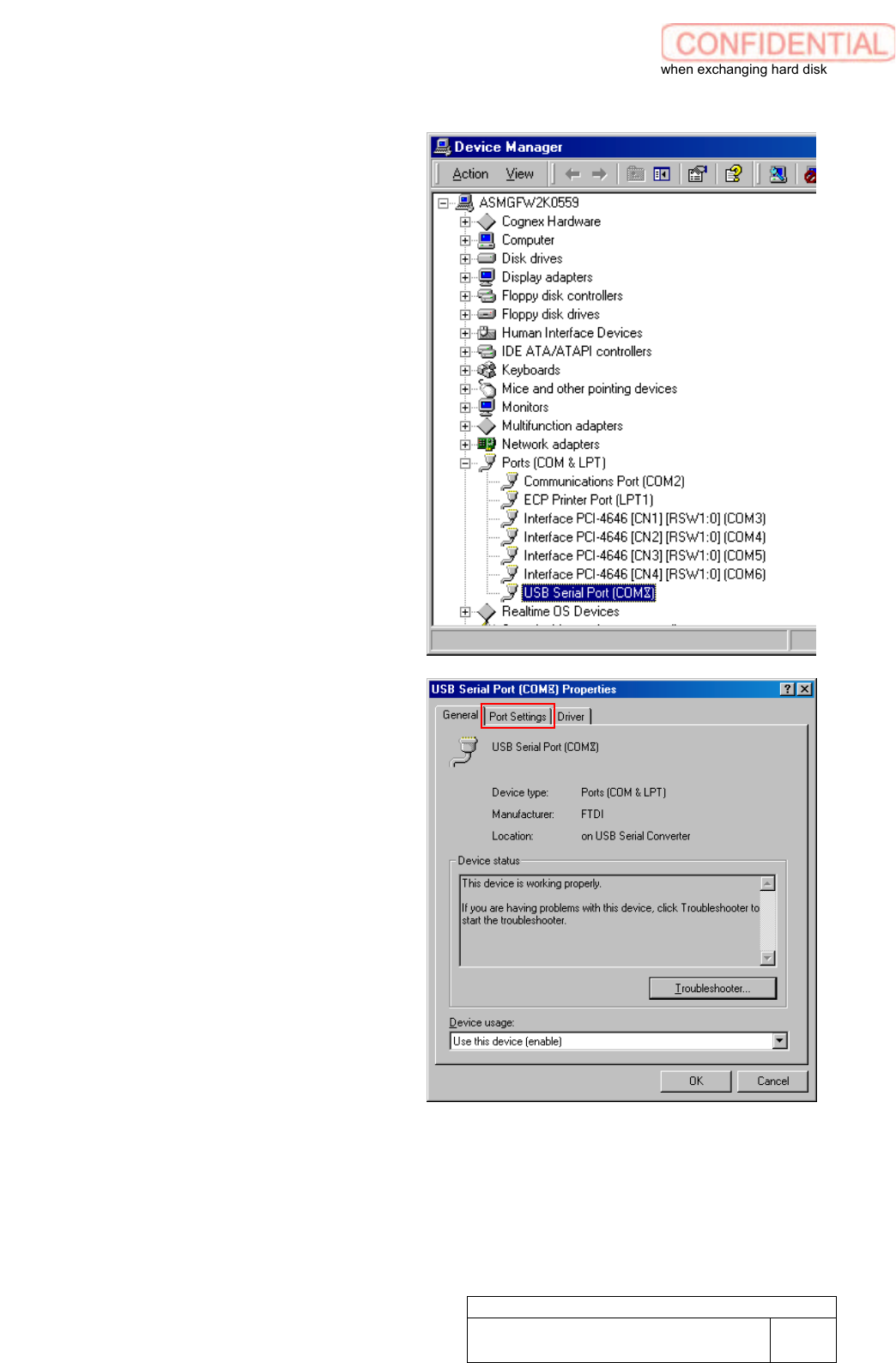

4. Click “
Ports [COM & LPT]
” to open
the link. Make a double click on
“
USB Serial Port [COM 8]
”. USB
Serial Port Properties
window
appears.
5. Click “
Port Setting
” tab to show Port
Setting window.
Setting UPS when exchanging hard disk
WKGB-10103-02
Setting UPS when exchanging
hard disk
10/14

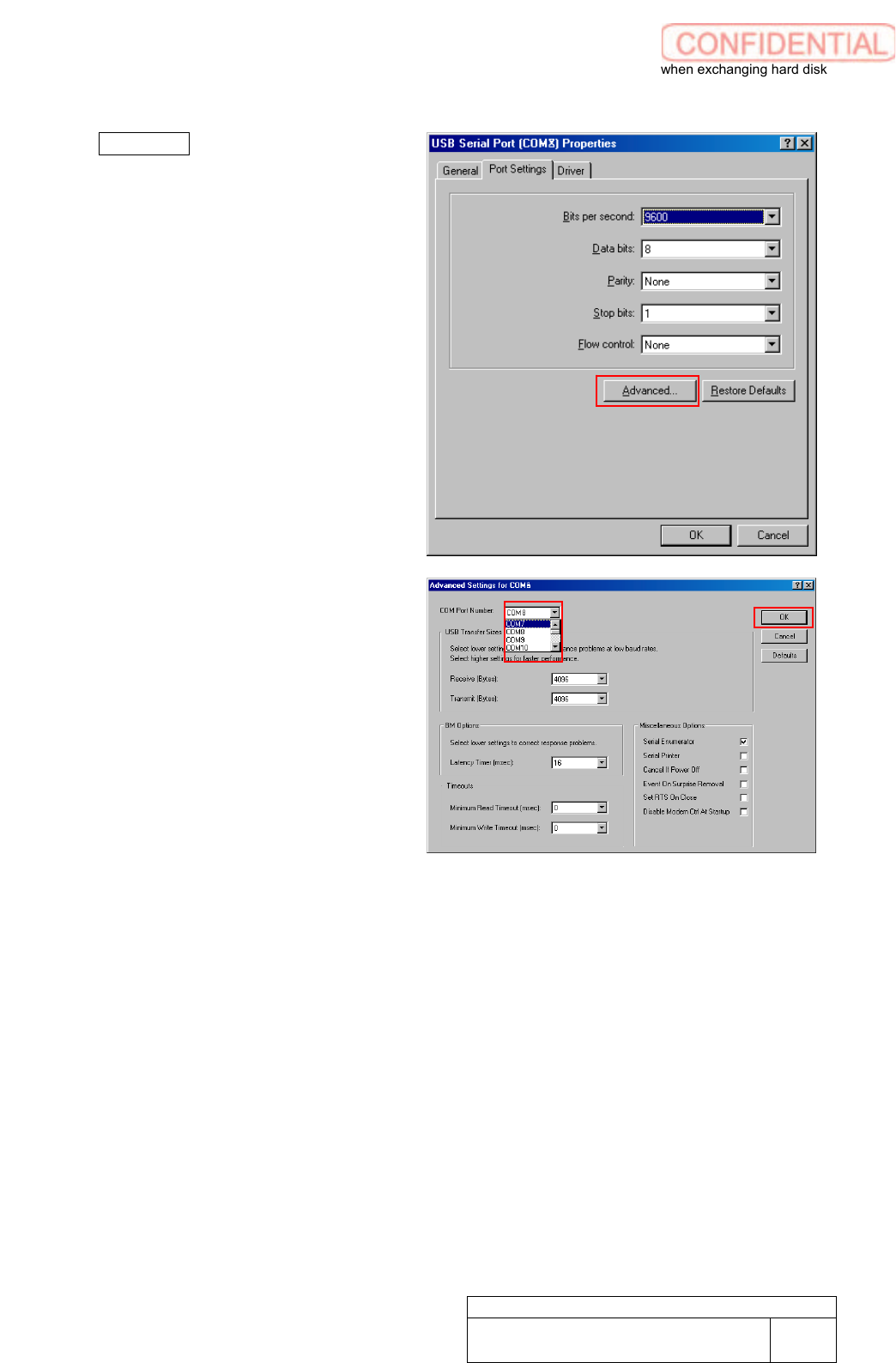

6. Click Advanced. Advanced Settings
for COM8 appears.
7. Select “
COM7
” from list box of COM
Port Number. Click OK button.
COM No. change has been completed.
Close all windows.
Setting UPS when exchanging hard disk
WKGB-10103-02
Setting UPS when exchanging
hard disk
11/14
[UPS re-setting]
This work should
be done on the machine
front and rear separately.
1. Make a double click “Power Options”.
Power Options Properties
window
appears.
2. Click UPS tab. The indication has
been switched UPS tab indication.
3. Click Select button.
UPS Selection
window appears.
