Setting UPS when exchanging hard disk
WKGB-10103-02
Setting UPS when exchanging
hard disk
11/14
[UPS re-setting]
This work should
be done on the machine
front and rear separately.

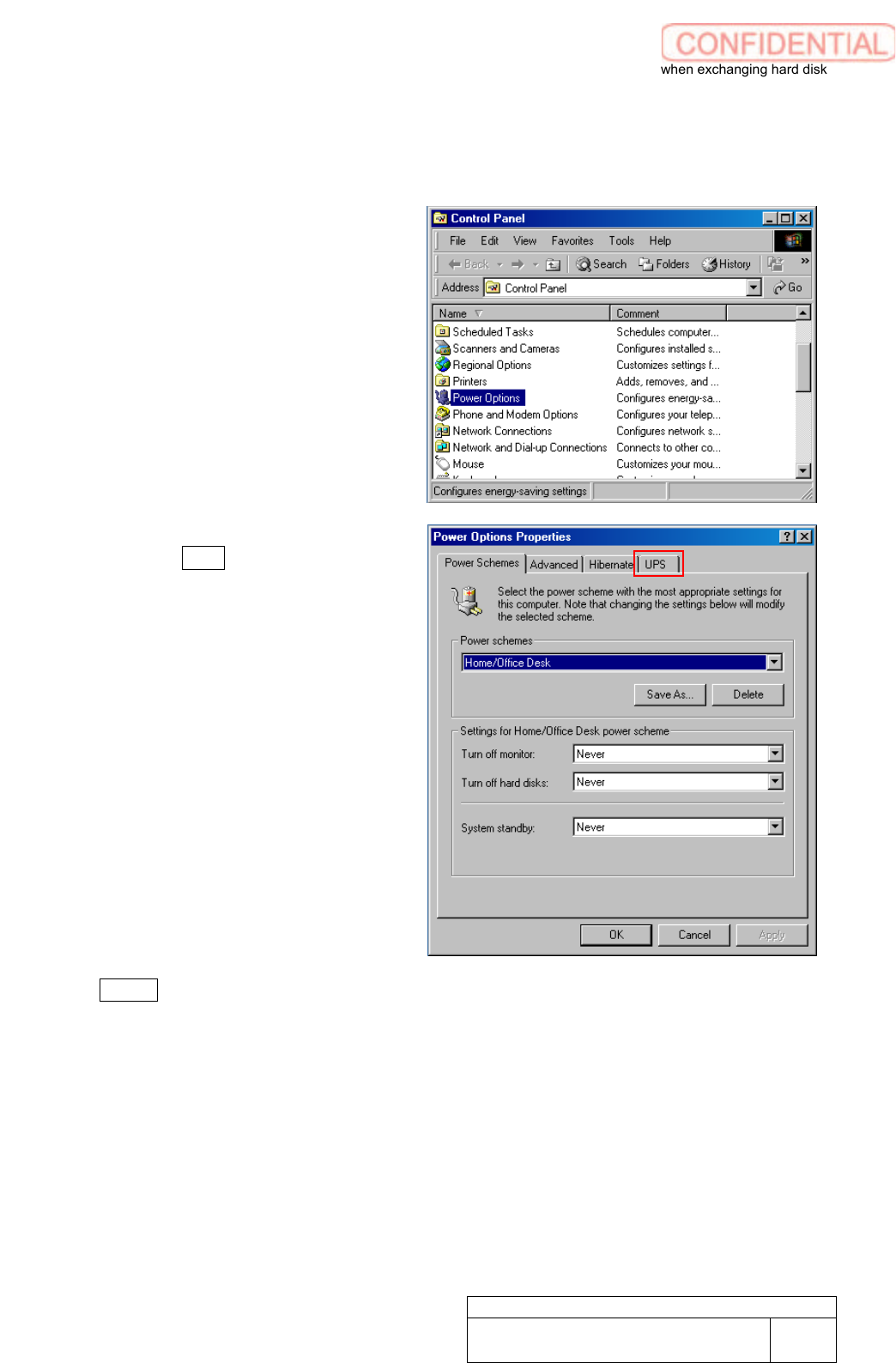

1. Make a double click “Power Options”.
Power Options Properties
window
appears.
2. Click UPS tab. The indication has
been switched UPS tab indication.
3. Click Select button.
UPS Selection
window appears.
Setting UPS when exchanging hard disk
WKGB-10103-02
Setting UPS when exchanging
hard disk
12/14
4. Confirm if the “
On port
” field is
“
COM7
” to click Next button.
5. UPS Interface Configuration On
window appears.
Click Finish button.
The UPS tab indication of Power
Options Properties
appears again.
6. Click OK button.
UPS recognition has been started to
switch the UPS function to be ON.
Setting UPS when exchanging hard disk
WKGB-10103-02
Setting UPS when exchanging
hard disk
13/14
[Shut down Windows]
This work should
be done on the machine
front and rear separately.
1. Select “
Shut Down
” of Windows Start
Menu.
