Power Unit LAGB-10103-01 Power Unit SHEET 1/1 Power Unit CP1 BREAKER MC1 MAGNETIC CONT ACT OR MC2 MAGNETIC CONT ACT OR PCTL POWER ON/OFF CONTROL B OARD III PS2 DC SUPPL Y 12V PS1 DC SUPPL Y 24V MR1 MAGNETIC RELA Y TB1 TE…
PC Unit
LAGB-10102-01
PC Unit
SHEET
1/1
PC Unit
POWER SUPPLY
GRAPHIC BOARD
FRAME GRABBER BOARD
FDD CONNECTOR PANEL
LAN BOARD
(FRONT ONLY)
SY-MC2 EX BOARD
SERIAL DIO
MASTER BOARD
F
A
N 4
FAN 1
FAN 3
FAN 2
RAS BOARD
HARD DISK DRIVE
RS-232C BOARD
(FRONT ONLY)
SY-MC2 BOARD
PC UNIT (FRONT)
PC UNIT (REAR)

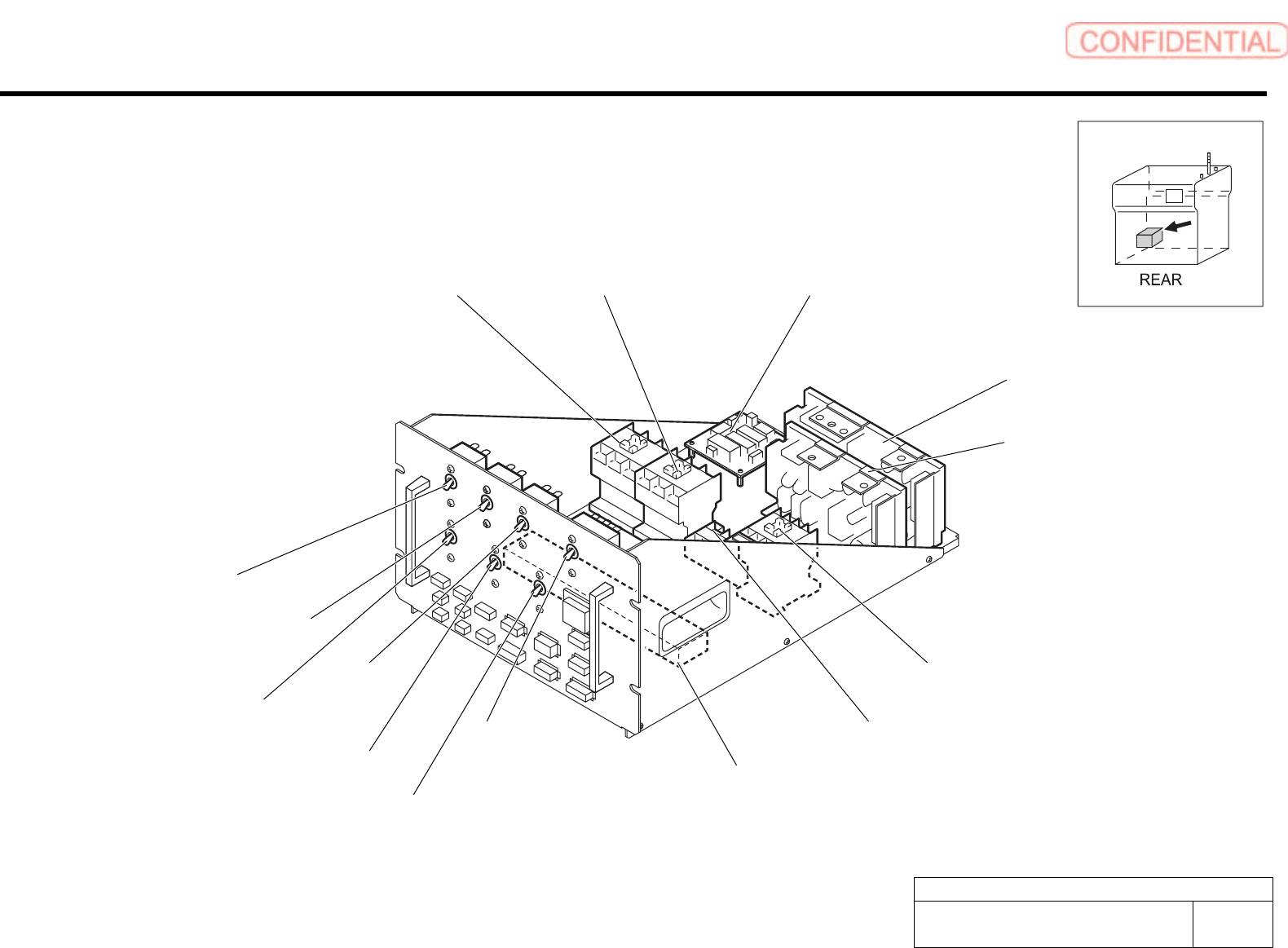

Power Unit
LAGB-10103-01
Power Unit
SHEET
1/1
Power Unit
CP1
BREAKER
MC1
MAGNETIC
CONTACTOR
MC2
MAGNETIC
CONTACTOR
PCTL
POWER ON/OFF
CONTROL BOARD III
PS2
DC SUPPLY 12V
PS1
DC SUPPLY 24V
MR1
MAGNETIC RELAY
TB1
TERMINAL BLOCK
CP5
BREAKER
CP2
BREAKER
CP4
BREAKER
TB2
TERMINAL BLOCK
CP3
BREAKER
CP6
BREAKER
CP7
BREAKER

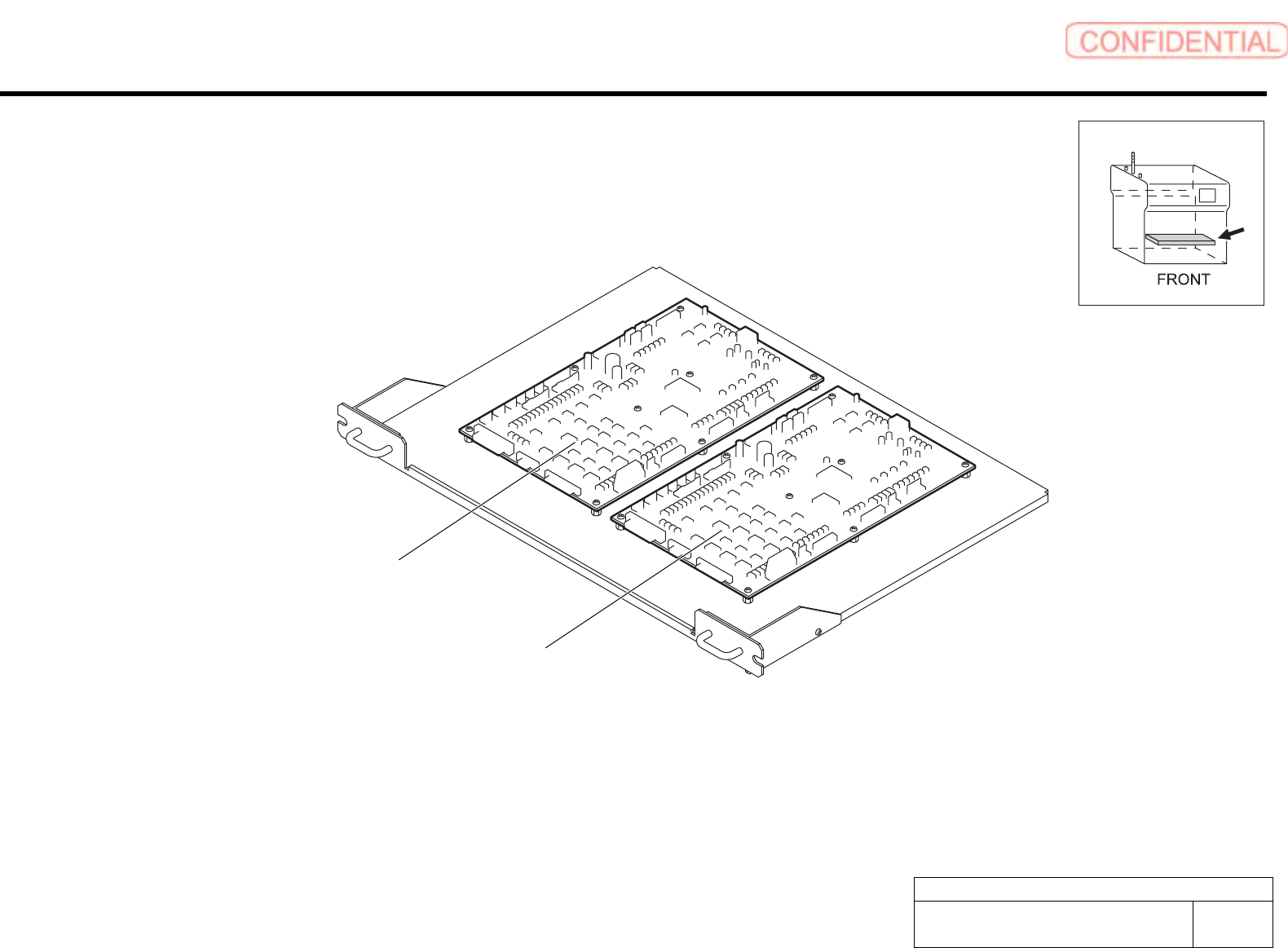

Servo I/F Unit
LAGB-10104-01
Servo I/F Unit
SHEET
1/1
Servo I/F Unit
SY-EX2-R
SY-EX2 BOARD
(REAR HEAD)
SY-EX2-F
SY-EX2 BOARD
(FRONT HEAD)
