X-axis and Y -axis Circ umference LAGB-101 10-01 X-axis and Y - axis Circumference SHEET 1/2 X-axis and Y -axis Circumference < X-axis > X-ORG X-CCW X-CW X-ENCODER X-MOTO R PDF-LSB (Front Head) PDR-LSB (Rear Head) …

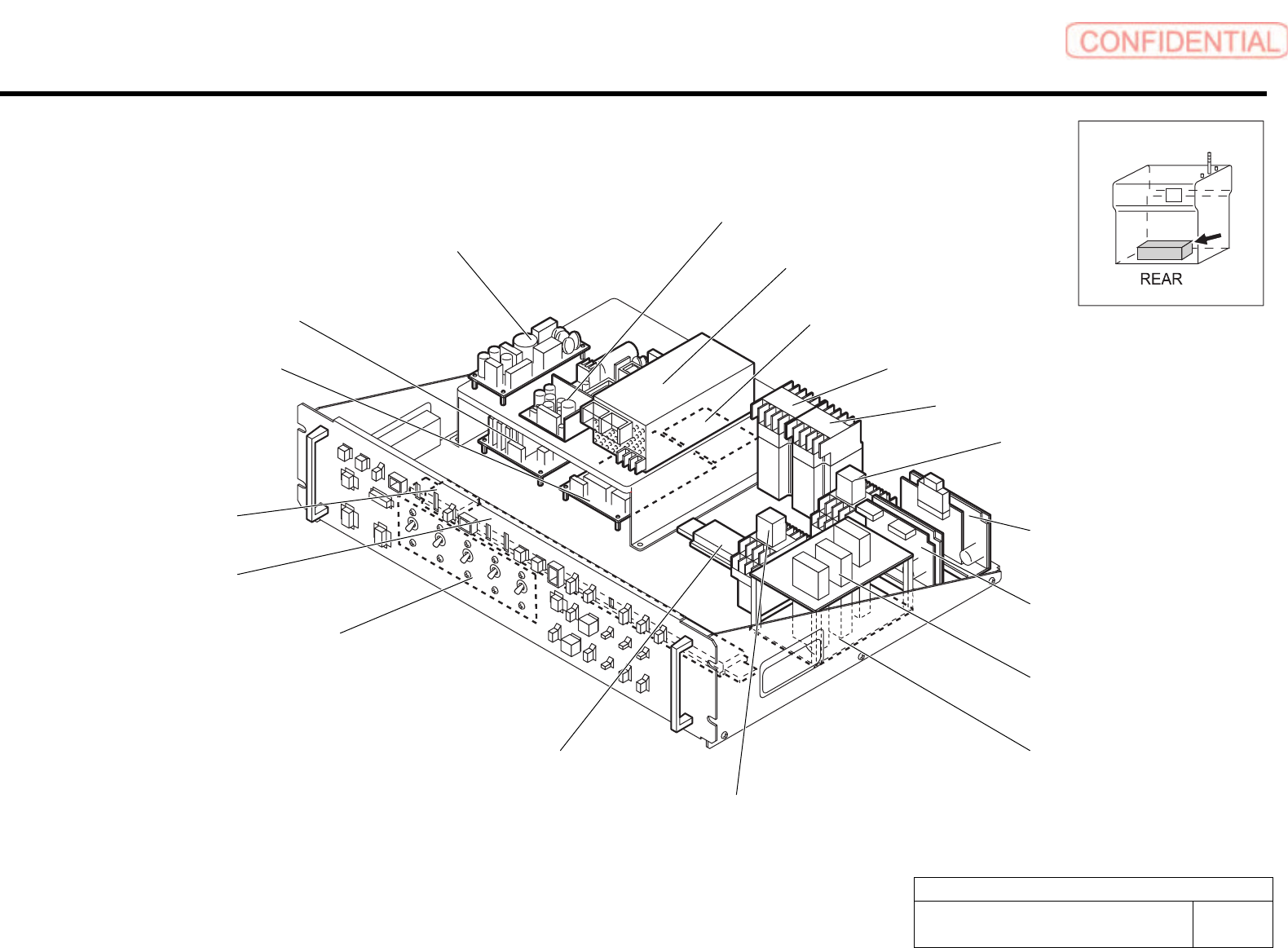

Driver Unit
LAGB-10109-01
Driver Unit
SHEET
1/1
Driver Unit
CR2
RELAY
PS4
DC SUPPLY 48V
PS2
DC SUPPLY +5V, +12V, -12V
PS3
DC SUPPLY +5V, +12V, -12V
PS1
DC SUPPLY 24V
TB1
TERMINAL BLOCK
TB2
TERMINAL BLOCK
CP1 – CP5
BREAKER
MC1
MAGNETIC CONTACTOR
CR1
RELAY
ALM-IF
ALARM I/F BOARD
DRV-CE
CONVEYOR EJECT
MOTOR DRIVE BOARD
DRV-AD
CONVEYOR
ADJUSTMENT MOTOR
DRIVER
DRV-P/B R
PUSHER/BULK DRIVER
BOARD (REAR)
DRV-P/B F
PUSHER/BULK DRIVER
BOARD (FRONT)
PS5
DC SUPPLY +3.3V
TB3
TERMINAL BLOCK
MC2
MAGNETIC CONTACTOR

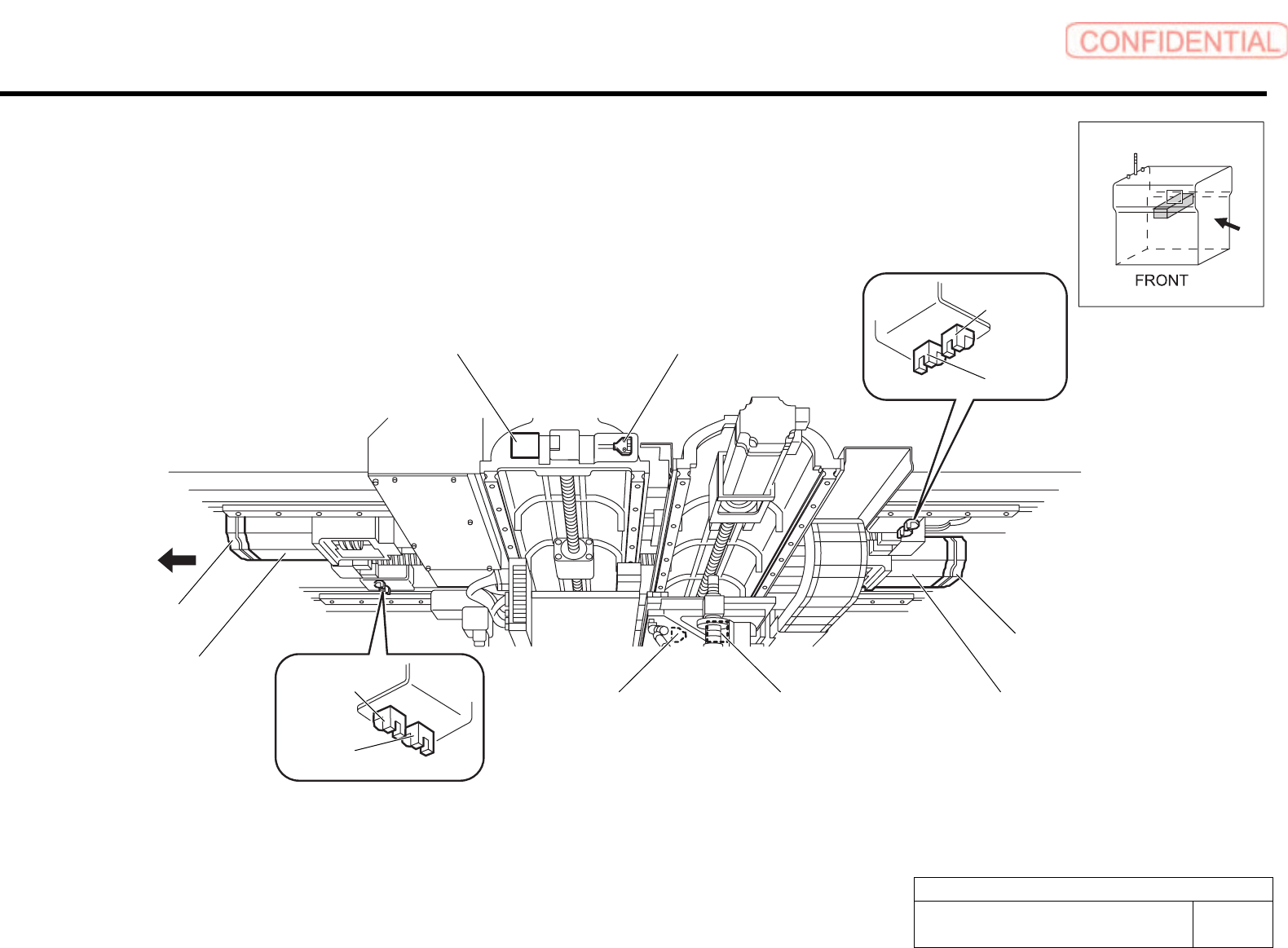

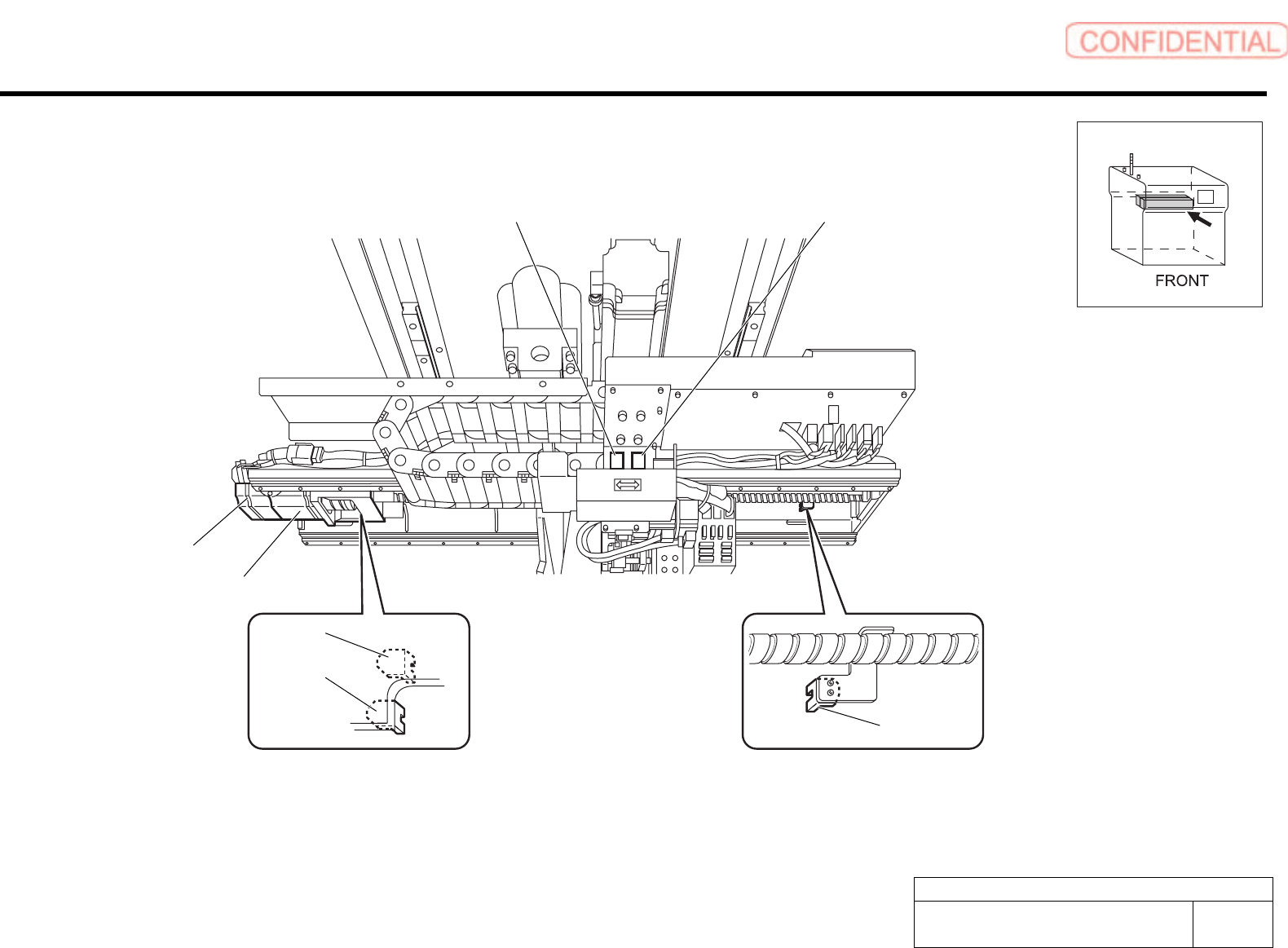

X-axis and Y-axis Circumference
LAGB-10110-01
X-axis and Y-axis Circumference
SHEET
1/2
X-axis and Y-axis Circumference
< X-axis >
X-ORG
X-CCW
X-CW
X-ENCODER
X-MOTOR
PDF-LSB (Front Head)
PDR-LSB (Rear Head)
HF-LSB (Front Head)
HR-LSB (Rear Head)
X-axis and Y-axis Circumference
LAGB-10110-01
X-axis and Y-axis Circumference
SHEET
2/2
< Y-axis >
YF-CCW
YF-ORG
YF-CW
FRONT
YR-MOTOR
YR-ENCODER
YF-MOTOR
YF-ENCODER
YF-LSB
YR-CW
YR-LSB
YR-ORG
YR-CCW
