Head Unit Circumference L A G B - 1 0 111 - 0 1 Head Unit Circumference SHEET 2/2 < Rear side > HF-MOTOR (Front Head) HR-MOT OR (Rear Head ) HF-ENCODER (F ront Head) HR-ENCODE R (Rear Head) PH-PDH PUSHER UPPER BACK…

100%1 / 712
Head Unit Circumference
LAGB-10111-01
Head Unit Circumference
SHEET
1/2
Head Unit Circumference

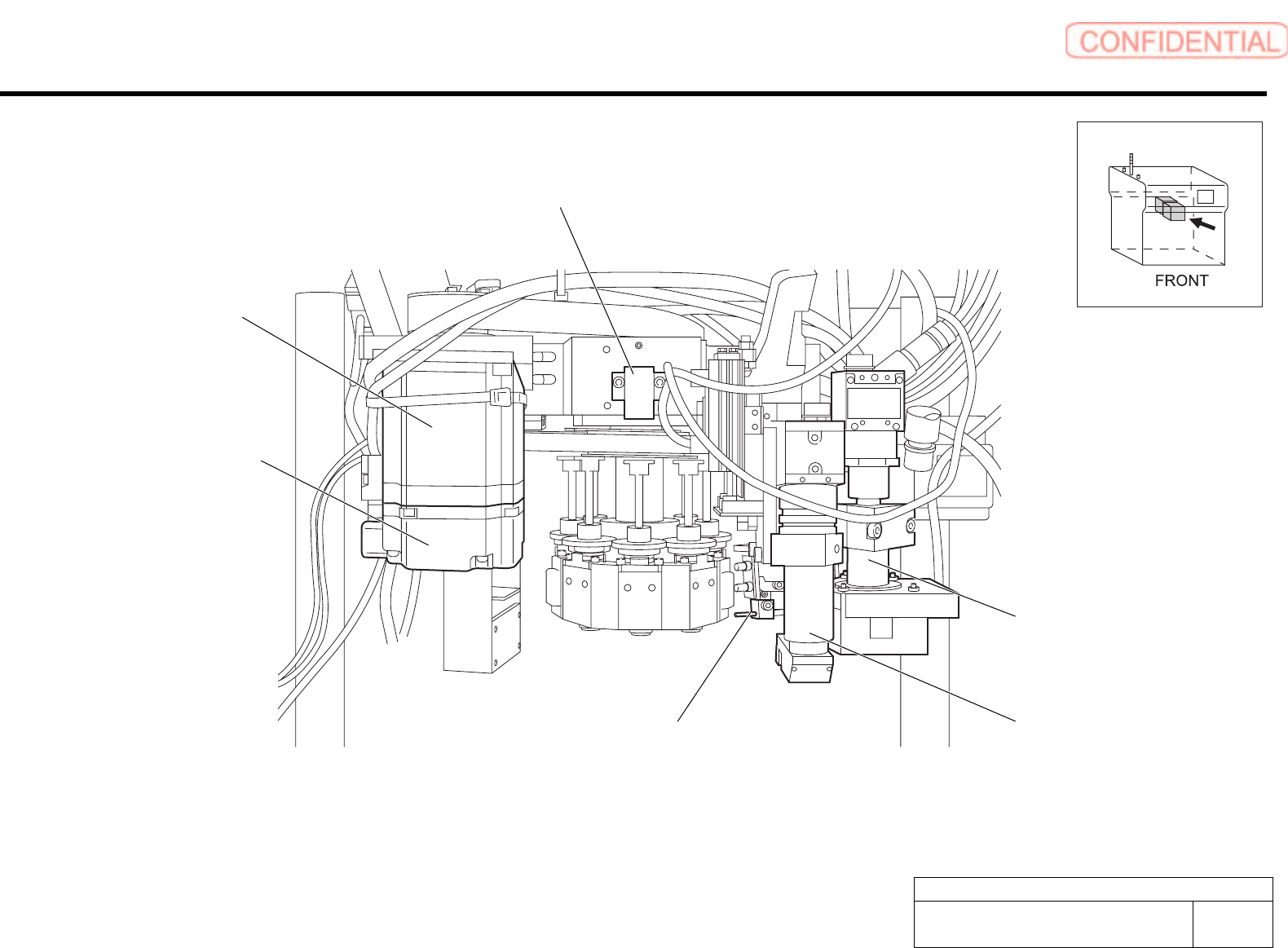

< Front side >
BOARD CAMER
A
PICKUP CHECK CAMER
A
RTF-MOTOR (Front Head)
RTR-MOTOR (Rear Head)
RTF-ENCODER (Front Head)
RTR-ENCODER (Rear Head)
RNF-ORG (Front Head)
RNR-ORG (Rear Head)
NOZZLE BACKWARD
DETECT
Head Unit Circumference
LAGB-10111-01
Head Unit Circumference
SHEET
2/2
< Rear side >
HF-MOTOR (Front Head)
HR-MOTOR (Rear Head)
HF-ENCODER (Front Head)
HR-ENCODER (Rear Head)
PH-PDH
PUSHER UPPER
BACKWARD DETECT
PH-PDL
PUSHER LOWER
BACKWARD DETECT
PUSHER LOWER
PUSHER UPPER
RNF-MOTOR (Front Head)
RNR-MOTOR (Rear Head)
RNF-ENCODER (Front Head)
RNR-ENCODER (Rear Head)
CSF
T
-SV
SSB
SENSOR SERIES BOARD
BS-NZL
Front Supply Unit Circumference
LAGB-10112-01
Front Supply Unit Circumference
SHEET
1/1
Front Supply Unit Circumference
FRONT CASSETTE
PLATE R CYLINDER
FRONT CASSETTE
PLATE L CYLINDER
LS110
FRONT CART CHANGE
POSITIONING DETECT L
(OPTION)
LS111
FRONT CART CHANGE
POSITIONING DETECT R
(OPTION)
BS63R
FRONT CASSETTE
FLOATING DETECT
BS63T
FRONT CASSETTE
FLOATING DETECT
BS112
FRONT CART
CHANGE UPPER
DETECT L
(
OPTION
)
BS113
FRONT CART CHANGE
UPPER DETECT R
(OPTION)
BS79UR
FRONT AREA
SENSOR REVERSE
(UP SIDE)
BS79DR
FRONT AREA
SENSOR REVERSE
(DOWN SIDE)
BS79UT
FRONT AREA
SENSOR TRANS
(UP SIDE)
BS79DT
FRONT AREA
SENSOR TRANS
(DOWN SIDE)
BS78
FRONT CART SENSOR
