Feeder Unit LAGB-10120-01 Feeder Unit SHEET 1/2 Feeder Unit < Front side > FF-ENCODER PH-FFB FEEDER FF BACKW ARD DETECT FF-MOTO R FF-ORG FRONT

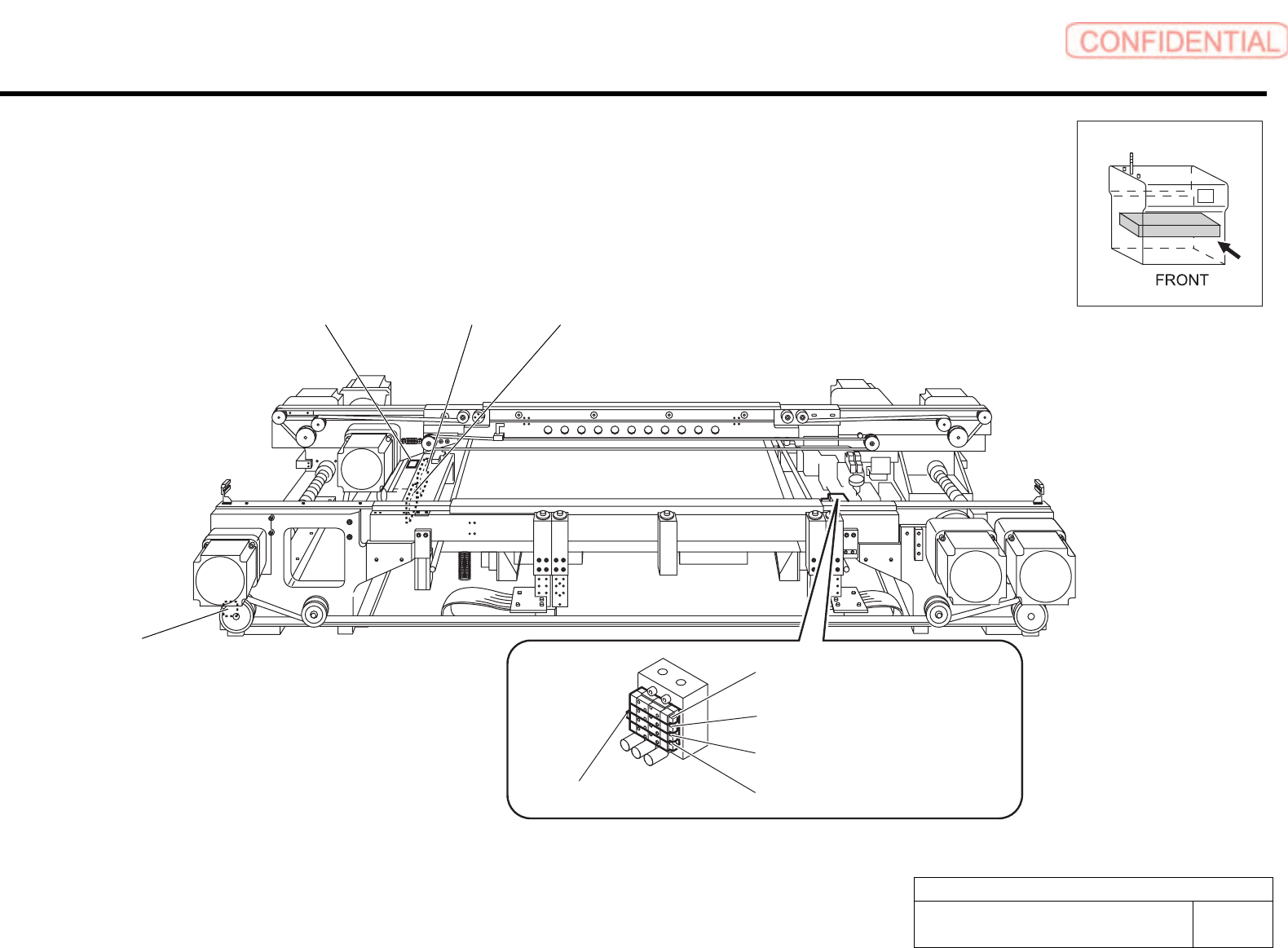

Transfer Unit Valve
LAGB-10119-01
Transfer Unit Valve
SHEET
1/1
Transfer Unit Valve
DW3DR3
A
D-LSB
SV1090
PWB BACKUP PLATE ASCEND
SV1091
PWB STOPPER ASCEND
SV1094
C/V EJECTOR UP
SV1093
LOCATE PIN UP
SV1095
C/V EJECTOR DOWN
CE-LSB
Feeder Unit
LAGB-10120-01
Feeder Unit
SHEET
1/2
Feeder Unit
< Front side >
FF-ENCODER
PH-FFB
FEEDER FF BACKWARD
DETECT
FF-MOTOR
FF-ORG
FRONT
Feeder Unit
LAGB-10120-01
Feeder Unit
SHEET
2/2
< Rear side >
FR-ENCODER
PH-FRB
FEEDER FR BACKWARD
DETECT
FR-MOTOR
FR-ORG
REAR
