Nozzle Change Unit LAGB-10121-01 Nozzle Change Unit SHEET 2/2 < Rear side > NOZZLE CHANGE BACKUP CY LINDER LS390 NOZZLE CHANGE UPPER-END LS391 NOZZLE CHANGE LOWER-END LS1473 NOZZLE CHANGE LOCK RELEASE LS1470 NOZZLE…

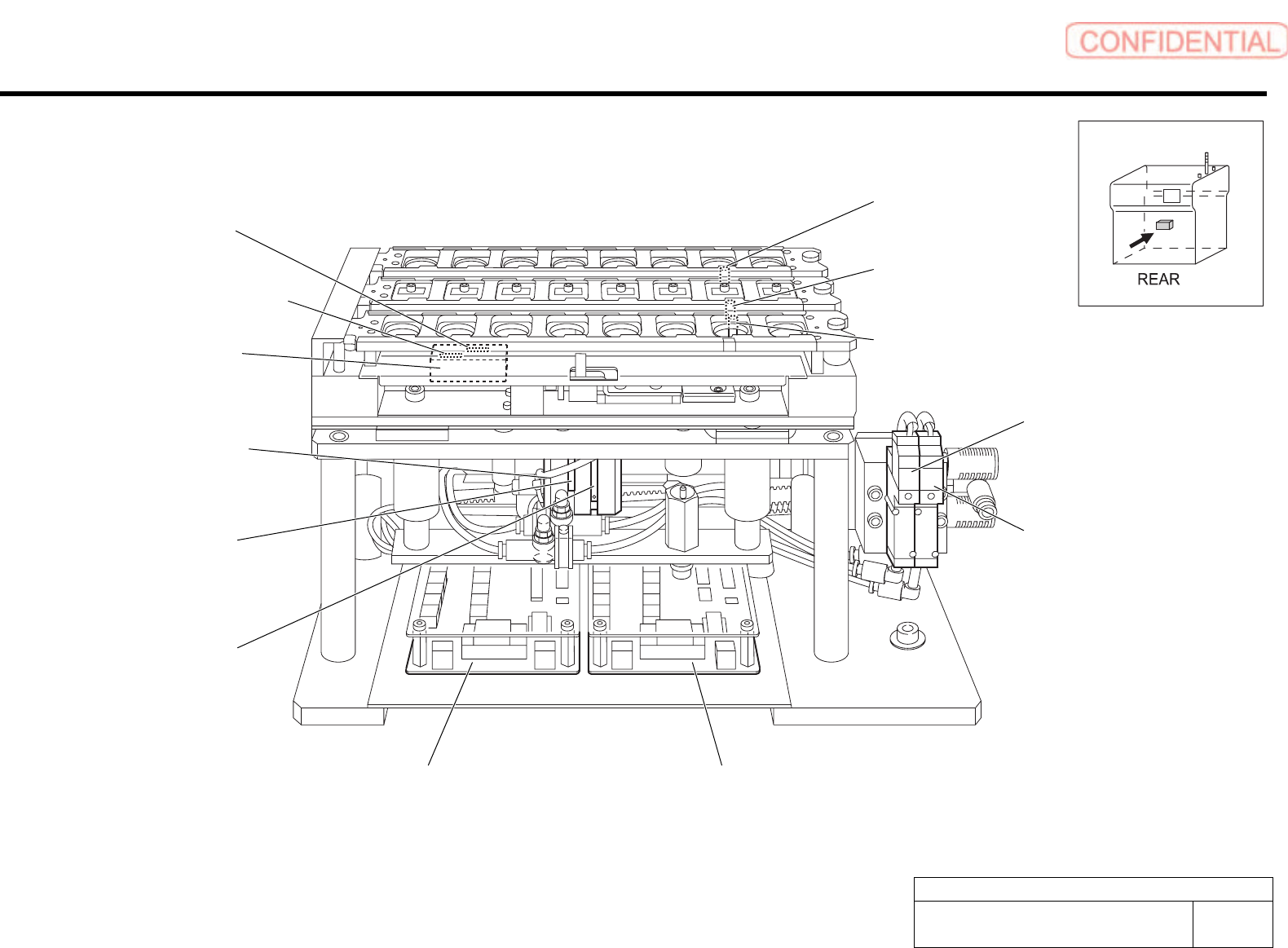

Nozzle Change Unit
LAGB-10121-01
Nozzle Change Unit
SHEET
1/2
Nozzle Change Unit
< Front side >
SV1153
NOZZLE CHANGE LOCK
RELEASE
SV1150
NOZZLE CHANGE
ASCEND
NOZZLE CHANGE
BACKUP CYLINDER
LS130
NOZZLE CHANGE
UPPER-END
LS131
NOZZLE CHANGE
LOWER-END
DR9-F
SDIOC-IN16-CHAT
DW9-F
SDIOC-OUT16
LS136
NOZZLE CHANGE
RELEASE
LS137
NOZZLE CHANGE LOCK
CLAMP CYLINDER
LS144
NOZZLE CHANGE
CARTRIDGE3 FOUND
LS143
NOZZLE CHANGE
CARTRIDGE2 FOUND
LS142
NOZZLE CHANGE
CARTRIDGE1 FOUND
Nozzle Change Unit
LAGB-10121-01
Nozzle Change Unit
SHEET
2/2
< Rear side >
NOZZLE CHANGE
BACKUP CYLINDER
LS390
NOZZLE CHANGE
UPPER-END
LS391
NOZZLE CHANGE
LOWER-END
LS1473
NOZZLE CHANGE LOCK
RELEASE
LS1470
NOZZLE CHANGE
ASCEND
LS396
NOZZLE CHANGE
RELEASE
LS397
NOZZLE CHANGE LOCK
CLAMP CYLINDER
DR8-R
SDIOC-IN16-CHAT
DW8-R
SDIOC-OUT16
LS404
NOZZLE CHANGE
CARTRIDGE3 FOUND
LS403
NOZZLE CHANGE
CARTRIDGE2 FOUND
LS402
NOZZLE CHANGE
CARTRIDGE1 FOUND
Fixed Camera
LAGB-10122-01
Fixed Camera
SHEET
1/2
Fixed Camera
< Front side >
FIXED CAMER
A
CAMF4L
CCD CAMERA
CAMF3L
CCD CAMERA
FAN
PARTS SENSOR AMP
PARTS SENSOR
BS145
NOZZLE CHANGE
NOZZLE PRESENCE
