Install Tray Unit (Including machine modification) SHEET 12/73 WKGB-10104-03 Installing Tray Unit (Including machine modification) 3 Connect the TY -MLOUT on the tray coupling I/F plate and the PW -3 on the RN axis motor…

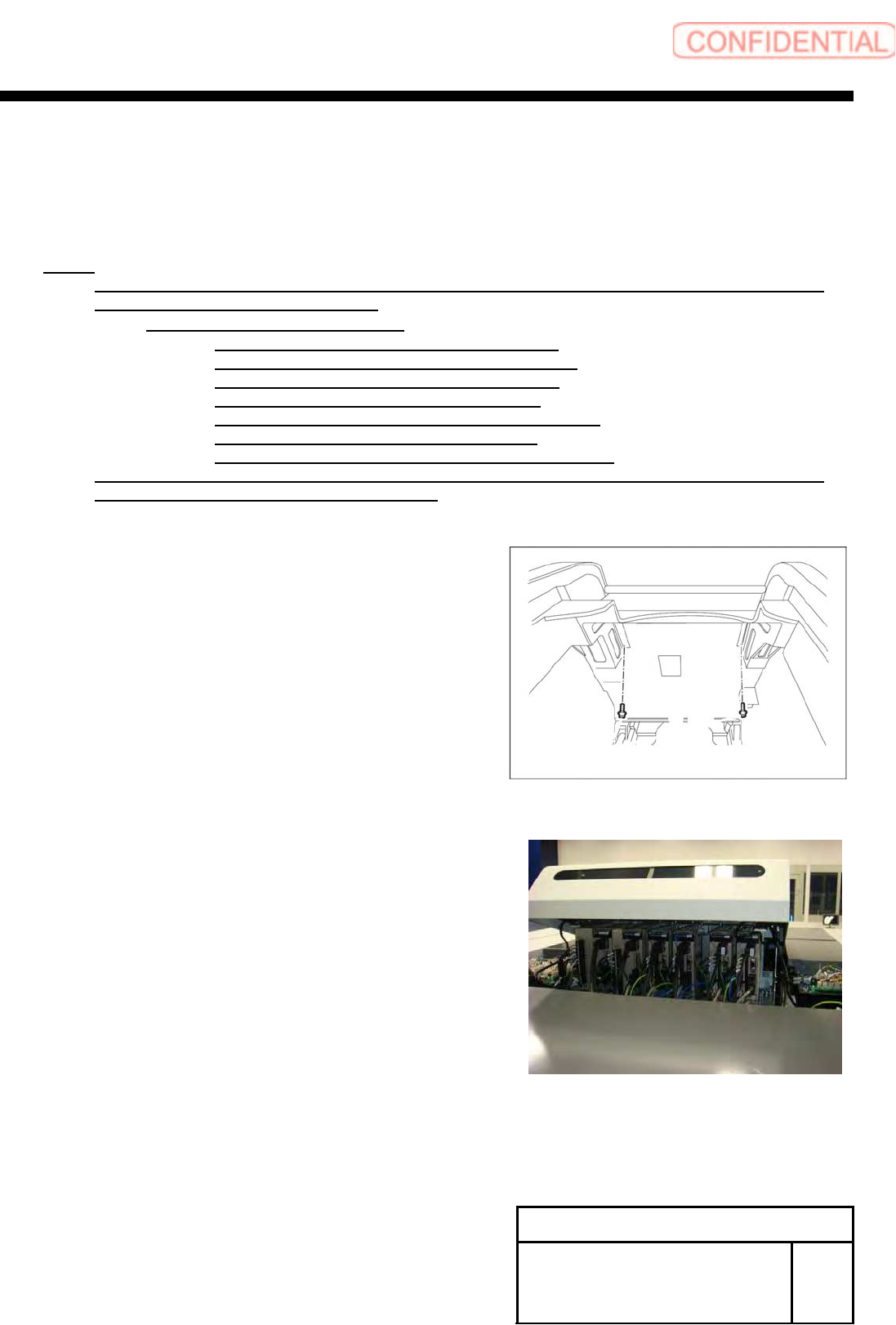

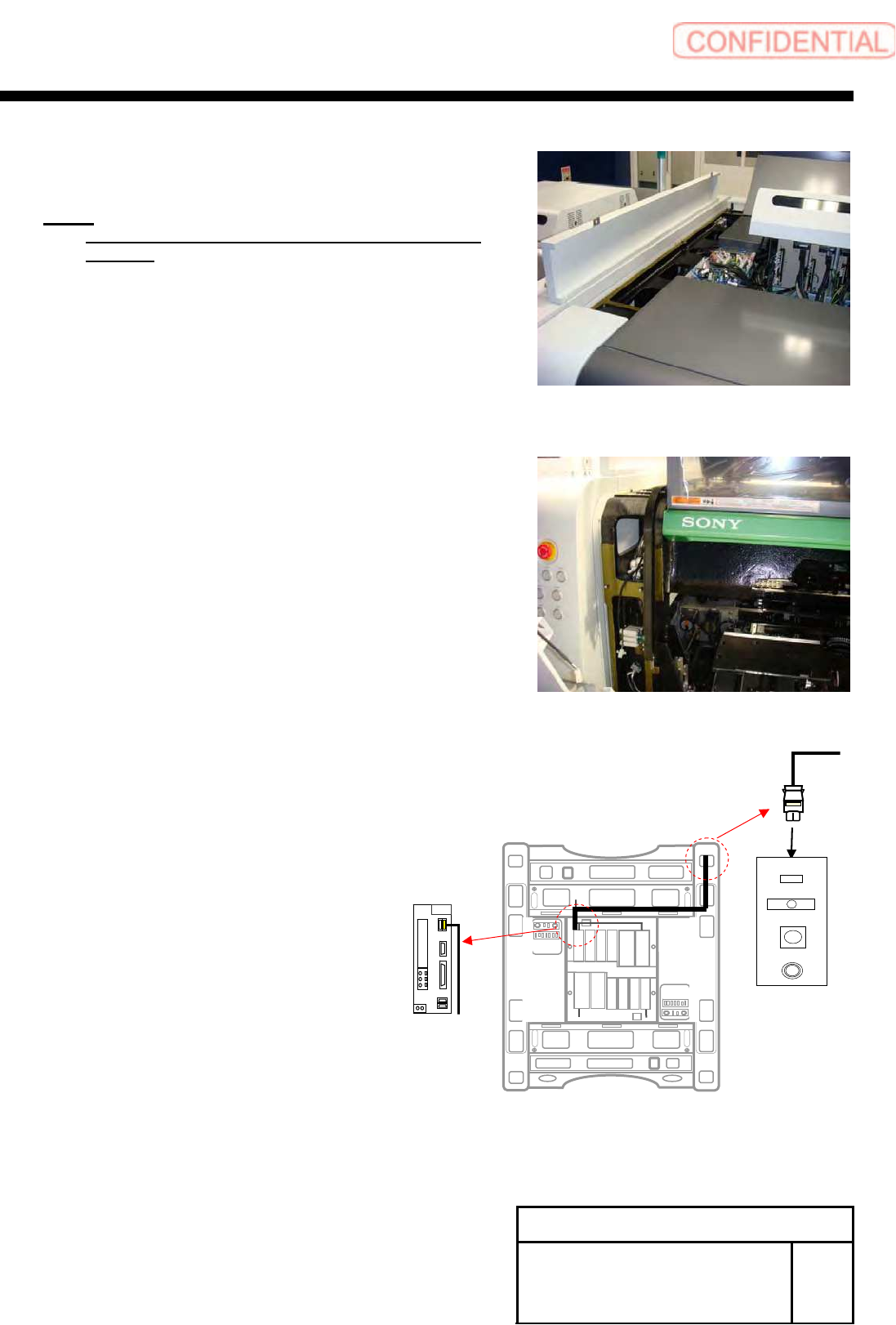

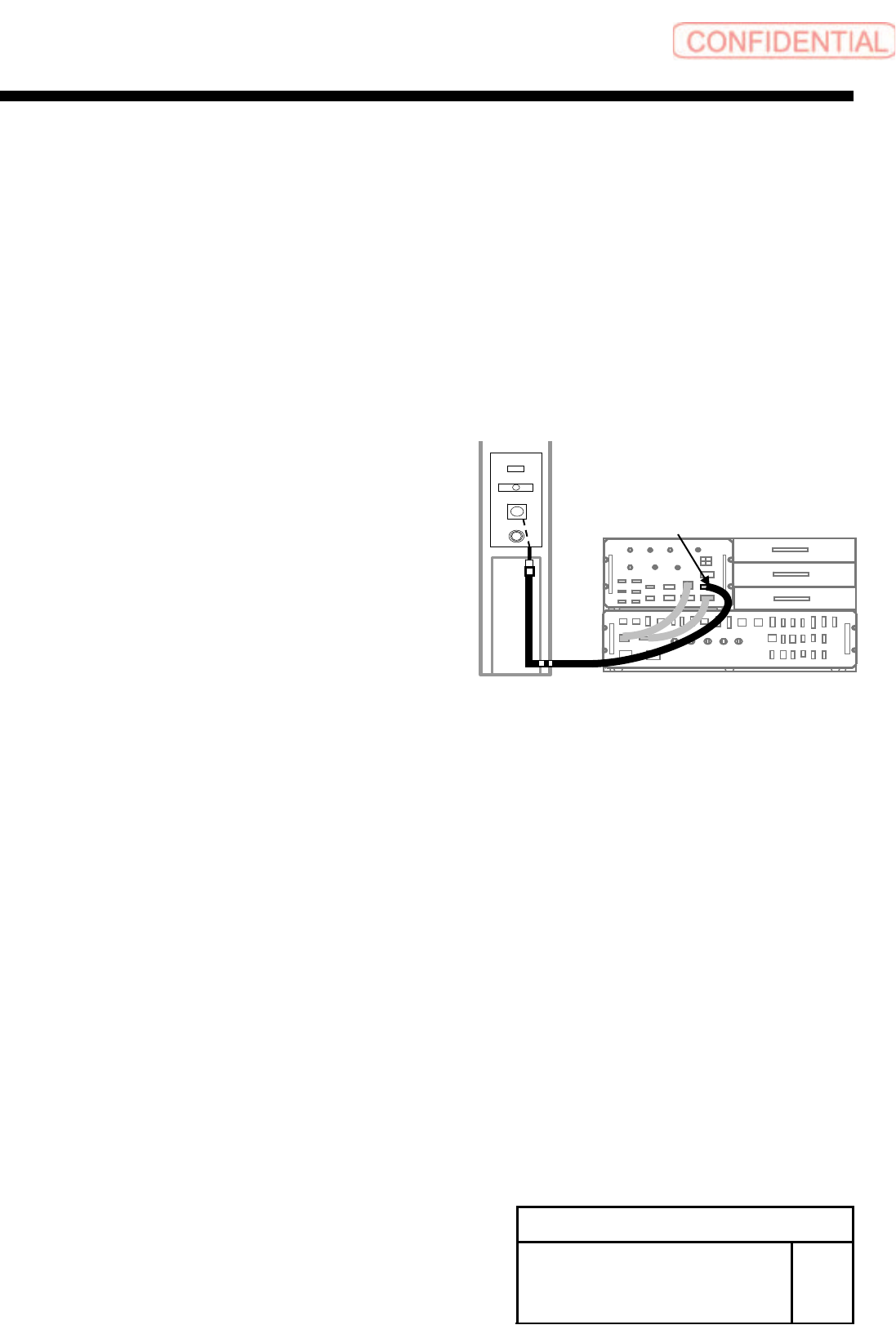

Install Tray Unit (Including machine modification)
SHEET
11/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)
8. Fix the air three-point set to the previous position.
9. Connect air on the primary side.
10. Install the front right cover with 4-+T4x8 as in the
previous state.
11. Install the front right lower cover with +T4x8.
2 Additionally install a tray power cable.
1. Remove the rear center cover and rear right cover.
2. Connect the TY-AC on the tray coupling I/F plate
and PW-3 on the power unit with the tray power
cable.
PW3
TY
-
TY
-
ML
TY
-
C
TY
-
AC
A
Install Tray Unit (Including machine modification)
SHEET
12/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)
3 Connect the TY-MLOUT on the tray
coupling I/F plate and the PW-3 on the
RN axis motor driver with the servo
communication cable.
NOTE:
Please arrange the following goods additionally, if you execute the modification to SI-G200
that is older than the 866th machine.
・A-1540-885-A TRAY ASSY KIT
1-834-058-11 CABLE, TRAY CONNECT 3
1-835-002-11 CABLE (JEPMC-W6002-04-E)
3-870-447-01 CAP (SC750-150), SILICON
4-708-465-01 CAP, TUBE (KQ2C06-00)
4-716-434-11 TIE, INSULOCK (AB100 BLACK)
4-761-324-31 REJUICER (KQ2R06-08)
7-632-385-50 TUBE, POLYURETHAN (TU0604B)
Please connect the cable that has already been arranged, if you execute the modification to
SI-G200 that is later than the 865th machine.
1. Loosen the 2-CP4x45 to remove the top plate on the
rear side.
2.
Loosen the 6-+T5x6 to remove the packen box.
Install Tray Unit (Including machine modification)
SHEET
13/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)
3. Loosen the CP4x8 to remove the sealing on the
right side.
NOTE:
The bolts fixing the side sealing are on the front
and rear.
4. Loosen the CP5x10 to remove the right rear
shoulder cover.
5. Connect the CN6 on the RN axis motor driver from
the TY-MLOUT on the tray coupling I/F plate with
the servo communication cable.
Front
CN6
T
Y
-MLOUT
TY-CTLO
TY-ACOUT
AIR
