Jig List JGGB-10101-01 Jig List SHEET 2/12 No. Jig name / Parts No. Outside ap pearance Qty Uses Remarks 6 Locating pin positioning jig X-4760- 070-2 1 Positionin g of locating pin 7 Ball point jig ASSY (G200) A-1437-267…
Jig List
JGGB-10101-01
Jig List
SHEET
1/12
Jig List

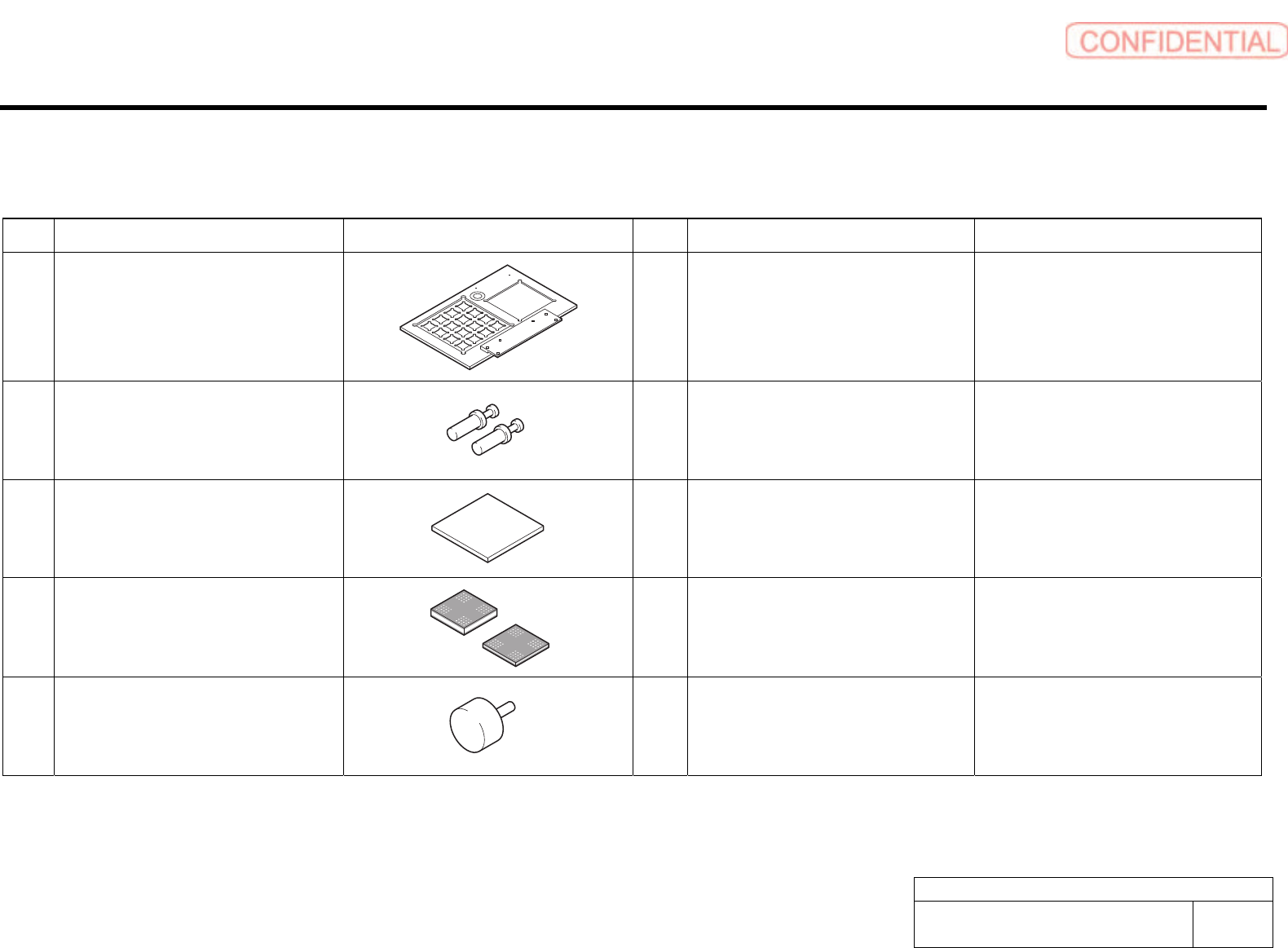

No. Jig name / Parts No. Outside appearance Qty Uses Remarks
1 Calibration plate jig (1 set)
(Calib.ini data provided)
A-1433-203-A
1 Calibration Calibration plate B: 3-280-814-01
Urethane rubber: 2-595-904-01
Glass retainer: 3-280-792-01
2 Jig positioning pin
A-8417-273-A
2 Positioning of calibration plate
locating pin
3 Calibration jig chip (glass)
3-280-791-01
1 Auto calibration
4 Jig chip (t=3.4, 1.4)
8 Auto calibration Jig chip (1) Ass’y (t=1.4 mm):
X-2055-168-1
Jig chip (2) Ass’y (t=3.4 mm):
X-2055-169-1
5 Pickup check resolution inspection
jig B
3-280-806-01
1 Pickup check camera calibration
Jig List
JGGB-10101-01
Jig List
SHEET
2/12

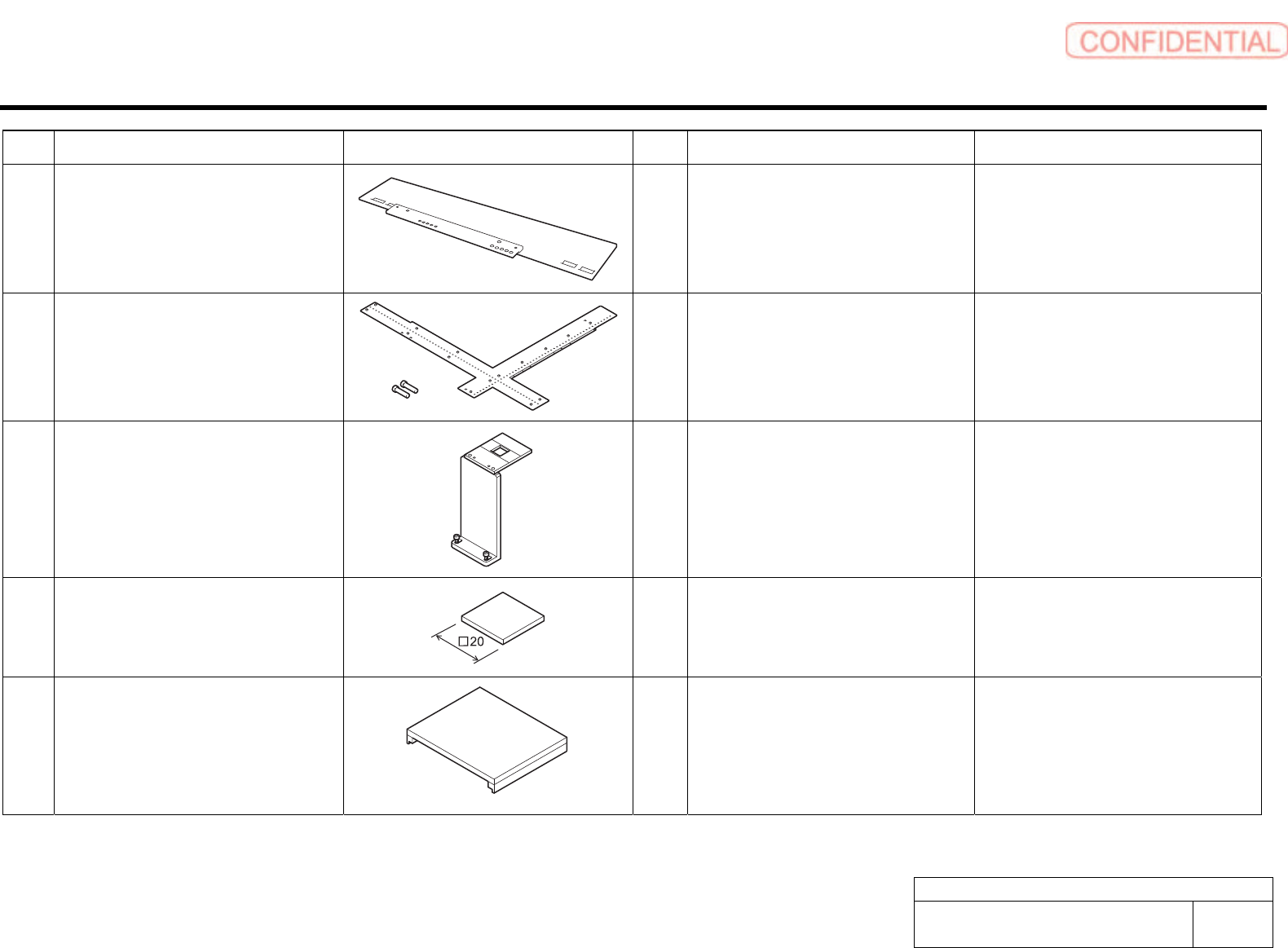

No. Jig name / Parts No. Outside appearance Qty Uses Remarks
6 Locating pin positioning jig
X-4760-070-2
1 Positioning of locating pin
7 Ball point jig ASSY (G200)
A-1437-267-A
1 Auto calibration
Positioning of Locating pin positioning jig
/Ball point jig
Jig case Ass’y: A-1437-268-A
XY ball point Ass’y: X-218-780-31
XY calibration positioning pins:
3-282-454-01
8 Fixed camera jig base (1 set)
A-1433-194-A
1 Fixed camera Rcg height calibration
Fixed camera pickup check sensor
adjustment
7-683-457-04 2-C6x20
9 Light calibration jig
4-721-273-01
1 PWB camera light calibration
10 Fixed camera light calibration jig
3-280-807-01
1 Fixed camera light calibration (Upper
light/ Middle light/ Lower light/ Coaxial
light)
Light calibration for global recognition
(Top light/ Middle light/ Bottom light/
Coaxial light)
Jig List
JGGB-10101-01
Jig List
SHEET
3/12

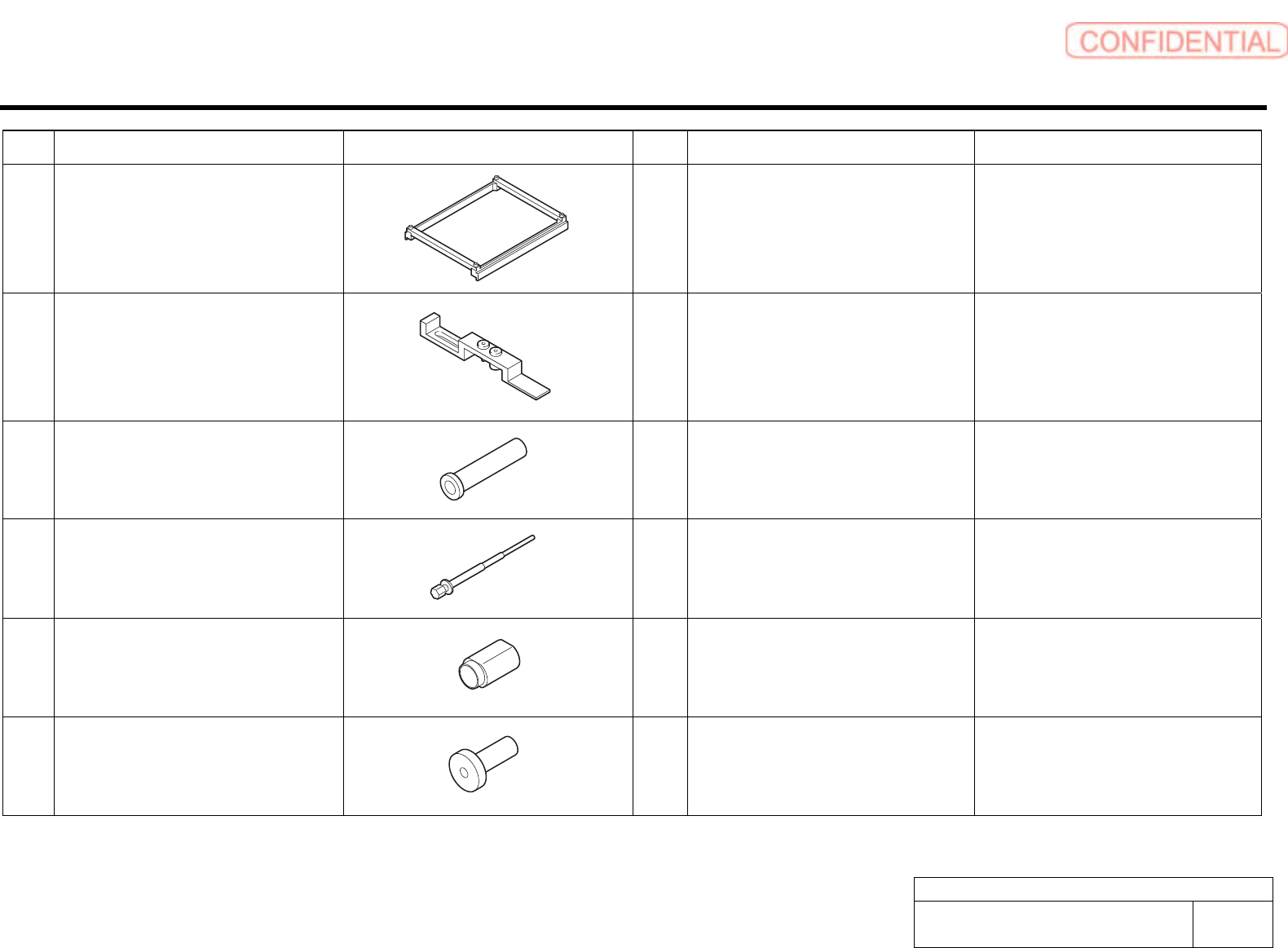

No. Jig name / Parts No. Outside appearance Qty Uses Remarks
11 Reflection intensity spacer
A-1433-193-A
1 Light calibration for global recognition
(Top light/ Middle light/ Bottom light/
Coaxial light)
12 Fixed camera part sensor adjusting
jig
A-8417-182-A
1 Fixed camera pickup check sensor
adjustment
Optical axis alignment block:
4-721-252-01
Sensor adjusting nozzles 1 and 2
13 Bearing press fitting jig
3-280-793-01
1 B head maintenance
14 Spline nut assembling jig (1)
3-280-794-01
1 B head maintenance
15 Spline nut assembling jig (2)
3-280-795-01
1 B head maintenance
16 Pulling jig
3-280-797-01
1 B head maintenance
