Jig List JGGB-10 1 01 - 01 J ig Li st SHEET 4/1 2 No. Jig name / Parts No. Outside ap pearance Qty s k r a m e R s e s U 17 Phase adjusting jig A-1433-195-A 1 Ph as e a djust me nt for noz zl e Phase adju sti ng jig (1):…
Jig List
JGGB-10101-01
Jig List
SHEET
3/12
No. Jig name / Parts No. Outside appearance Qty Uses Remarks
11 Reflection intensity spacer
A-1433-193-A
1 Light calibration for global recognition
(Top light/ Middle light/ Bottom light/
Coaxial light)
12 Fixed camera part sensor adjusting
jig
A-8417-182-A
1 Fixed camera pickup check sensor
adjustment
Optical axis alignment block:
4-721-252-01
Sensor adjusting nozzles 1 and 2
13 Bearing press fitting jig
3-280-793-01
1 B head maintenance
14 Spline nut assembling jig (1)
3-280-794-01
1 B head maintenance
15 Spline nut assembling jig (2)
3-280-795-01
1 B head maintenance
16 Pulling jig
3-280-797-01
1 B head maintenance
Jig List
JGGB-10101-01
Jig List
SHEET
4/12
No. Jig name / Parts No. Outside appearance Qty skrameR sesU

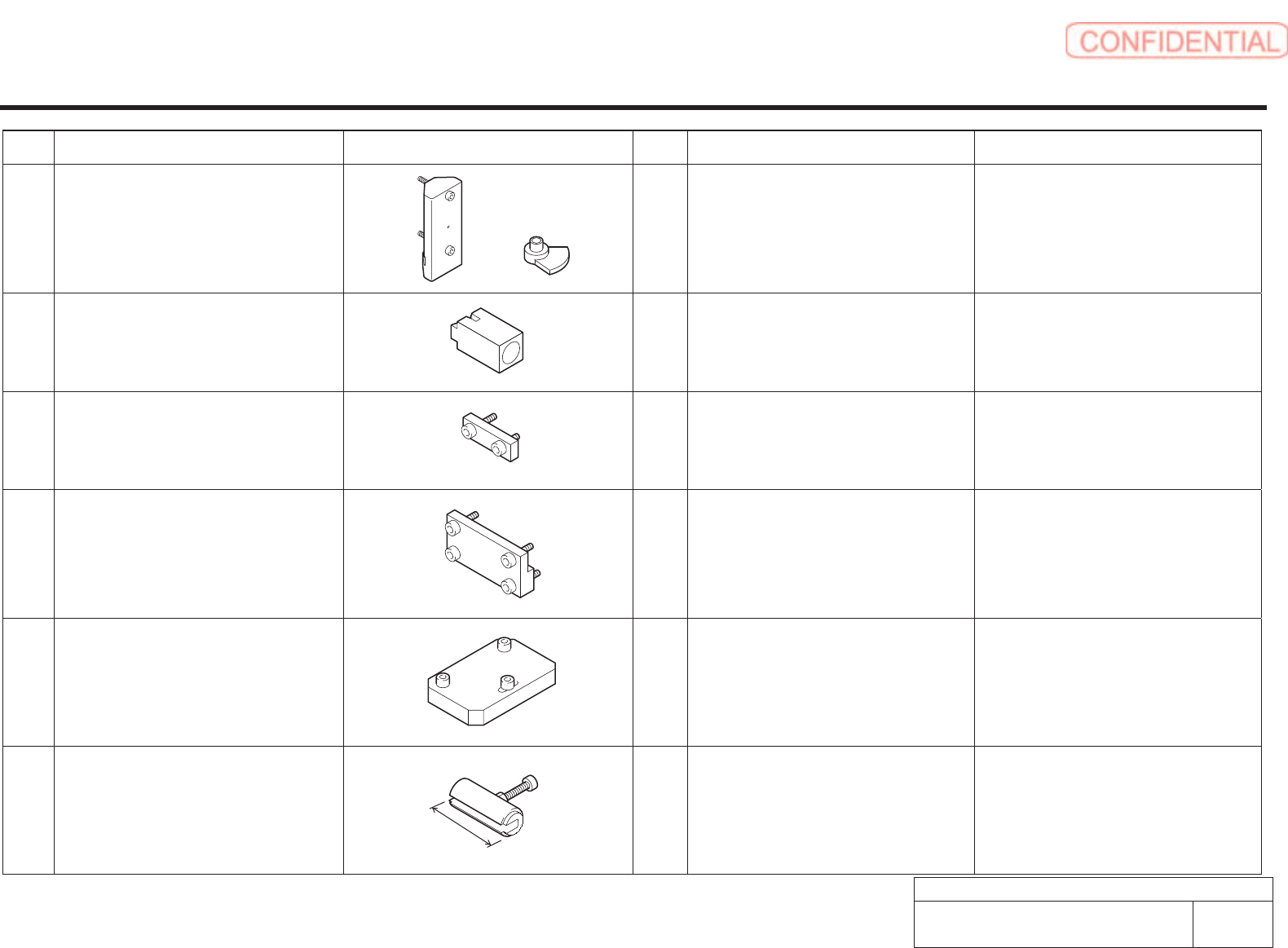

17 Phase adjusting jig
A-1433-195-A
1 Phase adjustment for nozzle Phase adjusting jig (1): 3-280-810-01
Phase adjusting jig (2): 3-280-811-01
2-C3x14 : 4-706-724-04
18 RT origin jig
3-280-796-01
1 RT axis origin position setup
19 RT Axis belt tension Jig (B) KIT
A-1433-200-A
1 Adjustment of RT axis belt tension RT axis belt tension jig: 3-280-798-01
C4x14 (SUS): 4-706-725-03
C4x10: 4-706-725-11
20 RN Axis belt tension Jig
A-1433-201-A
1 Adjustment of RN axis belt tension
21 Tension block Jig
3-212-839-01
1 Adjustment of FF/FR axis belt tension 3-C3x12: 4-706-724-03
22 H Axis sensor adjusting Jig (1)
A-1433-198-A
mm5.62
1 Adjustment of H Axis Upper End OT
Sensor (H-CCW)
Adjustment of H Axis Lower End OT
Sensor (H-CW)
H shaft OT tool (1) :3-280-800-01
2-C3x20 :7-683-410-04
2-N3 :7-684-013-08
4-C4x12 (SUS): 4-706-725-12
RN axis
belt tension jig B: 3-280-799-01
Jig List
JGGB-10101-01
Jig List
SHEET
5/12
No. Jig name / Parts No. Outside appearance Qty Uses Remarks

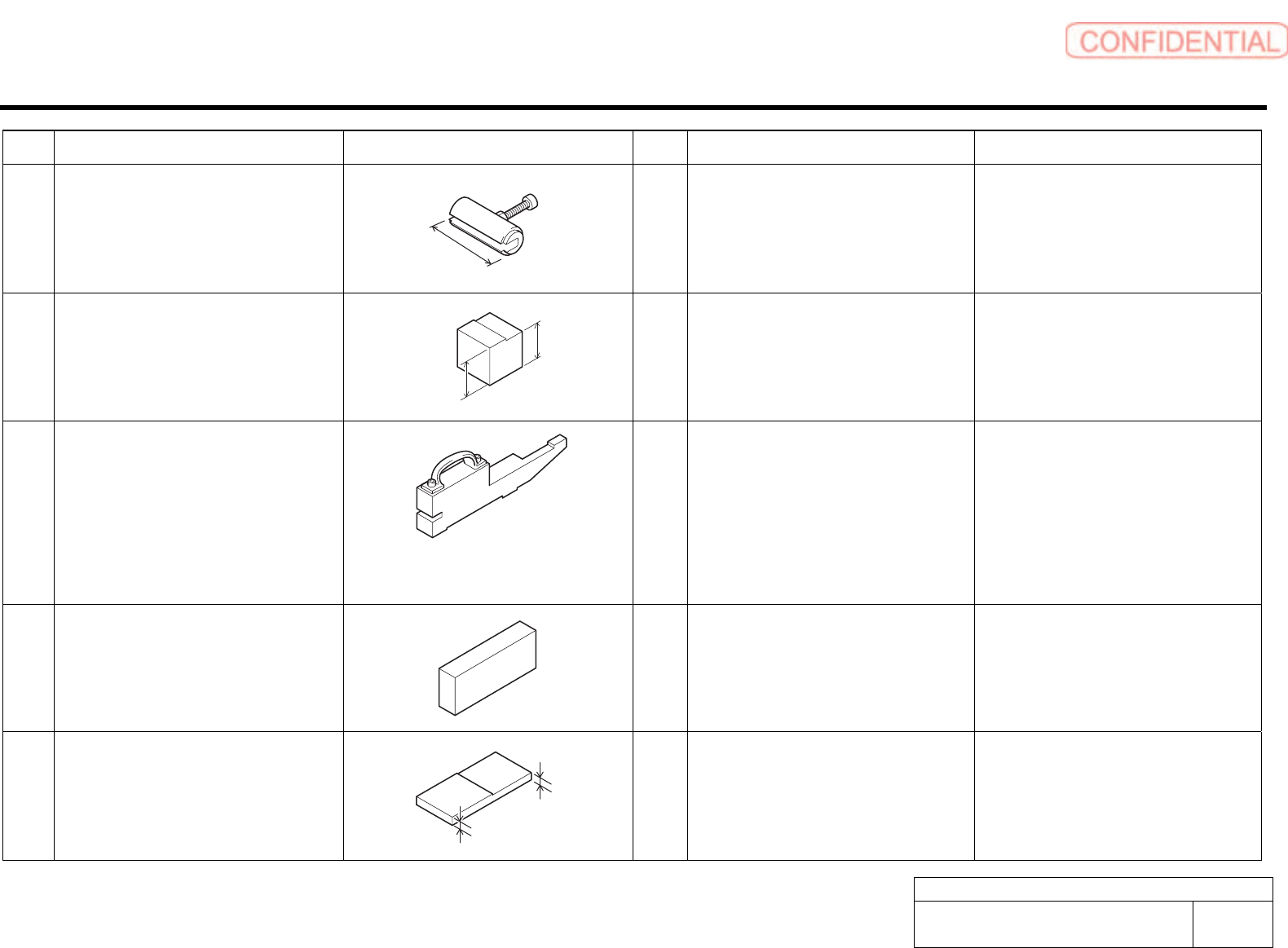

23 H Axis sensor adjusting Jig (2)
A-1433-199-A
26.6mm
1 Adjustment of H Axis Upper End OT
Sensor (H-CCW)
Adjustment of H Axis Lower End OT
Sensor (H-CW)
H shaft OT tool (2) :3-280-801-01
2-C3x20 :7-683-410-04
2-N3 :7-684-013-08
24 Nozzle height adjusting block
3-280-802-01
23.1mm
22.9mm
1 Nozzle height adjustment
25 Feed adjusting jig
A-1546-240-A
1
Adjustment of FF/FR axis feed roller
Y-direction position
Adjustment of FF/FR axis feed roller
X-direction position
Adjustment of FF/FR axis feed roller
height
Adjustment of cassette float sensor
height
Jig base: 4-721-293-02
7 type handle (A-1068-2): 4-717-776-01
Positioning pin: 4-718-042-01
Weight: 4-718-043-02
1-C4X35: 4-706-725-07
3-C5X12: 4-706-726-51
26 Part feed height jig
1 Adjustment of FF/FR axis feed roller
height
T=110.4mm: 3-212-837-01
T=86.5mm: 3-212-836-01
27 Cassette float sensor adjusting jig
2-656-772-01
6.0 mm
5.0 mm
1 Adjustment of cassette float sensor
position
