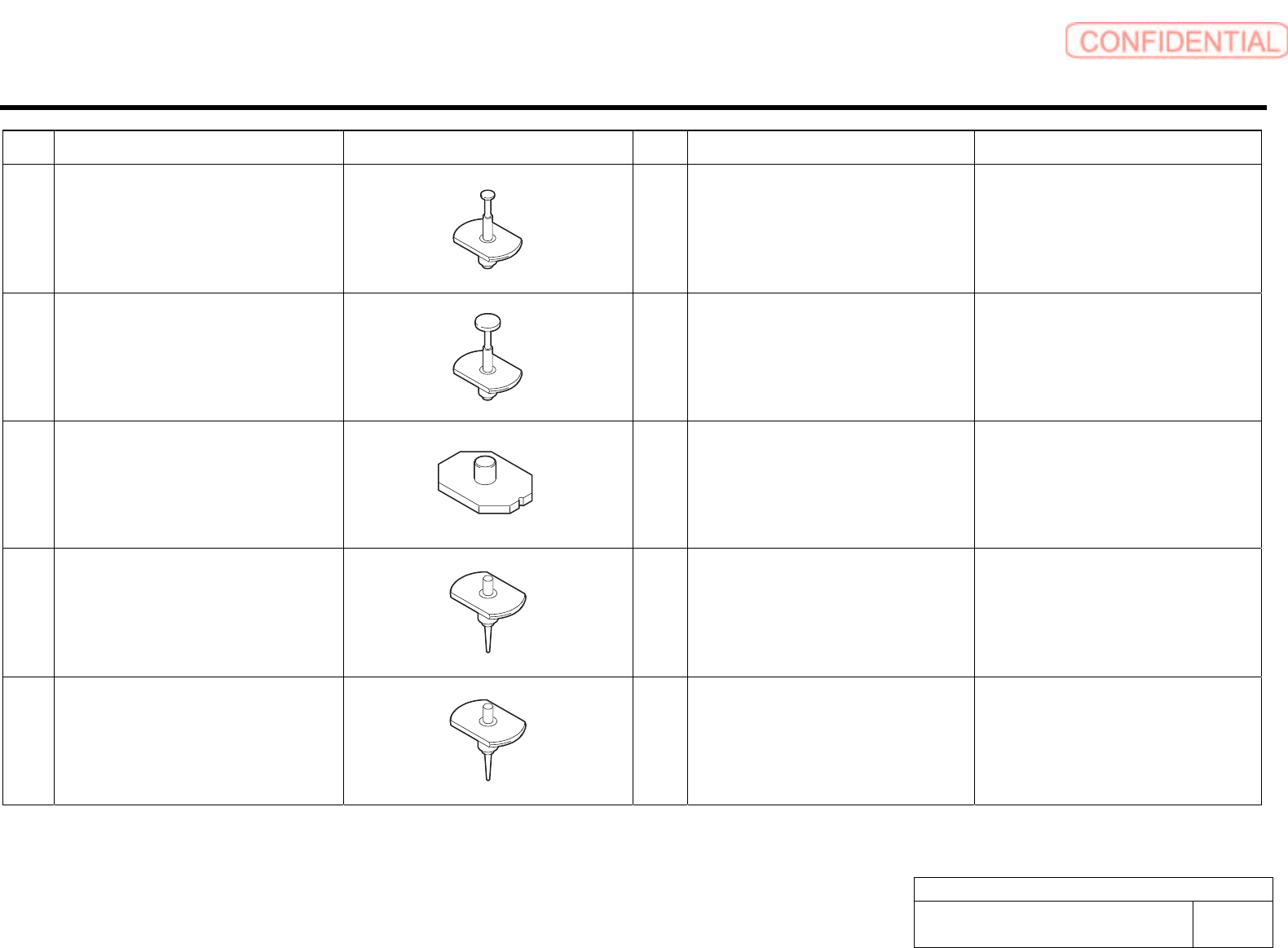

Jig List
JGGB-10101-01
Jig List
SHEET
6/12
No. Jig name / Parts No. Outside appearance Qty Uses Remarks
28 Pickup point jig
A-8417-184-A
1 Pickup position setup
29 Tray pickup origin position adjusting
jig
A-8417-270-A
1 Adjustment of S-axis pickup origin
position
30 Area sensor KIT (G)
A-1536-187-A
1 Area sensor optical axis adjustment
31 Reference jig nozzle
X-2187-601-1
1 Acquiring mounting stroke setup
Pickup check camera calibration
Fixed camera Rcg height calibration
Pickup position setup
32 Nozzle Jig for fixed camera
X-2187-602-1
1 Fixed camera pickup check sensor
adjustment
Jig List
JGGB-10101-01
Jig List
SHEET
7/12
No. Jig name / Parts No. Outside appearance Qty Uses Remarks
33 Nozzle jig BF60400
X-2186-556-1
7 Auto calibration
34 Nozzle jig BF00900
X-2186-559-1
1 Auto calibration
35 Jig nozzle for nozzle changer
3-876-552-01
1 Nozzle changer teaching
36 Nozzle jig BF1305R
X-2186-548-1
8 Mount accuracy calibration
Vacuum pressure measurement
37 Nozzle jig BF14100
X-2186-550-1
8 Blow flow rate setup
Jig List
JGGB-10101-01
Jig List
SHEET
8/12
No. Jig name / Parts No. Outside appearance Qty Uses Remarks
38 Cassette bank changer roller height
adjusting jig
4-721-587-01
1 Adjustment of cassette bank changer up
cylinder
39 Cassette bank changer positioning
jigs R and L
1 Adjustment of table mounting position L: 4-721-301-01
R: 4-721-301-11
40 Cassette bank changer adjusting
blocks
4-721-586-01
2 Measurement of table tilt
41 Flow meter (1 set)
A-8417-279-A
1 Measurement of mounted blow flow rate Display unit, instrumentation unit, power
cable, tube
42 Pressure gauge
1-520-535-12
1 Measurement of vacuum PG-100-102VP
43 SY-MC2-LAN servo adjusting KIT
A-1191-174-A
1 set Adjustment of servo SY-MC2-LAN unit: 1-479-817-11
EXIOIF cable: 1-832-125-11
SY-MC2-LAN power supply cable:
1-832-998-11
