CLGB-10111-01
SI-G200BB Service Manual
“Pneumatic Piping Diagram
Contents”
SHEET
1/1
Contents
7 Pneumatic Piping Diagrams
General Drawing....................................................................PCGB-10101-01
Pneumatic Piping Diagram around A-Head ...........................PCGB-10102-01
Pneumatic Piping Diagram for Cassette Bank Changer ........PCGB-10103-01
Pneumatic Piping Diagram for Door Lock..............................PCGB-10104-01
Pneumatic Piping Diagram around Conveyor I/F Panel.........PCGB-10105-01
Pneumatic Piping Diagram for Options..................................PCGB-10106-01
Pneumatic Piping Diagram for Nozzle Change......................PCGB-10107-01
Pneumatic Piping Diagram for S Axis ....................................PCGB-10108-01

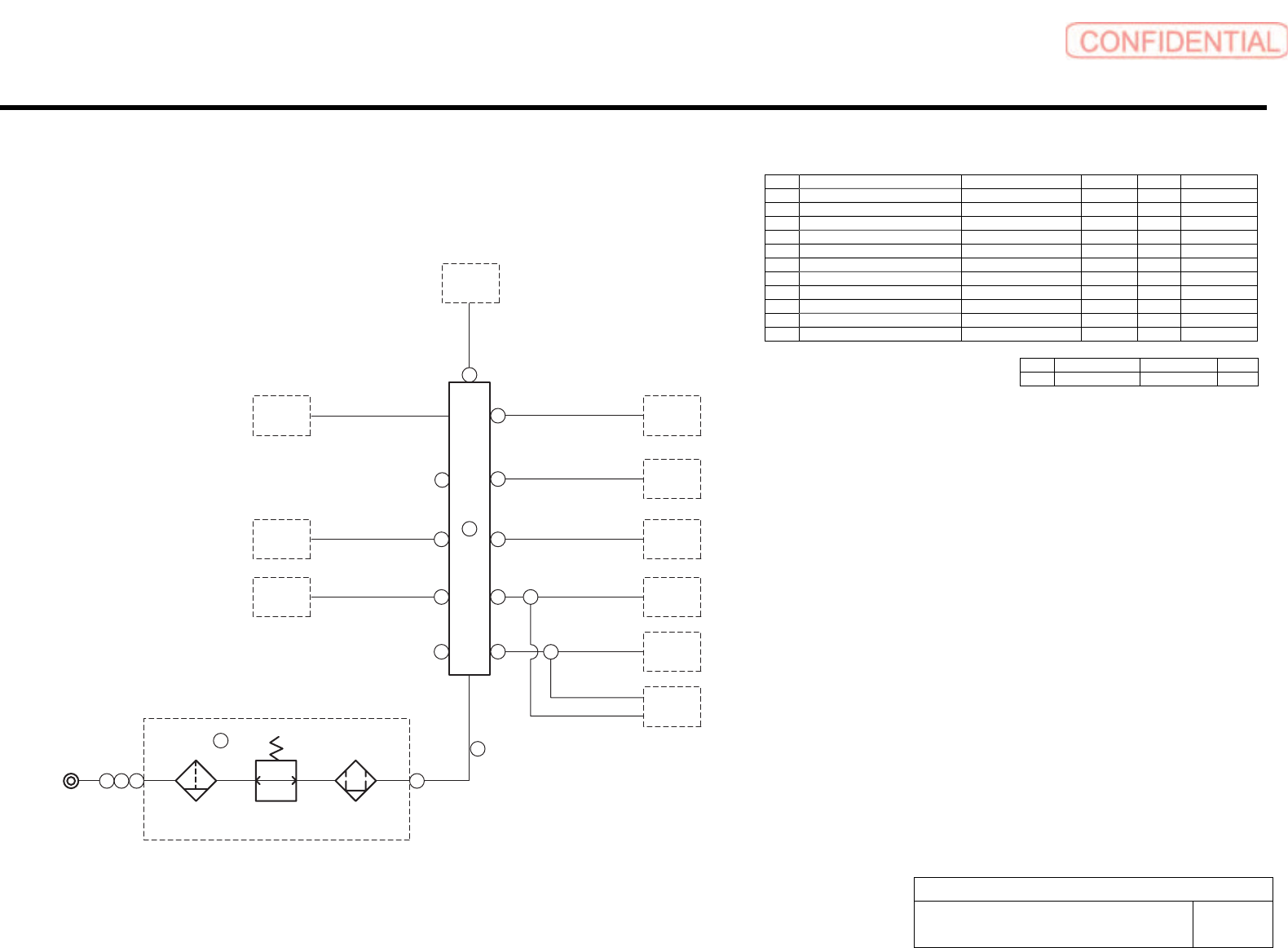

General Drawing
PCGB-10101-01
General Drawing
SHEET
1/1
General Drawing
No. NAME MODEL MAKER QTY PARTS No.
1 HIGH COUPLER 20PM NTG55 1 4-703-607-02
2 STREET ELBOW 1/4 1 4-701-316-01
3 AIR COMBINATION AC-30D-02DG-R SMC 1 2-149-053-01
4 ELBOW UNION KQL12-02S SMC 1 4-706-963-51
5 MANIFOLD KM11-08-12-10 SMC 1 4-705-238-11
6 REDUCER ELBOW KQL06-08 SMC 5 4-761-636-11
7 REDUCER KQR06-12 SMC 1 4-706-753-31
8 PLUG KQP-08 SMC 1 4-708-790-11
9 HIGH COUPLER 20SH NTG55 1 4-703-619-01
10 TEES KQ2T06-00 SMC 2 4-720-189-11
11 REDUCER KQ2R06-08 SMC 3 4-761-324-31
No. NAME LENGTH QTY
A TU1208B-1M 300 mm 1
REAR LEFT I/F PANEL
(PCGB-10105)
CASSETTE BANK
CHANGER PIPING
(PCGB-10103)
B-HEAD
(PCGB-10102)
DOOR LOCK
PIPING
(PCGB-10104)
FRONT RIGHT I/F
PANEL
(PCGB-10105)
FRONT LEFT I/F
PANEL
(PCGB-10105)
CONVEYOR UNIT
(PCGB-10105)
PNEUMATIC SET
NOZZLE CHANGE
PIPING
(PCGB-10107)
CASSETTE I/F BOX
(PCGB-10106)
S AXIS PIPING
(PCGB-10108)
7
5
6
6
6
8
A
42
3
19
6 10
10
6
11
11
11
