General Drawing
PCGB-10101-01
General Drawing
SHEET
1/1
General Drawing
No. NAME MODEL MAKER QTY PARTS No.
1 HIGH COUPLER 20PM NTG55 1 4-703-607-02
2 STREET ELBOW 1/4 1 4-701-316-01
3 AIR COMBINATION AC-30D-02DG-R SMC 1 2-149-053-01
4 ELBOW UNION KQL12-02S SMC 1 4-706-963-51
5 MANIFOLD KM11-08-12-10 SMC 1 4-705-238-11
6 REDUCER ELBOW KQL06-08 SMC 5 4-761-636-11
7 REDUCER KQR06-12 SMC 1 4-706-753-31
8 PLUG KQP-08 SMC 1 4-708-790-11
9 HIGH COUPLER 20SH NTG55 1 4-703-619-01
10 TEES KQ2T06-00 SMC 2 4-720-189-11
11 REDUCER KQ2R06-08 SMC 3 4-761-324-31
No. NAME LENGTH QTY
A TU1208B-1M 300 mm 1
REAR LEFT I/F PANEL
(PCGB-10105)
CASSETTE BANK
CHANGER PIPING
(PCGB-10103)
B-HEAD
(PCGB-10102)
DOOR LOCK
PIPING
(PCGB-10104)
FRONT RIGHT I/F
PANEL
(PCGB-10105)
FRONT LEFT I/F
PANEL
(PCGB-10105)
CONVEYOR UNIT
(PCGB-10105)
PNEUMATIC SET
NOZZLE CHANGE
PIPING
(PCGB-10107)
CASSETTE I/F BOX
(PCGB-10106)
S AXIS PIPING
(PCGB-10108)
7
5
6
6
6
8
A
42
3
19
6 10
10
6
11
11
11

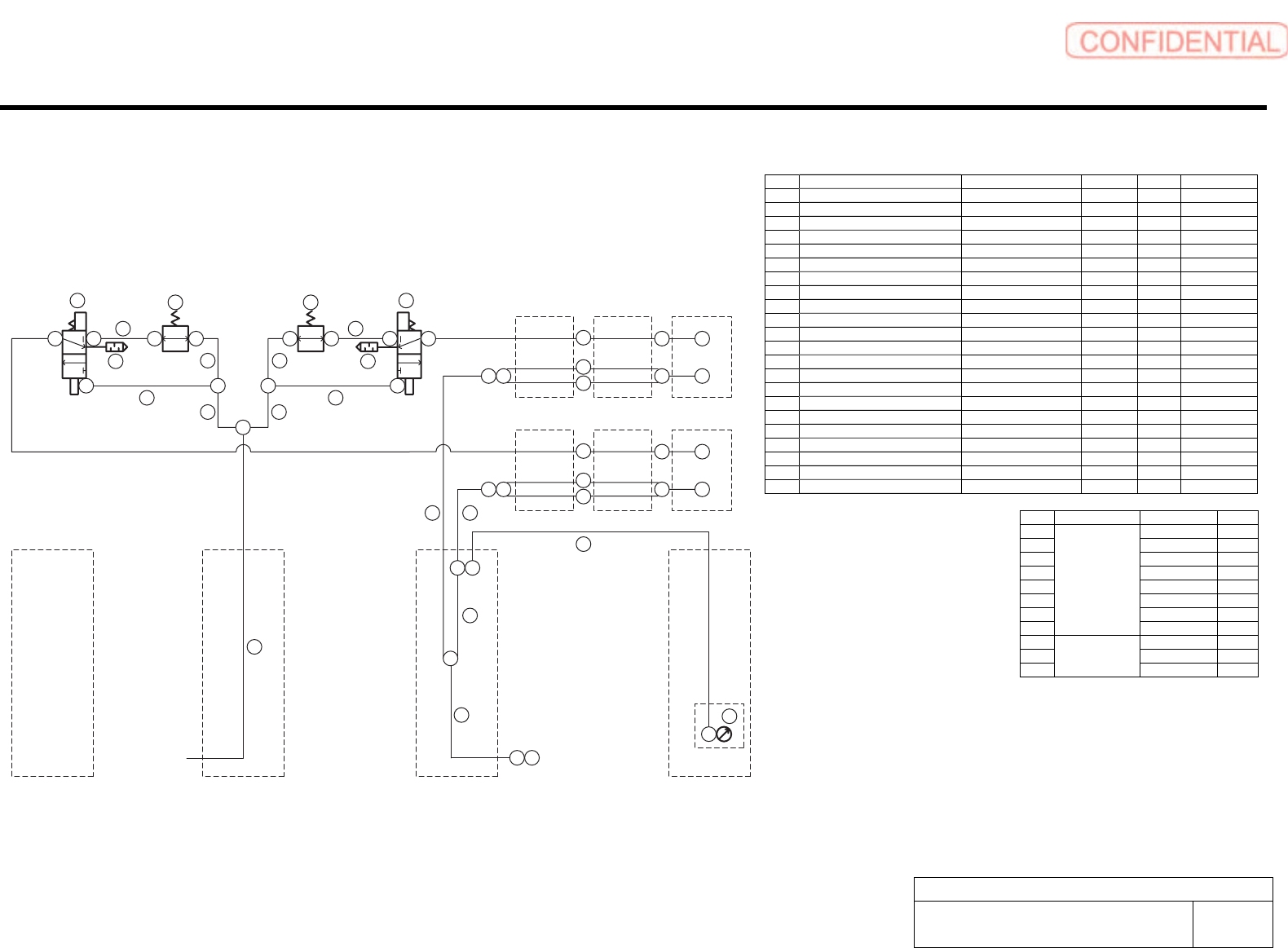

Pneumatic Piping Diagram around B-Head (1/2)
PCGB-10102-01
Pneumatic Piping Diagram around
B-Head (1/2)
SHEET
1/2
Pneumatic Piping Diagram around B-Head (1/2)
No. NAME MODEL MAKER QTY PARTS No.
1 TEES KQ2U06-00 SMC 1 4-720-189-11
2 ELBOW UNION KQ2L06-01S SMC 4 2-918-760-21
3 ELBOW UNION KQ2L06-M5 SMC 4 4-719-686-41
4 HALF UNION KQH06-M5 SMC 2 4-706-519-01
5 STRAIGHT KQ2H06-00 SMC 2 4-720-769-01
6 SOLENOID VALVE VQZ115R-5L-M5-PRF SMC 2 1-454-952-11
7 VACUUM PUMP KHB200-303-G1 ORION 1 1-787-208-11
8 ELBOW UNION KQ2L12-U02 SMC 1 4-722-621-01
9 UNION Y KQ2U12-00 SMC 2 4-721-668-01
10 FEMALE UNION KQ2F12-03 SMC 2 4-761-758-01
11 ELBOW UNION KQ2L06-01S SMC 2 2-918-760-21
12 STRAIGHT KQ2H08-00 SMC 4 4-720-769-21
13 UNION Y KQU08-00 SMC 2 4-713-775-01
14 REDUCER KQR06-12 SMC 1 4-706-753-31
15 PRESSURE SWITCH PPD3-R01N-HS CKD 1 1-479-159-11
16 PRECISION REDUCING VALVE IR1000-01-BG SMC 1 2-689-707-01
17 SILENCER AN120-M5 SMC 2 4-701-306-01
18 PRECISION REDUCING VALVE 1R-1000-01-BG-R SMC 1 0-452-652-01
19 ELBOW UNION KQL06-01S SMC 1 4-701-253-01
20 STRAIGHT KJH06-00 SMC 2 4-706-701-01
21 HALF UNION KQ2H06-U01 SMC 2 2-148-085-11
22 HALF UNION KQ2H08-U01 SMC 2 2-148-085-01
No. NAME LENGTH QTY
A 1600 mm 1
B 150 mm 2
C 250 mm 1
D 400 mm 1
E 2050 mm 1
F 200 mm 1
G 950 mm 2
H
TU0604B
2100 mm 1
I 450 mm 2
J 250 mm 1
K
TU1208C
1100 mm 1
18
11
12
12
5
10
K
I
I
9
9
8 7
14
H
J
13
20
22
22
21
20 21
E
B
B
A
G D
G C
2 2
1
1 1
3
3
17
4
19
15
16
2 2
6
F
3
3
17
4
6
11
12
12
5
10 13
MANIFOLD
(PCGB-10101)
VACUUM PUMP
I/F PANEL
Y-FLAT CABLE X-FLAT CABLE
B-HEAD
(FRONT)
(SV1138)
FRONT LEFT COLUMN
FRONT RIGHT COLUMN
REAR RIGHT COLUMN
REAR LEFT COLUMN
Y-FLAT CABLE
X-FLAT CABLE
B-HEAD
(REAR)
(SV1438)
