Install Tray Unit (Including machine modification)
SHEET
22/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)

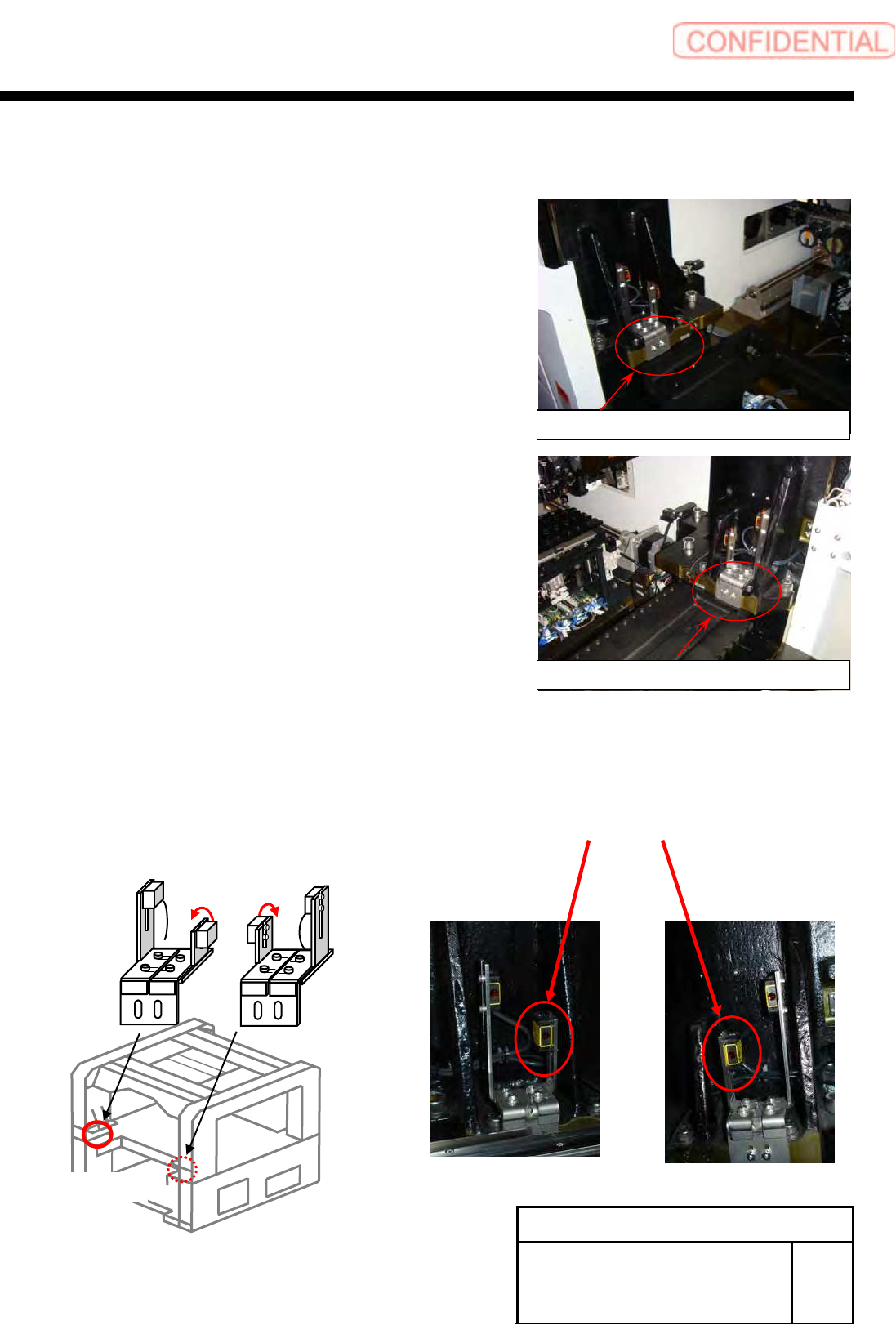

[Installation of cassette table and cassette floating detection sensor]
1 Pull out 375 on the connector wired
on the back of the shoot bracket, and
move it near the center of the shoot
bracket.
NOTE:
After working, bind the wires with INSULOCK.
2 Mark the installing position of the area
sensor bracket.
NOTE:
Mark the installing positions of both of the right
and left area sensor brackets.
Mark end section of the bracket.
REAR
Install Tray Unit (Including machine modification)
SHEET
23/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)

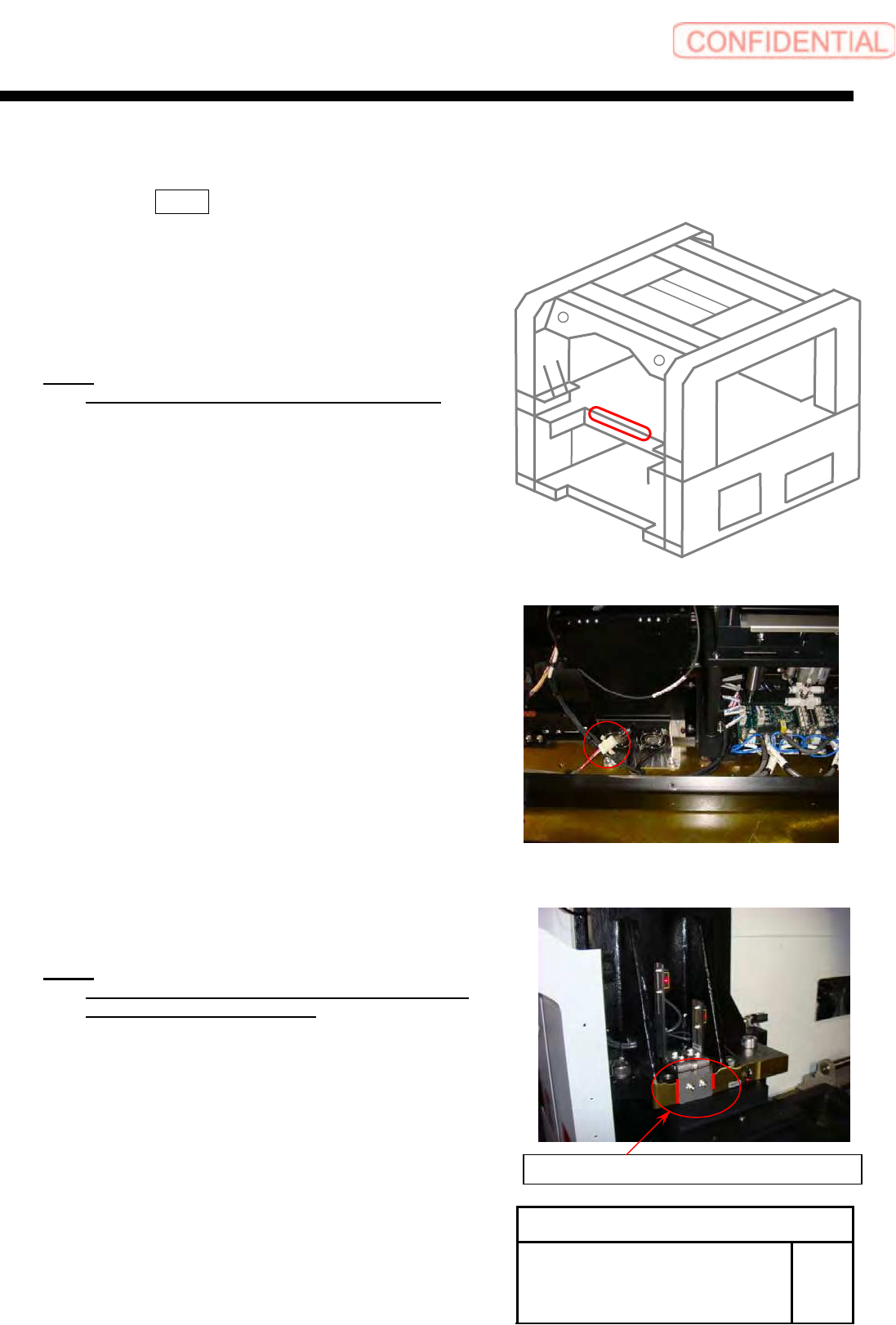

3 Loosen the 2-CP4x8 to remove the area
sensor.
4 Fix the cassette table with the
4-CP10x40.
5 Install the area sensor to the previous position.
1.
Replace Beam sensor as shown in the figure below (364DT, 364DR) .
Sensor bracket on right side
Sensor bracket on left side
BＬ
BＲ
364UT
364DT
364UR
364DR
(Rear)
SHEET
Supply section of cassette specification is different from that of tray specification in optical axis
position of area sensor. Be careful of sensor mounting position and hole position for jig before
carrying out optical axis adjustment.

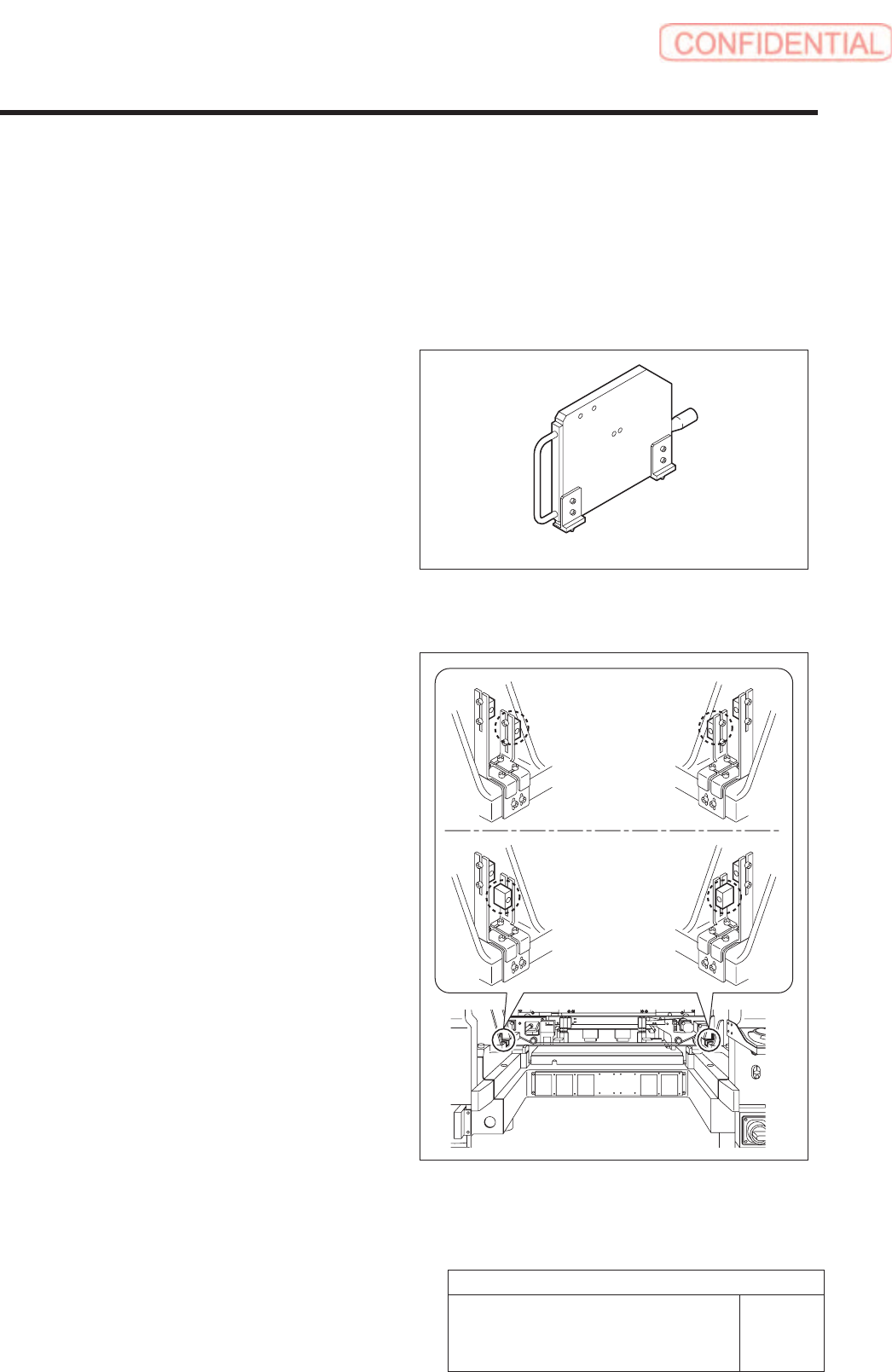

[Necessary jigs]
• Optical axis adjustment jig
[Procedure]
1. Check area sensor mounting position.
Cassette specification is different from tray
specification in area sensor mounting method.
Check that the area sensor is mounted so as to be
suitable for the specification.
Optical axis adjustment jig
Cassette
specification
Tray specification
Install Tray Unit (Including machine modification)
24/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)
6 Area Sensor Optical Axis Adjustment
