F axis movable part
RPGB-10101-01
F Axis Belt Replacement Procedure
SHEET
8/9
9 Adjust tension of the belt.
1. Install the tension JIG.
2. Pull the motor bracket after fastening
C3x12 screws to adjust tension.
Tension meter : UNITTA U-505
Specification : 70～85N
WEIGHT：2.5gf/m
WIDTH：15mm
SPAN：40mm
3. Fasten 2-C4x10 with no gap between
the motor bracket and the main frame.
Clamping torque : 196cN.m
10 Push up the bracket that fixes the cable bear
and fasten 3-C5x15 screws to install it to the
F axis unit.
11 Insert the motor power line and the encoder
line to the relay plate.

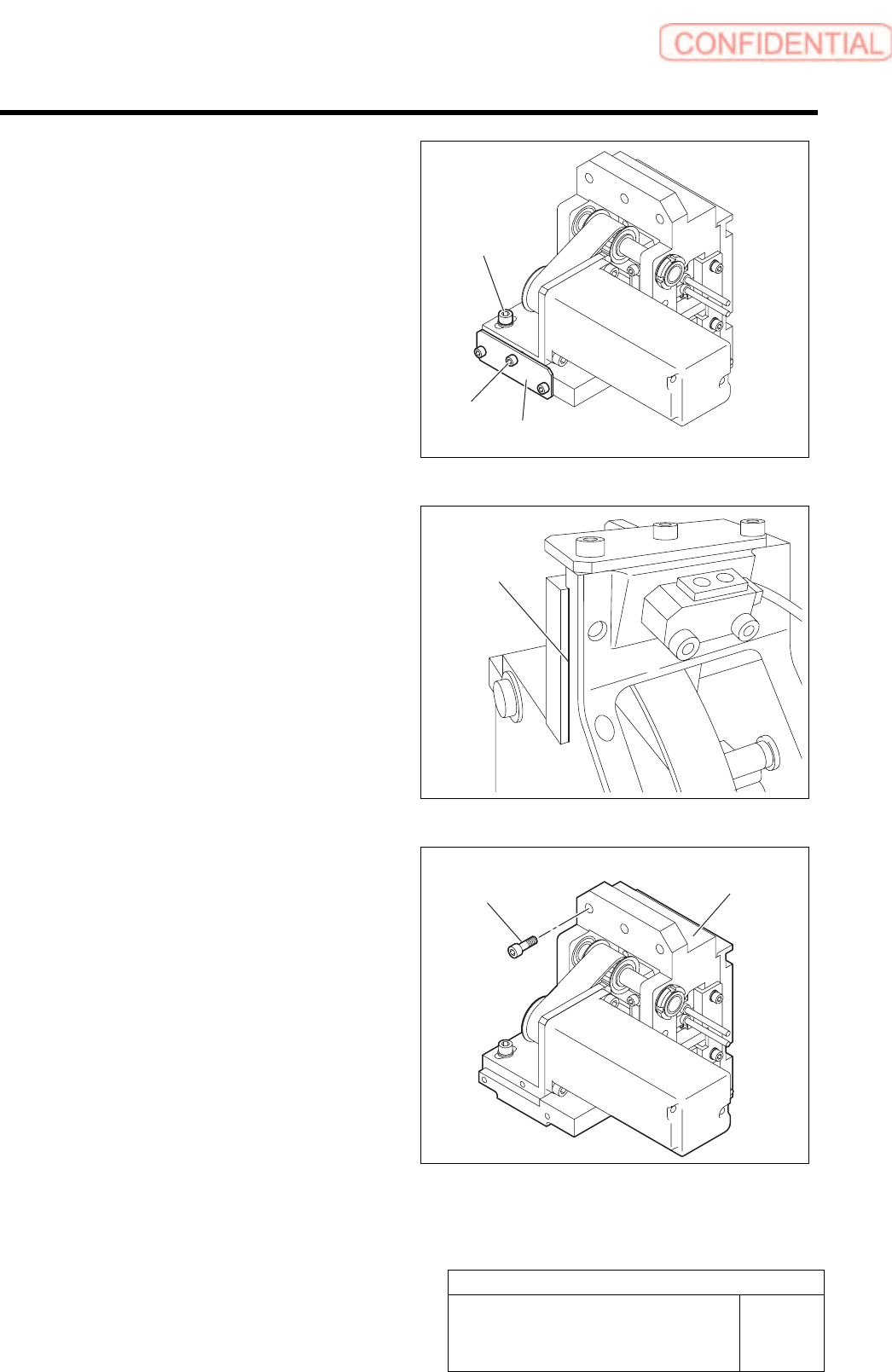

Tension JIG
C3x12
2-C4x10
Confirm there
is no gap.
3-C5x15
F axis unit
F axis movable part
RPGB-10101-01
F Axis Belt Replacement Procedure
SHEET
9/9
12 Fasten 4-C4x8 screws to install the bracket
that fastens the cable bear.
Lock Tight 242 is applied before installment.
13 Reconnect the disconnected sensor
connectors to the original positions.
Wire the connectors and fix them with Insulock.
14 Fasten 4-C3x6 screws to install the cover.
[Adjustment]
Conduct setup.
For setup procedure, refer to HLGB-10206 “F axis setup”.
4-C4x8
4-C3x6
Cover
Pickup Check Camera Part
RPGB-10201-01
Pickup Check Camera Up/Down
Cylinder Replacement
SHEET
1/7
Pickup Check Camera Up/Down Cylinder Replacement
[Removing the Cylinder]
1 Disconnect main air supply and power off.
2 Remove the F-axis unit.
For the F-axis unit removal procedure, refer to “F-Axis Belt Replacement Procedure [RPGB-10101-01]”.
3 Remove the pickup check camera.

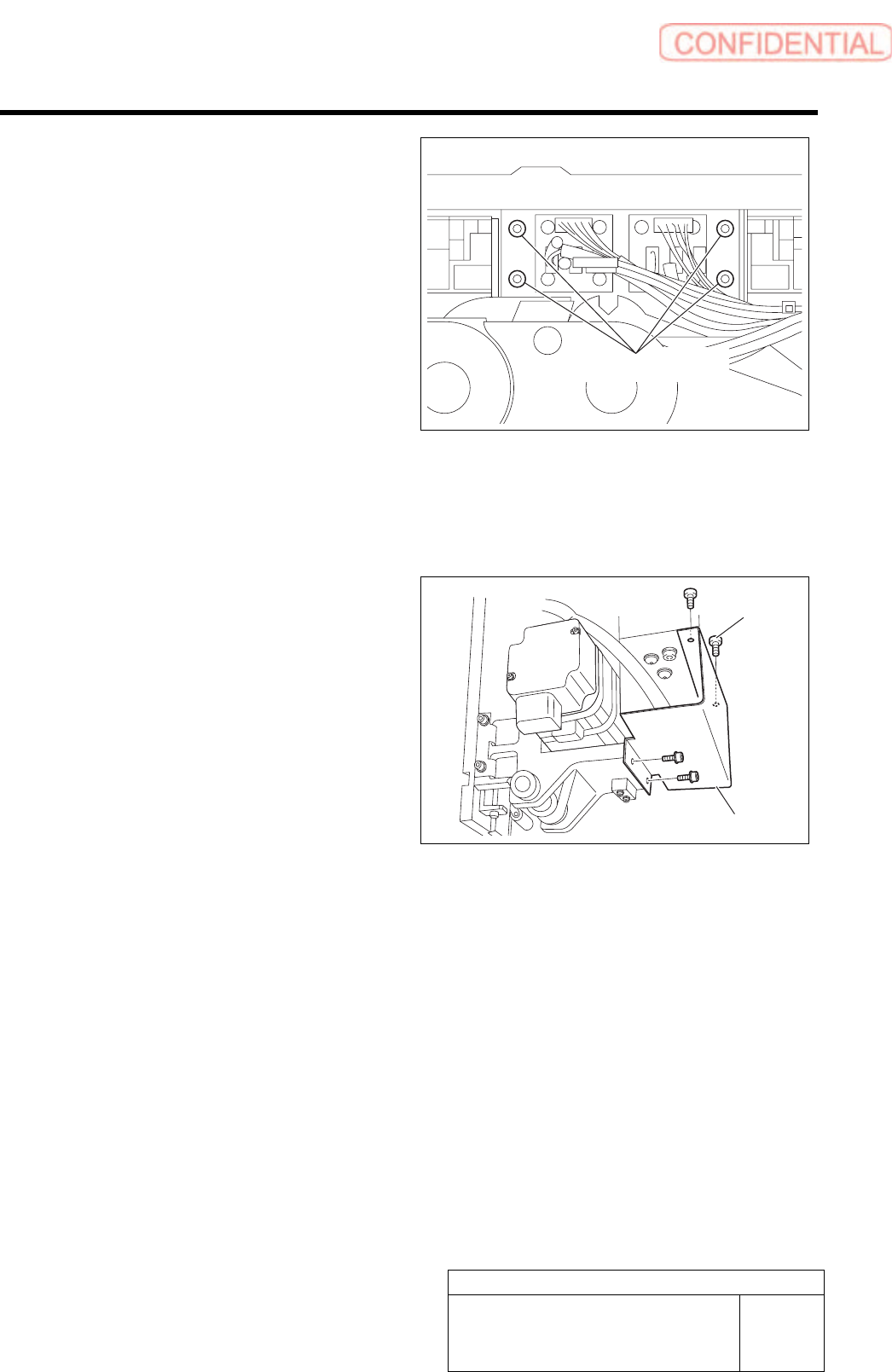

1. Disconnect connector CAM2-UF
(CAM2-UR) on the camera cable.
2. Loosen 2-CP4x8 to remove the pickup
check camera.

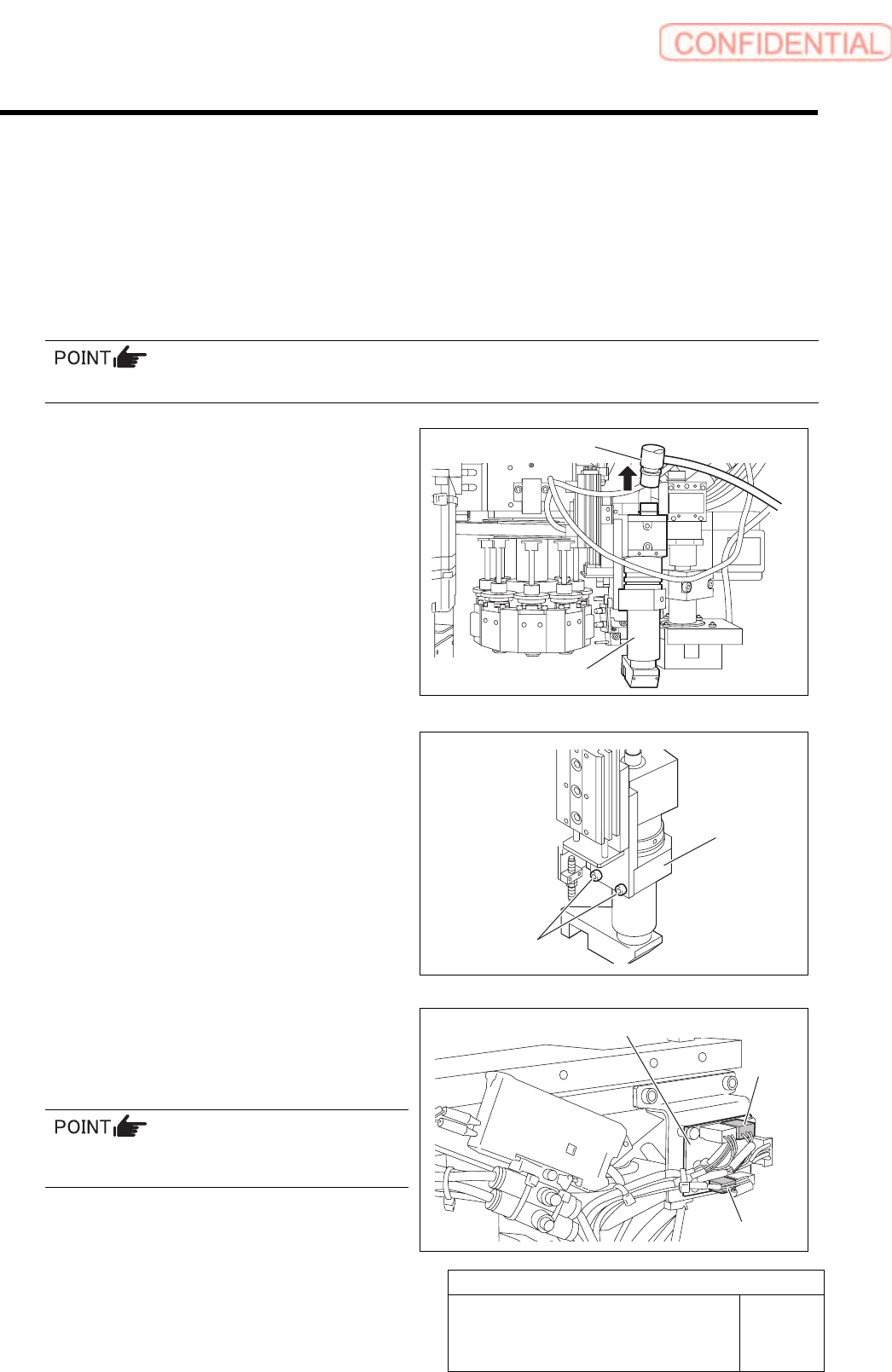

4 Disconnect two connector of SSB-2 and
SSB-4 from the SSB board on the side of
the head.
Remove the cable tie (Insulock) from SSB-2 and
SSB-4 cables as well.
CAM2-UF (CAM2-UR)
Pickup check camera
2-CP4x8
Pickup check
camera
SSB board
SSB-2
SSB-4
