Pickup Check Camera Part RPGB-10201-01 Pickup Check Camera Up/Down Cylinder Replacement SHEET 3/7 9 Loosen 2-CP3x5 to remov e the cylinder sensor holder . 10 Loosen 2 -CP4x8 to remove the main bracket. 11 Loosen 2 -CP2x6…
Pickup Check Camera Part
RPGB-10201-01
Pickup Check Camera Up/Down
Cylinder Replacement
SHEET
2/7
5 Disconnect the air tubes from the rear side
of the head.
Mark the tubes before disconnecting.
6 Loosen 2-CP4x6 to remove the pickup
check camera up/down unit from the rear
side of the head.
The attachment screw is located to the side of
the LM guide of the H-axis.
7 Disconnect the pipe fitting.
8 Loosen 4-CP3x6 to remove the camera
holder.
2-CP4x6
Air tubes
Pipe fitting
Pickup check camera
u
p
/down unit
Camera holder
Pickup Check Camera Part
RPGB-10201-01
Pickup Check Camera Up/Down
Cylinder Replacement
SHEET
3/7

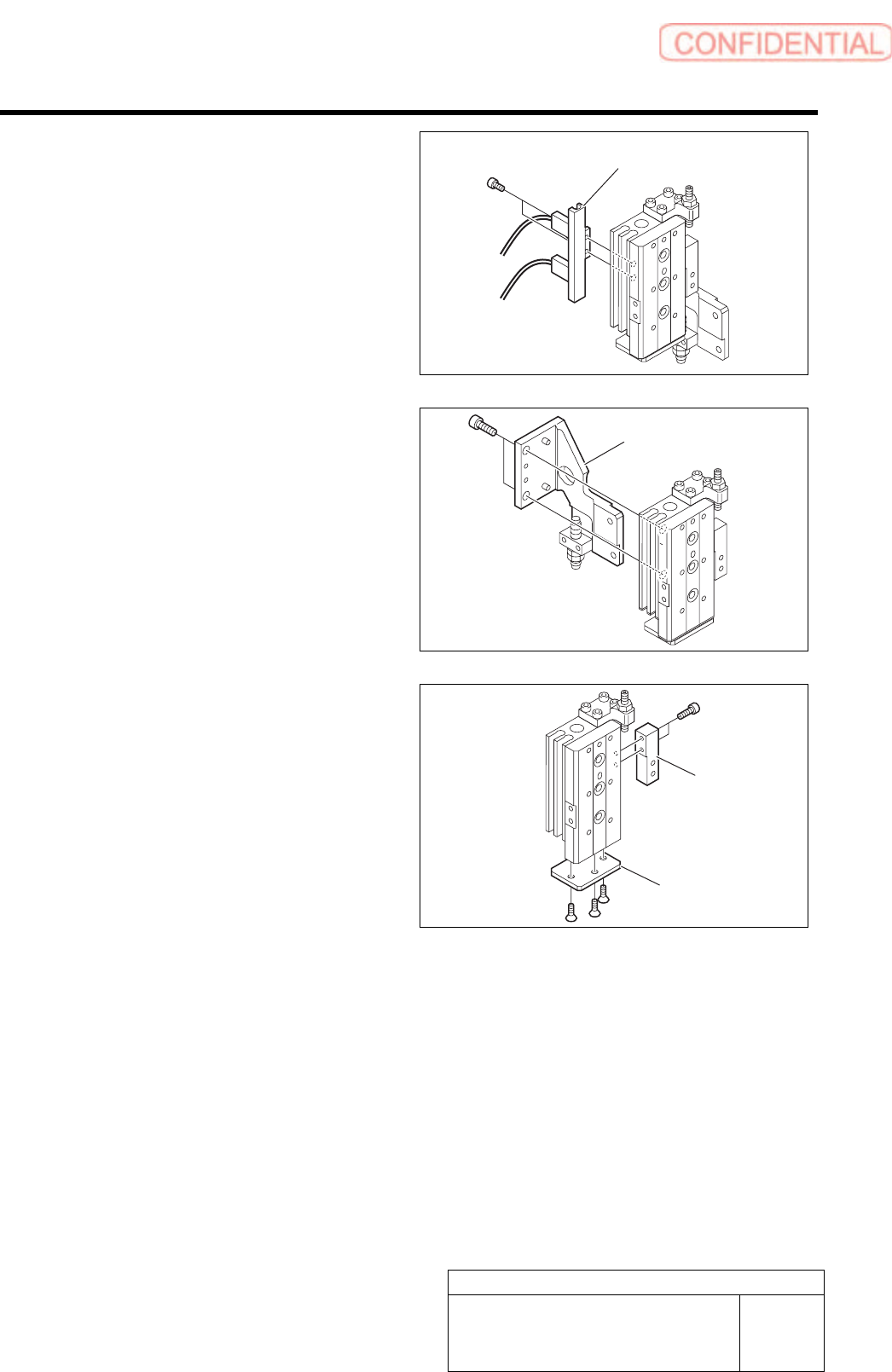

9 Loosen 2-CP3x5 to remove the cylinder
sensor holder.
10 Loosen 2-CP4x8 to remove the main
bracket.
11 Loosen 2-CP2x6 to remove the downward
end stopper block.
12 Loosen 3-+K3x6 to remove the cylinder
cover.
Cylinder sensor holder
Main bracket
Stopper block
Cylinder cover
Pickup Check Camera Part
RPGB-10201-01
Pickup Check Camera Up/Down
Cylinder Replacement
SHEET
4/7

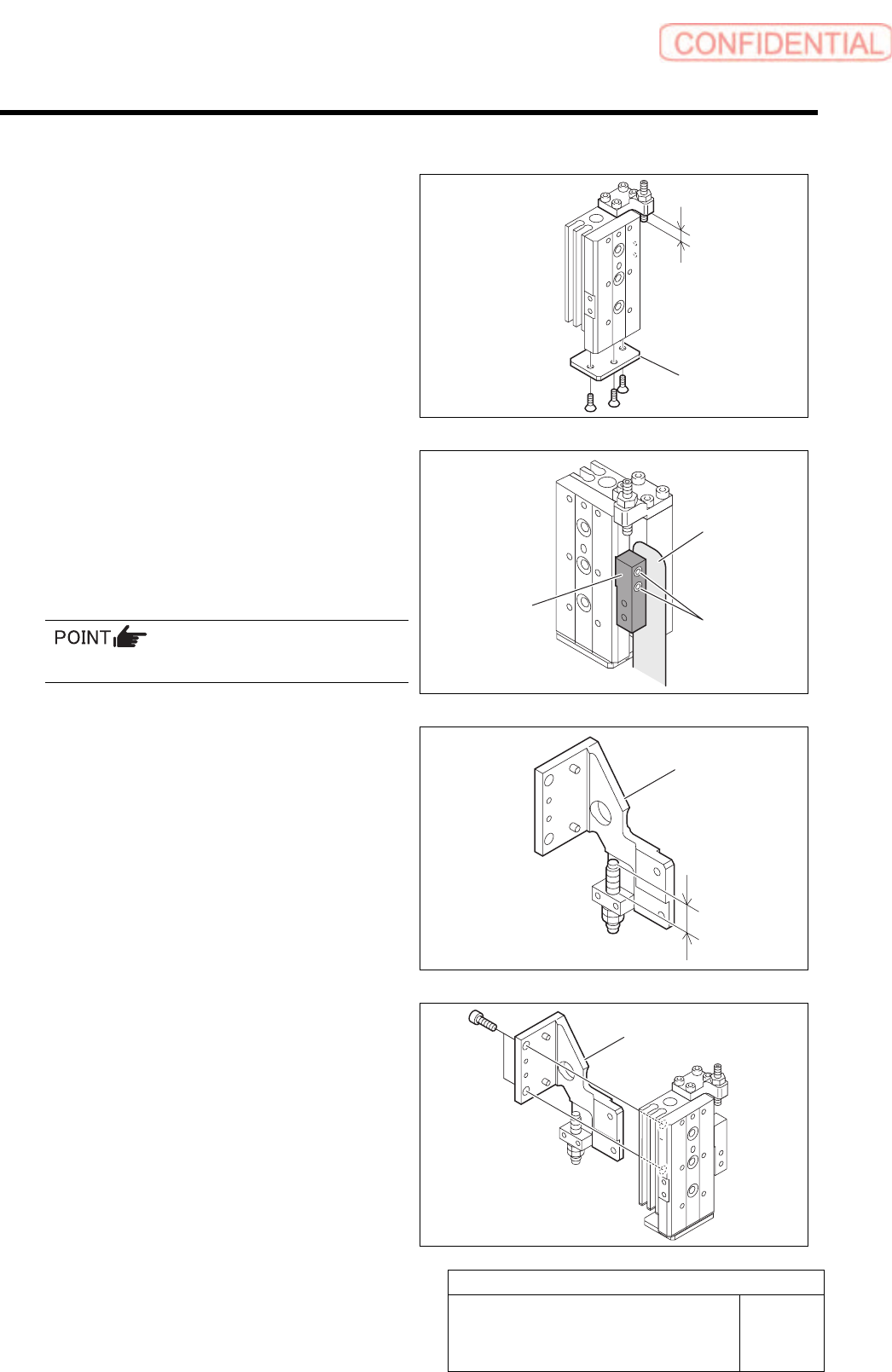

[Reassembling Procedure]
1 Secure the cylinder cover with 3-+K3x6.
2 Make sure the protrusion of the adjuster
from the backward end is 4 [mm].
3 Apply small amount of LOCTITE 242 to
2-CP2x6 and attach the stopper block.
Fix the stopper block so that clearance between the
side of the stopper block and the cylinder becomes
1.0mm.
Tightening torque: 54[cNm]
4 Adjust the protrusion of the shock absorber
to 11 [mm].
5 Apply small amount of LOCTITE 242 to
2-CP4x6 and attach the main bracket.
Cylinder cover
4.0 mm
Stopper block
Thickness gauge
(1.0mm)
2-CP2x6
11.0 mm
Main bracket
Main bracket
