Pickup Check Camera Part RPGB-10202-01 Pickup Check Light Up/Do wn Cylinder Replacement SHEET 4/7 [Att aching the Cylinder] 1 Connect the air tubes and cylinde r sensor to the air cylinder . 2 Fasten the air cylinder tem…
Pickup Check Camera Part
RPGB-10202-01
Pickup Check Light Up/Down
Cylinder Replacement
SHEET
3/7
10 Disconnect the cylinder sensors from the

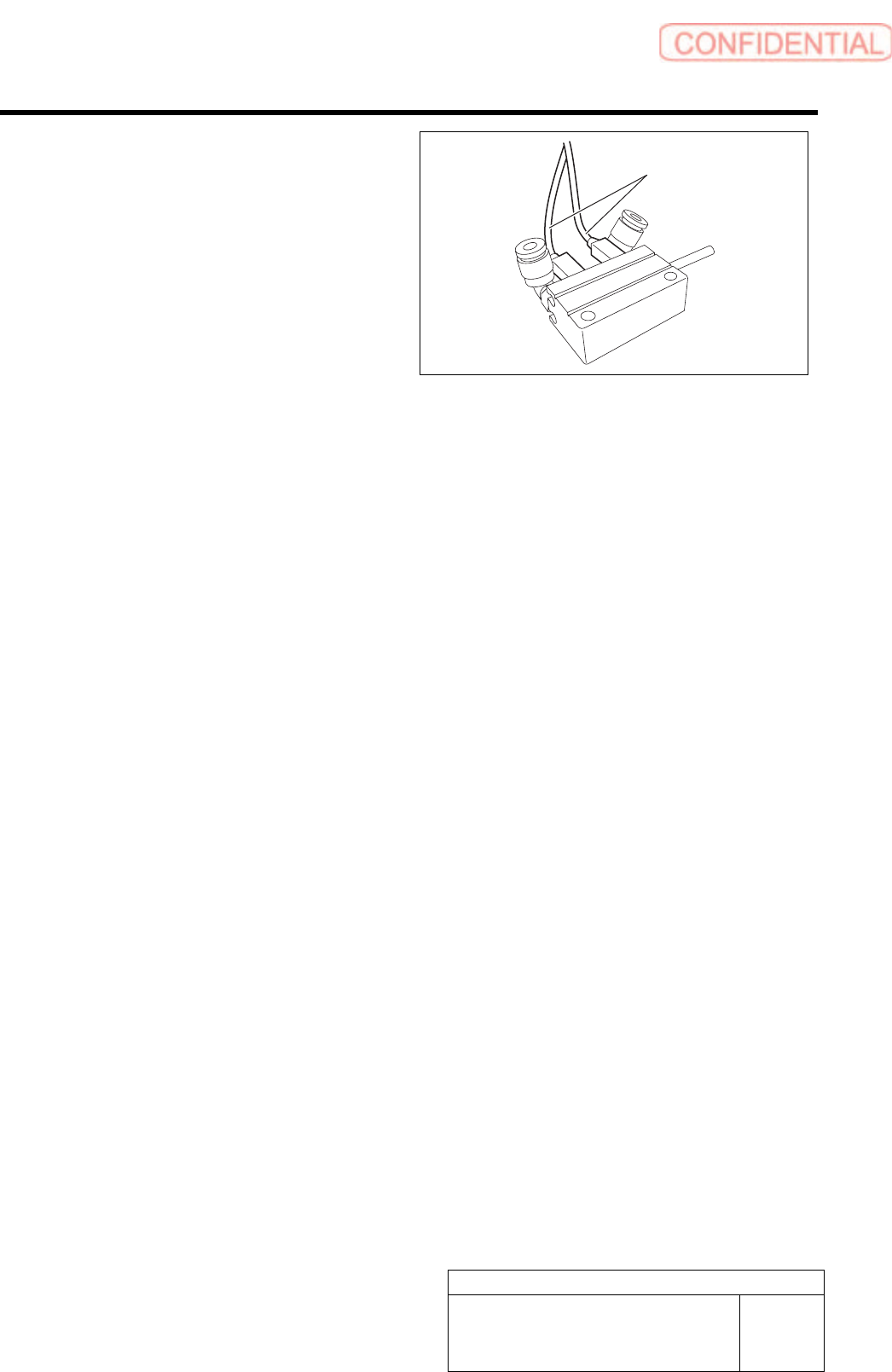

cylinder.
Cylinder sensor
Pickup Check Camera Part
RPGB-10202-01
Pickup Check Light Up/Down
Cylinder Replacement
SHEET
4/7
[Attaching the Cylinder]

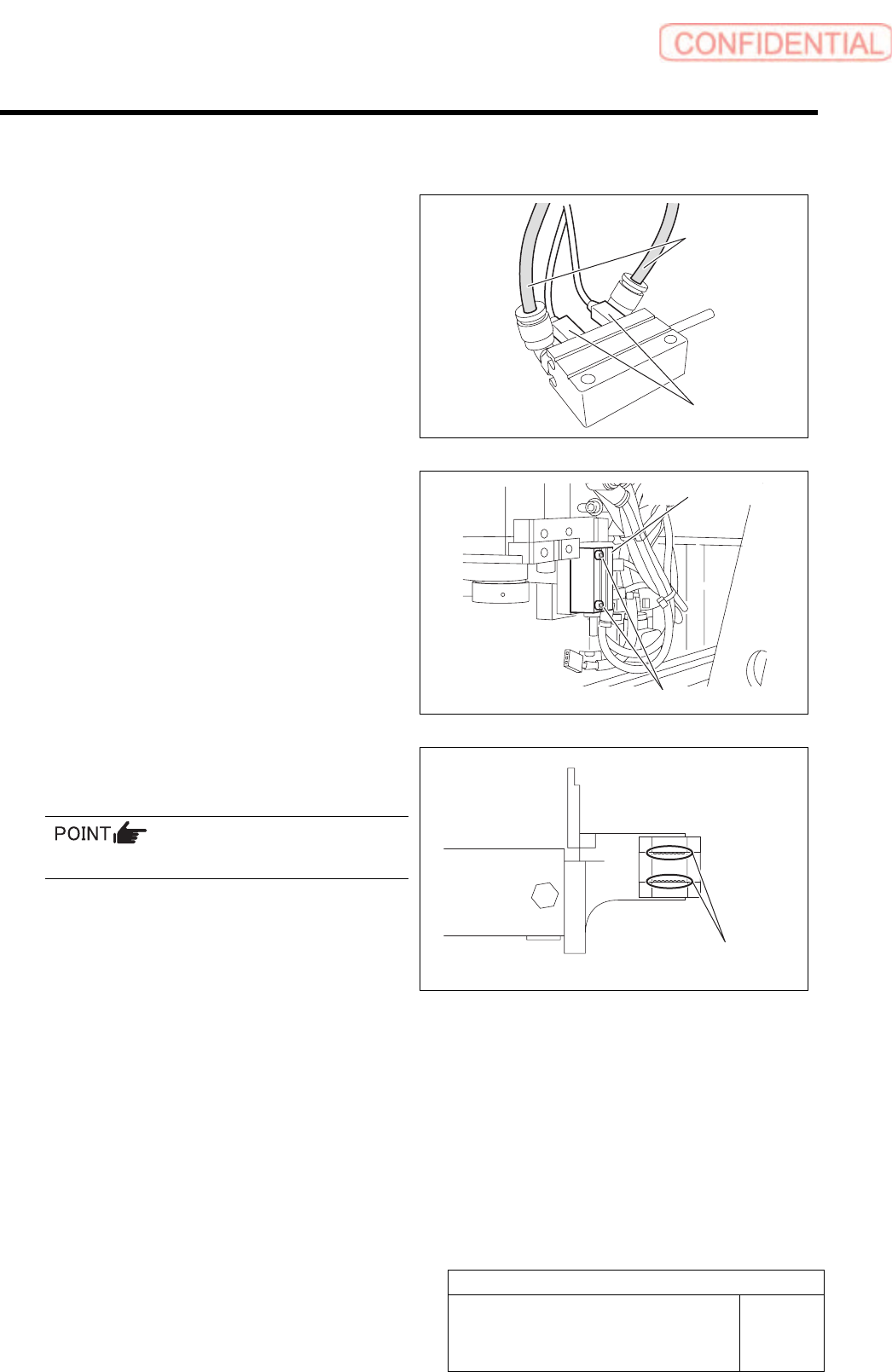

1 Connect the air tubes and cylinder sensor to
the air cylinder.
2 Fasten the air cylinder temporarily with
2-CP2.5x22 screw.
3 Apply small amount of AFC grease to the
balls of the slide block.
Use caution not to drop the balls.
Air tube
Cylinder sensor
CP2.5x22
Cylinder
Balls
Pickup Check Camera Part
RPGB-10202-01
Pickup Check Light Up/Down
Cylinder Replacement
SHEET
5/7

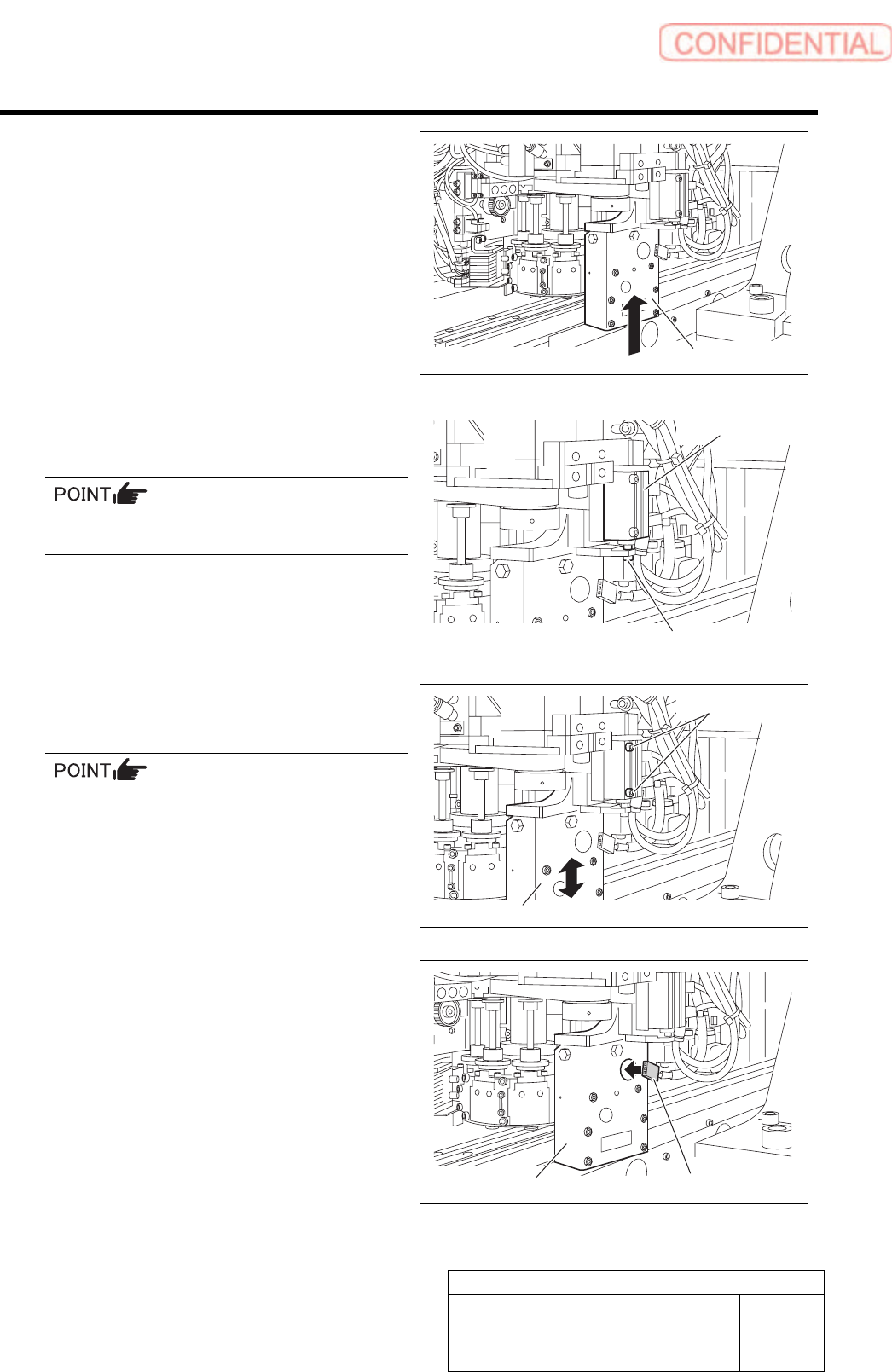

4 Attach the slide block to the linear rail
together with the light unit.
5 Join the rod end and the cylinder joint with
the collar and CP2x6.
Apply small amount of LOCKTITE 242 to
CP2x6.
6 While moving the light up/down with your
hand, fix 2-CP2.5x22 screw little by little.
After securing the cylinder, make sure the light
unit descends smoothly by its own weight.
7 Connect the connector of LEDF2 (LEDR2)
to the light unit.
Light unit
CP2x6
Cylinder
Light unit
CP2.5x22
Light unit
LEDF2 (LEDR2)
