Ch ange Procedu re fo r PWB Ca mera Change Pro cedure fo r PWB Camera [Disassembly] 1 Remo ve the PWB Camer a Ca ble . 1.C amer a cable 2.L E D cable 2 Remov e the PWB Came ra(B) Ass y 1.Remo ve the scre ws(2-C4x 18) 2. …
Change Procedure for Head Unit
12 Connect the air tubes (D6 and D8)(2 pcs) to the
Union elbows of the manifold.
13 Connect the air tube of D4 to the solenoid valve.
14 Connect all the removed connectors, and lock the wiring
with the cable tie not to allow the wiring to interfere
with the movable parts..
1. Connector of the PWB camera (CAME1).
2. Connectors connected through the connector panel.
(HM,RTM,RNM,CSFT,FSEN2,LED,PD,CSFT-LS,HE,
RTE,RNE,VAC-2,RTS,RNS)
3. Connector of the parts camera.. (CAME2)
4. Connector connected through the head
connector panel of HLSB and PD-LSB
(BS-NZL,PDLS-3,PDLS-4,HLS-2,HLS-3,HLS-4)
5. Connector of the rotary encoder. (DE1)
POINT
Connect the cable of pick up camera
to keep the slack.
Connect the connector of DE1 in the interior
of the connector panel.
15Turn on the main power and the air main cock.
[Adjustment］
16 Calibration
1.HLGB-10101-01 Preparation for calibration
2.HLGB-10201-01 Machine setup
3.HLGB-10301-01 Calibration
Change Procedure for Head
Unit
RPGB-10301-1
SEET
4/4
DE1
Connector panel
Pick Up Camera

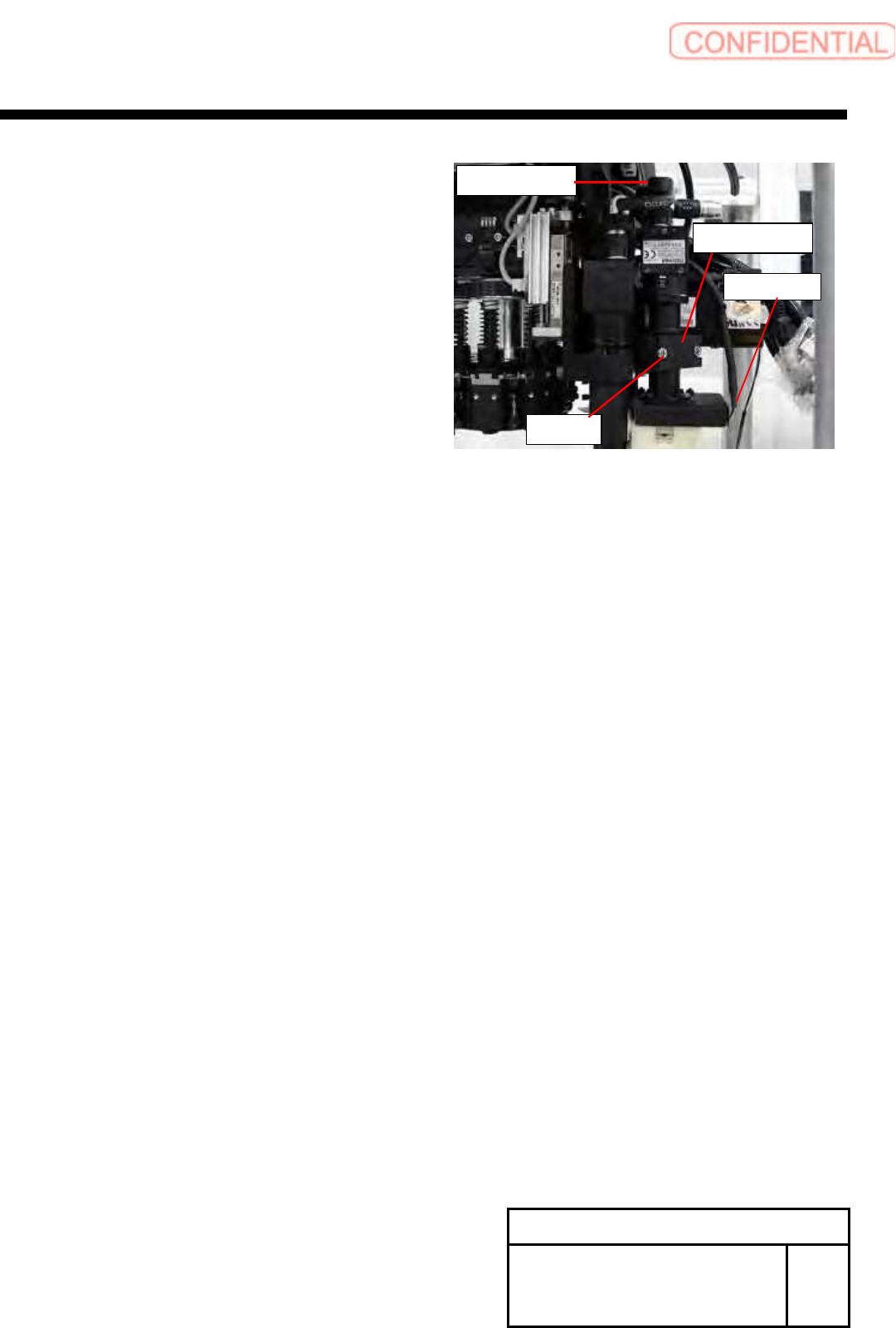

Change Procedure for PWB Camera
Change Procedure for PWB Camera
[Disassembly]
1 Remove the PWB Camera Cable.
1.Camera cable
2.LED cable
2 Remove the PWB Camera(B)Assy
1.Remove the screws(2-C4x18)
2. Camera support and PWB Camera(B)Assy
Change Procedure for Board
Camera
RPGB-10401-1
SEET
1/2
Camera cable
C4x18
Camera Support
PWB
Camera （B ）
Assy
LED cable
Change Procedure for PWB Camera
[Reassembly]
3 Attach the PWB Camera (B) Assy
1. Put PWB Camera (B) Assy between Camera support.
2. Temporarily tighten the screws(2-C4x18).
4 Attach the PWB Camera cable.
1.Camera cable
2.LED cable
[Adjustment]
5 Calibration
1.HLGB-10204-01 PWB Camera Setup
2.HLBG-10205-01 Fiducial Mark Setup
3.HLBG-10101-01 Preparation for Calibration
4.HLBG-10301-01 Calibration
Change Procedure for Board
Camera
RPGB-10401-1
SEET
2/2
Camera cable
C4x18
Camera support
LED cable
