Install Tray Unit (Including machine modification)
SHEET
30/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)

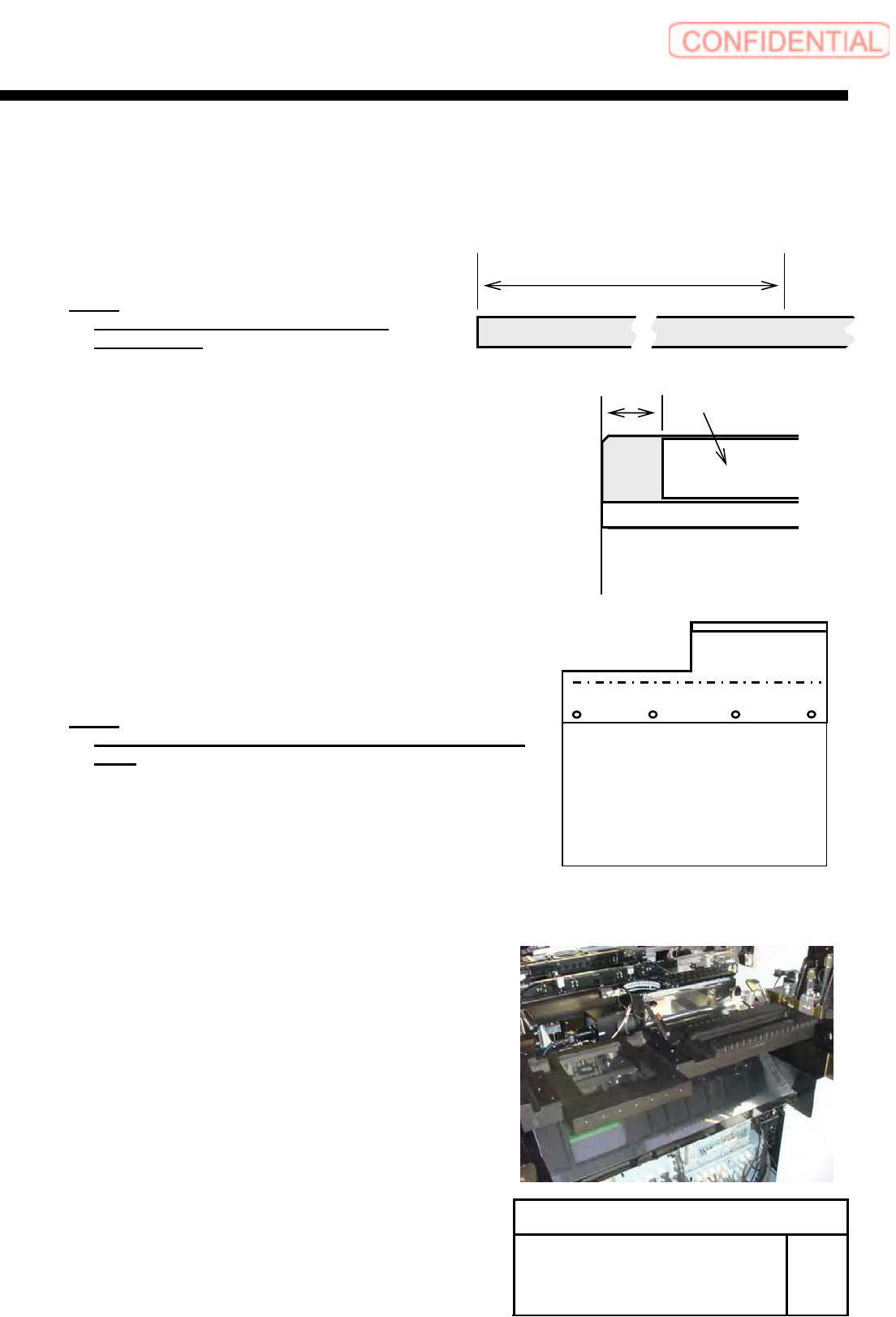

[Assembly and installation of tray specification shooter]
1 Sticking address seal.
1. Cut address seal by 301[mm] long from the left
end.
NOTE:
Supply No. of tray specification is
No.101 to 117.
2. Set the left end of the address seal to a position at
16[mm] from the left end of shooter address
indicating section, and stick it.
2 Assemble the upper shooter of the tray
specification and the existing lower
shooter with the 4-+T4x8.
NOTE:
For the lower shooter, the existing shooter is commonly
used.
3 Install the shooter for tray specification with
the 4-+T4x8.
1 2 3 4 5 6
13 14 15 16 17 18 19 20
301[mm]
16.0[mm]
１
Shooter
Address seal
Lower shooter
(commonly used)
Upper shooter (only for tray specification)
Install Tray Unit (Including machine modification)
SHEET
31/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)

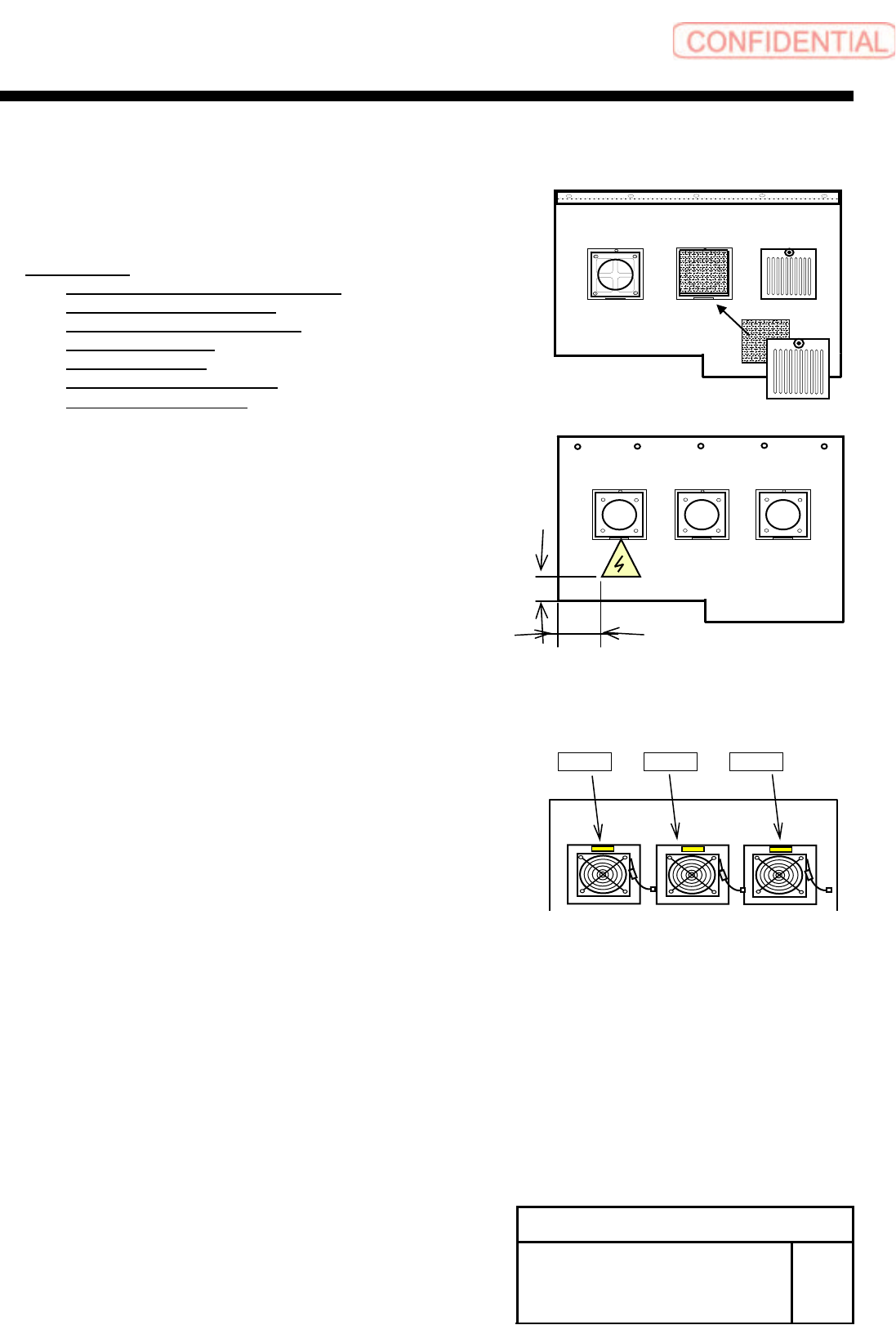

[Installation of rear center cover]
1 Import all parts to the tray center cover
from the existing center cover.
Re-use Parts:
HANDLE, ALUMINUM(3-218-296-02)
COVER, FAN(2-693-879-01)
GUARD, FILTER(2-889-206-01)
Filter(2-055-233-02)
FAN(1-763-987-11)
GUARD, FAN(4-720-311-01)
Screws,Nut,Washer,etc.
2 Stick lightning label, FAN-R1, FAN-R2
and FAN-R3 seals on the cover.
FAN-R1FAN-R2 FAN-R3
Cover reverse face
40[㎜]
20[㎜]
Cover obverse face
Install Tray Unit (Including machine modification)
SHEET
32/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)

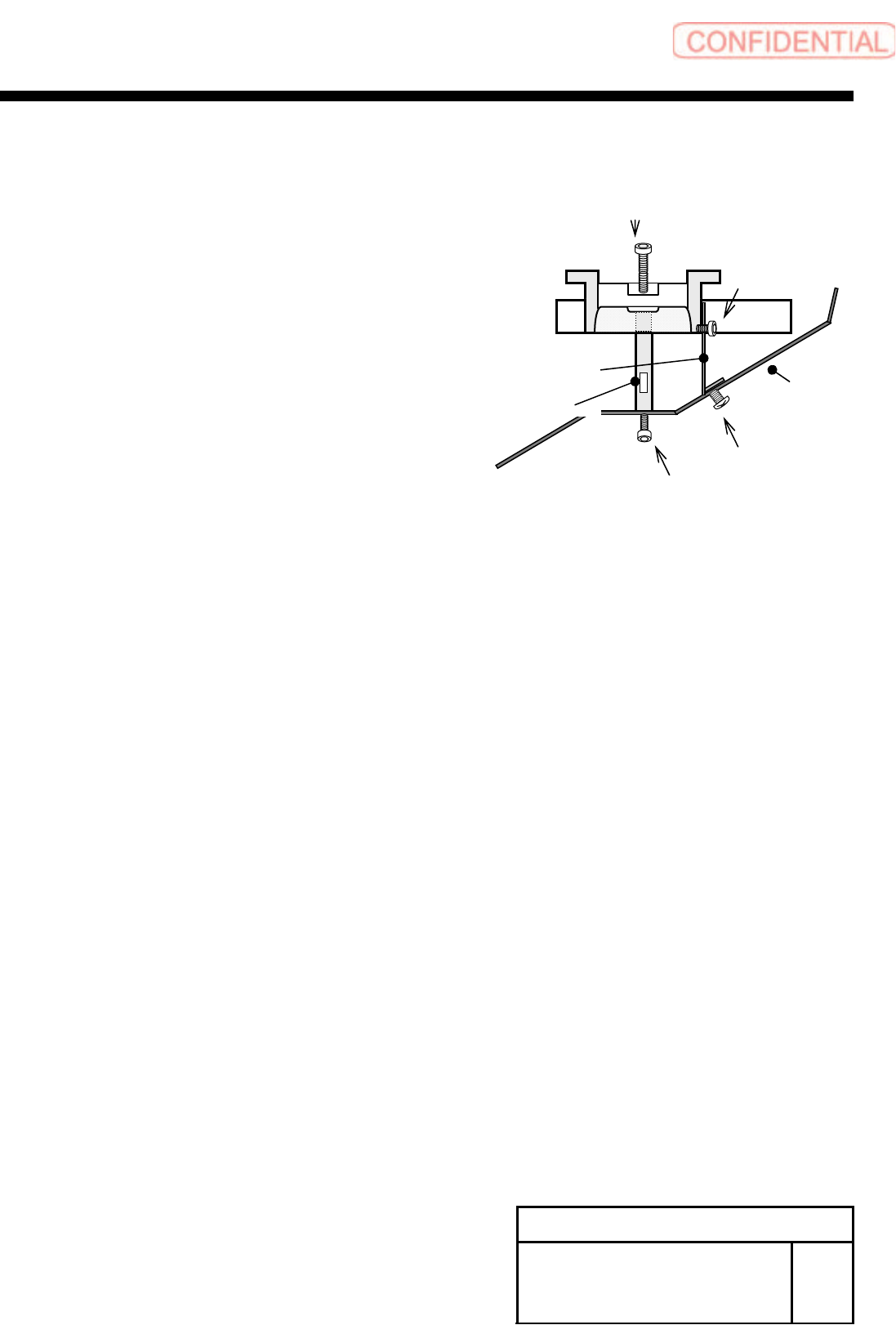

3 Install the shooter cover to the lower
side of the cassette table.
1. Fix the discharge guide bracket to the discharge
cover with the 3-T4x6.
2. Fix the discharge guide shaft to the discharge
cover with the 2-CP6x10.
3. Fix the Discharge guide shaft to the lower side of
the cassette table with the 2-cp6x30.
Discharge cover
Discharge guide bracket
Discharge guide shaft
3-T4x6
2-CP6X30
3-CP4x6
2-CP6X10
