Install Tray Unit (Including machine modification) SHEET 45/73 WKGB-10104-03 Installing Tray Unit (Including machine modification) [Docking with mounter main body] [Necessary jig and T ools] ・ S p anner(17[mm]) ・ S p ann…

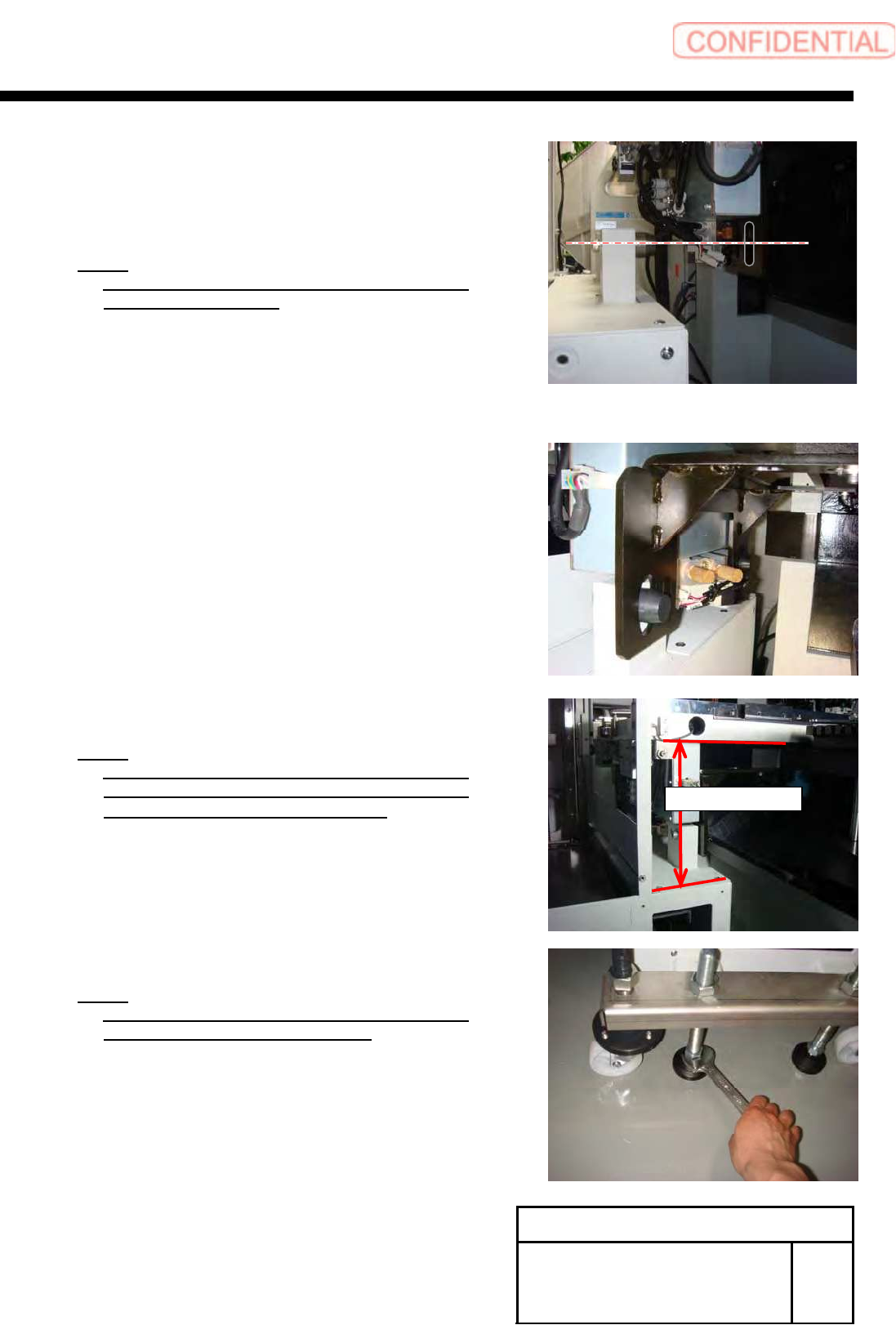

Install Tray Unit (Including machine modification)

SHEET

44/73

WKGB-10104-03

Installing Tray Unit

(Including machine modification)

[Input of tray parts pickup Y coordinate]

1 Open “c:¥asm¥mcdata2¥supply_pos.ini”

by word pad.

2 Rewrite the pickup Y coordinate value on

the [Cass118] to the same value of the

pickup Y coordinate on the [Cass101].

3 Overwrite and save the file and restart the

mounted machine.

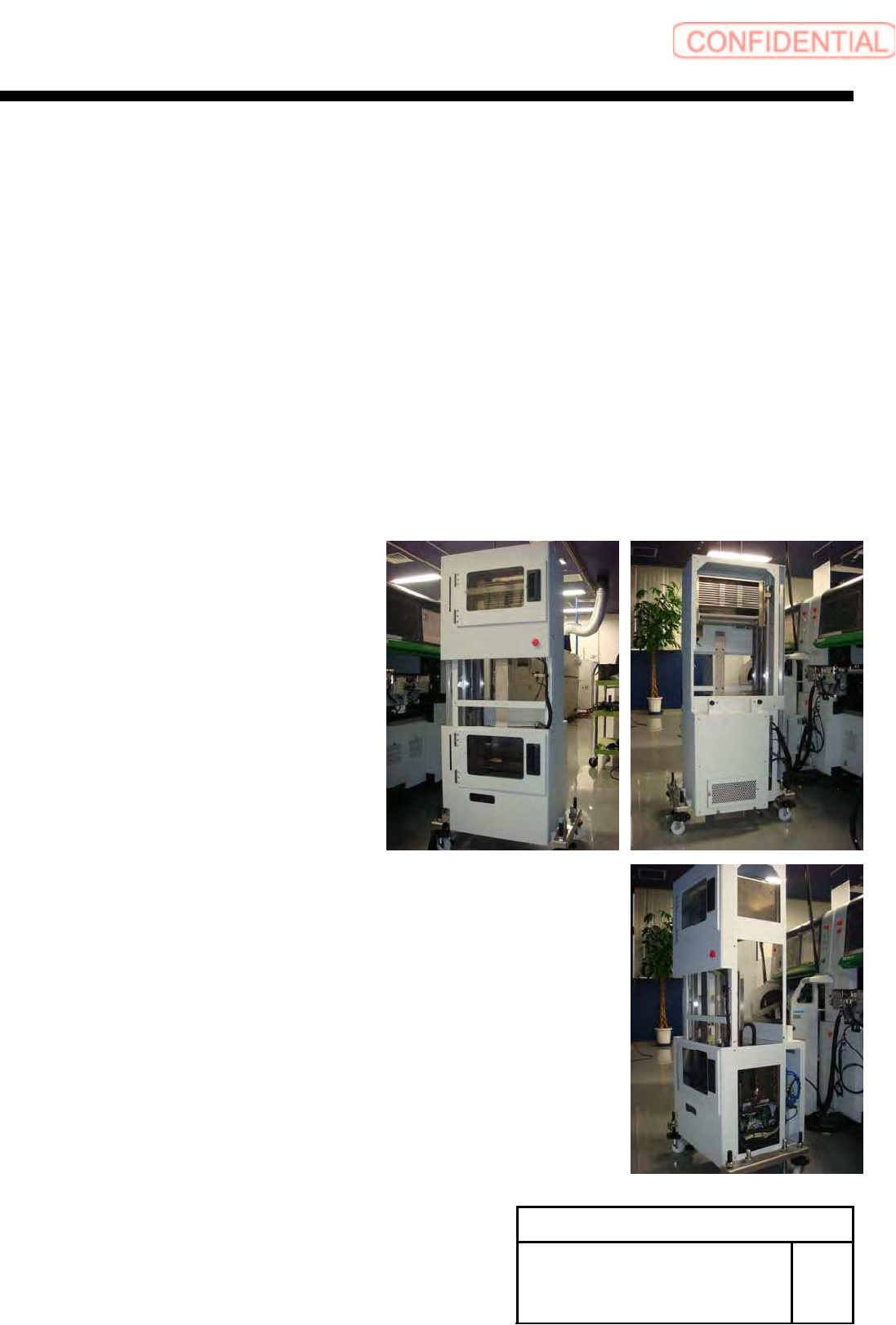

Install Tray Unit (Including machine modification)

SHEET

45/73

WKGB-10104-03

Installing Tray Unit

(Including machine modification)

[Docking with mounter main body]

[Necessary jig and Tools]

・Spanner(17[mm])

・Spanner(24[mm])

・Spanner(30[mm])

・Hex-Wrench(10[mm])

・Scale(300[mm])

1 Remove front middle cover and rear

upper cover and side upper cover, side

lower cover.

Install Tray Unit (Including machine modification)

SHEET

46/73

WKGB-10104-03

Installing Tray Unit

(Including machine modification)

2 Adjust the height of Pin of Tray unit and

long circle hole of mount bracket to

same height.

NOTE:

Adjust four adjuster foot evenly, when change

the height of Tray-unit.

3 Insert the locate pin of tray unit to pin

hole of mount bracket.

4 Adjust height of tray unit.

NOTE:

Adjust height from upper section of the tray

unit electric component cover to bottom of S

axis unit face to 202[mm]～206[mm].

NOTE:

At this time, please confirm the caster of the

tray unit is not touching the floor.

204±2[mm]
