Install Tray Unit (Including machine modification) SHEET 48/73 WKGB-10104-03 Installing Tray Unit (Including machine modification) 7 Check and adjust level of the tray unit. NOTE: Af ter adjust level of tray unit, confir…
Install Tray Unit (Including machine modification)
SHEET
47/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)
5 Turn on Power of mounter. And, push
the emergency stop button to turn off
the servo.

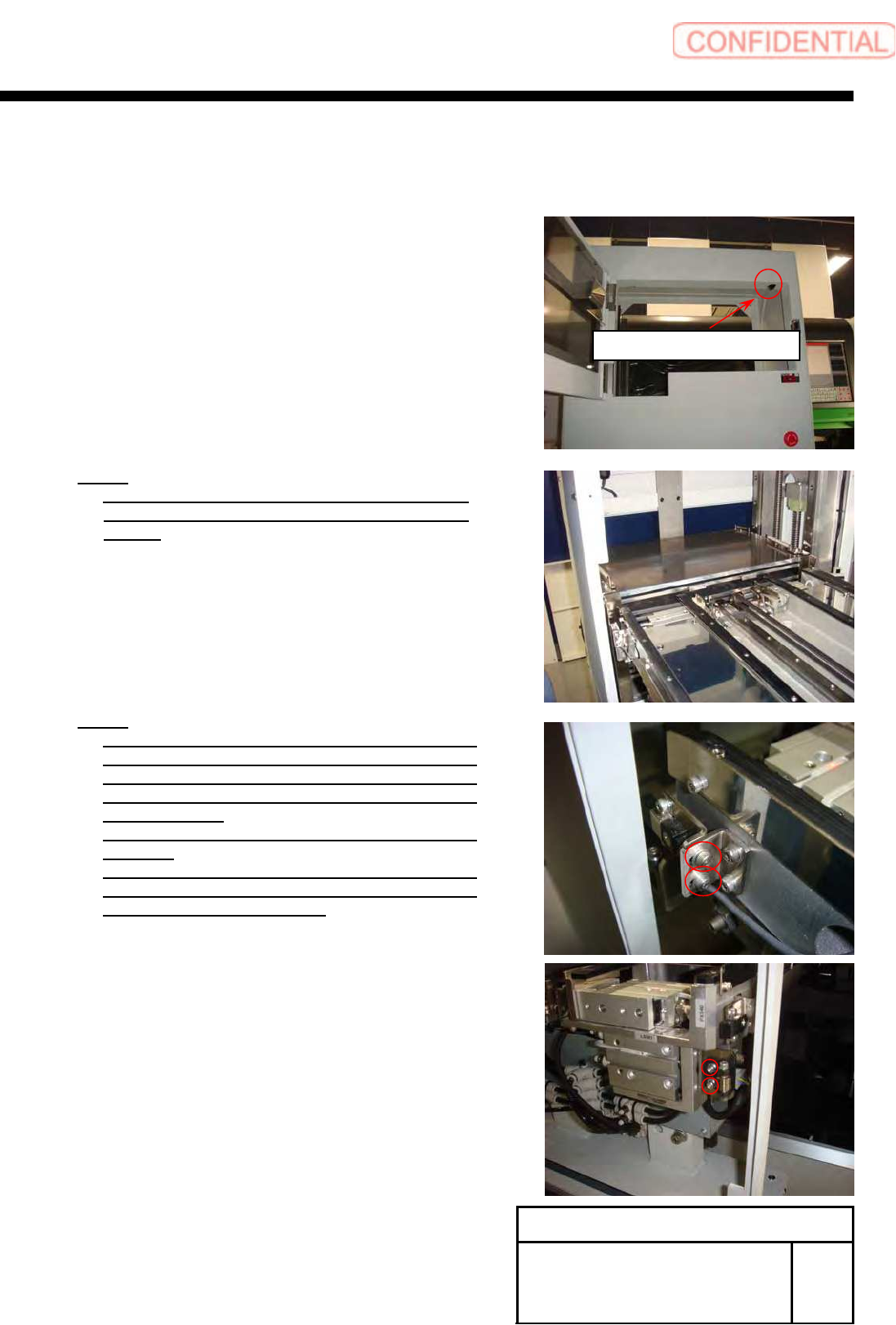

6 Down the supply height of Z501 around
the height of S-axis supply lane by
using release switch of VU axis brake.
NOTE:
At this time, please confirm the shutter does
not collision to shutter roller and shutter close
sensor.
NOTE:
If you can see the collision shutter and shutter
close sensor, change the position of shutter
close sensor temporary to avoid collision. You
can change the position, if loosen the screw of
sensor bracket.
Please re-adjustment it, after docking with
machine,
If you can see the collision shutter and shutter
roller, change the position of shutter roller
temporary to avoid collision.
SW for Brake Release
Install Tray Unit (Including machine modification)
SHEET
48/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)
7 Check and adjust level of the tray unit.
NOTE:
After adjust level of tray unit, confirm height of tray unit
again.
8 Up the upper tray rack to around parts
exchange height by using release switch
of VU axis brake.
SW for Brake Release
Install Tray Unit (Including machine modification)
SHEET
49/73
WKGB-10104-03
Installing Tray Unit
(Including machine modification)
9 Move the top plate of the lower tray rack
to the about same height of S axis frame
by use release switch of VL-axis brake.
NOTE:
At this time, please confirm the shutter does
not collision to shutter roller and shutter close
sensor.
If you can see the collision shutter and shutter
close sensor, change the position of shutter
close sensor temporary to avoid collision. You
can change the position, if loosen the screw of
sensor bracket.
Please re-adjustment it, after docking with
machine,
If you can see the collision shutter and shutter
roller, change the position of shutter roller
temporary to avoid collision.
