5.5 Max. time un-belt Software version V 40.11 Edition 01/2001
36
0D[WLPHXQEHOW
If a PCB has not been transferred from the conveyor to the lift after the adjusted time, the auto-
matic operating mode is stopped and the error signal shows "PCB annuated". The PCB is only
then transferred from the conveyor to the following lift when the error signal is confirmed with the
"Enter" cursor through the user.
The unit of the value is [s] and the adjustment area is 0s to 9999s, whereas the function is switched
off for the value 0s.
0D[WLPHOLIW
If the ramp up mode setting is "1 to 0", a PCP can be buffered on track 3 until the transport on
track 1 or track 2 is available again. The selected time defines the waiting period. If the selected
time is exceeded, the PCP is transferred to the buffer on track 3 of the underfloor conveyor. De-
pending on the availability of track 1 and 2 the PCP is transported reverse into the Productivity Lift
for further processing.
The dimension is in [s]. The setting range is between 0 - 600 s.
The feature is turned off by entering "0".
Max. time un-belt
0
Max. time lift 2
000
User Manual V 1.15 - Productivity Lift 5 Configuration
Software version V 40.11 Edition 01/2001 5.7 Code number
37
&RGHQXPEHU
127(
All the settings after this menu affect the basic parameters of the device and are generally only
defined during initial installation. For this reason, access is protected by code number entry. The
code number requested in the configuration may only be known to one authorised person, and
may not be passed on to unauthorised persons.
8QGHUQHDWKEHOW
If the lift is installed as the end module in the line, it no longer has an underfloor conveyor. This
function must then be disabled in this menu.
Code number
0000
Underneath belt
Turned off
5 Configuration User Manual V 1.15 - Productivity Lift
5.9 Conveyor on LF 1 Software version V 40.11 Edition 01/2001
38
&RQYH\RURQ/)
Depending on the revision level of the Productivity Lift, the Top Conveyor, has one or two convey-
ors. Select the appropriate setting "1" or "2". "1" for one conveyor. "2" for two conveyors.
$/7SURWHFWLRQ
With this function (adjustment "switched on") the input possibilities in the configuration menu ("▲"
and "ALT" - cursor) and in the adjustment mode ("ALT" - cursor) are locked. Input is only possible
when the interlock is used.

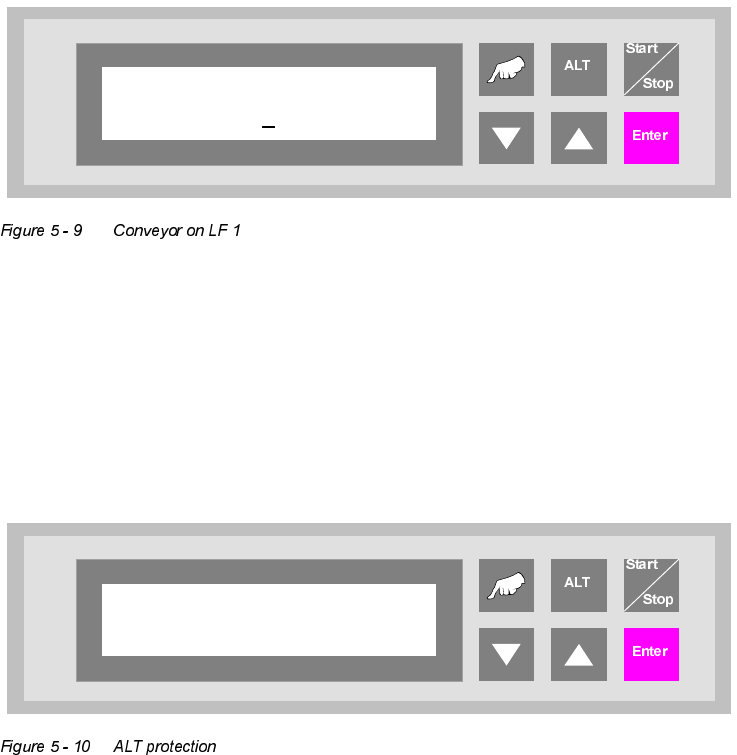

Conveyor on LF 1
1
ALT protection
Turned on
