User Manual V 1.15 - Productivity Lift 5 Configuration Software version V 40. 1 1 Edition 01/2001 5.21 T ravelling speed 47 7 UDYHOOLQJVS HHG The spe ed at which the lower lift travels between the two fina l positi…
5 Configuration User Manual V 1.15 - Productivity Lift
5.19 Start speed down Software version V 40.11 Edition 01/2001
46

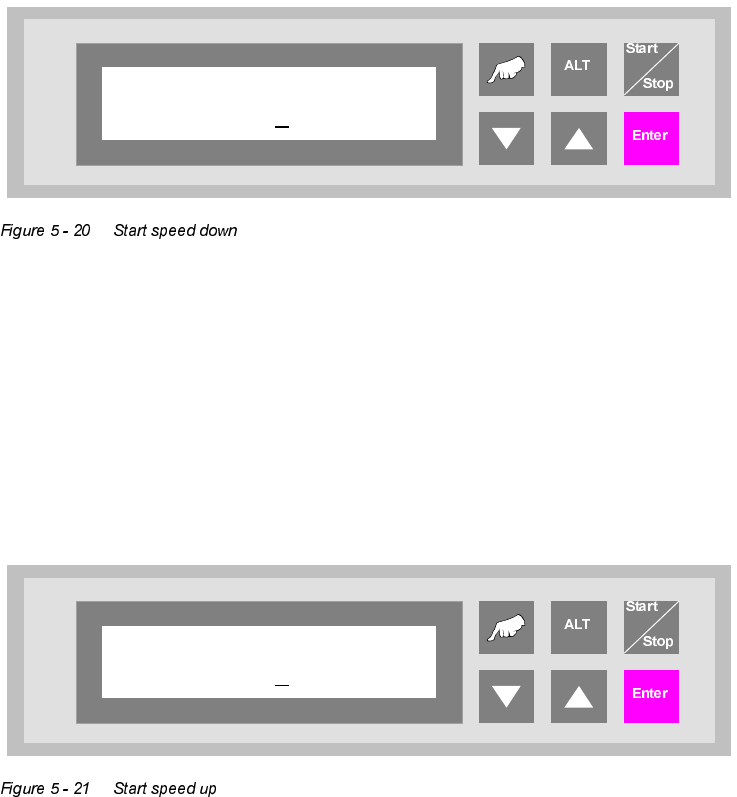

6WDUWVSHHGGRZQ
The speed at which the lower lift starts up when travelling downwards and which is reverted to by
braking just before reaching the final position.
The setting is a percentage of the motor rating. The value should be between 23% and 27%. The
default setting are 25%.
6WDUWVSHHGXS
The speed at which the lower lift starts up when travelling upwards and which is reverted to by
braking just before reaching the final position.
The setting is a percentage of the motor rating. The value should be between 20% and 25%. The
default setting are 20%.
Start speed down
025
Start speed up
020
User Manual V 1.15 - Productivity Lift 5 Configuration
Software version V 40.11 Edition 01/2001 5.21 Travelling speed
47

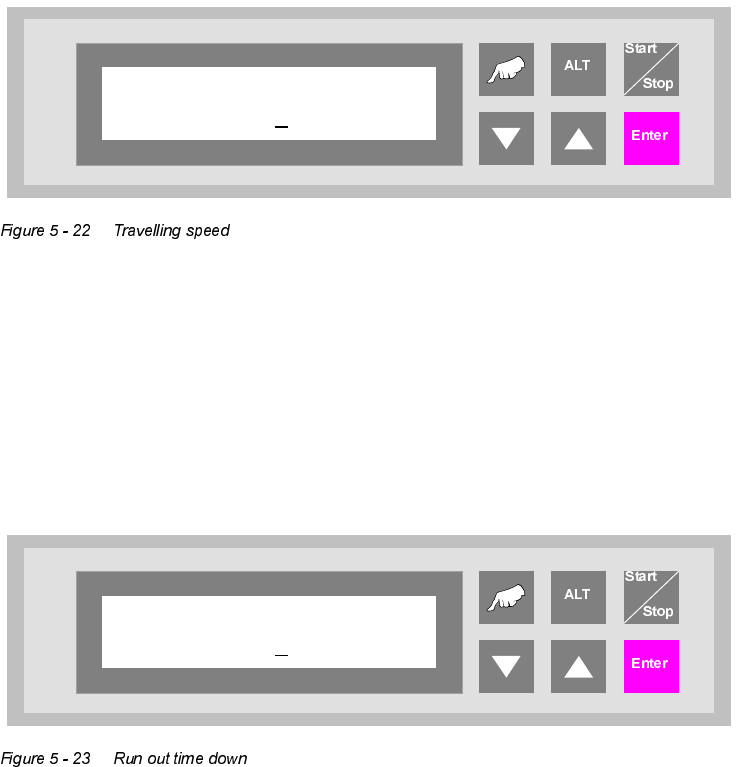

7UDYHOOLQJVSHHG
The speed at which the lower lift travels between the two final positions. The value to be entered
is a percentage value of the entire motor output.
The setting is a percentage of the motor rating. The default setting are 80%.
5XQRXWWLPHGRZQ
A time that can be set to secure the positioning of the lower lift in its final lower position. This guar-
antees that the lift has reached its final position before a PCB is transferred or delivered.
The unit of value is [0.01s]. The default setting are 002.
Travelling speed
080
Run out time down
002
5 Configuration User Manual V 1.15 - Productivity Lift
5.23 Run out time up Software version V 40.11 Edition 01/2001
48

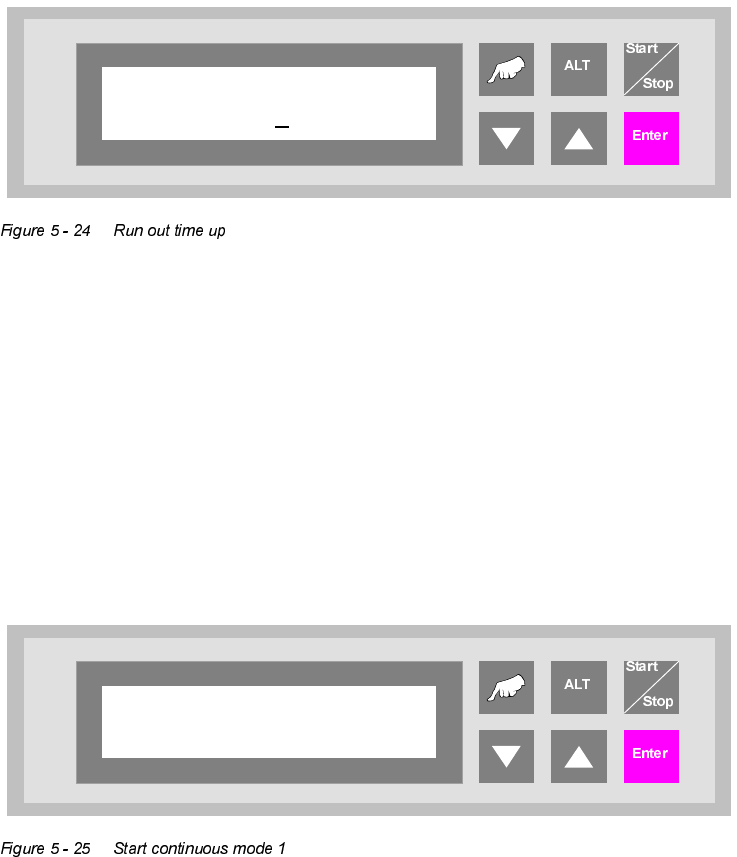

5XQRXWWLPHXS
A time that can be set to secure the positioning of the lower lift in its final upper position. This guar-
antees that the lift has reached its final position before a PCB is transferred or delivered.
The unit of value is [0.01s]. The default setting are 007.
6WDUWFRQWLQXRXVPRGH
This continuous operation mode can be implemented with two lift modules and one placement
machine. A PCB is transported on the upper transport level from the lift to the placement machine,
on to the next lift and, from there, back again to the front lift on the underfloor conveyor. This cycle
is repeated until the continuous operation mode is interrupted.
The continuous operation mode is initiated from this menu using the "Hand" key. The "Start/Stop"
key is used to interrupt it.
Run out time up
007
Start continuous
mode 1?
