KGR_YG88_rev_Mainte_downsized - 第15页
2 5 Head 2nd Axis Head KGR-081 113 72 44 36 26 80 40 50 4 70 77 61 17 45 45 16 49 41 43 38 66 47 61 30 46 32 65 79 78 66 66 69 18 51 19 65 54 67 5 6 71 52 25 75 61 76 24 20 48 48 21 23 61 22 22 65 31 15 62 6 5 63 56 42 8…
1
5

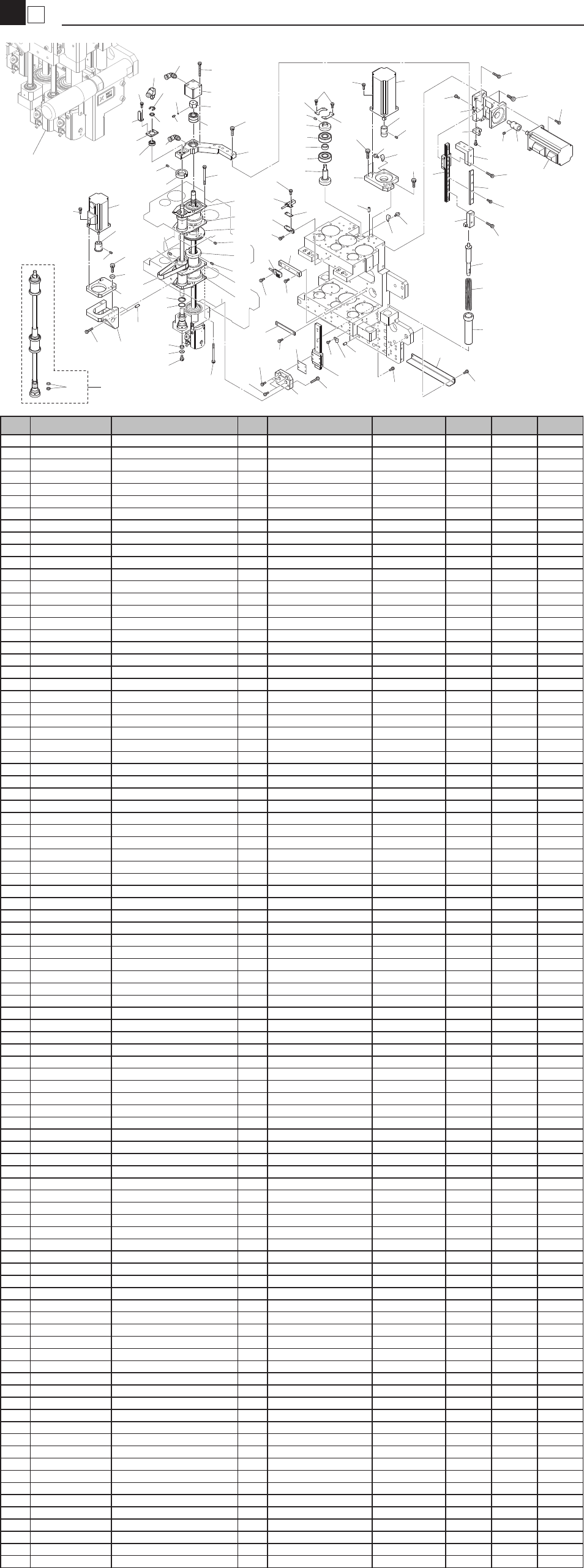

Head 1st Axis
Head
KGR-081113
2
11
4
32
34
13
15
14
17
18
12
48
61
10
1
37
5
41
19
3
42
43
20
33
36
38
60
44
73
41
27
26
30
39
24
7
9
49
61
55
64
47
72
51
65
55
59
56
55
55
58
57
66
61
50
54
71
59
53
68
70
70
60
57
62
62
59
52
21
28
29
46
59
63
60
60
53
52
53
52
69
66
23
25
16
8
6
45
67
35
22
31
40
1st Axis
74
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGR-M7101-00X HOUSING, HEAD 1 /
1-1 KGR-M7101-01X HOUSING, HEAD 1 Casting Type (2006/3/27) NG /
2 KGR-M7102-00X HOLDER 1, MOTOR Z 1 /
3 KGR-M7105-00X BRACKET 1, Z AXIS 1 /
4 KGR-M7108-00X GUIDE, Z AXIS 1 A
5 KGR-M7109-00X HOLDER, BRG. Z 1 /
6 KGR-M710A-00X PLATE 1, BRG. 1 /
7 KGR-M710B-00X PLATE 2, BRG. 1 /
8 KGR-M710D-00X PLATE 4, BRG. 2 /
9 KGR-M710E-00X PLATE 5, BRG. 1 /
10 KGR-M710G-00X PLATE, GUIDE Z 1 /
11 KGR-M7115-00X BLOCK 1, Z AXIS 1 /
12 KGR-M7116-00X BLOCK 2, Z AXIS 1 /
13 KGR-M711A-00X GUIDE 1, SPRING 1 /
14 KGR-M711B-00X GUIDE 2, SPRING 1 /
15 KGR-M7120-00X SPRING, RETURN 1 /
16 KV7-M7121-01X GEAR, HEAD R 3 B
17 KV7-M7122-01X GEAR, MOTOR R 1 A
18 KV7-M7123-00X HOLDER, MOTOR R 1 /
19 KV7-M7124-00X NUT, LOCK 1 /
20 KV7-M7127-00X SET PIECE, LOCK 1 /
21 KGR-M7128-00X GUIDE, HOLDER 1 A
22 KGR-M7170-A0X N SHAFT 1 ASSY. 1 C
23 KGR-M7176-00X
BELT, N AXIS 1 B
24 KGR-M7177-00X PULLEY, MOTOR N 1 /
25 KGR-M7178-00X PULLEY, SHAFT N 1 /
26 KGR-M7179-00X COLLAR, DOG 1 1 /
27 KGR-M7180-00X COLLAR, DOG 2 1 /
28 KGR-M7181-00X BRACKET, HOLDER 1 /
29
KGA-M7187-00X SHIM,GUIDE 1 t=0.01 /
KGA-M7187-10X SHIM,GUIDE 1 t=0.03 /
KGA-M7187-20X SHIM,GUIDE 1 t=0.05 /
30 KGR-M7188-00X BRACKET 1, MOTOR N 1 /
31 KGR-M7191-00X COLLAR 2,SHAFT 3 /
31-1 90990-41J023 COLLAR 3 (2008/4/15) OK /
32 KGA-M7193-01X PINION, Z AXIS 1 A
33 KGR-M7194-00X PLATE, BRG. 1 /
34 KGR-M7195-00X RACK, Z AXIS 1 A
35 KGR-M7196-00X WASHER 3,BRG. 3 /
35-1 90990-28J041 WASHER,PLAIN 3 (2007/12/20) OK /
36 KGR-M7197-00X WASHER 4,BRG. 3 /
36-1 90990-28J042 WASHER,PLAIN 3 (2007/12/20) OK /
37 KGR-M7198-00X PLATE, SENSOR 2 /
38 KGR-M7199-00X JOINT 3 A
38-1 90990-42J018 JOINT 3 (2008/6/17) OK A
39 KH5-M7118-00X PIN 2 TENTION 1 /
40 KV7-M71S6-00X WASHER,SEAL 3 /
40-1 90990-36J003
WASHER,SEAL 3 (2008/4/15) OK /
41 $TSH4-M5 JOINT 2 /
42 KV7-M71T1-00X BEARING 3 79M8ADF A
42-1 90990-26J001 BEARING 3 (2007/12/6) OK A
43 KV7-M71T3-00X BEARING 3 WBC7-13ZZA A
43-1 90990-25J012 BEARING 3 (2007/12/4) OK A
44 90440-01J060 CIRCLIP 1 /
45 99009-11800 CIRCLIP 1 /
46 99480-04008 PIN, PARALLEL 2 /
47 99480-04010 PIN PARALLEL: 4X10 2 /
48 KGR-M4880-00X AC SERVO MOTOR Z1 1 B
48-1 90K6D-02EE03 AC SERVO MOTOR Z1 1 (2006/10/24) OK B
49 KGR-M4882-00X AC SERVO MOTOR R1 1 B
49-1 90K6D-02FF11 AC SERVO MOTOR R1 1 (2006/10/24) OK B
50 KGR-M4884-00X AC SERVO MOTOR N1 1 B
50-1 90K6B-02GG14 AC SERVO MOTOR N1 1 (2006/10/24) OK B
51 KGR-M653G-00X HNS, SENSOR ASSY 1 B
52 $NK-4N NYLON CLIP 9 /
52-1 $NK-3N NYLON CLIP 6 (2007/1/22) OK /
53 97604-04308 SCREW,PAN HEAD W/W 9 /
53-1 97602-04308 SCREW,PAN HEAD W/W 9 (2006/2/14) OK /
53-2 90990-11J003
SCREW,PAN HEAD W/W 9 (2006/3/13) OK /
53-4 90990-11J003 SCREW,PAN HEAD W/W 11 (2007/1/22) OK /
54 92907-05600 WASHER PLAIN 2 /
55 92A08-03303 SET SCREW M3X3 6 /
56 92A08-03305 SCREW, SET 1 /
57 92A08-04303 SET SCREW M4X3 4 /
58 92A08-04305 SET SCREW M4X5 2 /
59 91317-03006 BOLT HEX. SOCKET HEAD 10 /
60 91317-03008 BOLT HEX. SOCKET HEAD 11 /
61 91317-03010 BOLT HEX. SOCKET HEAD 16 /
62 91317-03014 BOLT HEX. SOCKET HEAD 4 /
63 91317-03016 BOLT HEX. SOCKET HEAD 2 /
64 91317-03022 BOLT HEX. SOCKET HEAD 4 /
65 91317-03025 BOLT HEX. SOCKET HEAD 4 /
66 91317-03035 BOLT HEX. SOCKET HEAD 14 /
67 91317-04006 BOLT HEX. SOCKET HEAD 1 /
68 91317-04010 BOLT HEX. SOCKET HEAD 2 /
69 91317-04016 BOLT HEX. SOCKET HEAD 2 /
70 91317-05015 BOLT HEX.SOCKET HEAD 7 /
70-1 91317-05014 BOLT HEX.SOCKET HEAD 7 (2007/1/22) OK /
71 91317-05020 BOLT HEX. SOCKET HEAD 2 /
72 91317-06020 BOLT HEX. SOCKET HEAD 4 /
73 KGR-M71C8-00X BRACKET, JOINT 1 /
74 90990-22J021 PACKING 2 E
2
5

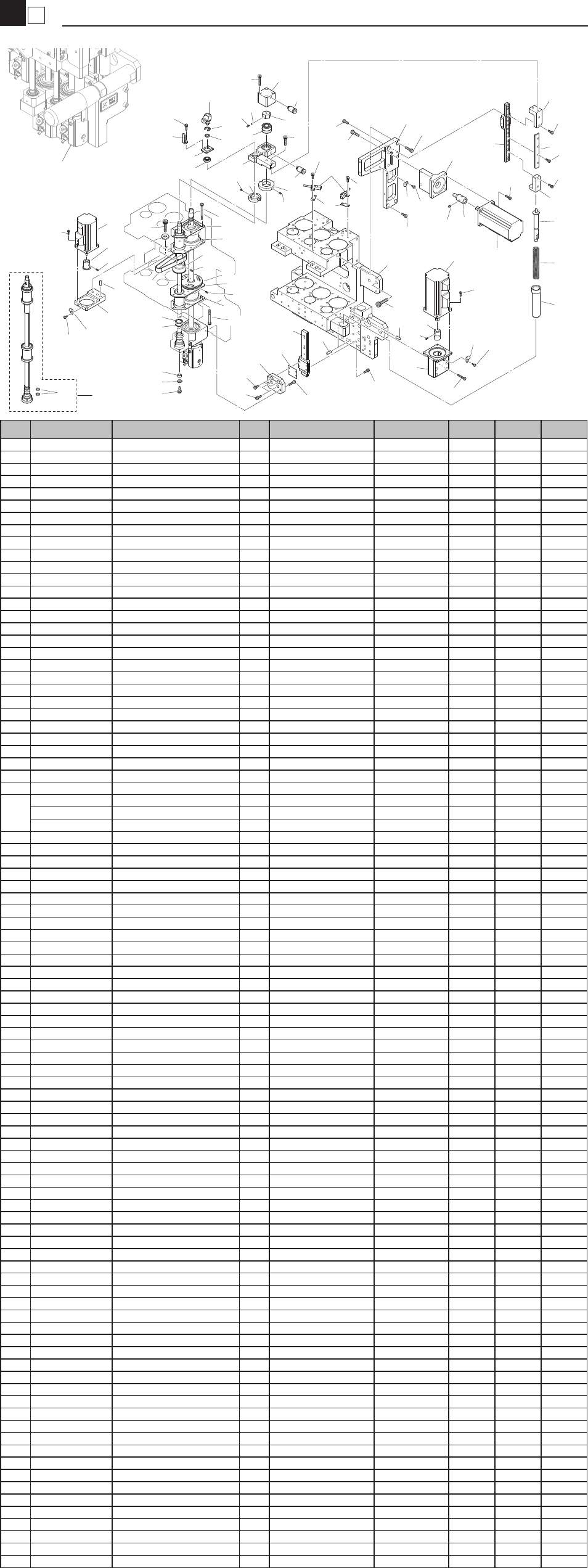

Head 2nd Axis
Head
KGR-081113
72
44
36
2680
40
50
4
70
77
61
17
45
45
16
49
41
43
38
66
47
61
30
46
32
65
79
78
66
66
69
18
51
19
65
54
67
5
6
71
52
25
75
61
76
24
20
48
48
21
23
61
22
22
65
31
15
62
6
5
63
56
42
8
65
65
56
66
9
59
71
55
67
34
60
75
61
28
27
52
35
68
29
64
2
73
1
74
68
3
66
63
37
66
7
53
67
10
68
68
39
65
11
12
14
13
58
57
33
58
57
58
57
2nd Axis
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGR-M7103-00X HOLDER 2, MOTOR Z 1 /
2 KGR-M7106-00X BRACKET 2, Z AXIS 1 /
3 KGR-M7108-00X GUIDE, Z AXIS 1 A
4 KGR-M7109-00X HOLDER, BRG. Z 1 /
5 KGR-M710C-00X PLATE 3, BRG. 2 /
6 KGR-M710F-00X PLATE 6, BRG. 2 /
7 KGR-M710J-00X BLOCK 1, STOPPER 1 /
8 KGR-M7112-00X BRACKET, SENSOR 1 /
9 KGR-M7113-00X STAY, SENSOR 1 /
10 KGR-M7117-00X BLOCK 3, Z AXIS 1 /
11 KGR-M7118-00X BLOCK 4, Z AXIS 1 /
12 KGR-M711A-00X GUIDE 1, SPRING 1 /
13 KGR-M711B-00X GUIDE 2, SPRING 1 /
14 KGR-M7120-00X SPRING, RETURN 1 /
15 KV7-M7121-01X GEAR, HEAD R 1 B
16 KV7-M7124-00X NUT, LOCK 1 /
17 KV7-M7127-00X SET PIECE, LOCK 1 /
18 KGR-M7128-00X GUIDE, HOLDER 1 A
19 KGR-M7129-00X STOPPER, GUIDE 1 /
20 KGR-M712A-00X GEAR 1,IDLER 1 /
20-1 KGR-M712A-01X GEAR 1,IDLER 1 (2005/10/17) OK /
21 KGR-M712B-00X GEAR 2, IDLER 1 /
22 KGR-M712C-00X PLATE 2, BRG. 2 /
23 KGR-M712D-00X COLLAR 2, BRG. 1 /
23-1 90990-41J022 COLLAR 1 (2008/4/15) OK /
24 KGR-M712E-00X GEAR 2, MOTOR R 1 A
25 KGR-M712F-00X HOLDER 2,MOTOR R 1 /
25-1 KGR-M712F-01X HOLDER 2,MOTOR R 1 (2005/10/17) OK /
26 KGR-M717A-A0X N SHAFT 2 ASSY. 1 C
27 KGR-M7176-00X BELT, N AXIS 1 B
28 KGR-M7177-00X PULLEY, MOTOR N 1 /
29 KGR-M7178-00X PULLEY, SHAFT N 1 /
30 KGR-M7179-00X COLLAR, DOG 1 1 /
31 KGR-M7180-00X COLLAR, DOG 2 1 /
32 KGR-M7181-00X BRACKET, HOLDER 1 /
33 KGA-M7187-XXX GUIDE SHIM SEL. 1 /
34 KGR-M7189-00X BRACKET 2, MOTOR N 1 /
35 KGR-M7190-00X HOLDER, MOTOR N 1 /
36 KGR-M7191-00X COLLAR 2,SHAFT 1 /
36-1 90990-41J023 COLLAR 1 (2008/4/15) OK /
37 KGA-M7193-01X PINION, Z AXIS 1 A
38 KGR-M7194-00X PLATE, BRG. 1 /
39 KGR-M7195-00X RACK, Z AXIS 1 A
40 KGR-M7196-00X WASHER 3,BRG. 1 /
40-1 90990-28J041 WASHER,PLAIN 1 (2007/12/20) OK /
41 KGR-M7197-00X WASHER 4,BRG. 1 /
41-1 90990-28J042 WASHER,PLAIN 1 (2007/12/20) OK /
42 KGR-M7198-00X PLATE, SENSOR 1
/
43 KGR-M7199-00X JOINT 1 A
43-1 90990-42J018 JOINT 1 (2008/6/17) OK A
44 KV7-M71S6-00X WASHER,SEAL 1 /
44-1 90990-36J003 WASHER,SEAL 1 (2008/4/15) OK /
45 $TL4-M5M JOINT 2 /
46 KV7-M71T1-00X BEARING 1 79M8ADF A
46-1 90990-26J001 BEARING 1 (2007/12/6) OK A
47 KV7-M71T3-00X BEARING 1 WBC7-13ZZA A
47-1 90990-25J012 BEARING 1 (2007/12/4) OK A
48 90933-01J000 BEARING 2 A
49 90440-01J060 CIRCLIP 1 /
50 99009-11800 CIRCLIP 1 /
51 99480-04008 PIN, PARALLEL 2 /
52 99480-04010 PIN PARALLEL: 4X10 4 /
53 90K6D-02EE04 AC SERVO MOTOR Z2 1 B
54 90K6D-02FF12 AC SERVO MOTOR R2 1 B
55 90K6B-02HH15 AC SERVO MOTOR N2 1 B
56 KGR-M653G-00X HNS, SENSOR ASSY 1 B
57 $NK-4N NYLON CLIP 3 /
57-1 $NK-3N NYLON CLIP 2 (2007/1/22) OK /
58 97602-04308 SCREW,PAN HEAD W/W 3 /
58-1 90990-11J003 SCREW,PAN HEAD W/W 3 (2006/3/13)
OK /
58-2 90990-11J003 SCREW,PAN HEAD W/W 5 (2007/1/22) OK /
59 98507-03008 SCREW PAN HEAD 1 /
60 92907-05600 WASHER PLAIN 6 /
61 92A08-03303 SET SCREW M3X3 8 /
62 92A08-03305 SCREW, SET 1 /
63 92A08-04303 SET SCREW M4X3 4 /
64 92A08-04305 SET SCREW M4X5 2 /
65 91317-03006 BOLT HEX. SOCKET HEAD 16 /
66 91317-03008 BOLT HEX. SOCKET HEAD 19 /
67 91317-03010 BOLT HEX. SOCKET HEAD 12 /
68 91317-03014 BOLT HEX. SOCKET HEAD 9 /
69 91317-03016 BOLT HEX. SOCKET HEAD 2 /
70 91317-03025 BOLT HEX. SOCKET HEAD 4 /
71 91317-03035 BOLT HEX. SOCKET HEAD 16 /
72 91317-04006 BOLT HEX. SOCKET HEAD 1 /
73 91317-04016 BOLT HEX. SOCKET HEAD 3 /
74 91317-05014 BOLT HEX. SOCKET HEAD 2 /
75 91317-05016 BOLT HEX. SOCKET HEAD 4 /
76 91317-05018 BOLT HEX. SOCKET HEAD 2 /
77 KGR-M71C8-00X BRACKET, JOINT 1 /
78 KGR-M71CA-00X GUIDE, SENSOR 1 /
79 91317-03006 BOLT HEX. SOCKET HEAD 2 /
80 90990-22J021 PACKING 2 E
3
5

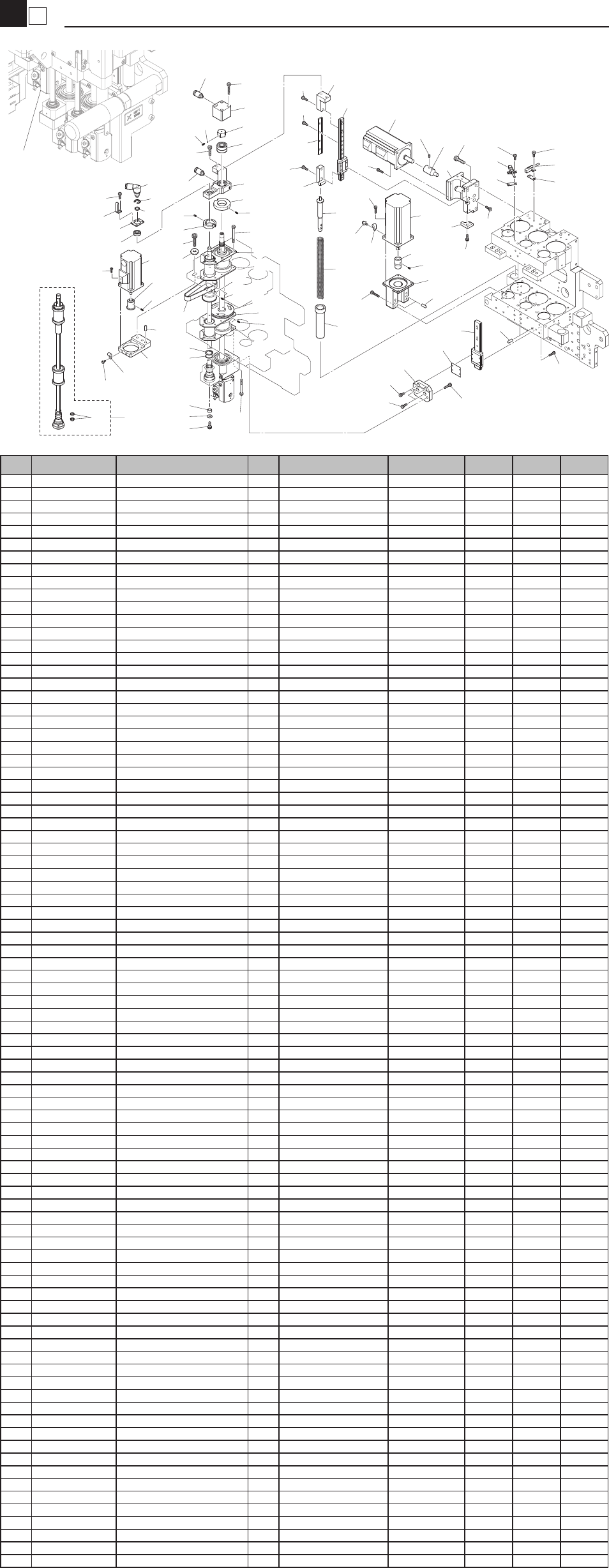

Head 3rd Axis
Head
KGR-081113
4
40
18
41
42
19
32
35
37
59
43
70
40
26
64
54
55
54
67
2
25
65
6
8
57
56
65
24
15
7
5
44
66
34
30
39
29
38
23
54
60
49
22
53
69
52
51
20
27
45
58
62
59
59
10
33
12
14
13
3
11
61
61
58
16
48
60
52
51
54
47
60
17
46
36
50
36
50
58
68
58
9
1
59
59
31
56
63
28
21
71
3rd Axis
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGR-M7104-00X HOLDER 3, MOTOR Z 1 /
2 KGR-M7107-00X BRACKET 3, Z AXIS 1 /
3 KGR-M7108-00X GUIDE, Z AXIS 1 A
4 KGR-M7109-00X HOLDER, BRG. Z 1 /
5 KGR-M710A-00X PLATE 1, BRG. 1 /
6 KGR-M710B-00X PLATE 2, BRG. 1 /
7 KGR-M710D-00X PLATE 4, BRG. 1 /
8 KGR-M710E-00X PLATE 5, BRG. 1 /
9 KGR-M710K-00X BLOCK 2, STOPPER 1 /
10 KGR-M7115-00X BLOCK 1, Z AXIS 1 /
11 KGR-M7119-00X BLOCK 5, Z AXIS 1 /
12 KGR-M711A-00X GUIDE 1, SPRING 1 /
13 KGR-M711B-00X GUIDE 2, SPRING 1 /
14 KGR-M7120-00X SPRING, RETURN 1 /
15 KV7-M7121-01X GEAR, HEAD R 1 B
16 KV7-M7122-01X GEAR, MOTOR R 1 A
17 KV7-M7123-00X HOLDER, MOTOR R 1 /
18 KV7-M7124-00X NUT, LOCK 1 /
19 KV7-M7127-00X SET PIECE, LOCK 1 /
20 KGR-M7128-00X GUIDE, HOLDER 1 A
21 KGR-M7170-A0X N SHAFT 1 ASSY. 1 C
22 KGR-M7176-00X BELT, N AXIS 1 B
23 KGR-M7177-00X PULLEY, MOTOR N 1 /
24 KGR-M7178-00X PULLEY, SHAFT N 1
/
25 KGR-M7179-00X COLLAR, DOG 1 1 /
26 KGR-M7180-00X COLLAR, DOG 2 1 /
27 KGR-M7181-00X BRACKET, HOLDER 1 /
28 KGA-M7187-XXX GUIDE SHIM SEL. 1 /
29 KGR-M7188-00X BRACKET 1, MOTOR N 1 /
30 KGR-M7191-00X COLLAR 2,SHAFT 1 /
30-1 90990-41J023 COLLAR 1 (2008/4/15) OK /
31 KGA-M7193-01X PINION, Z AXIS 1 A
32 KGR-M7194-00X PLATE, BRG. 1 /
33 KGR-M7195-00X RACK, Z AXIS 1 A
34 KGR-M7196-00X WASHER 3,BRG. 1 /
34-1 90990-28J041 WASHER,PLAIN 1 (2007/12/20) OK /
35 KGR-M7197-00X WASHER 4,BRG. 1 /
35-1 90990-28J042 WASHER,PLAIN 1 (2007/12/20) OK /
36 KGR-M7198-00X PLATE, SENSOR 2 /
37 KGR-M7199-00X JOINT 1 A
37-1 90990-42J018 JOINT 1 (2008/6/17) OK A
38 KH5-M7118-00X PIN 2 TENTION 1 /
39 KV7-M71S6-00X WASHER,SEAL 1 /
39-1 90990-36J003 WASHER,SEAL 1 (2008/4/15) OK /
40 $TSH4-M5 JOINT 2 /
41 KV7-M71T1-00X BEARING 1 79M8ADF A
41-1 90990-26J001 BEARING 1 (2007/12/6) OK A
42 KV7-M71T3-000 BEARING 1 WBC7-13ZZA A
42-1 90990-25J012 BEARING 1 (2007/12/4) OK A
43 90440-01J060 CIRCLIP 1 /
44 99009-11800 CIRCLIP 1 /
45 99480-04008 PIN, PARALLEL 2 /
46 99480-04010 PIN PARALLEL: 4X10 2 /
47 KGR-M4880-20X AC SERVO MOTOR Z3 1 B
47-1 90K6D-02FF05 AC SERVO MOTOR Z3 1 (2006/10/24) OK B
48 KGR-M4882-20X AC SERVO MOTOR R3 1 B
48-1 90K6D-02FF13 AC SERVO MOTOR R3 1 (2006/10/24) OK B
49 KGR-M4884-20X AC SERVO MOTOR N3 1 B
49-1 90K6B-02GG16 AC SERVO MOTOR N3 1 (2006/10/24) OK B
50 KGR-M653G-00X HNS, SENSOR ASSY 1 B
51 $NK-4N NYLON CLIP 9 /
51-1 $NK-3N NYLON CLIP 6 (2007/1/22) OK /
52 97604-04308 SCREW,PAN HEAD W/W 9 /
52-1 97602-04308 SCREW,PAN HEAD W/W 9 (2006/2/14) OK /
52-3 90990-11J003 SCREW,PAN HEAD W/W 9 (2006/3/13) OK /
52-4 90990-11J003 SCREW,PAN HEAD W/W 11 (2007/1/22) OK /
53 92907-05600 WASHER PLAIN 2 /
54 92A08-03303 SET SCREW M3X3 6 /
55 92A08-03305
SCREW, SET 1 /
56 92A08-04303 SET SCREW M4X3 4 /
57 92A08-04305 SET SCREW M4X5 2 /
58 91317-03006 BOLT HEX. SOCKET HEAD 10 /
59 91317-03008 BOLT HEX. SOCKET HEAD 17 /
60 91317-03010 BOLT HEX. SOCKET HEAD 12 /
61 91317-03014 BOLT HEX. SOCKET HEAD 4 /
62 91317-03016 BOLT HEX. SOCKET HEAD 2 /
63 91317-03022 BOLT HEX. SOCKET HEAD 4 /
64 91317-03025 BOLT HEX. SOCKET HEAD 4 /
65 91317-03035 BOLT HEX. SOCKET HEAD 14 /
66 91317-04006 BOLT HEX. SOCKET HEAD 1 /
67 91317-04016 BOLT HEX. SOCKET HEAD 2 /
68 91317-05015 BOLT HEX. SOCKET HEAD 3 /
68-1 91317-05014 BOLT HEX.SOCKET HEAD 3 (2007/1/22) OK /
69 91317-05020 BOLT HEX. SOCKET HEAD 2 /
70 KGR-M71C8-00X BRACKET, JOINT 1 /
71 90990-22J021 PACKING 2 E
