1 2 T op Cover Cover KGR-1004 1 3 7 2 16 8 10 10 24 11 23 31 32 26 29 9 9 17 19 18 12 12 22 30 13 13 20 20 13 14 13 22 4 6 21 21 23 23 23 11 5 5 12 21 22 24 15 12 25 28 27 30 34 33 35 39 36 41 34 42 43 38 37 40 44 OLD 1 …
1
1

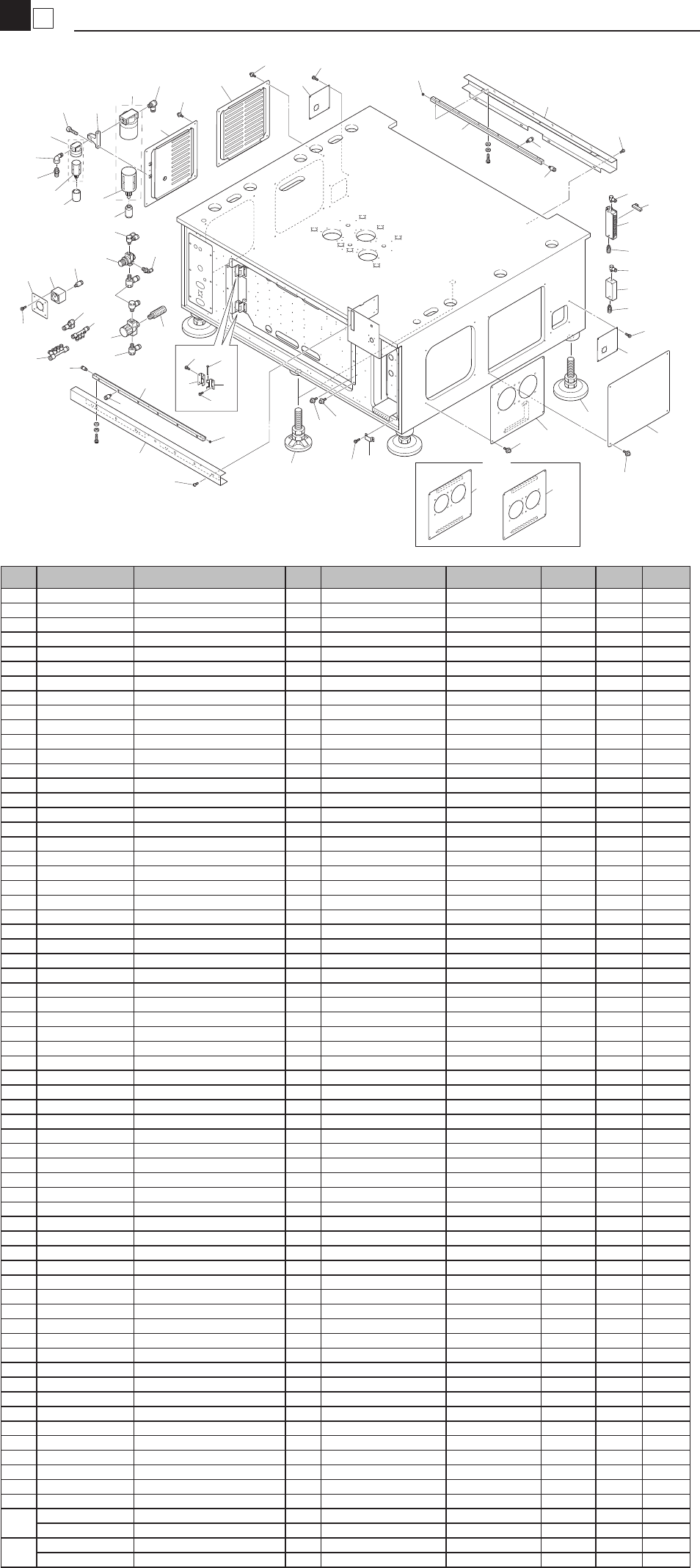

Base
Base
KGR-081113
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGA-M1180-00X LEVELING BOLT ASSY. 4 /
2 KHA-M1180-00X LEVELING BOLT ASSY. 2 /
3 KGS-M111A-00X BRACKET, GAUGE 1 /
4 KGS-M111D-00X PLATE, GATE IN/OUT 2 /
5 KG2-M1372-00X PIECE B, HINGE 2 /
6 KW3-M1157-00X PIECE A, HINGE 2 /
7 K46-M1373-00X SHAFT HINGE 2 /
8 KGA-M1151-00X PLATE,SIDE 1 1 FigA /
8-1 KGS-M1151-00X PLATE,SIDE 1 1 FigB (2005/6/1) NG /
8-2 KGS-M1151-01X PLATE,SIDE 1 1 FigC (2007/6/6) NG /
9 KGS-M1152-00X PLATE, SIDE 2 1 /
10 KM0-M1153-01X PLATE, SIDE 3 1 /
11 KV7-M1153-00X PLATE,SIDE 3 1 /
11-1 KGS-M1153-50X PLATE,SIDE 3 1 (2005/11/17) OK /
12 KGS-M1325-00X BRACKET 5 2 /
13 KM0-M1141-00X MANUFOLD 2 /
14 $TSH8-01 JOINT 2 /
15 $TSS4-01 JOINT 12 /
16 K40-M8598-00X PLUG 1 2 /
17 KG7-M8596-00X PRESSURE GAUGE 1 /
18 KV8-M8503-00X MODULE ADAPTER (8-4D) 1 /
19 KG7-M8501-00X AIR FILTER 1 /
19-1 KG7-M8501-01X AIR FILTER 1 (2014/1/20) OK
/
20 KV8-M8502-00X MIST FILTER (MF400-A) 1 /
20-1 KV8-M8502-01X MIST FILTER 1 (2014/1/20) OK /
21 KG7-M8512-00X JOINT 1 /
21-1 90990-42J006 JOINT 1 (2008/6/17) OK /
22 KG7-M8513-00X JOINT 1 /
22-1 90990-42J008 JOINT 1 (2008/6/17) OK /
23 KG7-M8504-00X REGULATOR (R300-03) 1 /
24 KH5-M8501-00X EXHAUST VALVE 1 /
25 KGS-M8582-00X VALVE:040M12AJ1-8 1 B
25-1 KGR-M8582-00X VALVE:040M12AJ1-8 1 (2005/11/30) OK B
26 KM7-M8584-00X MANIFOLD 1 OPTION MANIFOLD /
27 $SL8-01 JOINT 1 /
28 $KM-11 MUFFLER 1 /
29 KV7-M1125-00X PLATE, CLAMP 1 /
30 $SL12-03 JOINT 4 /
31 $KM-11 MUFFLER 1 /
32 $SL8-01 JOINT 1 /
33 $TSH4-M5 JOINT 1 /
33-1 Delete (2006/9/18) /
34 $SLY10-03 JOINT 1 /
35 $KM-23 MUFFLER 1 /
36 $TL4-02 JOINT 1 /
37 $UEDW10-8 JOINT 1 /
38 $UED8-4 JOINT 1 /
39 $UYD10-8 JOINT
1 /
40 91314-04006 BOLT HEX.SOCKET HEAD 4 /
40-1 91312-04006 BOLT HEX.SOCKET HEAD 4 (2006/1/16) OK /
41 91314-04008 BOLT HEX.SOCKET HEAD 6 /
41-1 91312-04008 BOLT HEX.SOCKET HEAD 6 (2006/1/16) OK /
42 91314-05008 BOLT HEX.SOCKET HEAD 34 /
42-1 91312-05008 BOLT HEX.SOCKET HEAD 34 (2006/1/16) OK /
43 91314-06015 BOLT HEX.: 2 /
43-1 91314-06014 BOLT HEX.SOCKET HEAD 2 (2005/11/18) OK /
43-2 91312-06014 BOLT HEX.SOCKET HEAD 2 (2006/1/26) OK /
44 90990-12J001 SCREW, BIN. HEAD W/W 3 /
45 90990-12J004 SCREW, BIN. HEAD W/W 12 /
46 90990-12J005 SCREW, BINDING HEAD 33 /
47 KG7-M8501-40X FILTER ELEMENT 1 E
48 KV8-M8502-40X MIST FILTER ELEMENT 1 E
49 KG2-M8582-40X VALVE 1 C
50
KG7-M8501-50X BOWL SET (AD300) 1 Polycarbonate (2011/12/7) /
KG7-M8501-60X BOWL SET 1 Nylon (2014/1/20) OK /
51
KV8-M8502-50X BOWL SET (AD600) 1 Polycarbonate (2011/12/7) /
KV8-M8502-60X BOWL SET 1 Nylon (2014/1/20) OK /
11
30
20
18
19
43
21
22
10
46
46
4
42
12
15
14
13
16
46
46
46
1
8
FigC
4
9
32
25
31
42
2
44
45
7
6
5
40
40
42
29
12
15
13
16
46
3
41
23
36
34
14
30
24
30
17
33
37
38
47
48
39
35
49
27
26
28
8 FigB
8 FigA
OLD
50
51
1
2

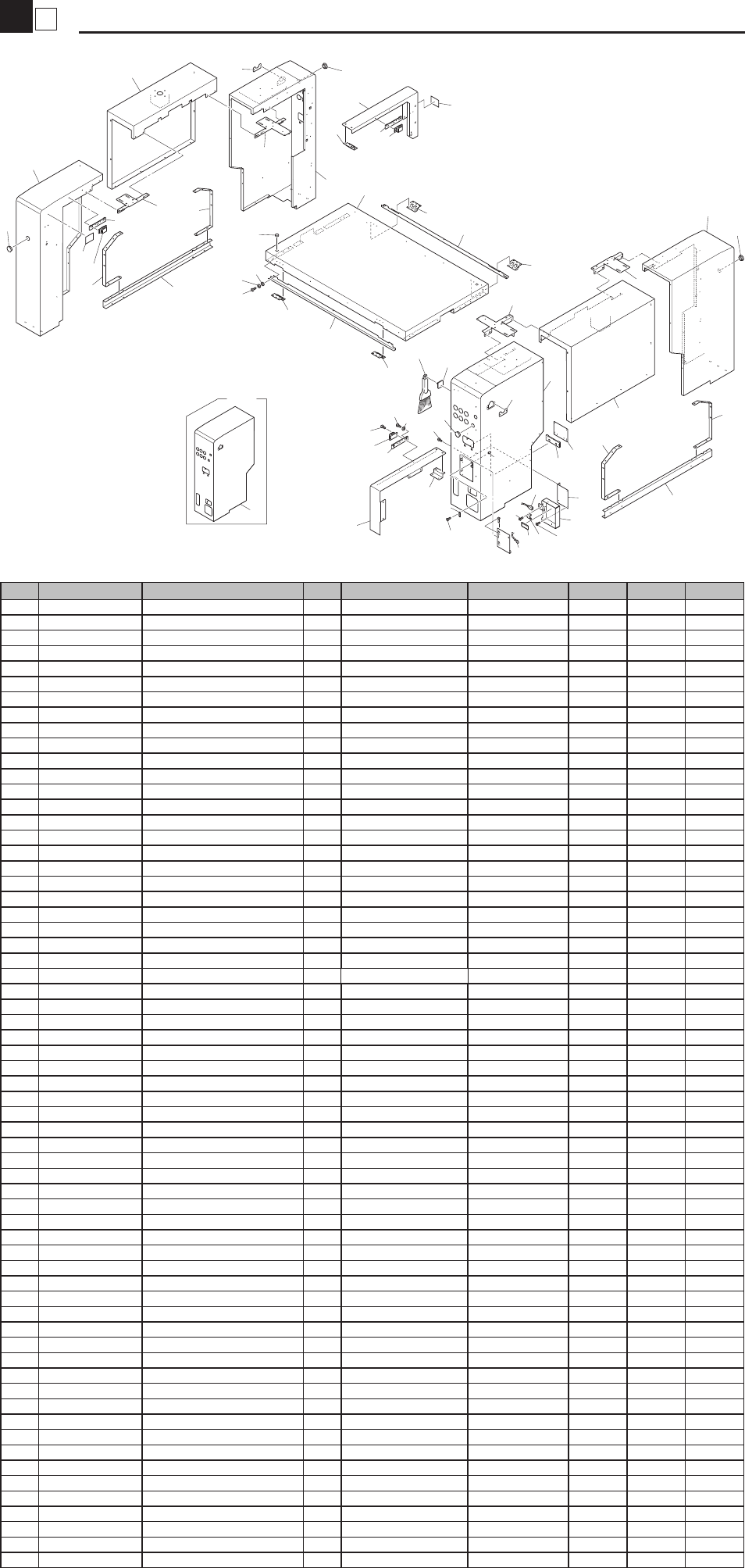

Top Cover
Cover
KGR-1004
1
3
7
2
16
8
10
10
24
11
23
31
32
26
29
9
9
17
19
18
12
12
22
30
13
13
20
20
13
14
13
22
4
6
21
21
23
23
23
11
5
5
12
21
22
24
15
12
25
28
27
30
34
33
35
39
36
41
34
42
43
38
37
40
44
OLD
1
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGS-M1301-A1X COVER 1 ASSY. 1 /
1-1 KGS-M1301-A2X COVER 1 ASSY. 1 (2006/2/21) NG /
2
KGS-M1302-A1X COVER 2 ASSY.
1
/
2-1 KGS-M1302-A2X COVER 2 ASSY. 1 (2005/5/17) OK /
3 KGS-M1303-A1X COVER 3 ASSY. 1 /
3-1 KGS-M1303-A2X COVER 3 ASSY. 1 (2005/5/17) OK /
4 KGS-M1304-A0X COVER 4 1 /
5 KGS-M1305-00X COVER 5 2 /
6 KGS-M1306-00X COVER 6 1 /
6-1 KGS-M1306-01X COVER 6 1 2005/8/4 NG /
6-2 KGS-M1306-52X COVER 6 1 (2005/11/17) OK /
7 KGS-M1307-A0X COVER 7 1 /
8 KGS-M1308-A0X COVER 8 1 /
9 KGA-M1318-00X COVER 18 2 /
10 KGS-M1321-00X COVER 21 2 /
10-1 KGS-M1321-01X COVER 21 2 (2004/10/13) OK /
10-2 KGS-M1321-02X COVER 21 2 2005/8/4 NG /
10-3 KGS-M1321-03X COVER 21 2 2005/9/21 NG /
11 KGS-M1322-00X BRACKET 1,COVER 21 2 /
11-1 KGS-M1322-01X BRACKET1,COVER 21 2 2005/8/4 NG /
11-2 KGS-M1322-02X BRACKET1,COVER 21 2 2005/9/21 NG /
12 KM0-M1335-00X BRACKET 1 GATE COVER 4 /
13 K46-M1374-10X HINGE 2 4 /
13-1 K46-M1374-11X HINGE 2 4 (2009/7/13) OK /
13-2 K46-M1374-12X HINGE 2 4 (2013/2/13) OK /
14 KGS-M1356-00X PLATE 1,JOINT 1 /
14-1 KGS-M1356-01X PLATE 1,JOINT 1 2005/8/4 NG /
15 KGS-M1357-00X PLATE 2, JOINT 1 /
16 KGS-M1358-00X PLATE 3, JOINT 1 /
17 KGS-M1359-00X PLATE 4,JOINT 1 /
17-1 KGS-M1359-01X PLATE 4,JOINT 1 2005/8/4 NG /
18 KL3-M1381-02X PLATE 1, KEYBOARD 2 /
19 KGT-M1382-00X PLATE 2, KEY BOARD 2 /
20 KGS-M1329-00X COVER 29 2 /
20-1 KGS-M1329-01X COVER 29 2 2005/8/4 NG /
21 KM0-M1332-01X BRACKET MAGNET 4 /
22 KV5-M1130-00X CATCH MG. 4 /
23 KV7-M1391-10X PLUG 4 /
24 90K41-000350 LABEL, ALERT 2 /
25 KM0-M531G-00X PANEL PLUG 2 /
26 92990-04400 WASHER EXTL.TOOTHED 200 /
26-1 90172-00J040 WASHER,EXTL.TOOTHED 200 (2008/4/15) OK /
27 92990-03400 WASHER EXTL.TOOTHED 50 /
27-1 90172-00J030 WASHER,EXTL.TOOTHED 50 (2008/4/15) OK /
28 92990-03200 WASHER PLAIN 50 /
29 90990-12J006 SCREW BIND HEAD W/W 200 /
30 98903-03006 SCREW BINDING HEAD 50 /
30-1 98904-03006 SCREW BINDING HEAD 50 2005/11/18 OK /
30-2 98902-03006 SCREW BINDING HEAD 50 2006/1/9 OK /
31 KGA-M13B9-00X HOOK 1 /
32 KV7-M8880-20X BRUSH,FEEDER 1 /
33 KGS-M130B-00X BASE, PLATE USB 1 /
34 KGS-M130C-00X STAY, BASE 1 /
35 KGS-M130E-00X DOOR USB 1 /
36 KW3-M1349-00X MINI LATCH 1 /
37 KGJ-M1351-01X PLATE, MINI LATCH 1 /
38 KHM-M1397-00X BRACKET, FDD 3 1 /
39 90K41-000540 LABEL, ALERT 1 /
40 90990-12J001 SCREW BINDING HEAD 6 /
41 90990-12J006 SCREW BINDING HEAD 2 /
42 91312-03006 BOLT HEX. SOCKET HEAD 4 /
43 KGK-M6680-20X HNS, USB-MEMORY 2M AS 1 /
44 KG2-M536A-22X HNS, PE 150 1 GROUND WIRE /
2
2

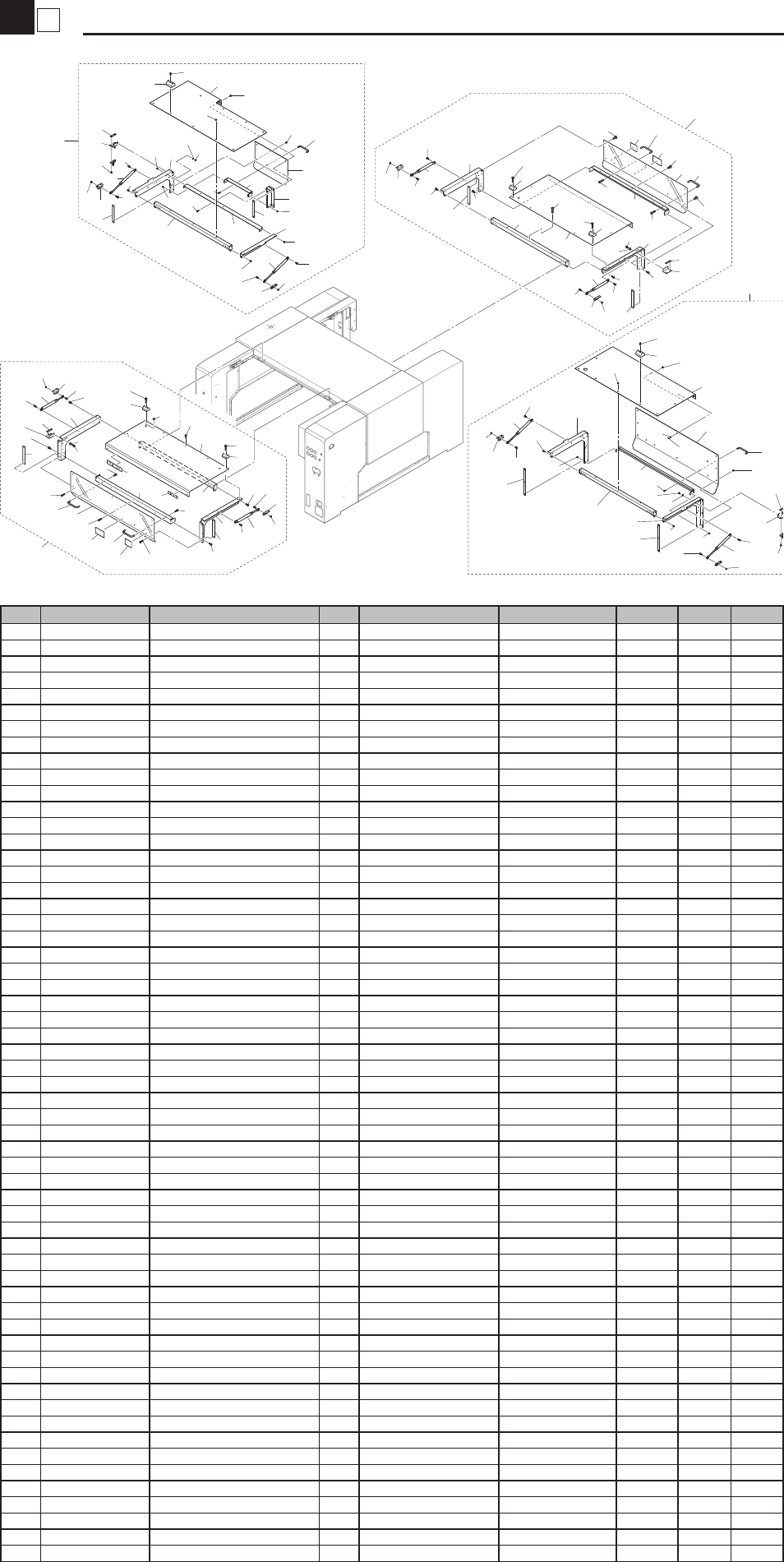

Base Cover
Cover
KGR-1004
2
19
17
17
27
17
14
29
20
19
31
13
12
35
15
16
16
16
30
16
16
18
11
43
11
43
15
5
32
33
20
8
31
34
36
36
34
9
9
7
7
35
25
3
4
12
13
5
5
6
6
7
7
7
16
16
21
15
20
23
20
18
18
20
22
9
9
10
10
10
10
11
11
11
11
11
15
16
16
15
15
15
11
14
14
11
11
7
8
8
24
26
1
9
9
20
20
20
8
24
8
1
19
2
17
17
14
14
18
18
43
12
37
17
14
19
39
40
35
21
18
11
10
15
15
11
11
11
36
9
9
41
41
5
6
16
16
2
20
8
38
21
42
20
13
35
36
10
12
13
15
21
4
3
26
43
36
36
3
28
36
36
S-ATS
W-ATS
S.T.D
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGS-M1309-00X COVER 9(S.T.D) 2 /
1-1 KGS-M1309-01X COVER 9-1(S.T.D) 2 2005/8/4 NG /
2 KGS-M130A-00X COVER 9-2(S.T.D) 1 /
2-1 KGS-M130A-01X COVER 9-2 1 2005/8/4 NG /
2-2 KGS-M130A-51X COVER 9-2 1 (2005/11/17) OK /
3 KGS-M1340-00X BRACKET 1,COVER 9 1 /
3-1 KGS-M1340-51X BRACKET 1,COVER 9 1 (2005/11/17) OK /
4 KGS-M1341-00X BRACKET 2,COVER 9 1 /
4-1 KGS-M1341-50X BRACKET 2,COVER 9 1 (2005/11/17) OK /
5 KGS-M1342-00X BRACKET 3,COVER 9 2 /
5-1 KGS-M1342-01X BRKT.3 COVER 9 2 2005/8/4 NG /
6 KGS-M1343-00X BRACKET 4,COVER 9 2 /
6-1 KGS-M1343-01X BRKT.4 COVER 9 2 2005/8/4 NG /
6-2 KGS-M1343-51X BRKT.4 COVER 9 2 (2005/11/17) OK /
7 KV7-M1349-00X PLATE 2, NUT 4 /
8 KH2-M1324-00X GRIP 4 /
8-1 KH2-M1324-01X GRIP 4 (2008/10/15) OK /
9 KM0-M1331-01X BRACKET GAS DAMPER 4 /
10 KGS-M1348-00X GAS SPRING 4 A
11 KM0-M1346-00X SHOULDER,BOLT 8 /
11-1 90990-31J006 BOLT,SHOULDER 8 (2008/6/24) OK
/
12 KL0-M1373-01X BRACKET 1, SCHMEASAL 2 /
13 KL0-M1374-00X PLATE 1 SCHMESAL 2 /
14 KGS-M1344-00X STOPPER 45 4 /
15 91317-04008 BOLT HEX. SOCKET HEAD 12 /
16 91317-04010 BOLT HEX.SOCKET HEAD 8 /
16-1 91317-04006 BOLT HEX.SOCKET HEAD 8 (2007/7/12) OK /
17 91317-04020 BOLT HEX. SOCKET HEAD 4 /
18 91317-05014 BOLT HEX. SOCKET HEAD 8 /
19 K16-90101-08X BOLT:TP-M4X8 10 /
19-1 K16-90101-06X BOLT:TP-M4X6 16 (2007/7/12) OK /
19-2 90990-46J001 BOLT,THIN HEAD 16 (2008/6/3) OK /
20 K16-90101-12X BOLT:TP-M4X12 12 /
20-1 K16-90101-10X BOLT:TP-M4X10 10 (2007/7/12) OK /
20-2 90990-46J003 BOLT,THIN HEAD 10 (2008/6/3) OK /
21 92907-04200 WASHER PLAIN 4 /
22 KGS-M13D6-00X SEAL 1 (YG100) 1 /
23 KW7-M13D7-01X SEAL 2 (YAMAHA) 1 /
24 90K41-000360 LABEL, ALERT 2 /
25 KV8-M3759-00X BLIND BUSH 2 /
26 90K41-000420 LABEL, ALERT 2 /
27 KGS-M1309-B0X COVER 9 ASSY.(S-ATS) 1 /
28 KGS-M1309-11X COVER 9-1(S-ATS) 1 /
29 KGS-M130A-11X COVER 9-2(S-ATS) 1 /
30 KGS-M1341-10X BRKT. 2,COVER 9 1 /
31 KGS-M1343-12X BRKT. 4,COVER 9
1 /
32 KGS-M1345-02X BRKT. 5,COVER 9 1 /
33 KGS-M1347-02X BRKT. 6,COVER 9 1 /
34 KL3-M1348-10X GAS SPRING 4 A
35 KGS-M1360-00X BOLT 4 /
36 95307-06600 NUT HEXAGON 2 /
37 KGS-M1309-C0X COVER 9 ASSY.(W-ATS) 1 /
38 KHG-M1309-01X COVER 9-1(S.T.D) 1 /
39 KHG-M1340-00X BRKT. 1,COVER 9 1 /
40 KHG-M1341-00X BRKT. 2,COVER 9 1 /
41 KV2-M1351-00X PLATE 2,NUT 2 /
42 95307-04600 NUT HEXAGON 1 /
43 KGS-M1309-A0X COVER 9 ASSY 2 /
