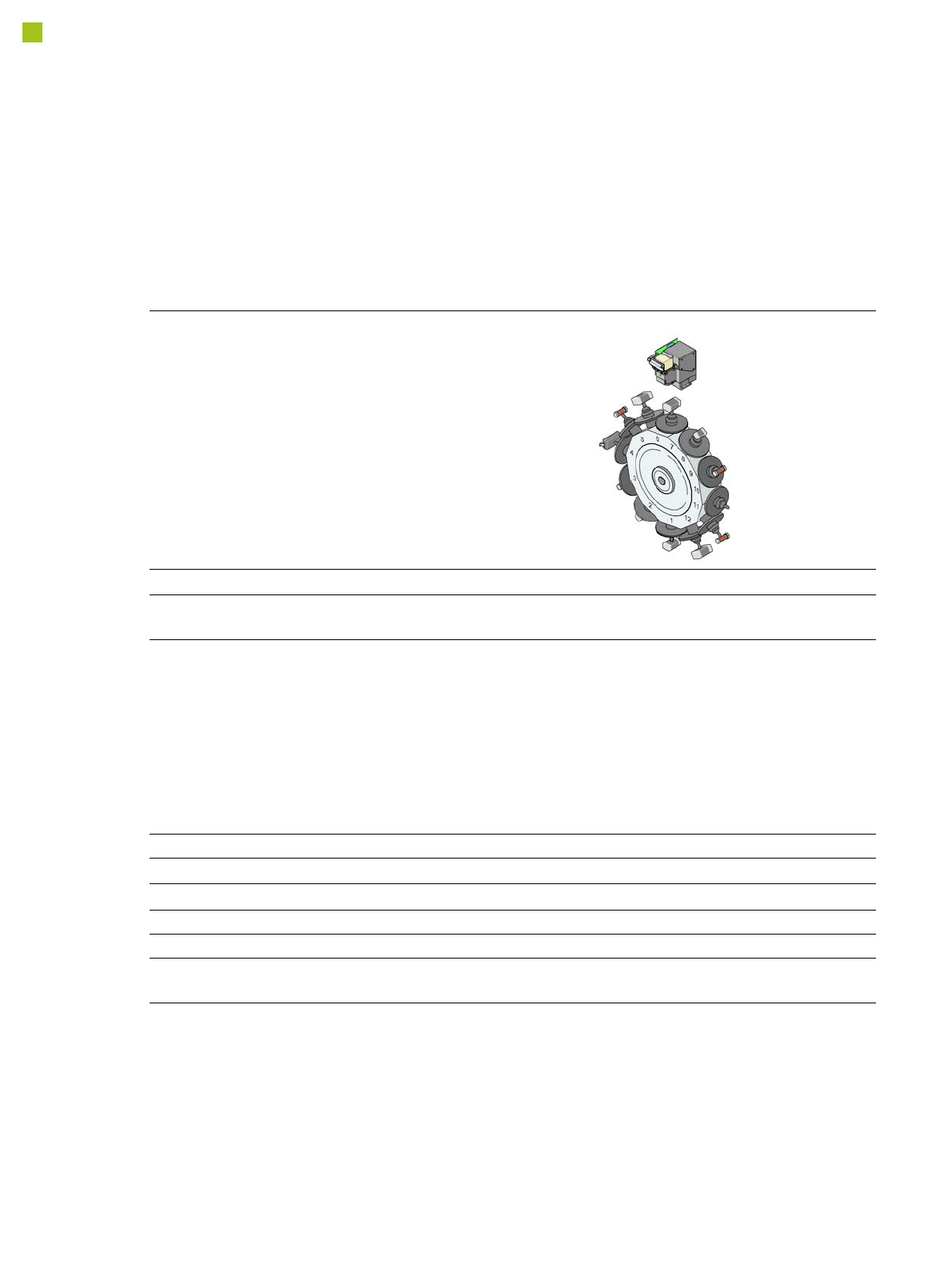

Placement Heads

SIPLACE CP12

with component camera type 30 GigE

Range of components

a) Please note that the component range that can be placed is also affected by the pad geometry, the customer-specific

standards and the packaging tolerances.

01005 to flip-chip, bare die, PLCC44, BGA, µBGA, TSOP, QFP, SO to

SO32, DRAM

Component specification

Max. height

Min. lead pitch

Min. lead width

Min. ball pitch

Min. ball diameter

Min. dimensions

Max. dimensions

Max. weight

b) For high volume 01005-placement it is recommended to equip the CP12 with its optional 01005-package that con-

tains special nozzles and low force segments.

8.5 mm

0.3 mm

0.15 mm

0.25 mm

0.14 mm

0.4 mm x 0.2 mm

18.7 mm x 18.7 mm

2 g

c) 8.5 mm on Flex machines, 7.5 mm on Speed machines.

Nozzle types 30xx

X/Y accuracy

d) The accuracy value was measured using the vendor-neutral IPC standard.

± 41 μm/3σ

Angular accuracy ± 0.5°/3σ

Component range 98.5%

Illumination levels 5

Possible illumination level

setting

256

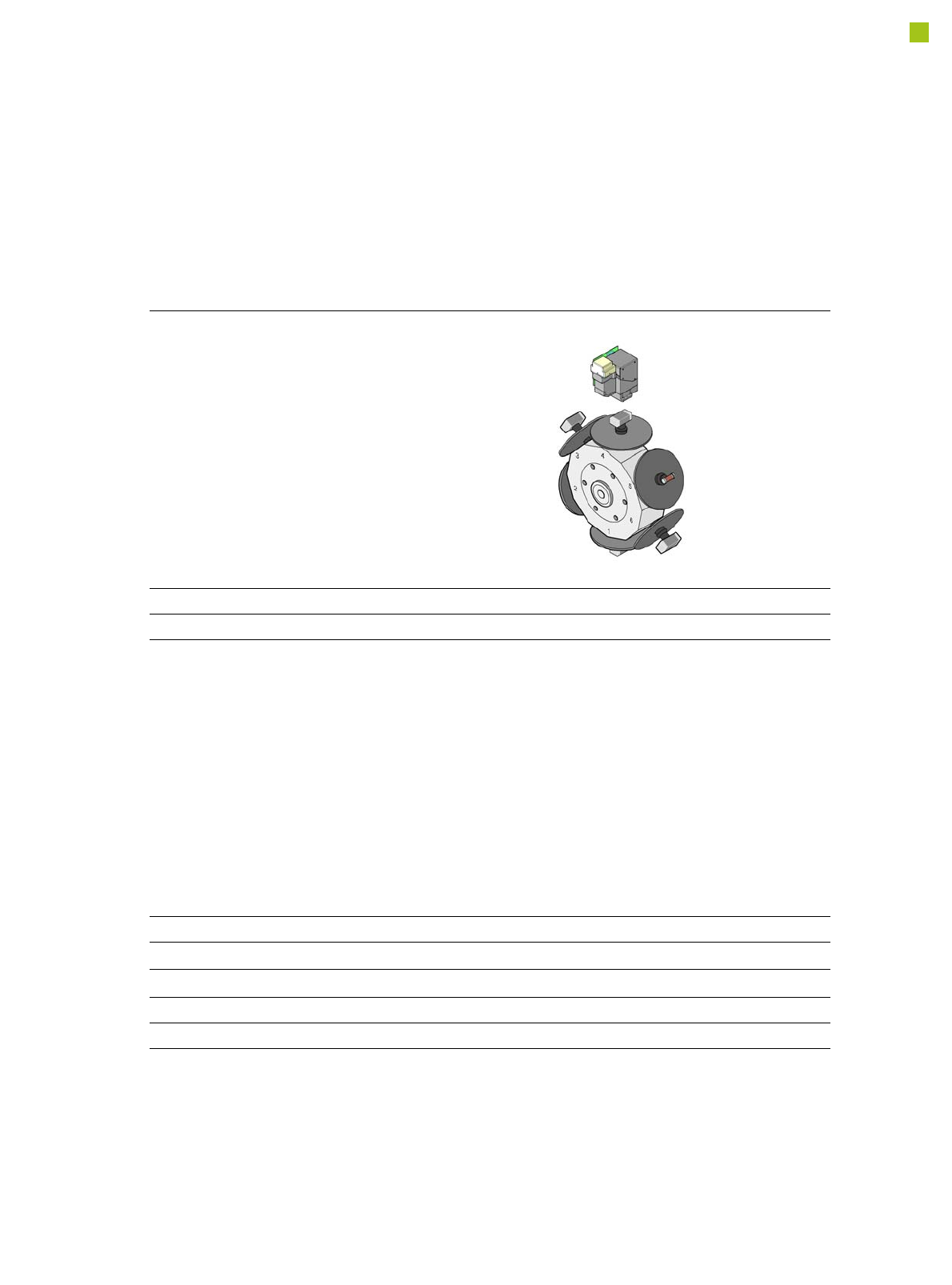

Placement Heads

SIPLACE CP6

with component camera, type 30 GigE

Range of components

a) Please note that the component range that can be placed is also affected by the pad geometry, the custom-

er-specific standards and the packaging tolerances.

0201 to 27 x 27 mm²

Component specification

Max. height

Min. lead pitch

Min. lead width

Min. ball pitch

Min. ball diameter

Min. dimensions

Max. dimensions

Max. weight

8.5 mm

0.3 mm

0.15 mm

0.25 mm for components< 18 mm x 18 mm

0.35 mm for components ≥18 mm x 18 mm

0.14 mm for components < 18 mm x 18 mm

0.2 mm for components ≥ 18 mm x 18 mm

0.6 mm x 0.3 mm

27 mm x 27 mm

5 g

b) 8.5 mm on Flex machines. No Speed machine configuration

Nozzle types 38xx, 39xx

X/Y accuracy

c) The accuracy value was measured using the vendor-neutral IPC standard

± 52.5 μm/3σ

Angular accuracy ± 0.225°/3σ

Illumination levels 5

Possible illumination level setting 256

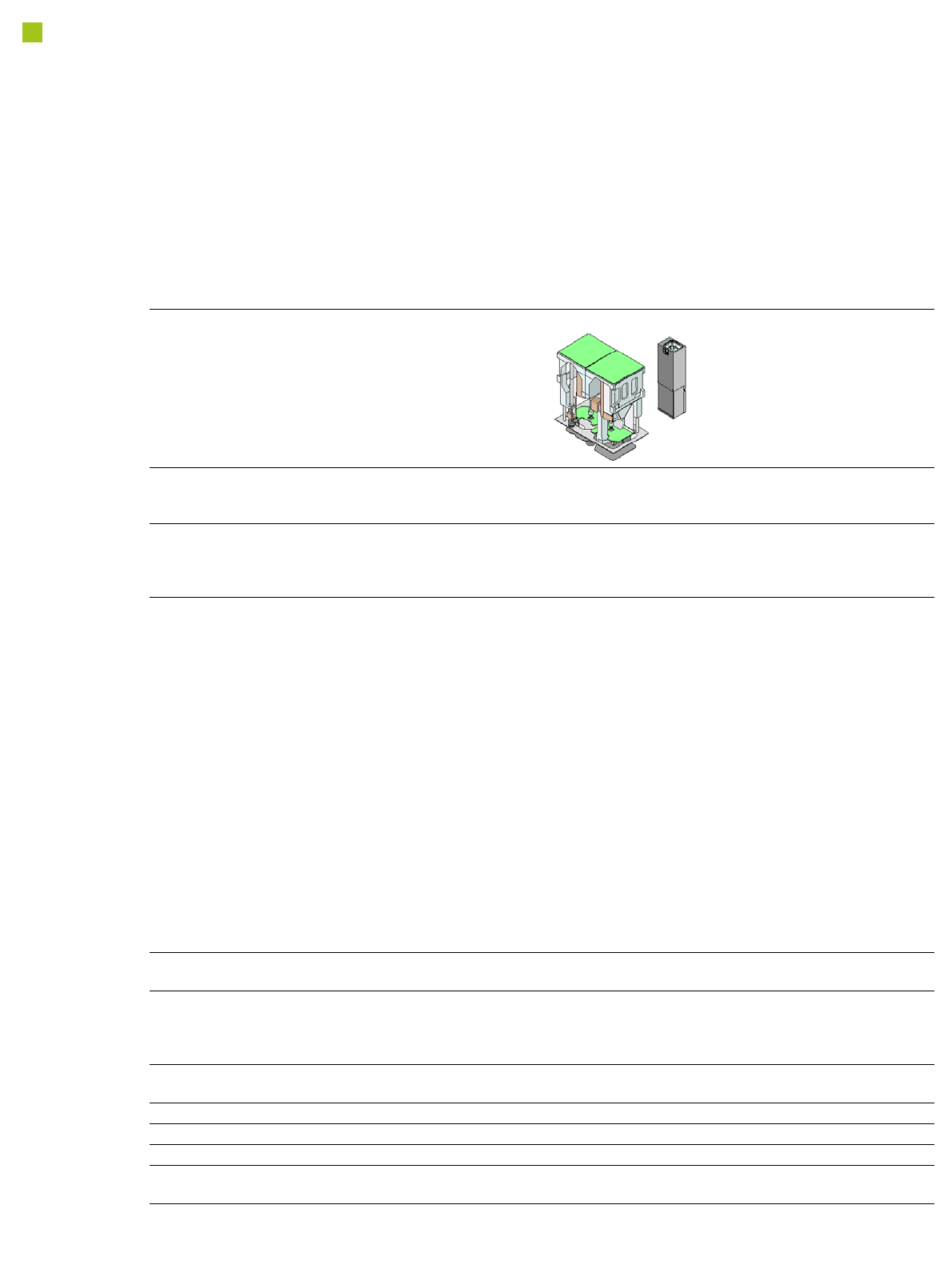

Placement Heads

SIPLACE TH

with stationary

camera type 36 GigE

(Standard)

with stationary

camera type 33 GigE

(Fine pitch)

with stationary

camera type 25 GigE

(Flip chip)

Component range

a) Please note that the placeable component range is also affected by the pad geometry, the customer-specific standards, the

component packaging tolerances and the component tolerances.

0603 to SO, PLCC, QFP,

BGA, special components,

bare dies, flip-chips

0402 to SO, PLCC, QFP, BGA,

special components, bare dies,

flip-chips

0201 to SO, PLCC, QFP,

sockets, plugs, BGA, spe-

cial components, bare dies,

flip-chips, shields

Component specs

Max. height

Min. lead pitch

Min. lead width

Min. ball pitch

Min. ball diameter

Min. dimensions

Max. dimensions

Max. weight

b) If standard nozzles are used

25 mm

0.4 mm

0.24 mm

0.56 mm

0.32 mm

1.6 mm x 0.8 mm

32 mm x 32 mm

(single measurement)

For use with two nozzles:

50 mm x 50 mm or 69 mm x

10 mm

For use with one nozzle

(multiple measurement):

78 mm x 78 mm or

110 mm x 10 mm

up to 200 mm x 110 mm

(with restrictions)

100 g

25 mm

0.3 mm

0.15 mm

0.35 mm

0.2 mm

1.0 mm x 0.5 mm

55 mm x 45 mm

(single measurement)

For use with two nozzles:

50 mm x 50 mm or 69 mm x

10 mm

For use with one nozzle (multi-

ple measurement):

78 mm x 78 mm or

110 mm x 10 mm

up to 200 mm x 110 mm (with

restrictions)

100 g

25 mm

0.25 mm

0.1 mm

0.14 mm

0.08 mm

0.6 mm x 0.3 mm

16 mm x 16 mm

(single measurement)

55 mm x 55 mm

(multiple measurement)

100 g

Programmable set-

down force

1.0 N - 15 N 1.0 N - 15 N 1.0 N - 15 N

Nozzle types

c) Over 300 different nozzles and 100 gripper types are available, with an extensive nozzle database available online.

5xx (standard)

4xx + adapter

8xx + adapter

9xx + adapter

5xx (standard)

4xx + adapter

8xx + adapter

9xx + adapter

5xx (standard)

4xx + adapter

8xx + adapter

9xx + adapter

Nozzle spacing for

P&P heads

70.8 mm 70.8 mm 70.8 mm

X/Y accuracy

d) The SIPLACE accuracy value is measured during the machine acceptance tests. It corresponds to the conditions set out in the

SIPLACE scope of service and supply.

± 50 µm/3σ ± 50 µm / 3σ ± 22 µm / 3σ

Angular accuracy ± 0.05°/3σ ± 0.05° / 3σ ± 0.05° / 3σ

Illumination level 6 6 6

Possible illumination

level settings

256 256 256
