19 Component Feeding Component Trolley Component trolley E by SIPLACE The E by SIPLACE compo - nent trolleys are i ndependent and easily m aneuverab le modules. The E by SIPLACE machines can accommodat e up to two compon…

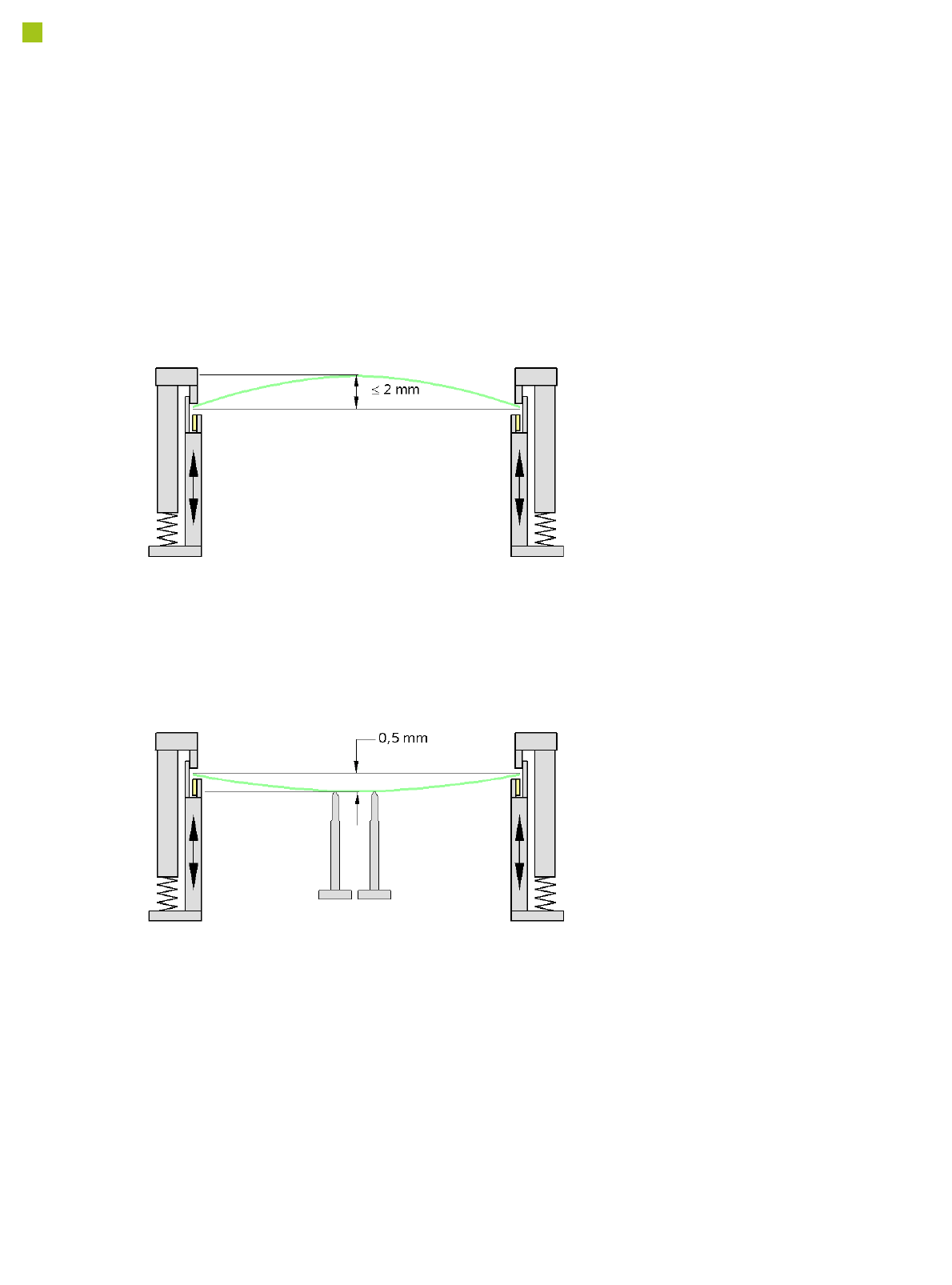

PCB Warpage

PCB warpage during placement

PCB warpage downwards max. 0.5 mm

Use the magnetic pin supports, to achieve

this value.

When there is warpage under 2 mm, the

inkspots in the center of the board are also

within the focus of the digital camera. When

all the tolerances are taken into account,

this value is reduced to 1.5 mm.

You should also note that the warpage

reduces the component height.

Magnetic pin support

Component Feeding

Component Trolley

Component trolley

E by SIPLACE

The E by SIPLACE compo-

nent trolleys are independent

and easily maneuverable

modules. The E by SIPLACE

machines can accommodate

up to two component trolleys,

each with 60 tracks. The tape

reels are taken up into the

tape container of the compo-

nent trolley. A cutting device

on the machine automatically

cuts the used tape material.

The component trolleys can

be set up directly on the

machine or at an external

setup area with feeder mod-

ules. The benefits of offline

setup are that the configura-

tions can be prepared with-

out stopping the line. This

allows the setup to be

changed very quickly using

the changeover table princi-

ple. The E by SIPLACE com-

ponent trolleys also support

fast setting up and tearing

down of feeder modules

even during the placement

process.

The component feeders are

at rest during the placement

process - allowing tapes to

be spliced without stopping

the machine.

For safety reasons, unoccu-

pied locations are fitted with

so-called dummy feeder

modules.

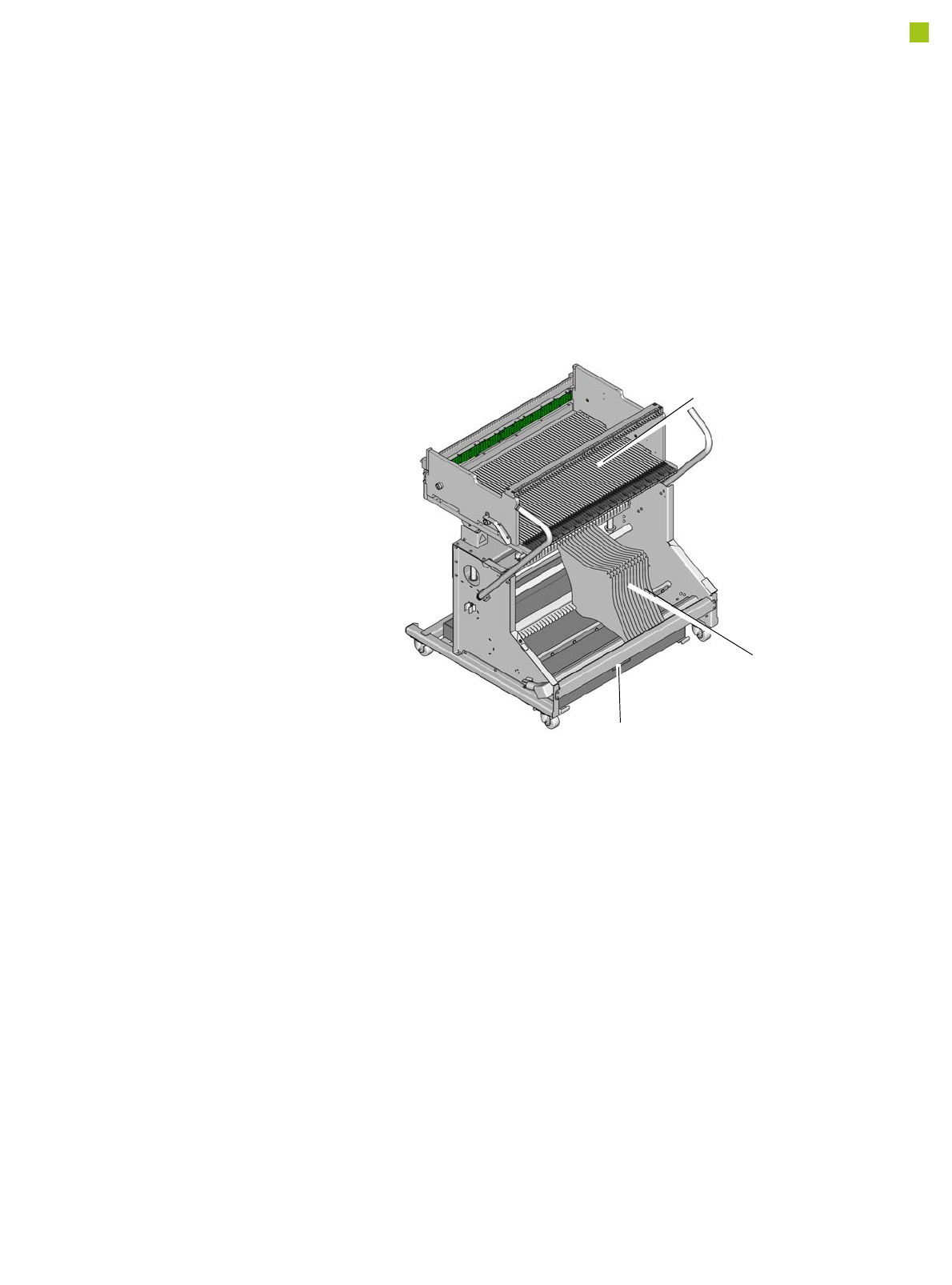

Component trolley E by SIPLACE

Tape container

Waste container for remaining empty tape

Changeover table

Component Feeding

Component Trolley/Fixed Table

Technical Data

Feeder locations

Changeover table with 60 tracks

Fixed table with 60 tracks

60 feeders with SIPLACE SmartFeeder 8mm E

Changeover table changeover time < 1 minute

Max. component feeding

E by SIPLACE double sided

E by SIPLACE single sided

120 locations for feeders with SIPLACE SmartFeeder 8mm E

60 locations for feeders with SIPLACE SmartFeeder 8mm E

Feeder module types (E by SIPLACE) SIPLACE SmartFeeder E

SIPLACE StickFeeder E

SIPLACE Component Reject Conveyor E

Label Feeder (OEM Product)

Bowl Feeder (OEM Product)

Manual Tray holder E (Speed)

Manual Tray holder E (Flex)

SIPLACE JTF-MW

Feeding capacity

(2 change over tables on the

E by SIPLACE)

120 tape feeder modules, SIPLACE SmartFeeder 8 mm E

60 tape feeder modules, SIPLACE SmartFeeder 2x8 mm E

60 tape feeder modules, SIPLACE SmartFeeder 12 mm E

60 tape feeder modules, SIPLACE SmartFeeder 16 mm E

40 tape feeder modules, SIPLACE SmartFeeder 24 mm E

30 tape feeder modules, SIPLACE SmartFeeder 32 mm E

24 tape feeder modules, SIPLACE SmartFeeder 44 mm E

20 tape feeder modules, SIPLACE SmartFeeder 56 mm E

16 tape feeder modules, SIPLACE SmartFeeder 72 mm E

12 tape feeder modules, SIPLACE SmartFeeder 88 mm E

a) On request
