26 Component Feeding Alternative Feeder Modules SIPLACE StickFeeder E SIPLACE StickFeeder E The SIPLACE StickFeeder E for E by SIPLACE can be used on any E by SIPLACE feeder table and can setup any number of stick / tube…

100%1 / 56
25
Component Feeding
SIPLACE JTF-MW
Technical Data
Description JTF-MW
Dimensions
Width 322.40 mm
Height 946 mm
Length 1209 mm
Location on E by SIPLACE
Installed / docked at location 2 only
JEDEC waffle pack tray specification
JEDEC Standard: 95-1 & IEC 60286-5
Storage capacity
30 JEDEC waffle pack trays
15 cookie trays, each can hold 2 JEDEC trays
Max component height from tray base
10.8 mm (zero tray level skipping)
24.6mm (1 tray level skipping)
38.4mm (2 tray level skipping)
Cassette
Dimensions (L x W x H) 344 mm x 300 mm x 228 mm
Total weight loading
30 kg
(cookie tray + components)
Max. weight per cookie tray
2.0 kg ± 10%
Max. tray size when not using JEDEC
304mm x 274mm for component +tray height >11mm
Pneumatics
5 bar to 10 bar
Compressed air consumption
28.3 NL/min.
Communication
Pogo-pin interface, Can bus
Weight
~ 45 kg excluding cookie trays & magnets
~ 60 kg including 15 cookie trays & magnets
26
Component Feeding
Alternative Feeder Modules

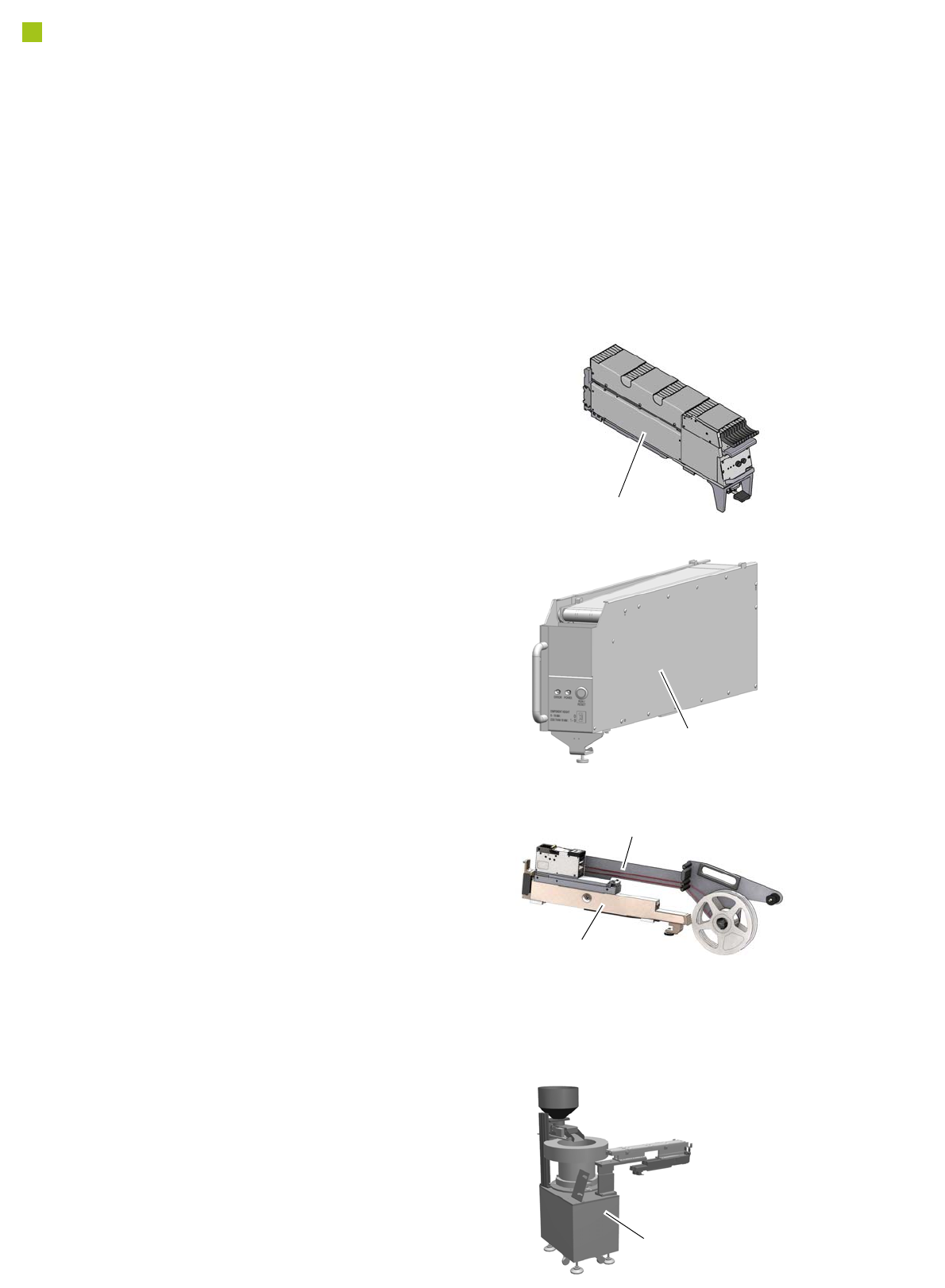

SIPLACE StickFeeder E
SIPLACE StickFeeder E
The SIPLACE StickFeeder E for E by SIPLACE
can be used on any E by SIPLACE feeder table
and can setup any number of stick / tube, with a
combined stick width up to 100 mm. The Stick-
Feeder for E by SIPLACE will occupy 10 tracks
on the feeder table and allows handling of sticks
up to a thickness of 23 mm (standard). Please
contact your dedicated E by SIPLACE distribu-
tor for stick thickness higher than 23 mm.
SIPLACE Component
Reject Conveyor E
SIPLACE Component Reject Conveyor E
The SIPLACE Component Reject Conveyor E
is designed so that defective components (veri-
fied by placement machine vision system) are
placed onto conveyor belt and transferred out of
machine for operator retrieval. It is handled like
any other feeder for E by SIPLACE and can be
mounted onto its feeder tables.
Bowl Feeder
27
Digital SIPLACE Vision System
The digital Vision system
ensures fast and reliable
component recognition, cou-
pled with user-friendly han-
dling. The system identifies
each individual component
by its geometry and color.
Even complex component
shapes, such as flip chip or
CCGA are detected with high
reliability.
This component recognition
check is performed in a sin-
gle step, with no extra time
involved but with optimum
scanning of each individual
component.
This digital Vision system is
not only used in the compo-
nent cameras but also in the
PCB camera. In addition to
the precise recognition of
components, this also guar-
antees reliable detection of
inkspots and PCB fiducials.
The benefits at a glance:
• Extremely fast and reliable
component recognition
• Shortest cycle times
• Robust measurement
based on the geometry
and color
• Straightforward program-
ming
• Offline programming of
component shapes
• Rapid introduction of new
products (NPI)
• Open architecture allows
you to quickly adapt to
new requirements
• Optimum placement
results based on individ-
ual measurement of each
component
The SIPLACE Vision sys-
tem offers inspection rou-
tines and functions to
enhance the quality of com-
ponent recognition.
The benefits at a glance:
• Maximum placement
quality
• High first pass yield
• Reduction of operating
costs
Digital vision cameras
Component camera, type 23 GigE
Component camera, type 25 GigE
Component camera, type 30 GigE
Component camera, type 33 GigE
Component camera, type 36 GigE
Examples of digital vision system analysis times
Evaluation times only play a role in the P&P process.
01005 9 ms
PLC44 17 ms
BGA 225 balls 18 ms
