46 Technical Data Dimensions a) All dimensions in mm b) For all dimensions, please refer to page 43.
45
Technical Data

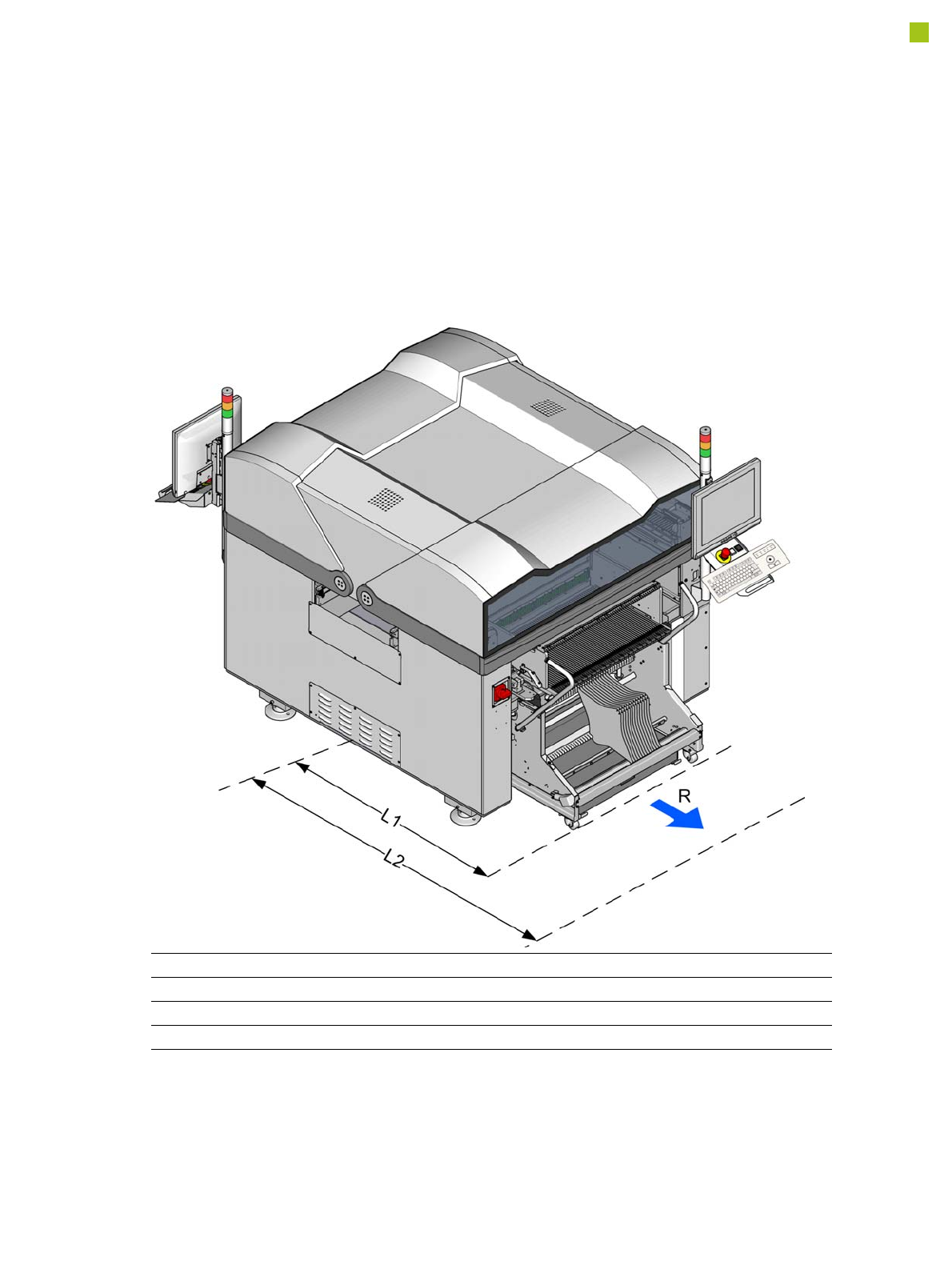

Maneuvering Radii for the Component Trolleys
Location 1 / Location2
Maneuvering radius R 700 mm
Distance L1: Machine center to outer edge of changeover table 1205 mm
Distance L2: Machine center to wall 1905 mm
