控制单元检验
PIN NO. DEF. DESCRIPTION
备注
2 CH15 RESERVED ILL CHANNEL
4 CH16 RESERVED ILL CHANNEL
CONNECTOR
基板状态诊断LED信息
LED ON DESCRIPTION Remark LED ON DESCRIPTION Remark
LED1
Can 发信
LED5 IO RESET
LED2
出现Error
LED6
基板输出电源
LED3
Can收信
LED7
基板动作电源
LED4
CPU 动作

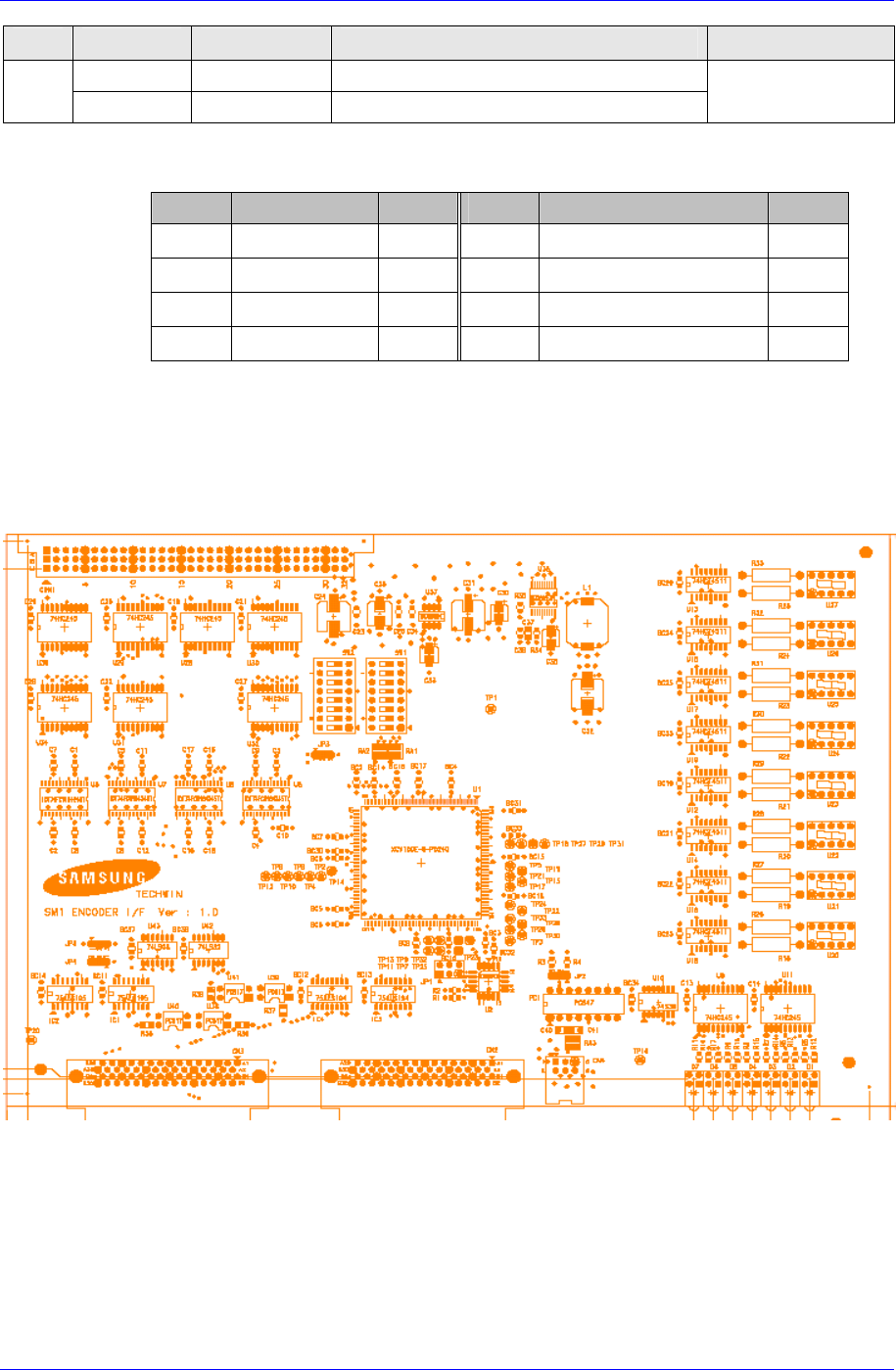

7.3.7. Encoder Monitoring Board
本设备的Y轴驱动部是由Y1和Y2构成的Twin Servo System。 因此，必须由 Y1轴
和Y2轴的同步驱动带动Y轴运转。 本Encoder Monitoring Board是Y1轴和Y2轴驱动
时检查Y1和Y2同步运转是否正常的监视装置。
使用的电源
外部输入电源: 无须输入其他电源。
内部使用的电源: +1.8VDC, +3.3VDC, +5VDC, +24VDC
7-19
Samsung Component Placer SM320 Maintenance Reference
主要功能说明
输入 (INPUT) : X3203 #1 CN1 PART
PIN NO. DEF. DESCRIPTION 备注
A1, B1 Y1(Y2)_CW Y1(Y2 ) Axis CW Positive Signal
A2, B2 Y1(Y2)_CW# Y1(Y2) Axis CW Negative Signal
A3, B3 Y1(Y2)_CCW Y1(Y2) Axis CCW Positive Signal
A4, B4 Y1(Y2)_CCW# Y1(Y2) Axis CCW Negative Signal
A5, B5 Y1(Y2)_CLR Y1(Y2) Axis Counter Clear Positive Signal
A6, B6 Y1(Y2)_CLR# Y1(Y2) Axis Counter Clear Negative Signal
A7, B7 +COM +24VDC I/O Power
A8, B8 Y1(Y2)_SON_2#
Y1(Y2) Servo-On Signal (From X3203
Board)
A9, B9 Y1(Y2)_SP1 Y1(Y2) Axis Output 1 Signal
A10, B10 Y1(Y2)_SP2 Y1(Y2) Axis Output 2 Signal
A11, B11 Y1(Y2)_ARM_RST# Y1(Y2) Axis Alarm Reset Signal
A12, B12 Y1(Y2)_ARM_1# Y1(Y2) Axis Alarm Signal
A13, B13 -COM +24VDC I/O Power
A14, B14 Y1(Y2)_INP Y1(Y2) Axis In-Position Signal
A15, B15 -COM +24VDC I/O Power
A16, B16 Y1(Y2)_PA_1
Y1(Y2) Axis Encoder Phase A Positive
Signal
A17, B17 Y1(Y2)_PA_1#
Y1(Y2) Axis Encoder Phase A Negative
Signal
A18, B18 Y1(Y2)_PB_1
Y1(Y2) Axis Encoder Phase B Positive
Signal
A19, B19 Y1(Y2)_PB_1#
Y1(Y2) Axis Encoder Phase B Negative
Signal
A20, B20 Y1(Y2)_PZ_1
Y1(Y2) Axis Encoder Phase Z Positive
Signal
A21, B21 Y1(Y2)_PZ_1#
Y1(Y2) Axis Encoder Phase Z Negative
Signal
A22, B22 GND +5VDC Power(Common Power With VME)
A23, B23 N.C N.C
A24, B24 +5VDC +5VDC Power(Common Power With VME)
A25, B25 N.C N.C
A26, B26 +5VDC +5VDC Power(Common Power With VME)
A27, B27 +5VDC +5VDC Power(Common Power With VME)
A28, B28 Y1(Y2)_CS Not Used.
A29, B29 Y1(Y2)_H_OFF Not Used
CN2
A30, B30 Y1(Y2)_O_HEAT Not Used
7-20
控制单元检验
输出 (OUTPUT) – Y1, Y2 SERVO AMPLIFIER PART
PIN NO. DEF. DESCRIPTION 备注
A1, B1 Y1(Y2)_CW Y1(Y2 ) Axis CW Positive Signal
A2, B2 Y1(Y2)_CW# Y1(Y2) Axis CW Negative Signal
A3, B3 Y1(Y2)_CCW Y1(Y2) Axis CCW Positive Signal
A4, B4 Y1(Y2)_CCW# Y1(Y2) Axis CCW Negative Signal
A5, B5 Y1(Y2)_CLR Y1(Y2) Axis Counter Clear Positive Signal
A6, B6 Y1(Y2)_CLR# Y1(Y2) Axis Counter Clear Negative Signal
A7, B7 +COM +24VDC I/O Power
A8, B8 Y1(Y2)_SON_2# Y1(Y2) Servo-On Signal (To SERVO AMP.)
A9, B9 Y1(Y2)_SP1 Y1(Y2) Axis Output 1 Signal
A10, B10 Y1(Y2)_SP2 Y1(Y2) Axis Output 2 Signal
A11, B11
Y1(Y2)_ARM_RS
T#
Y1(Y2) Axis Alarm Reset Signal
A12, B12 Y1(Y2)_ARM_1# Y1(Y2) Axis Alarm Signal
A13, B13 -COM +24VDC I/O Power
A14, B14 Y1(Y2)_INP Y1(Y2) Axis In-Position Signal
A15, B15 -COM +24VDC I/O Power
A16, B16 Y1(Y2)_PA_2
Y1(Y2) Axis Encoder Phase A Positive
Signal
A17, B17 Y1(Y2)_PA_2#
Y1(Y2) Axis Encoder Phase A Negative
Signal
A18, B18 Y1(Y2)_PB_2
Y1(Y2) Axis Encoder Phase B Positive
Signal
A19, B19 Y1(Y2)_PB_2#
Y1(Y2) Axis Encoder Phase B Negative
Signal
A20, B20 Y1(Y2)_PZ_2
Y1(Y2) Axis Encoder Phase Z Positive
Signal
A21, B21 Y1(Y2)_PZ_2#
Y1(Y2) Axis Encoder Phase Z Negative
Signal
A22, B22 GND +5VDC Power(Common Power With VME)
A23, B23 N.C N.C
A24, B24 +5VDC +5VDC Power(Common Power With VME)
A25, B25 N.C N.C
A26, B26 +5VDC +5VDC Power(Common Power With VME)
A27, B27 +5VDC +5VDC Power(Common Power With VME)
A28, B28 Y1_CS Not Used.
A29, B29 Y1_H_OFF Not Used
CN3
A30, B30 Y1_O_HEAT Not Used
