Samsung Component Placer SM320 Maintenance Reference
基板状态诊断LED信息
LED ON DESCRIPTION Remark LED ON DESCRIPTION Remark
LED1-L
SKEW FAULT INT
ENABLE LED1-H N.C
LED2-L
SKEW CHECK
ENABLE LED2-H
OP INDICATING
LED
LED3-L SKEW CHECK CLR LED3-H N.C
LED4-L Y2_CNT_CLR LED4-H N.C
LED5-L Y1_CNT_CLR LED5-H N.C
LED6-L Y2_CNT_ENABLE LED6-H N.C
LED7-L Y1_CNT_ENABLE LED7-H N.C
SWITCH 及 JUMPER SETTING信息
SWITCH1 DESCRIPTION Remark SWITCH1 DESCRIPTION Remark
SW 1 OFF SW 2 OFF
SW 3 OFF SW 4
OFF
SW 5 ON SW 6
ON
SW 7 ON SW 8 ON
SWITCH2 DESCRIPTION Remark SWITCH2 DESCRIPTION Remark
SW 1 OFF SW 2 ON
SW 3 OFF SW 4
OFF
SW 5
OFF
SW 6
OFF
SW 7
OFF
SW 8
OFF
JUNPER DESCRIPTION Remark JUMPER DESCRIPTION Remark
JP2 2 – 3 Connected JP3 1 – 2 Connected
JP4 1 – 2 Connected JP5 2 – 3 Connected
7-22
控制单元检验

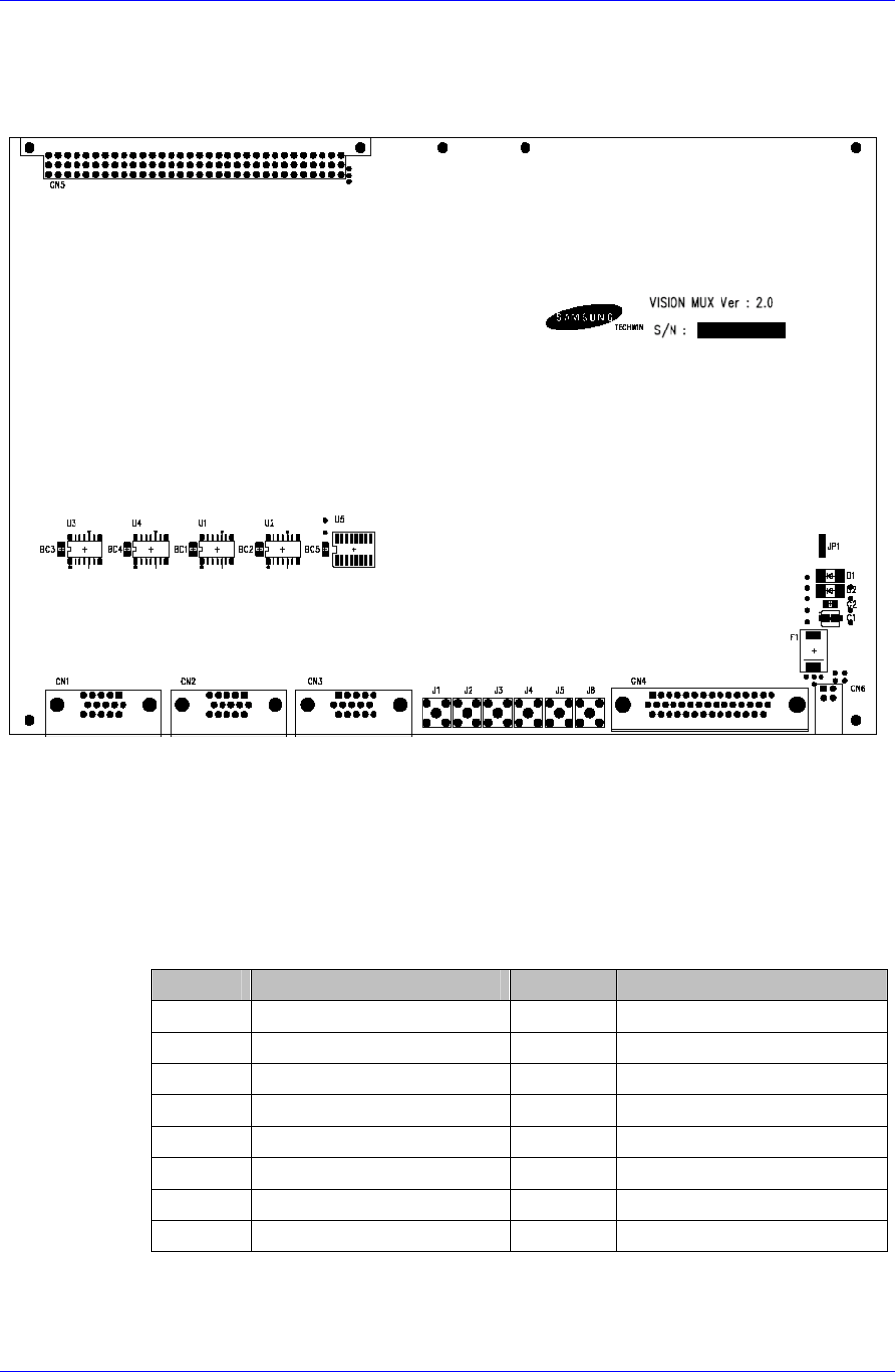

7.3.8. VISION MUX.(INTERFACE) Board
给使用于本设备的6个Fly Camera和Fiducial Camera及2个Fix Camera 提供Sync.
Signal，总共9个 Camera中输入的Analog Image Signal传达给Vision Grabber。
.
使用的电源
外部输入电源: 无须输入其他电源。.
内部使用的电源: +5.0VDC, +12VDC
主要功能说明
CON1 (HIROSE DB-15P/FR-100) – Fiducial Camera Part
Pin ON. Signal Description Pin ON. Signal Description
1 GND 2 +12VDC
3 GND 4 M2_VID2_IN1
5 GND 6 M2_Hsync_2
7 GND 8 N.C
9 GND 10 +12VDC
11 GND 12 M2_VID2_IN2
13 GND 14 M2_Vsync_2
15 GND
7-23
Samsung Component Placer SM320 Maintenance Reference
CON2 (HIROSE DB-15P/FR-100) – Fix Camera #1,2 Part
Pin ON. Signal Description Pin ON. Signal Description
1 GND 2 +12VDC
3 GND 4 M1_VID2_IN1
5 GND 6 M1_Hsync_2
7 GND 8 N.C
9 GND 10 +12VDC
11 GND 12 M1_VID2_IN2
13 GND 14 M1_Vsync_2
15 GND
CON3 (HIROSE DB-15P/MR-100) – Fly Camera Power Part
Pin ON. Signal Description Pin ON. Signal Description
1 M1_VSync+ 2 M1_VSync-
3 M1_HSync+ 4 M1_HSync-
5 N.C 6 M2_VSync+
7 M2_VSync- 8 M2_HSync+
9 M2_HSync- 10 N.C
11 +12VDC 12 +12VDC
13 N.C 14 GND
15 GND
CN4( HIROSE DB-44P/MR) – Vision Grabber Part
Pin ON. Signal Description Pin ON. Signal Description
1 M1_VID1_IN1 2 M1_VID1_IN2
3 M1_VID1_IN3 4 M1_VID2_IN1
5 M1_VID2_IN2 6 M1_VID2_IN3
7 N.C 8 N.C
9 N.C 10 M2_VID1_IN1
11 M2_VID1_IN2 12 M2_VID1_IN3
13 M2_VID2_IN1 14 M2_VID2_IN2
15 M2_VID2_IN3 16 GND
17 GND 18 GND
19 GND 20 GND
21 GND 22 N.C
23 N.C 24 N.C
25 GND 26 GND
27 GND 28 GND
29 GND 30 GND
31 M1_Vsync_TTL 32 GND
33 M1_Hsync_TTL 34 GND
35 M1_Trig_TTL 36 GND
37 N.C 38 N.C
7-24
