Protection mount and main error display
Page 3 / 5 24.11.2021
Protection mount and main error display
Page 4 / 5 24.11.2021
Protection mount and main error display
Page 5 / 5 24.11.2021
Pos. Item no. Description Part marking

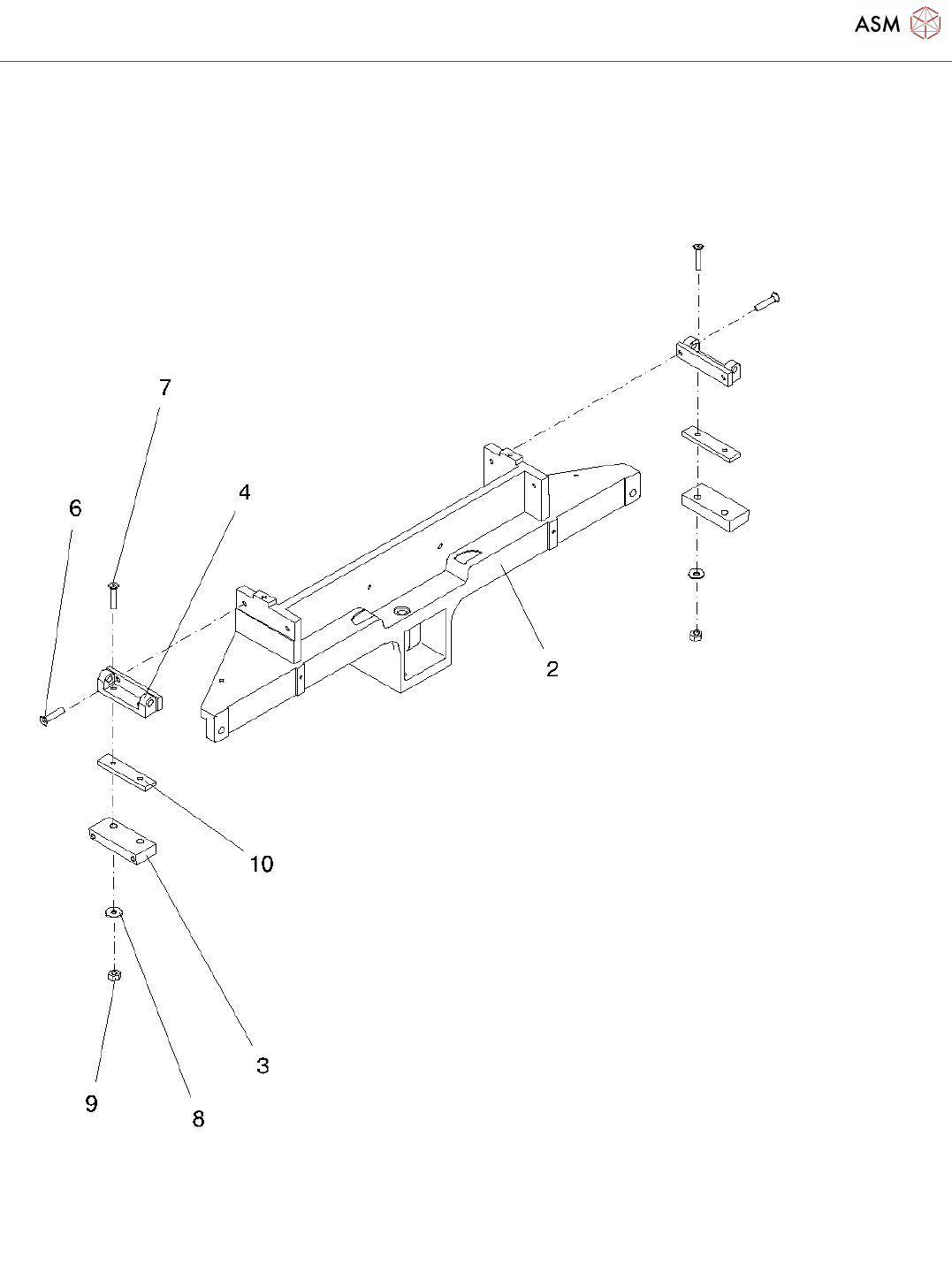

1 00329802-01 MOUNT FOR PROTECTION
2 00329767-02 MOUNT FOR HOOD
3 00329780-01 RETAINING ANGLE SPARE PART
4 00334345-01 HINGE GD ZN SPARE PART
6 00322654-01 SLOTTED COUNTERSUNK HEAD
SCREW
7 00334402-01 SLOTTED COUNTERSUNK HEAD
SCREW
8 00095473-01 PLAIN WASHER A 5.3-140HV-ST
9 00319176-01 LOCK NUT M5
10 00335914-01 PROTECTION PLATE HS50 SPARE PART
11 00337386-02 MAIN ERROR DISPLAY S50 COMPL. Spare Part

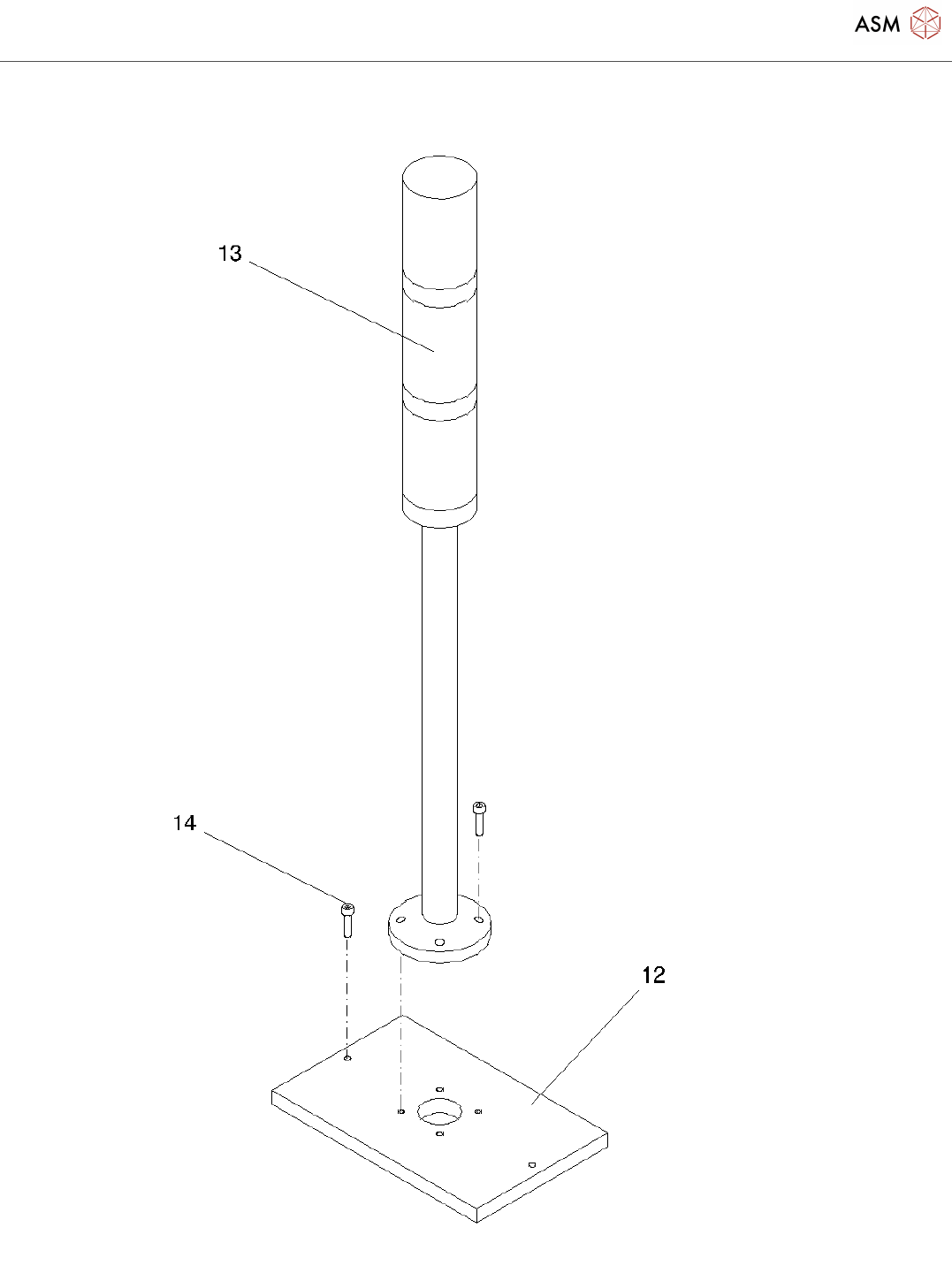

12 00336843-01 S50 LAMP MOUNT
13 00335287-02 MAIN ERROR DISPLAY HS50
14 00845045-01 HEXAGON SOCKET HEAD CAP
SCREW
15 00334359-01 GAS SPRING SPARE PART
16 00346716-01 GAS SPRING SPARE PART
