HEAVY PALLET RAILS MECHANICAL DETAIL Chapter Issue 1 August 11 Wafer Transport Solutio n 1.9 Non-cont act Board Stop Sy stem The board stop consist s of a sen sor fitted to the camera. As the pallet mo ves into the print…
HEAVY PALLET RAILS
MECHANICAL DETAIL
1.8 Wafer Transport Solution Chapter Issue 1 August 11
Figure 1-4 Raised Transport Beam Pallet Clearance
Accomodating
Pallets of Different
Sizes
The rear transport rail assembly can be adjusted toward the front or rear of the
machine to accommodate pallets of different dimensions. As the front and rear
rail assemblies are permanently linked by the transport belt drive shaft the
transport belts always move simultaneously. For rail width adjustment see the
Adjustments and Settings section of this manual.

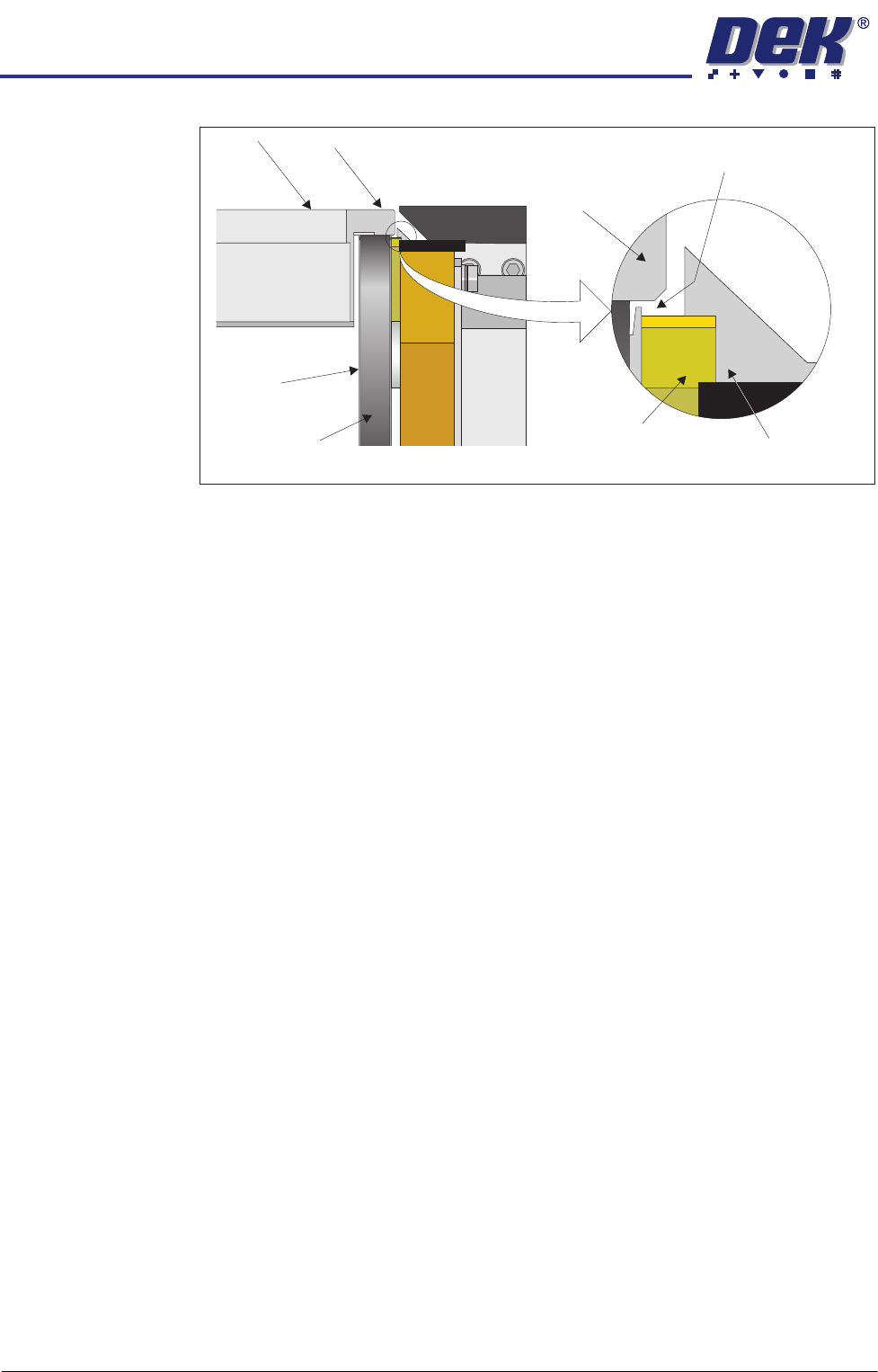

View on Left End of Front Transport Rail with Transport Beam Raised
Pallet
Pallet Overhang
Transport Belt
Transport
Pulley
Snugger Rail
Pallet Support
Block
1mm Gap Between Pallet
and Pallet Support Block
Pallet
HEAVY PALLET RAILS
MECHANICAL DETAIL
Chapter Issue 1 August 11 Wafer Transport Solution 1.9
Non-contact Board
Stop System
The board stop consists of a sensor fitted to the camera. As the pallet moves
into the print station the sensor detects its position.
To maintain a fast core cycle rate for print operations, the pallet (and wafer)
enter the machine very quickly (500mm/s).
As soon as the front edge of the pallet is detected, by the board at stop sensor,
the transport belt drive mechanism reduces speed, slowing the speed of the
pallet.
The camera and sensor assembly quickly relocates to the final alignment
position. This position is between 62mm and 72mm from the original camera
and sensor position. The pallet continues to advance at the reduced rate,
allowing the camera to be in position ahead of the pallet’s arrival, increasing the
Camera Board at Stop
Sensor
Pallet Enters
at 500mm/s
Pallet

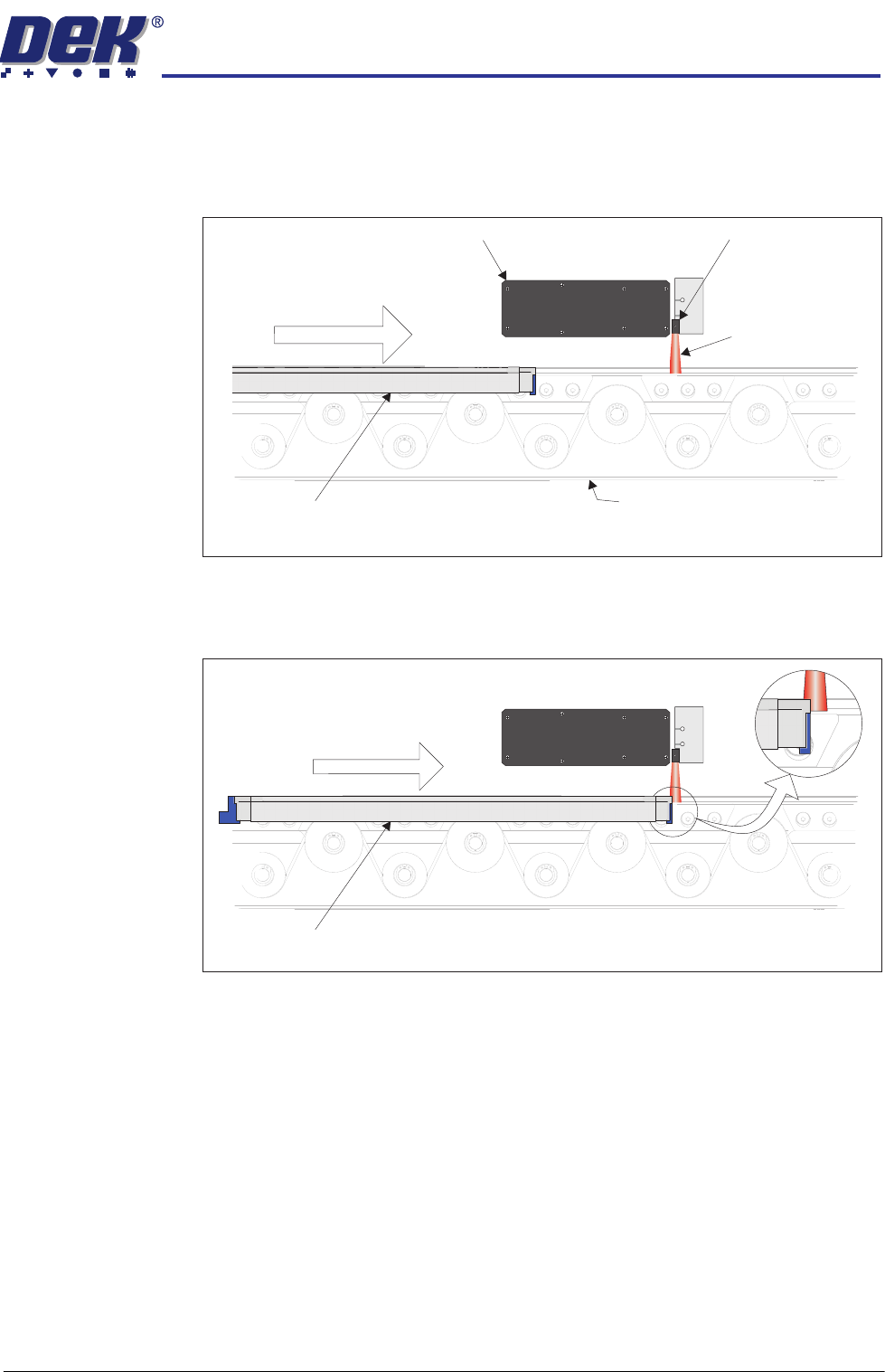

View on Front of Pallet on Wafer Transport Rail (Front Rail Not Shown)
Rear Transport Rail Mechanism
Sensor Beam
Pallet
View on Front of Pallet Breaking Sensor Beam (Front Rail Not Shown)
Pallet Enters
Sensor Beam
HEAVY PALLET RAILS
MECHANICAL DETAIL
1.10 Wafer Transport Solution Chapter Issue 1 August 11
stopping repeatability of the pallet.
The pallet continues to enter the machine until detected by the board at stop
sensor for a second time. The pallet stops, it is now directly below the screen
image.
Pallet

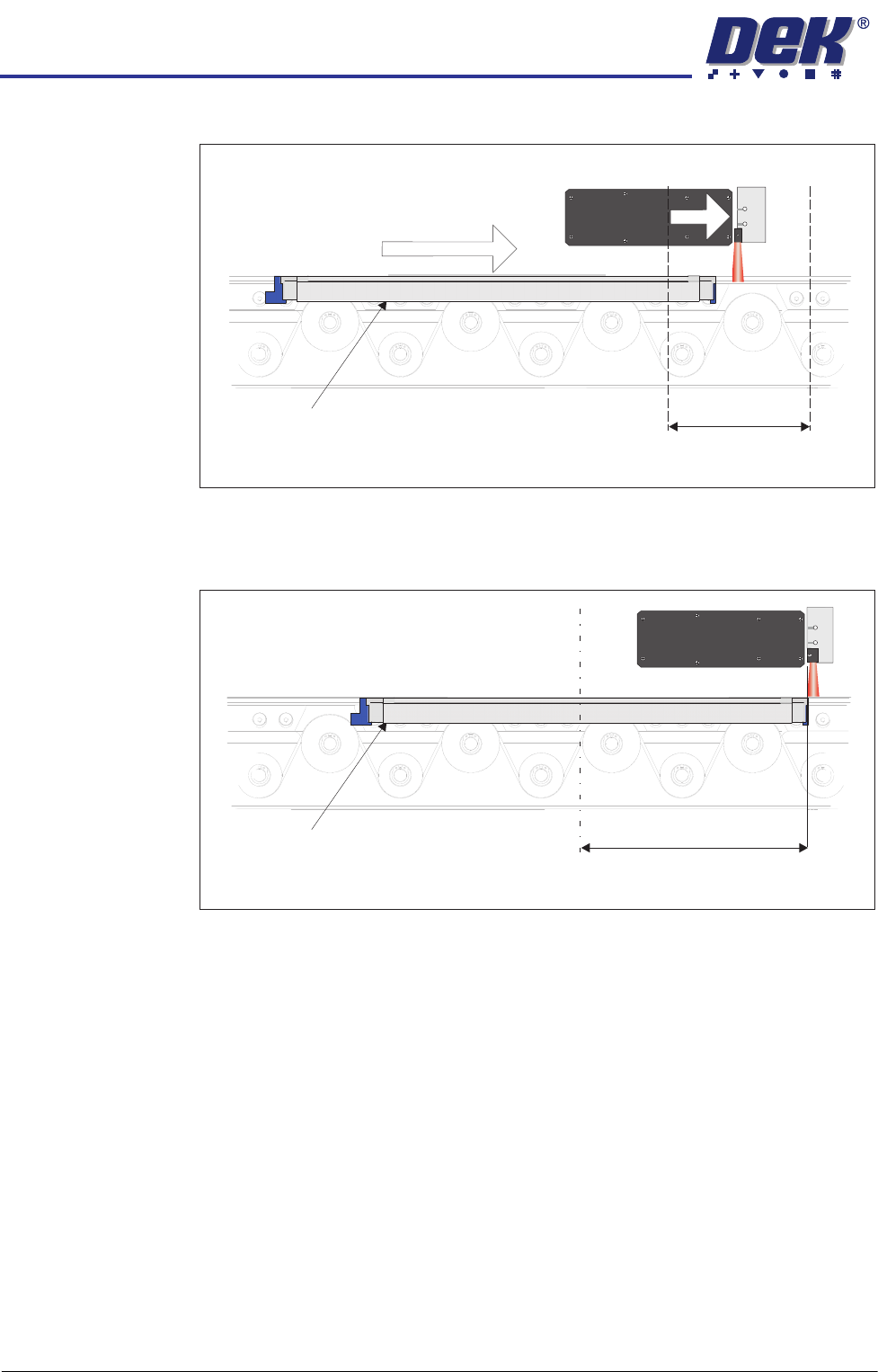

View on Side of Camera Advancing to Final Position (Front Rail Not Shown)
62mm 72mmto
Pallet Advances at
Reduced Rate
Camera/Sensor
Quickly Advance
Pallet
View on Front of Pallet at Final Position (Front Rail Not Shown)
Half Pallet Length
