A /S 器具 资 材信息 11 - 4 1 11.1.21. Motion Board Box 组装完成图 SMT 顶级人脉圈平台资料下载
High Speed Multi Tray Feeder STF-100NA
用户手册
11-40
No.
TECHWIN
Part No.
JINYOUNG
Part No.
Part Name Q'ty Type ( Specification) Remark
1
MC14-001007A KJ_100NE_M_M031 PALLET-100NA 20 JW100N-MPA01-000
SMT顶级人脉圈平台资料下载
A
/S
器具资材信息
11-41

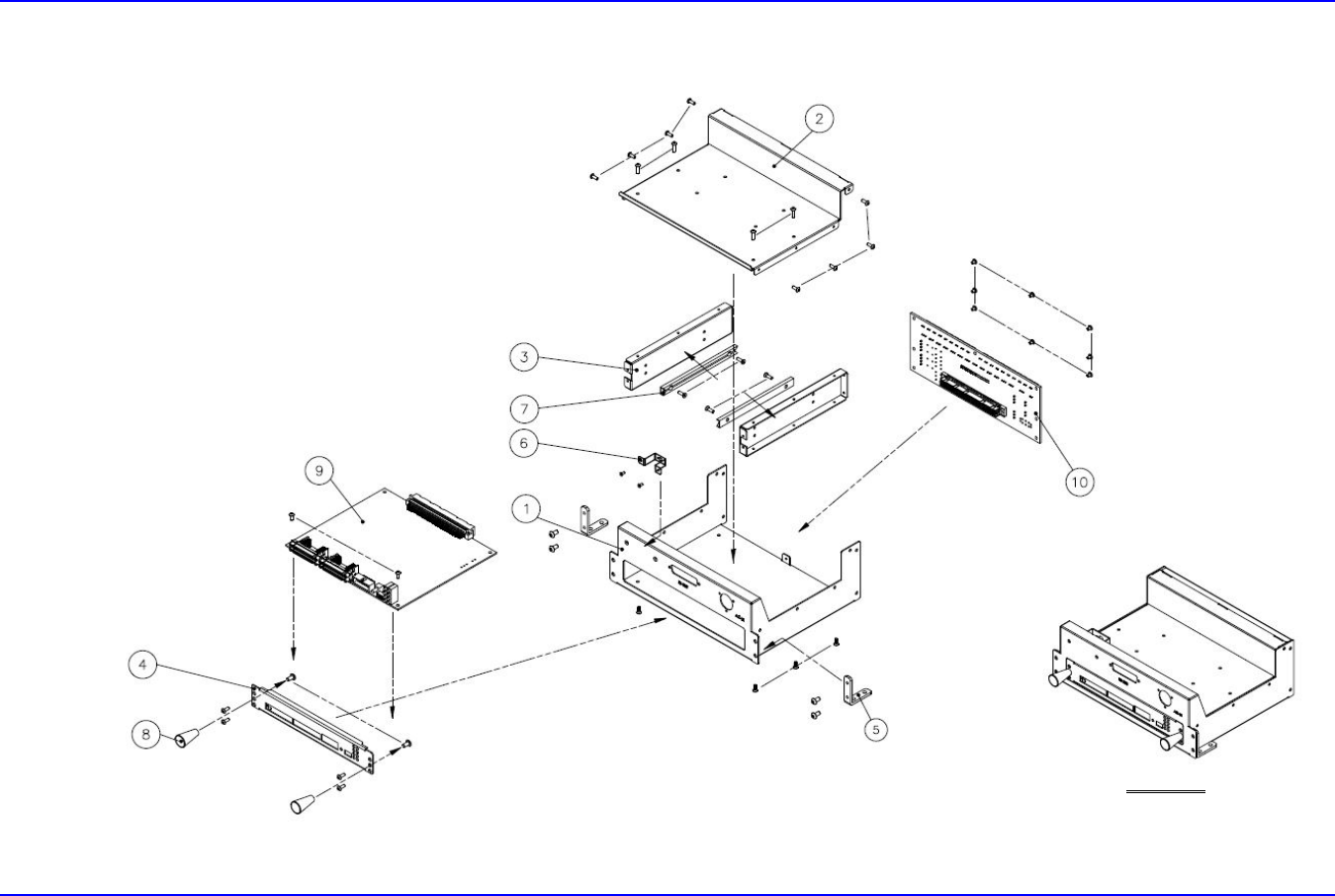

11.1.21. Motion Board Box
组装完成图
SMT顶级人脉圈平台资料下载
High Speed Multi Tray Feeder STF-100NA
用户手册
11-42
No.
TECHWIN
Part No.
JINYOUNG
Part No.
Part Name Q'ty Type ( Specification) Remark
1 FC15-004156A JW100N-MEB01-001 BOTTOM COVER 1 238*164.5*80*1.2T
2 JW100N-MEB01-002
UPPER COVER
1 212.5*163*49.6*1.2T
3 JW100N-MEB01-003 SIDE COVER 2 162.9*38*11*1.2T
4 AM03-018614A JW100N-MEB01-004 FRONT COVER 1 164*26.5*11*1.2T
5 FC09-006272A JW100N-MEB01-006 BRACKET-STF100NA 2 38*35*10*3T
6 FC09-006791A JW100N-MEB01-007 SWITCH BRACKET 1 60*30*15*1.2T
7 RM01-003499A JW100N-MEB01-101 SLIDE RAIL 2 MIR-2010
8 FC29-007019A JW100N-MEB01-102 HANDLE 2 BYCS307-16
9
AM03-017283A KJ_100NA_E_B004
ASSY,BOARD-
MOTION_CONTROL_100NA
1 KJ-S01MBF00
10 AM16-001021A KJ_100NA_E_B002 ASSY,BOARD-IO-100NA 1 KJ_S01MOT00
