High Speed Multi Tray Feeder STF-100NA

用户手册

11-52

No.

TECHWIN

Part No.

JINYOUNG

Part No.

Part Name Q'ty Type ( Specification) Remark

1 AM08-003629A JW100N-MEL03-000 MAGAZINE CLAMP HANDLE ASS'Y 1 JW100N-MEL03-000

SMT顶级人脉圈平台资料下载

A

/S

器具资材信息

11-53

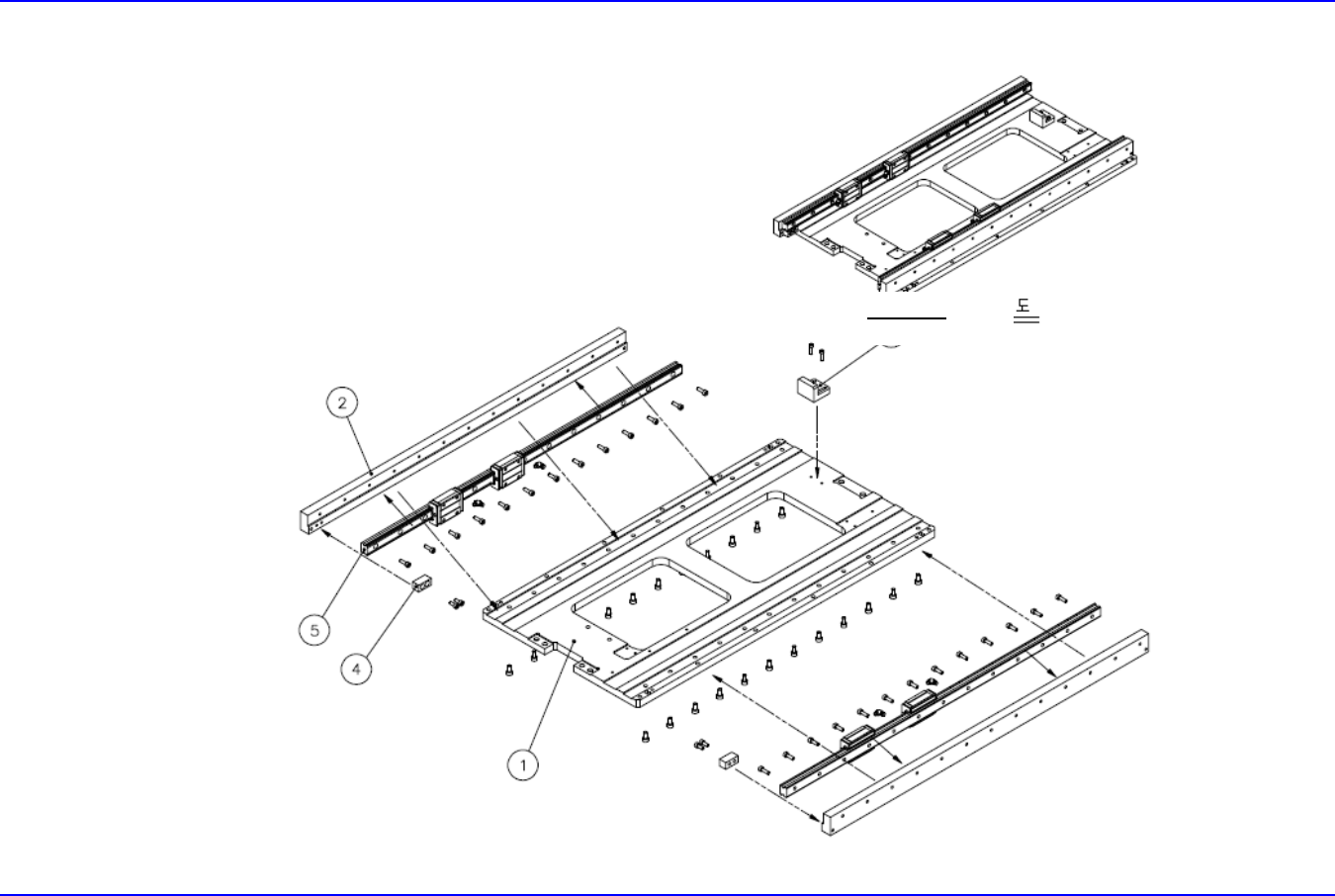

11.1.27. Elevator Ass'y -LM Guide

组装完成图

SMT顶级人脉圈平台资料下载

High Speed Multi Tray Feeder STF-100NA

用户手册

11-54

No.

TECHWIN

Part No.

JINYOUNG

Part No.

Part Name Q'ty Type ( Specification) Remark

1 JW100N-MEL01-001 ROBOT PLATE 1 724*379*15

2 JW100N-MEL01-024 LM BLOCK 2 770*38*20

3 FC29-007021A JW100N-MEL01-025 STOPPER 1 40*40*30

4 FC29-007022A JW100N-MEL01-026 STOPPER 2 30*14*15

5 MC13-001008A JW100N-MEL01-106 LM GUIDE 2 SR20W2UUC0+760L
