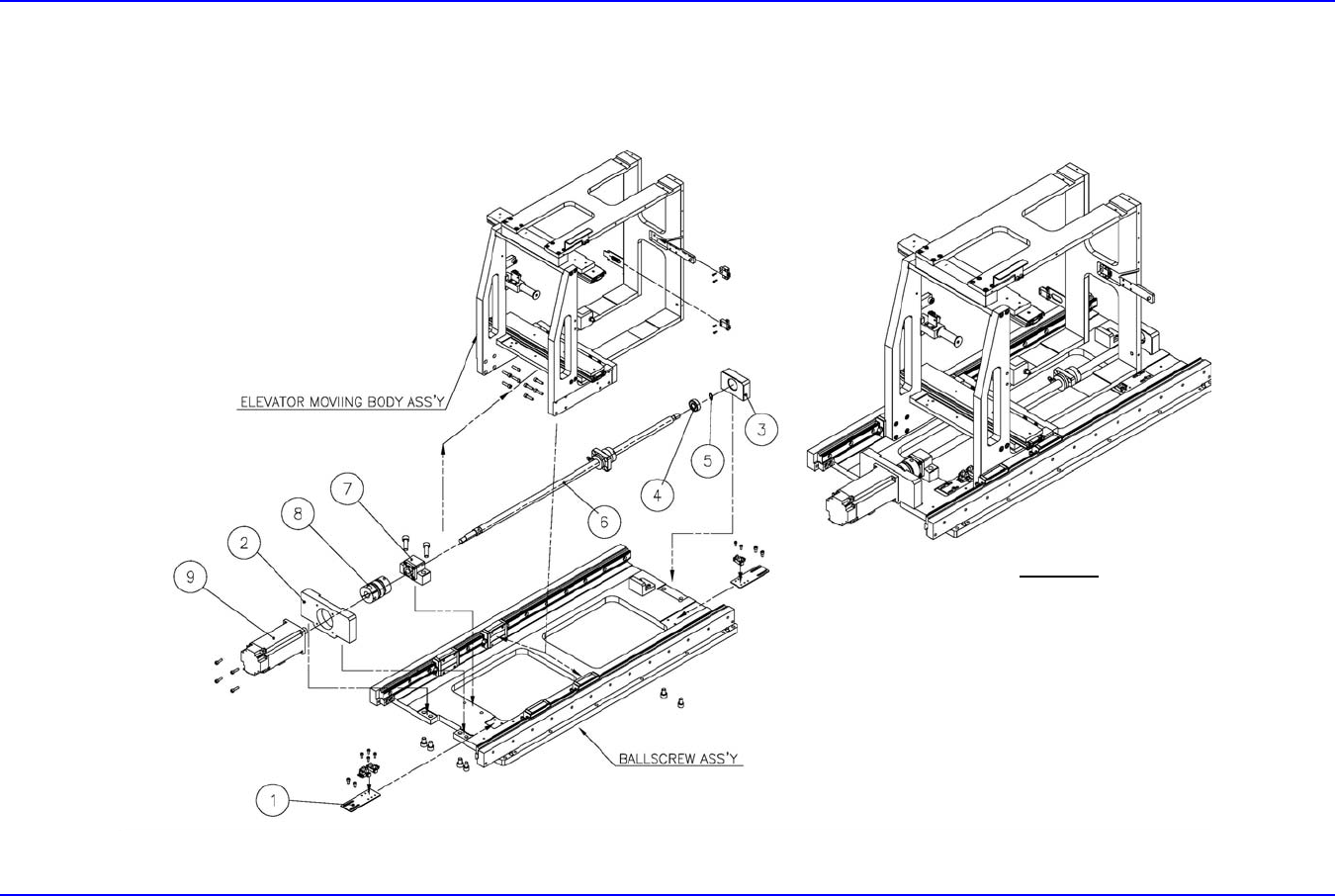

11.1.30. Elevator Ass'y
组装完成图
SMT顶级人脉圈平台资料下载
High Speed Multi Tray Feeder STF-100NA
用户手册
11-60
No.
TECHWIN
Part No.
JIYOUNG
Part No.
Part Name Q'ty Type ( Specification) Remark
1 FC30-004380A JW100N-MEL01-028 SENSOR PLATE 2 90*32*1.6T
2 FC09-006792A JW100N-MEL01-023 MOTOR BRACKET 1 150*74*20
3 FC09-006795A JW100N-MEL01-030 END BRACKET 1 70*46*20
4 MC03-002328A JW100N-MEL01-101 BEARING 1 6000ZZ
5 FC18-003310A JW100N-MEL01-102 SNAP RING 1 SHAFT C10
6 MC13-001009A JW100N-MEL01-103 BALLSCREW 1 BNK1510-5.6G2+671LC7Y
7 AM03-018856A JW100N-MEL01-104 SUPPORT UNIT 1 EK12
8 FC14-002158A JW100N-MEL01-105 COUPLING 1 SRB-39-10-14
9 EP08-001006 KJ_100NA_E_P002 SERVO MOTOR 1 MSME042G1T
SMT顶级人脉圈平台资料下载
A
/S
器具资材信息
11-61

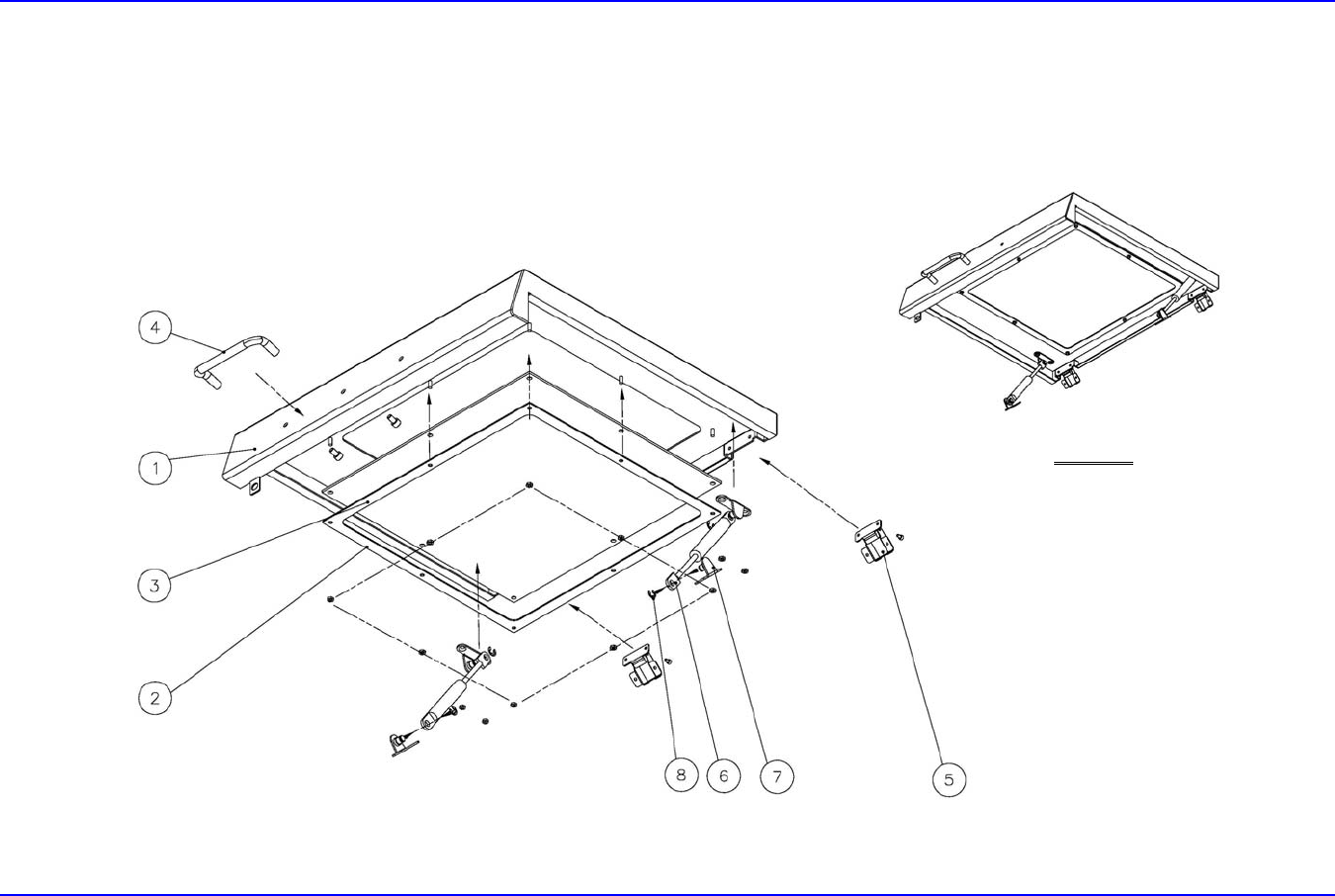

11.1.31. Door Ass'y -Top Door
