High Speed Multi Tray Feeder STF-100NA
用户手册
11-72
- 电源部配件型号名
No
.
TECHWIN
Part No.
JINYOUNG
Part No.
Part Name Q'ty
Type
( Specification)
Remark
1
TO03-
001001
KJ_100NA_E_P02
4
DRIVER-MADHT1507E 1
MADHT1507E
(200W Drive)
2
EP06-
000339
KJ_100NA_E_P00
4
SERVO CONTROL-DRIVE-
MBDHT2510E;400W_A5E
1
MBDHT2510E
(400W Drive)
3
EP18-
001001
KJ_100NA_E_P01
5
ACCESSORY,RELAY-CIRCUIT
1
MC-9B 1A1B
DC24V
4
EP10-
001010A
KJ_100NA_E_P01
6
MODULE,ELECTRONIC-NOISE-
FILTER-100NA
1
TB1-10A080
5
AM03-
017283A
KJ_100NA_E_B00
4
ASSY,BOARD-
MOTION_CONTROL_100NA
1 KJ-S01MBF00
6
EP23-
001001A
KJ_100NA_E_P00
8
ACCESSORY,TRANSFORMER-
100NA
1
1KV240.22 1KVA
240.220.200.120.11
0/220
7
AM03-
017307A
KJ_100NA_E_P02
0
ASSY,BOARD-POWER-SUPPLY-
100NA
1 RD-125B
SMT顶级人脉圈平台资料下载
A
/S
器具资材信息
11-73
- 电气配线图
SMT顶级人脉圈平台资料下载
High Speed Multi Tray Feeder STF-100NA
用户手册
11-74

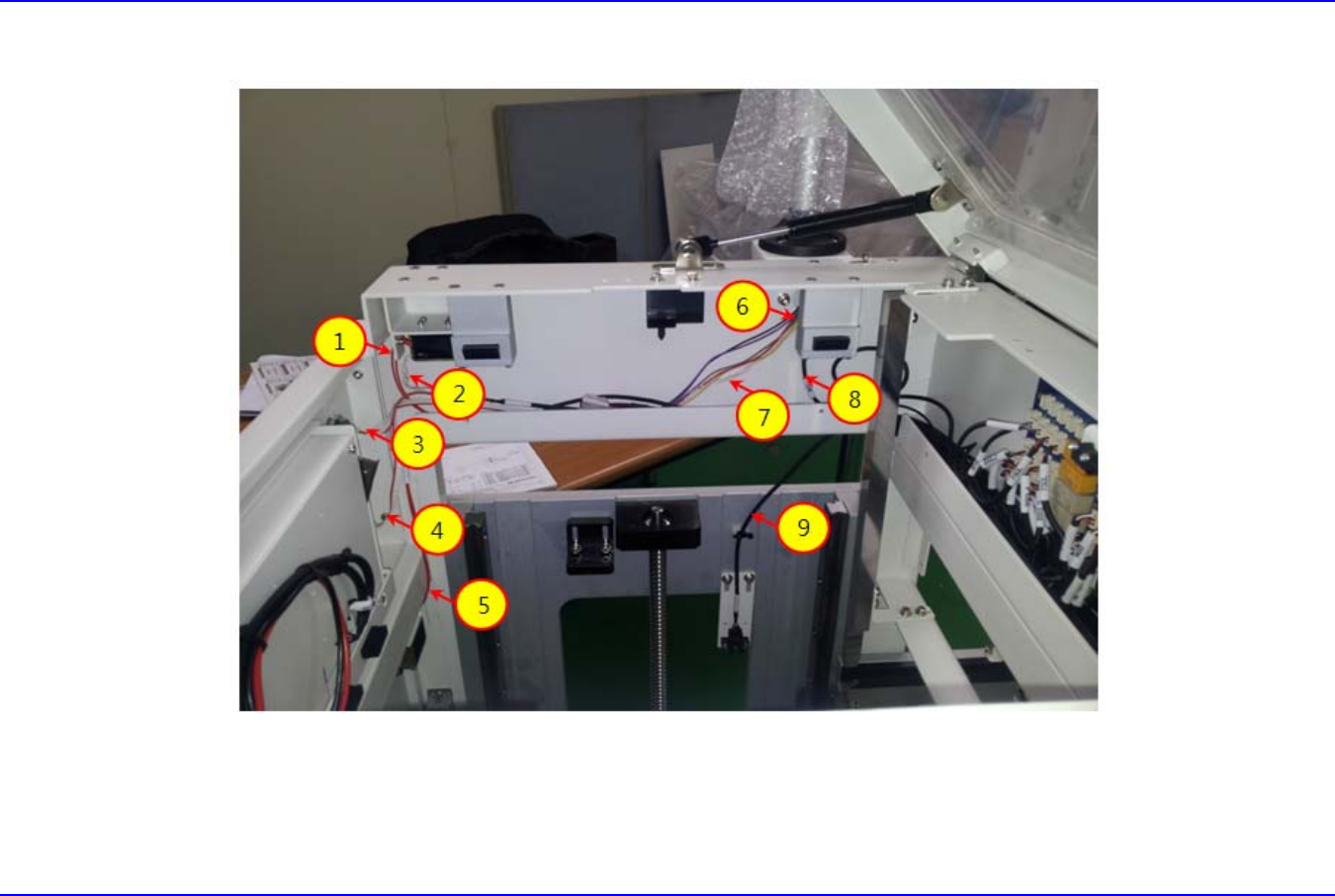

No.
TECHWIN
Part No.
JINYOUNG
Part No.
Part Name Q'ty
Type
( Specification)
Remark
1
AM16-
001186A
KJ_100NA_E_C033 ASSY,CABLE-SOLENOID-TOP-DOOR-100NA 1
2464 24AWG-
3C
TSOL
2
AM16-
001191A
KJ_100NA_E_C030 ASSY,CABLE-SOLENOID-BUFFER1-100NA 1
2464 24AWG-
3C
BSOL1
3
AM16-
001194A
KJ_100NA_E_C020 ASSY,CABLE-START-SWITCH-100NA 1
2465 24AWG-
3C
LEDG/START
4
AM16-
001192A
KJ_100NA_E_C021 ASSY,CABLE-STOP-SWITCH-100NA 1
2466 24AWG-
3C
LEDR/STOP
5
AM16-
001193A
KJ_100NA_E_C022 ASSY,CABLE-SOLENOID-FRONT-DOOR-100NA 1
2467 24AWG-
3C
FSOL
6
AM16-
001183A
KJ_100NA_E_C085 ASSY,CABLE-TOWER_LAMP-100NA 1
2468 24AWG-
3C
ALARM
7
AM16-
001185A
KJ_100NA_E_C032 ASSY,CABLE-SOLENOID-BUFFER3-100NA 1
2469 24AWG-
3C
BSOL3
8
AM16-
001132A
KJ_100NA_E_C031 SWITCH,ETC-LIMIT-100NA(TOP DOOR SWITCH) 1
2470 24AWG-
3C
TDSW
9
AM16-
001144A
KJ_100NA_E_C051
ACCESSORY,SENSOR-PHOTO-100NA(ELEVATOR UP
LIMIT SENSOR)
1 EE-SX671A EULS
